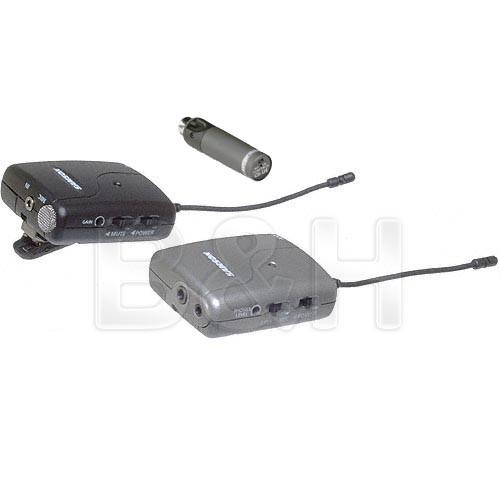

Product description The Samson AMC U4 is a portable wireless microphone package, combining three of the Samson Air-Line series components providing a convenient, all-in-one solution for the majority of wireless microphone needs. The package includes the AM1 receiver, AL1 microphone/body-pack transmitter and AX1 plug-in transmitter.The Samson AM1 camera mountable receiver is Samson's smallest wireless receiver to date and perhaps available in general. Measuring only 2 inches by 1 5/8 inches, this compact receiver operates over the UHF band of frequencies resulting in minimal drop-outs and interference from local radio frequencies. The unit features an audio out, headphone out, monitor level control, a Mic/Line output switch, Power switch and multi-function LED. The receiver is capable of operating from five to eight hours on a single triple-A battery.The Samson AL1 is a miniature transmitter with built-in microphone for use with any of the Samson-Micro line of receivers. The transmitter features a built-in unidirectional electret condenser microphone providing sound quality suitable for interviews, presentation, documentary work etc. A sub-mini input allows users to adapt an external lavalier microphone and phantom power is provided for condenser microphones. The transmitter operates over the UHF band resulting in minimal drop-outs and radio frequency interference. Also featured are Power and Mute switches, input level control and a two-function LED display. The AL1 features a 14 hour battery life a single triple-A battery.The Samson AX1 Handheld, Plug-In Transmitter lets you convert any dynamic microphone into a wireless mic. Simply plug a standard, dynamic microphone with an XLR output into the AX1, the signal is then transmitted to the receiver via UHF frequencies. The transmitter is a little smaller than an XLR connector, leaving it unobtrusive. Like all AirLine transmitters, the AX1 operates on a triple-A battery with 14-hour battery life and delivers reliable reception and transparent sound over long ranges. - Complete Wireless Package
- A complete solution for videographers in need of a wireless microphone package. The system includes a camera-mount receiver, body-pack transmitter / microphone and plug-in transmitter.
- Miniature Components
- The Samson Air-Line series wireless microphone components are manufactured to be easily portable. All components are compact, lightweight.
- UHF Transmission
- The system operates over the UHF band of frequencies allowing maximum transmission performance, lower drop-outs and interference.
UPC: 809164195092 In the Box Samson Airline Series - Camera Mountable UHF Non-Diversity Micro Combo System with AX1 Plug-In Transmitter, AL1 Transmitter/Microphone and AM1 Receiver (Channel U4/803.750 MHz) 2.5mm to 3.5mm Stereo (SMM14) Cable Transmitter Lanyard Touch Fastener Mounts Small Plastic (Gain Adjustment) Screwdriver 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Airline Series - Camera Mountable UHF Non-Diversity Micro Combo System with AX1 Plug-In Transmitter, AL1 Transmitter Microphone and AM1 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWAMSALU4 Specs | | SYSTEM | | Type of System | Camera Mountable UHF Combo Wireless System | | RF Carrier Frequency Range | UHF Band, USA 801.375 - 804.750MHz (U1-U6) | | Approx. Working Range | 50m | | Overall Frequency Response | 50 Hz - 15 kHz (±3.5 dB) | | Signal-to-Noise Ratio | More than 95dB (IHF-A), (with SG) | | # Of Channels | 1 Fixed Channel | | # Of Simultaneous Systems | 6 | | | RECEIVER | | Type of Receiver | Micro Camera Mount Single Superheterodyne Receiver with Hot Shoe/Belt Clip Attachment | | Type of Outputs | Audio Out: 2.5mm Jack For Use with the Supplied 2.5mm to 3.5mm Stereo (SMM14) Cable | | Headphone Monitoring | Yes, 3.5mm Jack with Volume Control | | Power Requirements | Internal Operating Voltage is 2.7v | | Battery Type/Approx. Life | One 'AAA', 5-8 Hours | | Display | Power On, Red LED Flash
RF On, Green LED Lighting
Battery Low, Red LED Lighting
Battery Low at RF On, Red + Green (Orange) | | Mounting Options | Camera Mountable Supplied with Touch Fastener Mounts | | Antenna Type | 1/4 Wave Length Antenna (Permanently Fixed) | | Dimensions | 1.68 x 2.24 x .74" (42 x 56 x 18.5mm) WxDxH (without antenna) | | Weight | 0.88 oz. (25 g) Without Antenna and Battery | | | AL1 TRANSMITTER/MICROPHONE | | Type of Transmitter | Micro BodyPack Transmitter/Microphone | | Type of Input Connector | 2.5mm Stereo Jack | | Type of Microphone | Built In Electret Condenser | | Polar Pattern | Unidirectional | | Interchangeable Mic Heads | Internal Microphone - NO, but the 2.5mm Mini Jack Enables the Use of External Condenser Lavaliers (Phantom Power of 2.7v IS Provided by the Transmitter) | | Battery Type/Approx. Life | One 'AAA' Battery, 14 Hours | | Mute Switch | Yes | | Level Control | Yes | | Antenna Type | External Wire Type, Fixed and Flexible | | Display | Yes, LED Flashes Once When AL1 is First Turned on and Lights Steadily Red When Less than 2 hours of battery power remains, Indicating that the Battery Must be Changed. | | Dimensions | 1.68 x 2.24 x .74" (42 x 56 x 18.5mm) WxDxH (without antenna) | | Weight | 0.88 oz. (25 g) Without Antenna and Battery | | | AX1 PLUG-IN TRANSMITTER | | Type of Transmitter | Handheld Plug-In | | Type of Input Connector | 3-Pin XLRF Type | | Type of Microphone | None, Plug-In Transmitter, for Use with Optional Handheld Microphone | | Polar Pattern | N/A | | Interchangeable Mic Heads | Any Handheld Dynamic Microphone | | Battery Type/Approx. Life | 'AAA' Size Battery - 14 Hours | | Mute Switch | No | | Level Control | Yes, Microphone Input Level Control | | Antenna Type | Internal | | Display | Power On (LED Flash), Low Battery (LED On) | | | | Package Weight | 0.56 lb | | Box Dimensions (LxWxH) | 8.2 x 5.3 x 1.5" |
