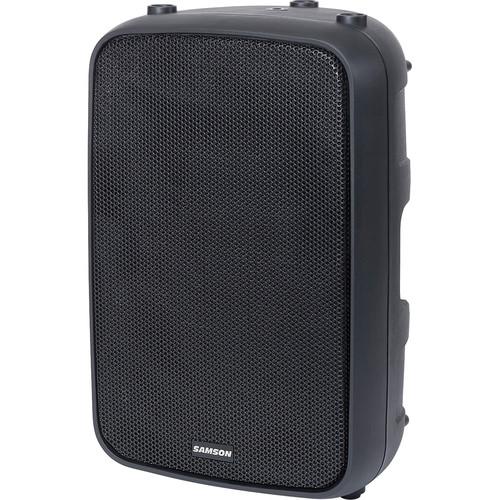

User Manual for Samson AURO X12DA 1000-W Active Loudspeaker Click to enlarge the picture
Contents of the user manual for the Samson AURO X12DA 1000-W Active Loudspeaker
- Product category: PA Speakers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson PA Speakers
|
User manual for the Samson AURO X12DA 1000-W Active Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description For sound reinforcement, the AURO X12DA 1000-W Active Loudspeaker by Samson is a good professional choice. It can be used in various environments for audio applications such as, live sound, DJ setups, rehearsals, PA systems, houses of worship and more. It features a lightweight 1,000 W Class D amplifier with digital signal processing technology that continually corrects the audio signal. It also offers the speaker and its components with a protection circuit to prevent overheating, and has limiter LED to indicate when the amp is near the clipping point. The AURO X12DA is built with two combo XLR and 1/4" input connectors, volume controls, mic/line switch, and 3-position EQ and HPF presets, for different applications and setups. A XLR link output allows expanded sound to additional speakers. A full metal grill protects all speaker components, and an integrated 1 3/8" speaker stand mount is provided. In addition two large ergonomic carry handles and dual-angle floor monitor position options help get the job done. - Compact, lightweight Class D active loudspeakers
- Samson's R.A.M.P. DSP technology helps to protect the speaker
- Master volume control with peak indicator
- Two XLR-1/4" combo input channels with independent volume controls
- Full metal grill protects all speaker components
UPC: 809164014454 In the Box Samson AURO X12DA 1000-W Active Loudspeaker AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AURO X12DA 1000-W Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson X12D Specs | | | Configuration | Active | | Total Power Capacity | 1000 W | | Amplifier Power Rating | LF:
400 W RMS
800 W Peak (at 8 Ohms)
HF:
100 W RMS
200 W Peak (at 8 Ohms) | | | | HF Driver | 1 x 1.34" / 34 mm Titanium Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | LF Voice Coil | 2.5" / 6.3 cm | | | | Frequency Response | 58 Hz to 20 kHz -3 dB | | Maximum SPL | 125 dB SPL (Peak) | | Coverage Angle | 90° H x 60° V | | THD | <1% | | | | Audio I/O | 1 x Combo XLR / 1/4" Balanced Line/Mic Input
1 x Combo XLR / 1/4" Balanced Line Input
1 x XLR Balanced Line Output | | | | Crossover | 2.3 kHz, 24 dB/Octave Linkwitz-Riley | | EQ | 3 x Presets (Factory) Flat, Deep, Boost | | Filters | High-Pass:
80 Hz / 120 Hz | | | | AC Input Power | 100 to 127 VAC, 60 Hz (T 6.3 A H 250 V)
220 to 240 VAC, 50 Hz (T 3.15 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 456 W (Max) | | | | Mounting | 1 x 1.38" / 3.5 cm Pole Socket | | Dimensions | 25.0 x 16.5 x 13.0" / 63.0 x 42.0 x 33.0 cm | | Weight | 28.5 lb / 12.8 kg | | | | Package Weight | 33.65 lb | | Box Dimensions (LxWxH) | 24.0 x 16.5 x 13.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
