User Manual for Samson C01 Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Samson C01 Condenser Microphone
- Product category: Large Diaphragm Condenser Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Large Diaphragm Condenser
 |
User manual for the Samson C01 Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

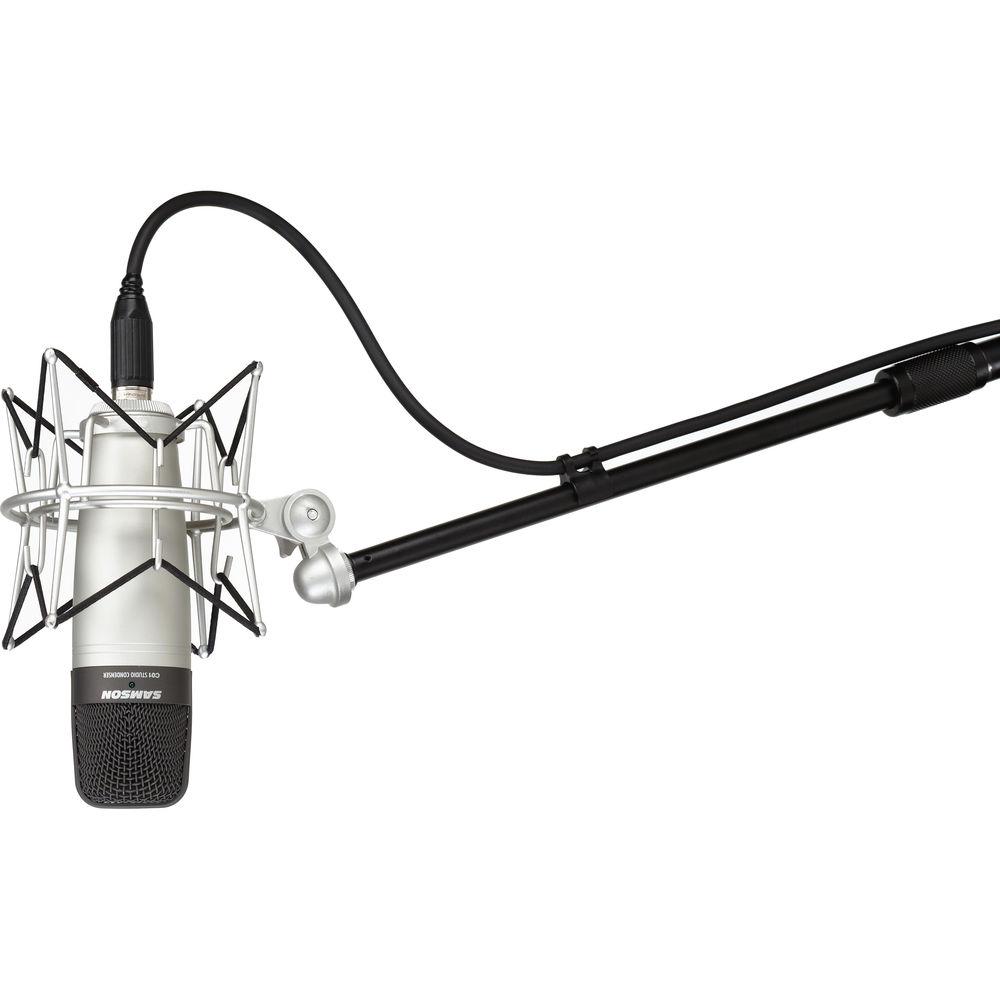

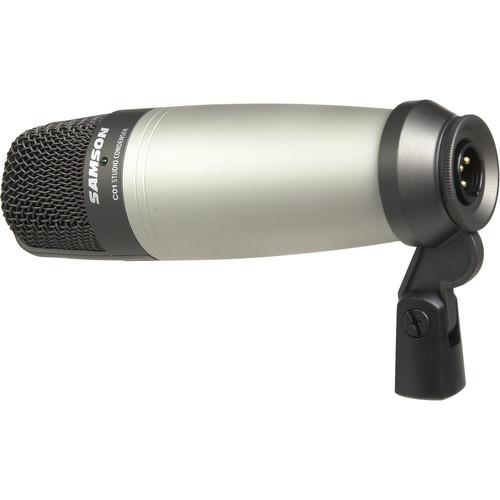

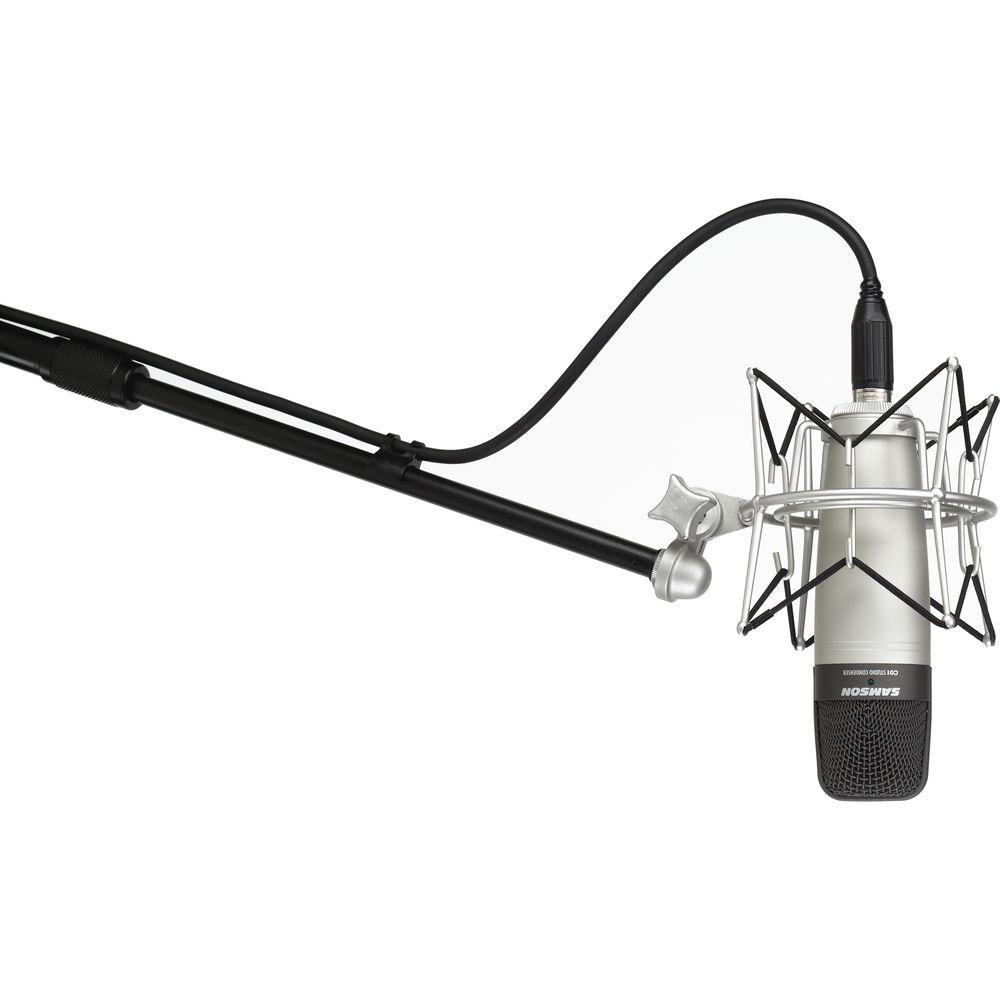

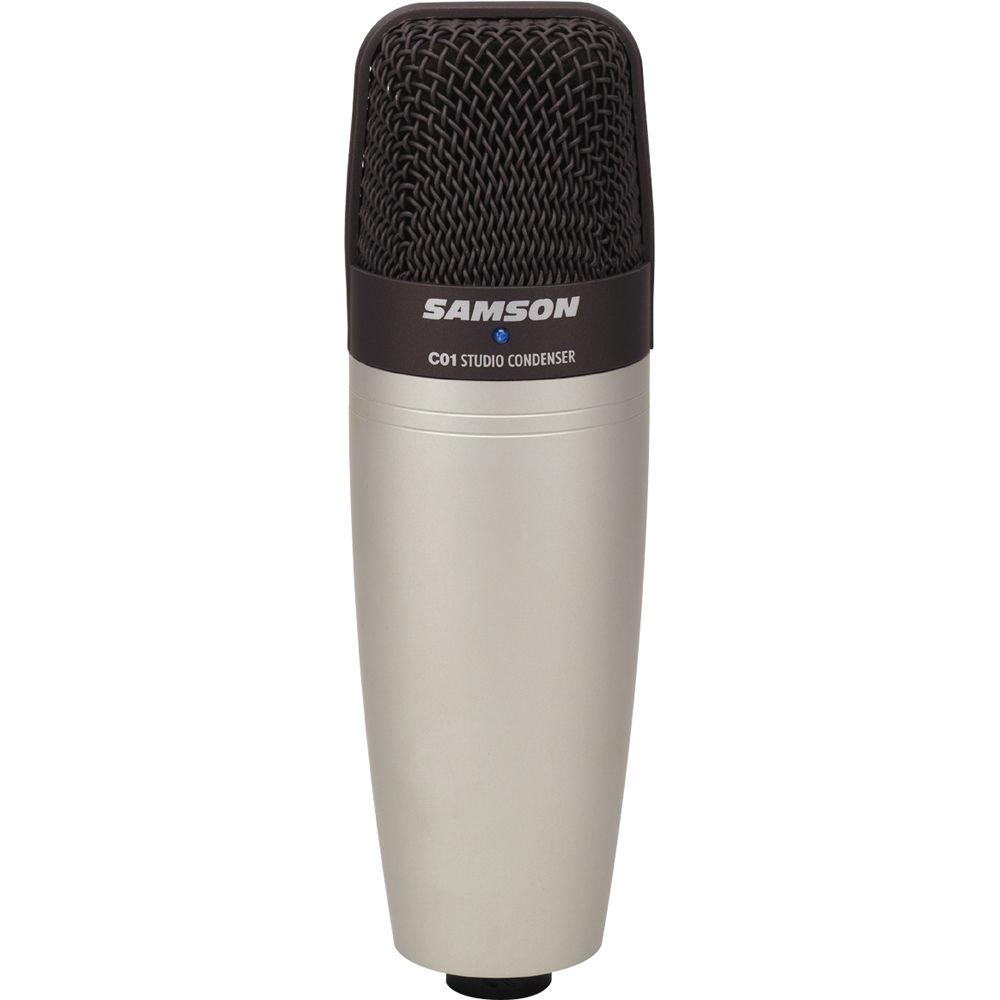

Product description The C01 Condenser Microphone from Samson is a studio microphone equipped with a dual-layer 19mm diaphragm, a hypercardioid polar pattern, and a gold-plated XLR connector. It can be used in recording applications to capture audio from vocalists or instruments. The microphone features high-SPL handling like a dynamic microphone, while retaining the clarity of a condenser. Its hypercardioid polar pattern maximizes off-axis signal rejection, focusing on sound directly in front of the microphone. The C01 is built with a blue LED for monitoring 48V phantom power, includes a swivel mount and carrying case, and is made of an all-metal housing and grille. - Dual-layer 19mm capsule with 3-micron diaphragm
- Smooth and transparent sound reproduction
- Hypercardioid pickup pattern
- 36 to 52 V phantom power operation with blue LED
- Extended frequency response
- Solid die-cast construction
UPC: 809164002796 In the Box Samson C01 Condenser Microphone Swivel Stand Mount Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson C01 Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson C01 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Hypercardioid | | Frequency Range | 40 Hz to 18 kHz | | Maximum SPL | 136 dB SPL | | Impedance | 200 Ohms | | Sensitivity | -33 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 36 to 52 V | | Length | 7" / 17.78 cm | | Diameter | 2.1" / 53.34 mm | | Weight | 2 lb / 0.91 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.0 x 9.2 x 2.9" |
