User Manual for Samson C02 Pencil Condenser Microphones Click to enlarge the picture
Contents of the user manual for the Samson C02 Pencil Condenser Microphones
- Product category: Small Diaphragm Condenser Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Small Diaphragm Condenser
 |
User manual for the Samson C02 Pencil Condenser Microphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

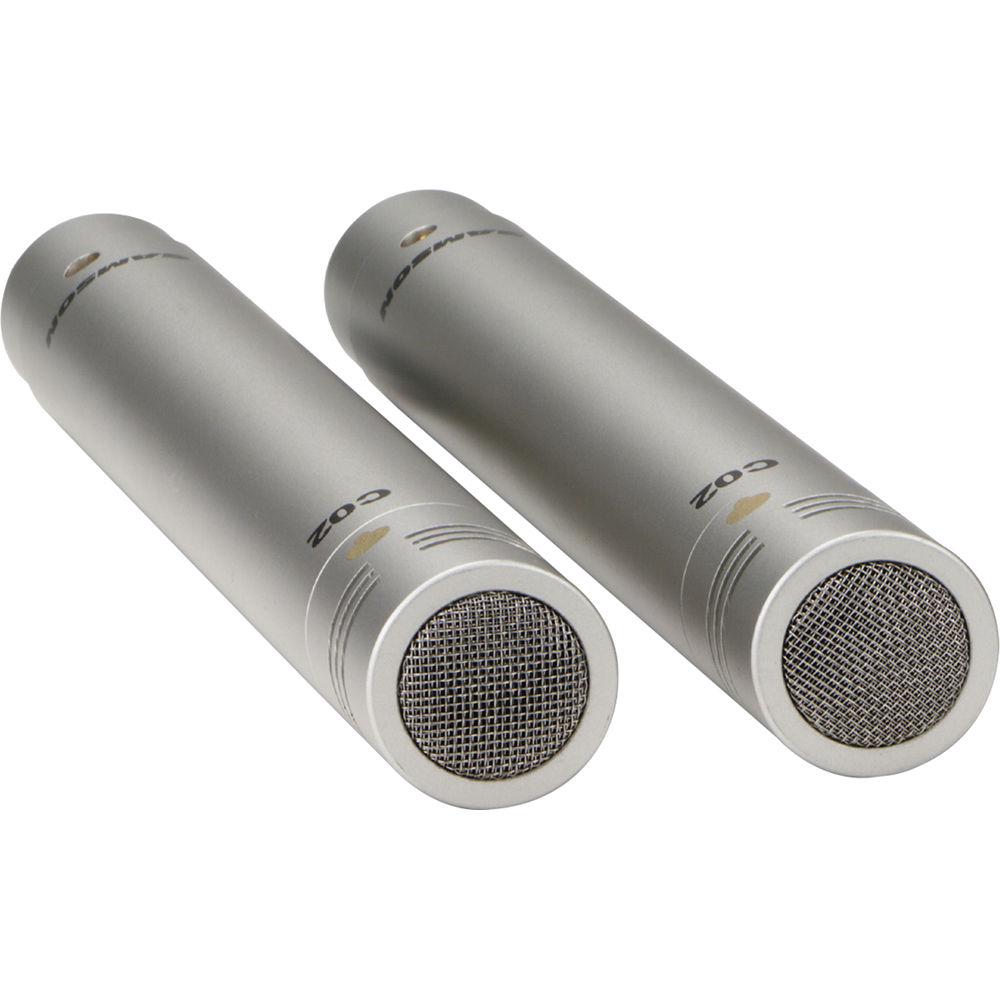

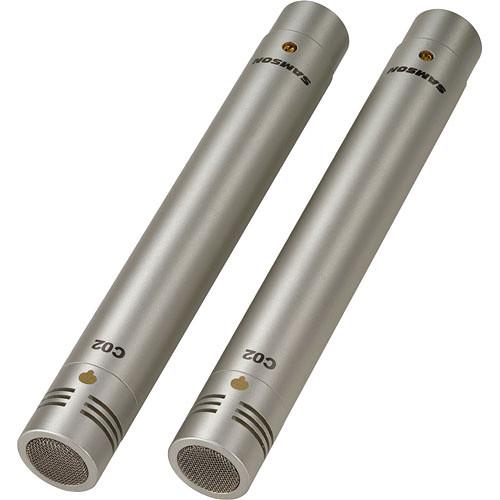

Product description The Samson C02 condenser microphones deliver high audio performance while remaining cost effective. Delivered as a pair, the microphones excel in applications requiring dual placement. Drum cymbals, overheads, percussion, guitar, piano, strings and vocals are accurately captured and reproduced in detail. The C02's low-mass capsule features a supercardioid polar pattern. The supercardioid pattern provides a tight pickup area at the front of the microphone. The result minimizes ambient room noise and signals from nearby instruments and monitors that may cause feedback. A wide, linear frequency response results in rich detail while minimizing low-frequency noise. The C02 requires external +48V phantom power and is a suitable solution for recording and live-sound applications. - Extended Frequency Response
- The C02 features a frequency response of 40 Hz to 20 kHz which accurately reproduces audio with great detail while minimizing low-frequency noise.
- Tight Supercardioid Polar Pattern
- In addition to the front-firing design of the capsule, the supercardioid polar pattern minimizes pickup at the off-axis sections, eliminating ambient noise and reducing feedback.
- High SPL Response
- The C02 accurately reproduces signal at high sound-pressure levels without noise or distortion.

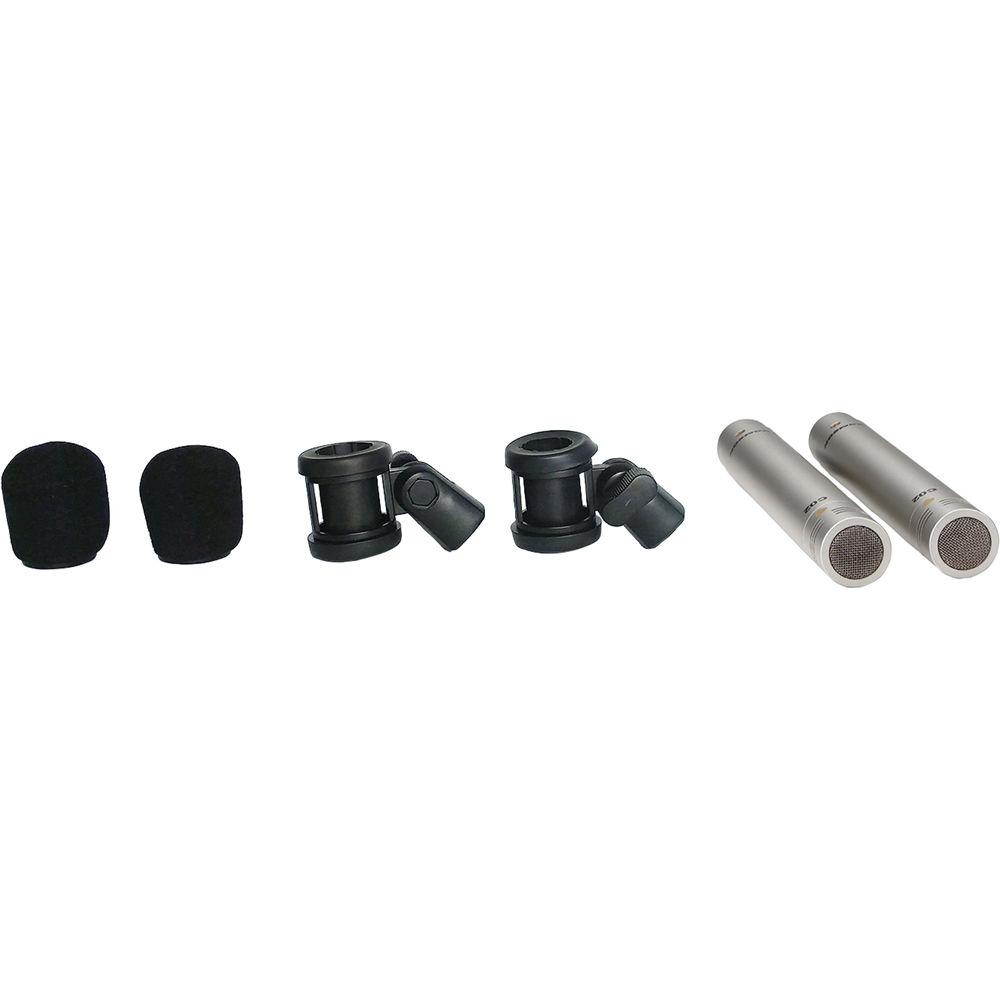

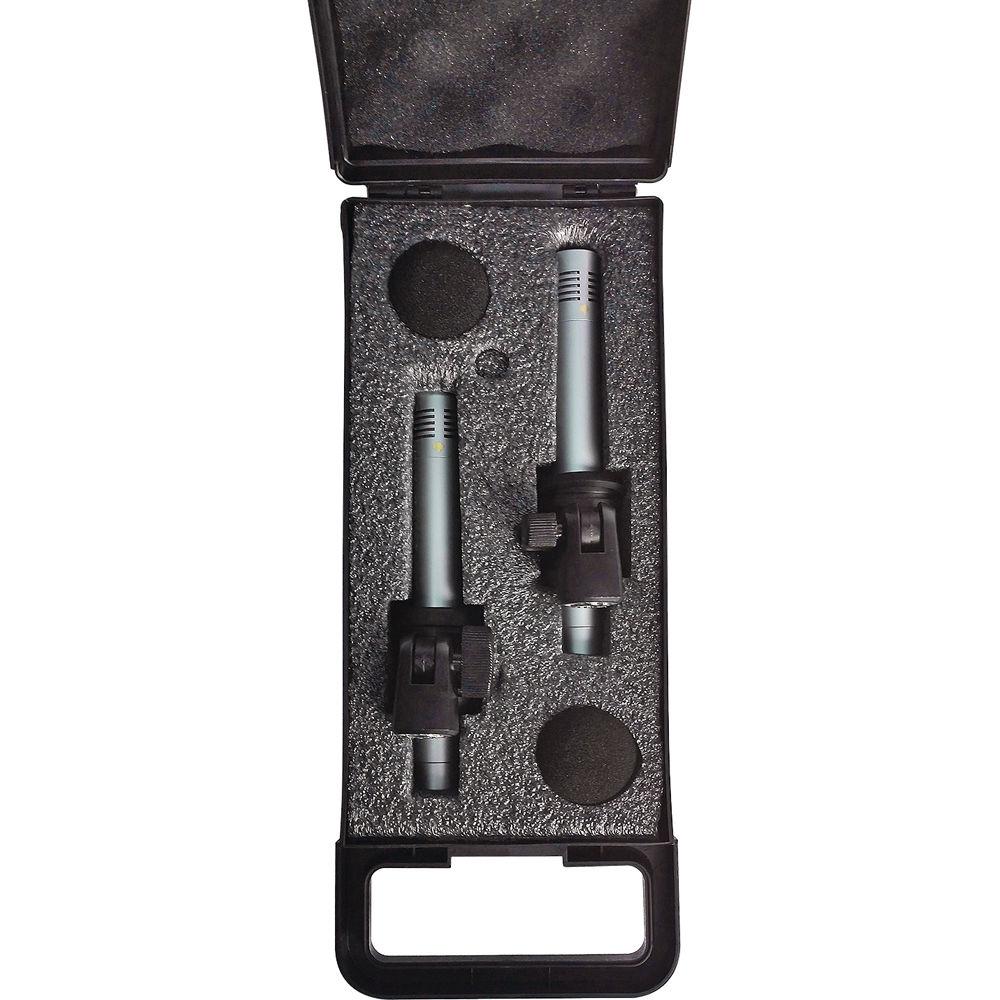

UPC: 809164003403 In the Box Samson C02 Pencil-Style Instrument Microphones (Pair) 2 x Shockmounts Carry Case 2 x Wind Screens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson C02 Pencil Condenser Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson C02 Specs | | | Transducer | Condenser | | Diaphragm | 0.47" / 12 mm | | Polar Pattern | Supercardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 134 dB SPL | | THD | < 0.5% | | Impedance | 200 Ohms | | Sensitivity | 10 mV/Pa | | Dynamic Range | 112 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V | | Length | 5.91" / 150 mm | | Diameter | 0.79" / 20 mm | | Weight | 6.00 oz / 170 g | | | | Package Weight | 1.515 lb | | Box Dimensions (LxWxH) | 11.8 x 4.95 x 3.05" |
