User Manual for Samson CH88 Wireless Handheld Transmitter Click to enlarge the picture
Contents of the user manual for the Samson CH88 Wireless Handheld Transmitter
- Product category: Wireless Transmitters Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Transmitters
 |
User manual for the Samson CH88 Wireless Handheld Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

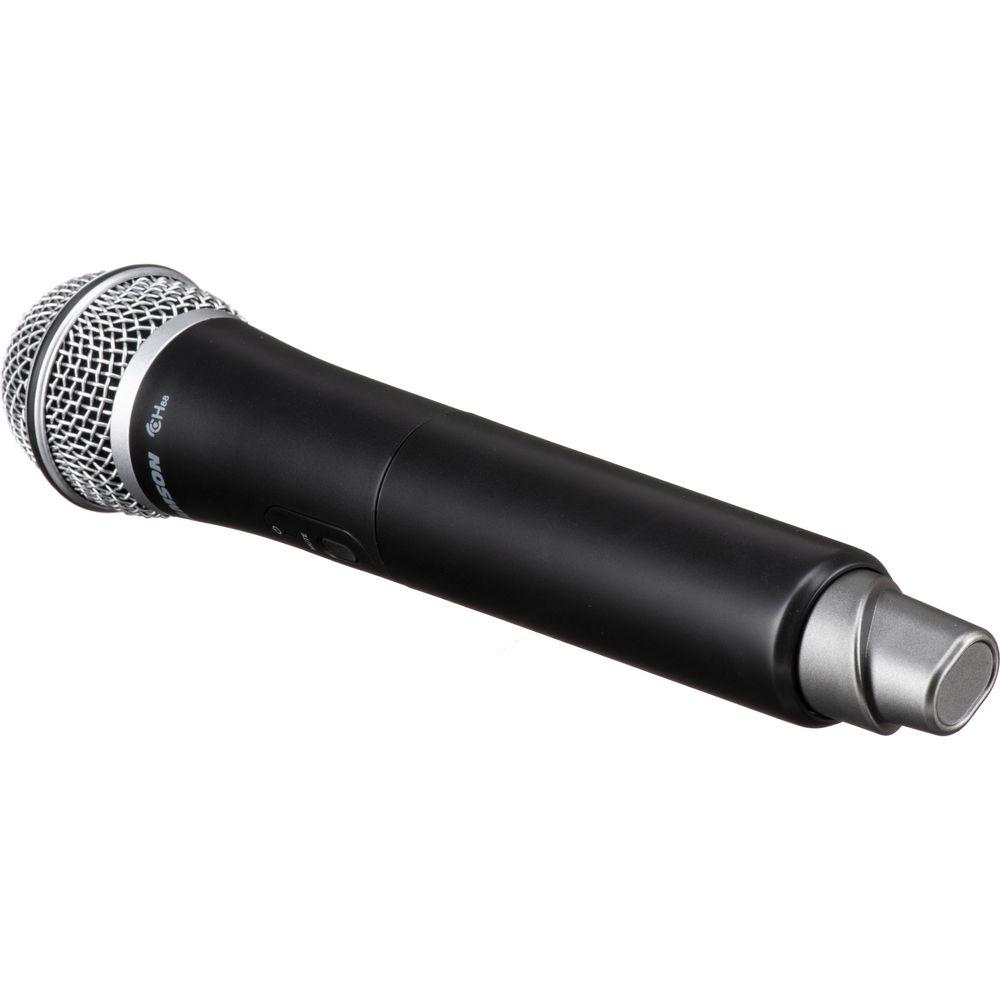

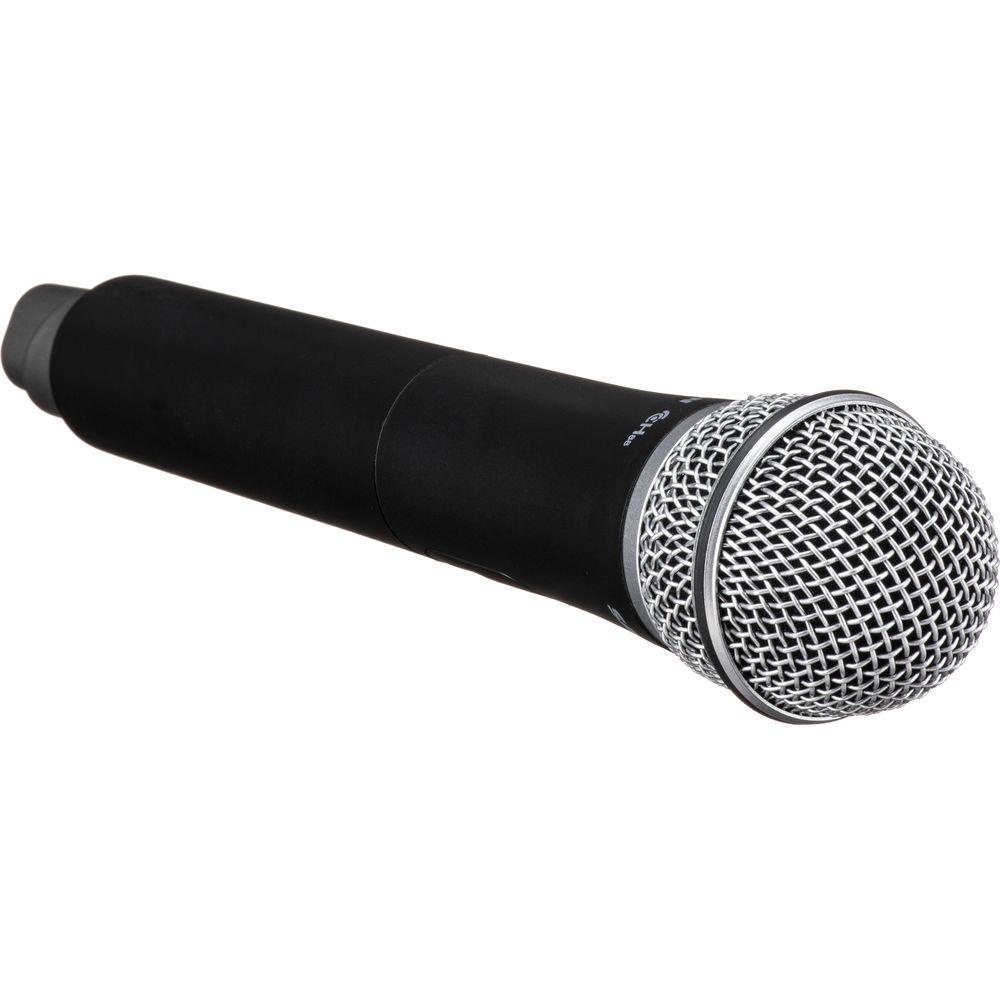

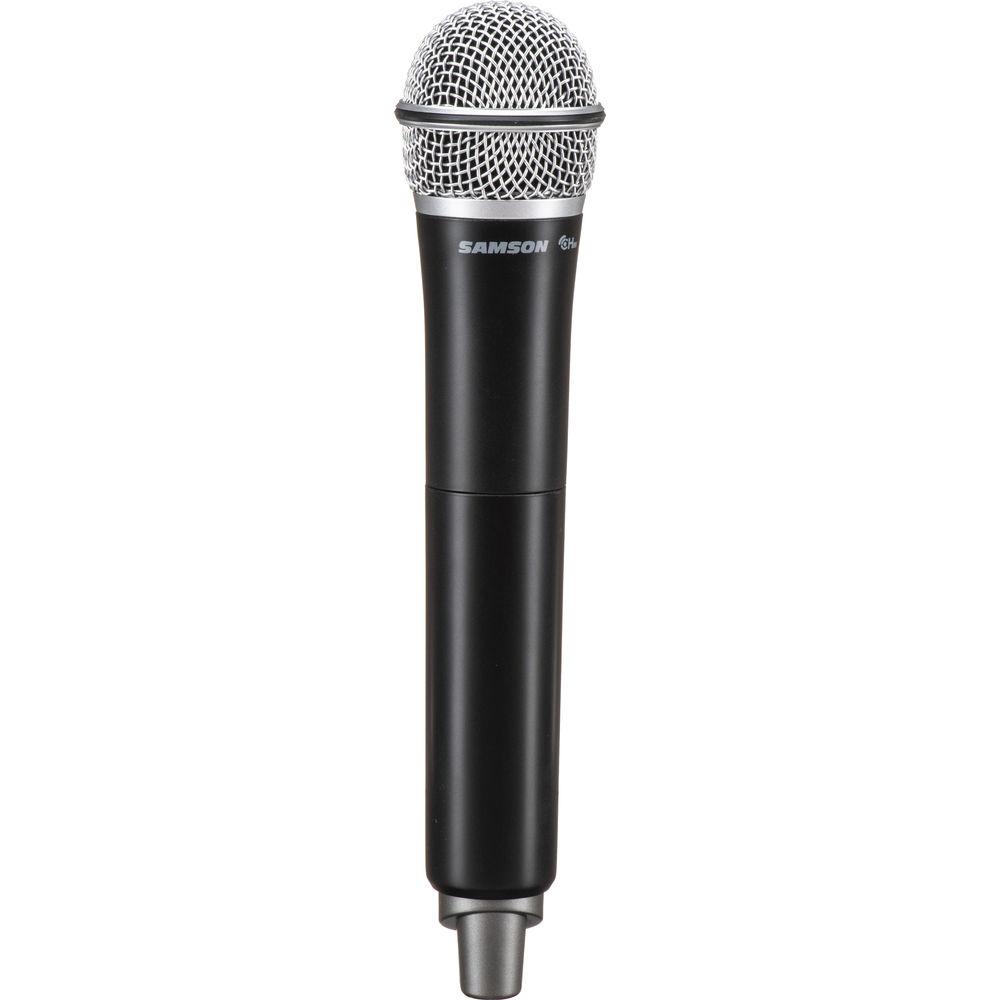

Product description The CH88 Wireless Handheld Transmitter from Samson is a replacement handheld transmitter for the Concert 88 / 288 wireless systems. It can be used to capture audio for singers, business professionals, educators, and others when paired with the CR88 or CR 288 wireless receiver (sold separately).The frequency-agile handheld transmitter allows for 16 systems to operate simultaneously across two frequency bands with up to 300' separating the receiver and transmitter. Equipped with a Q6 dynamic microphone capsule, this transmitter can operate for up to eight hours on two AA batteries and is engineered to provide high-quality sound reproduction. A receiver is required. - CH88 Handheld Transmitter:
- Q6 Dynamic Microphone capsule
- Offers up to eight hours of battery life using two AA batteries
- 300' operating range
UPC: 809164219040 In the Box Samson CH88 Wireless Handheld Transmitter (K: 470 to 494 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson CH88 Wireless Handheld Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson CH88 Specs | | | Frequency Band | K: 470 to 494 MHz | | Operating Range | 300' / 100 m line of sight | | Frequency Response | 50 Hz to 15 kHz | | THD | < 1% at AF 1 kHz, RF 46 dBu | | Dynamic Range | > 100 dB A-weighted | | Signal to Noise | > 85 dB | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Tone Key | 32.768 kHz | | | | Microphone Element | Q6 dynamic | | Input Gain | 28 dB | | RF Power | 10 mW EIRP | | Sync System | Infrared | | Power Requirement | Two AA (LR6) alkaline batteries | | Battery Life | 8 hours | | Dimension | 10.23 x 2.1" / 260 x 54 mm | | Weight | 0.48 lb / 218 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 11.5 x 3.6 x 2.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
