User Manual for Samson Concert 288 All-In-One Dual-Channel Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Concert 288 All-In-One Dual-Channel Wireless
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Concert 288 All-In-One Dual-Channel Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

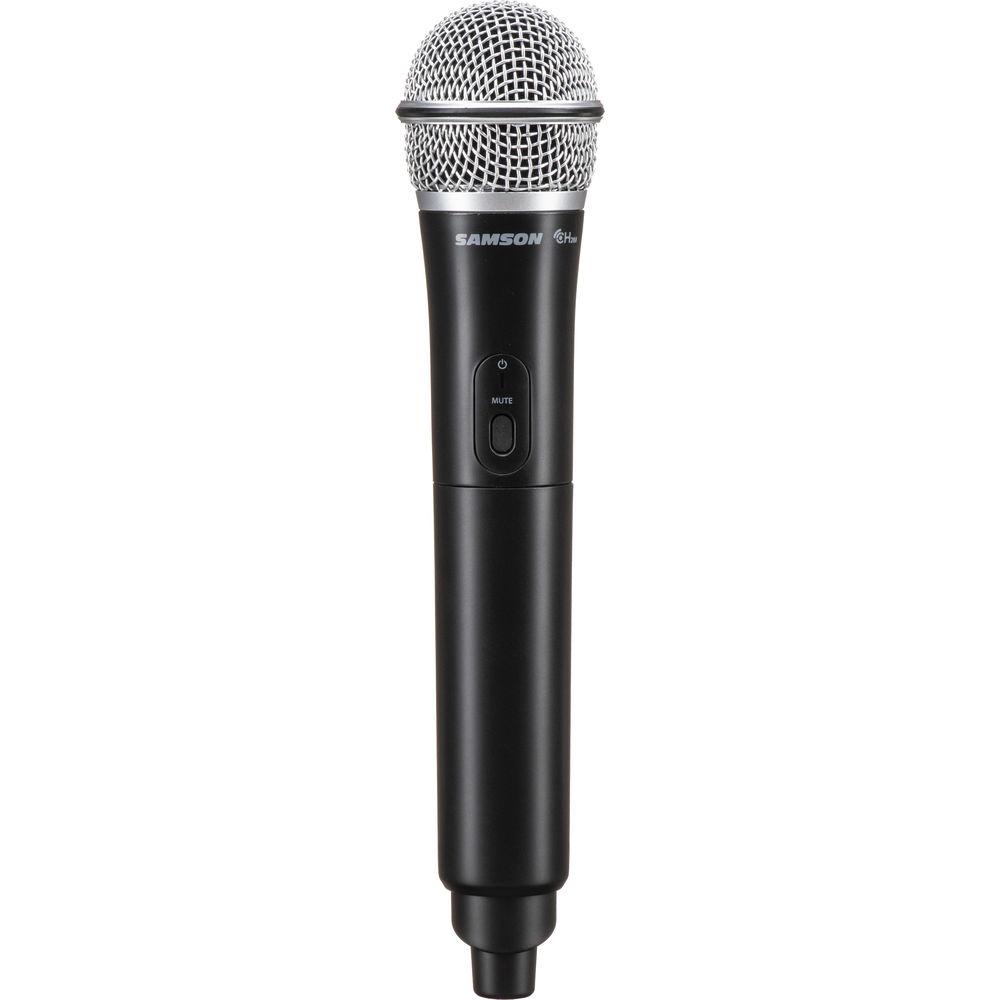

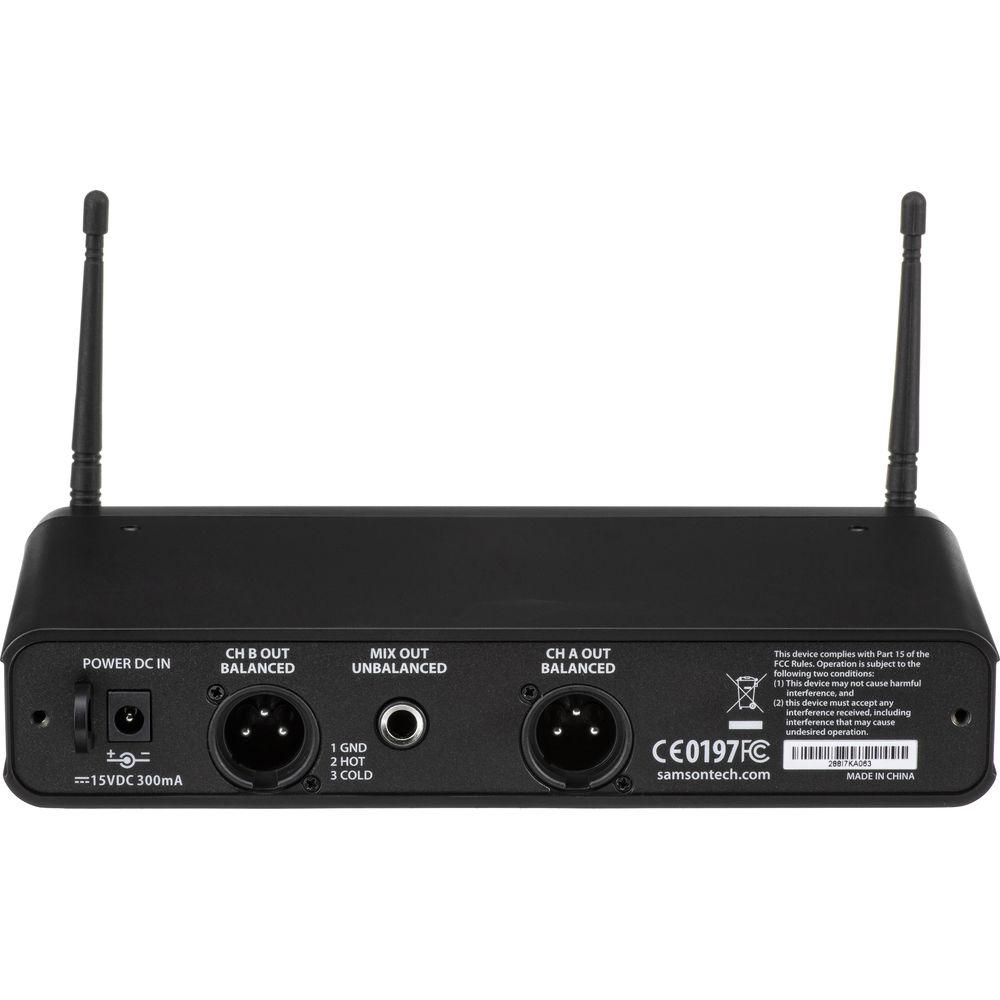

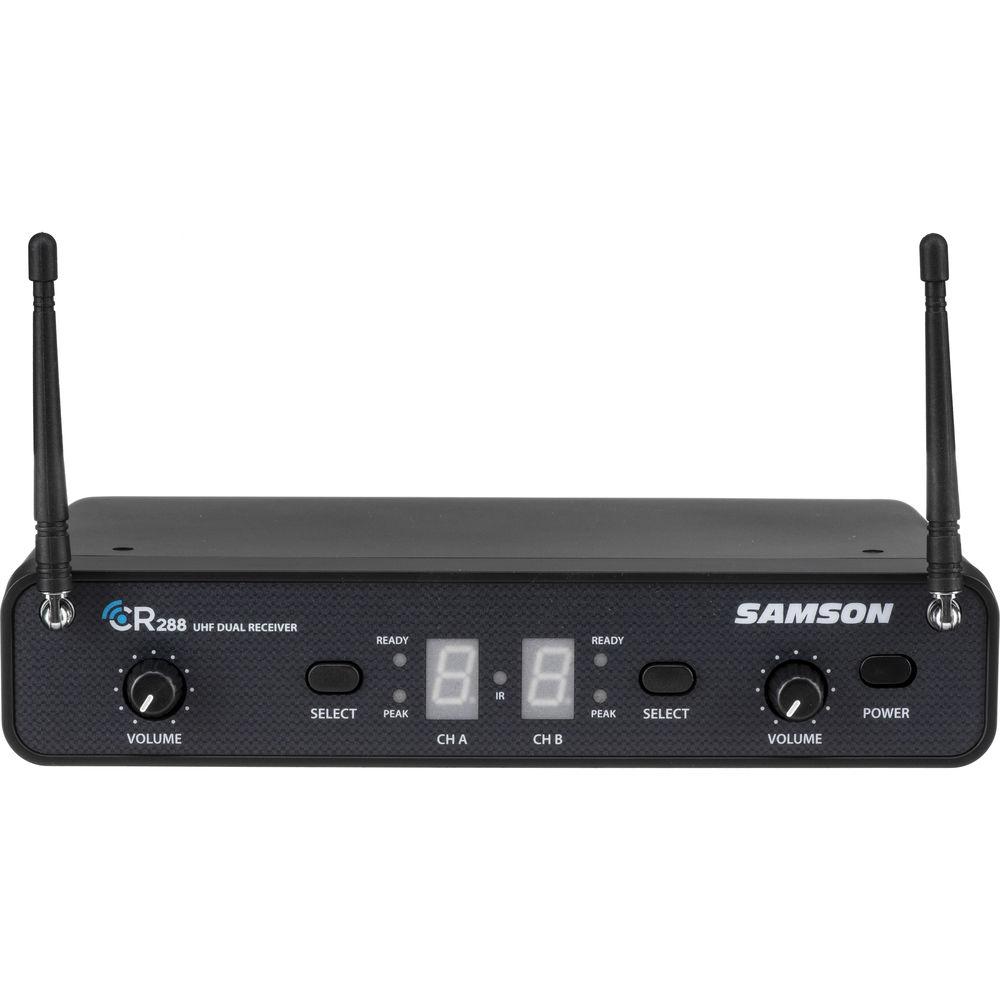

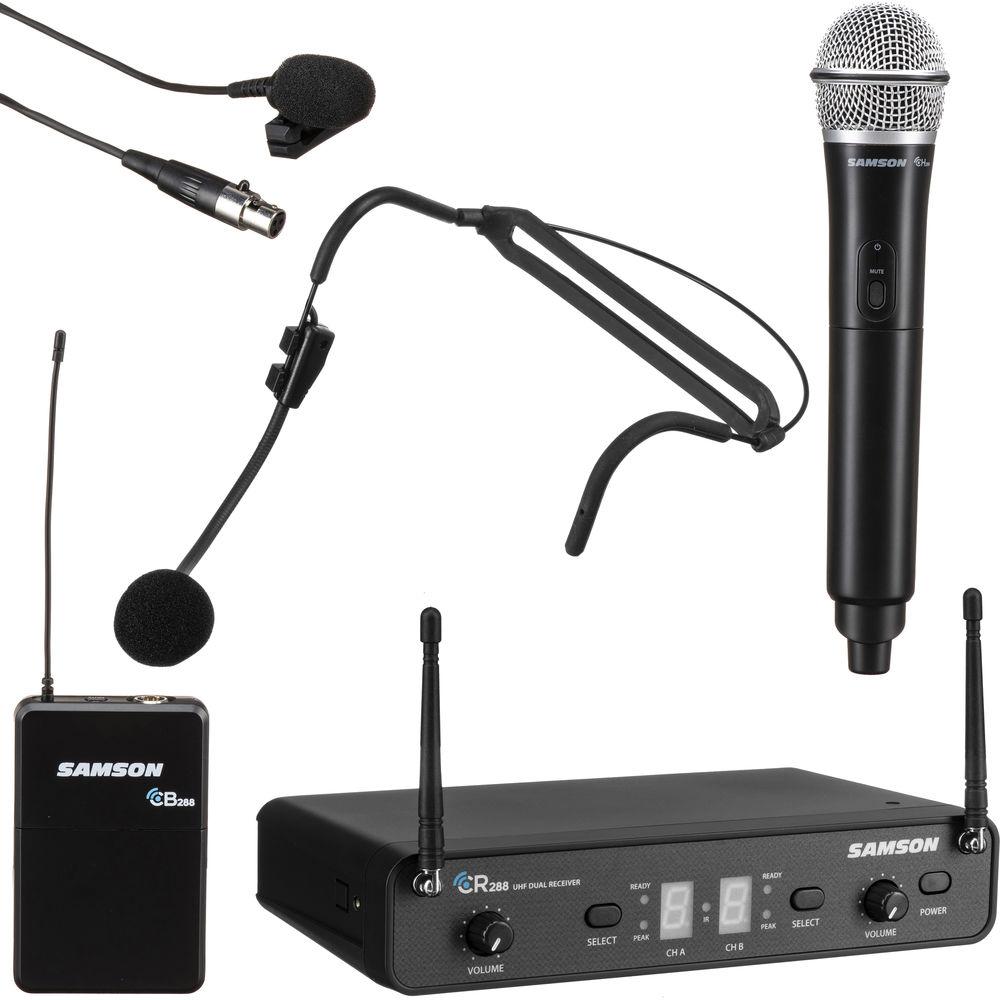

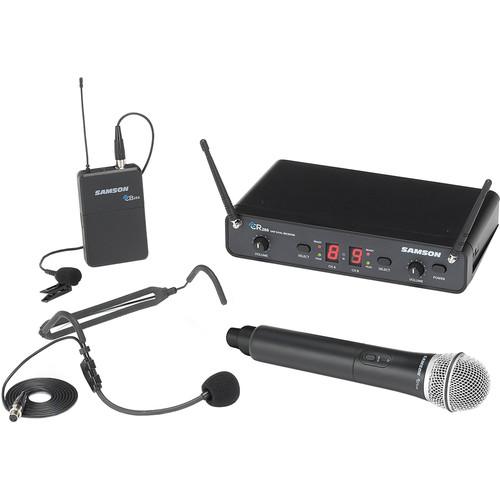

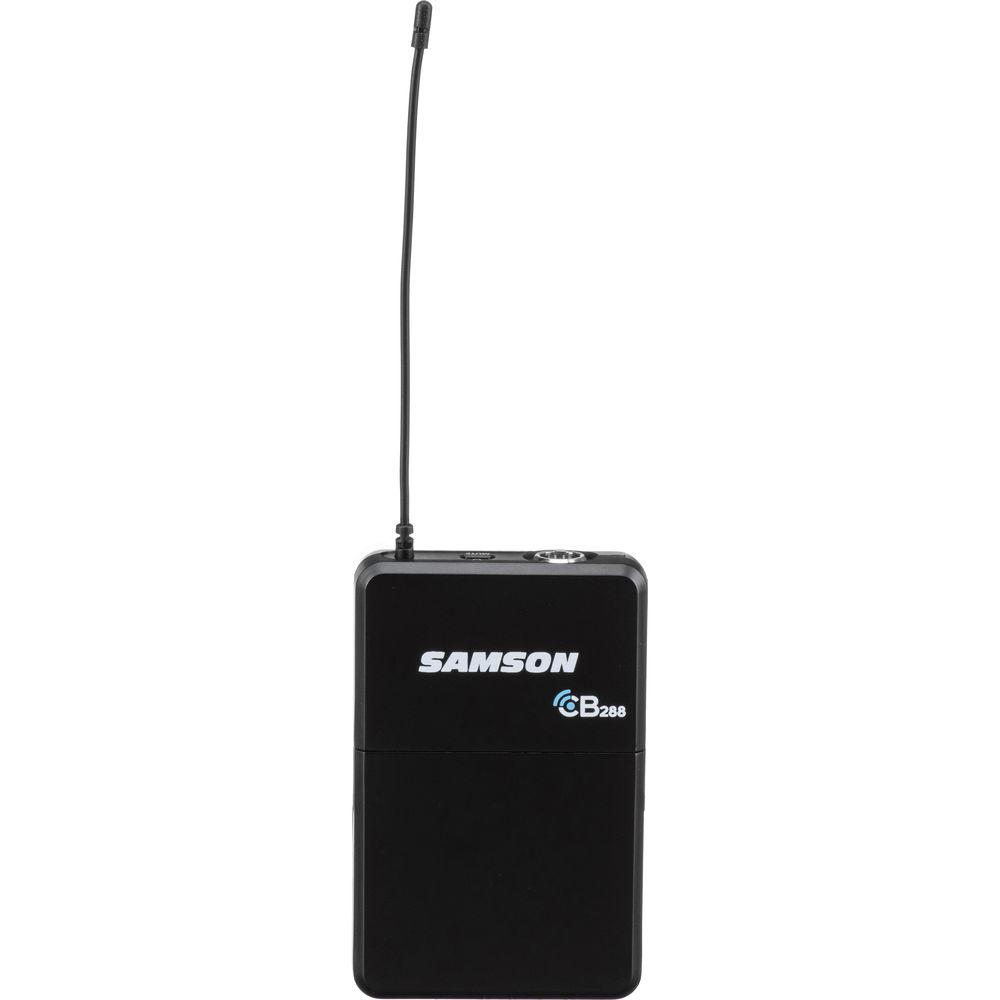

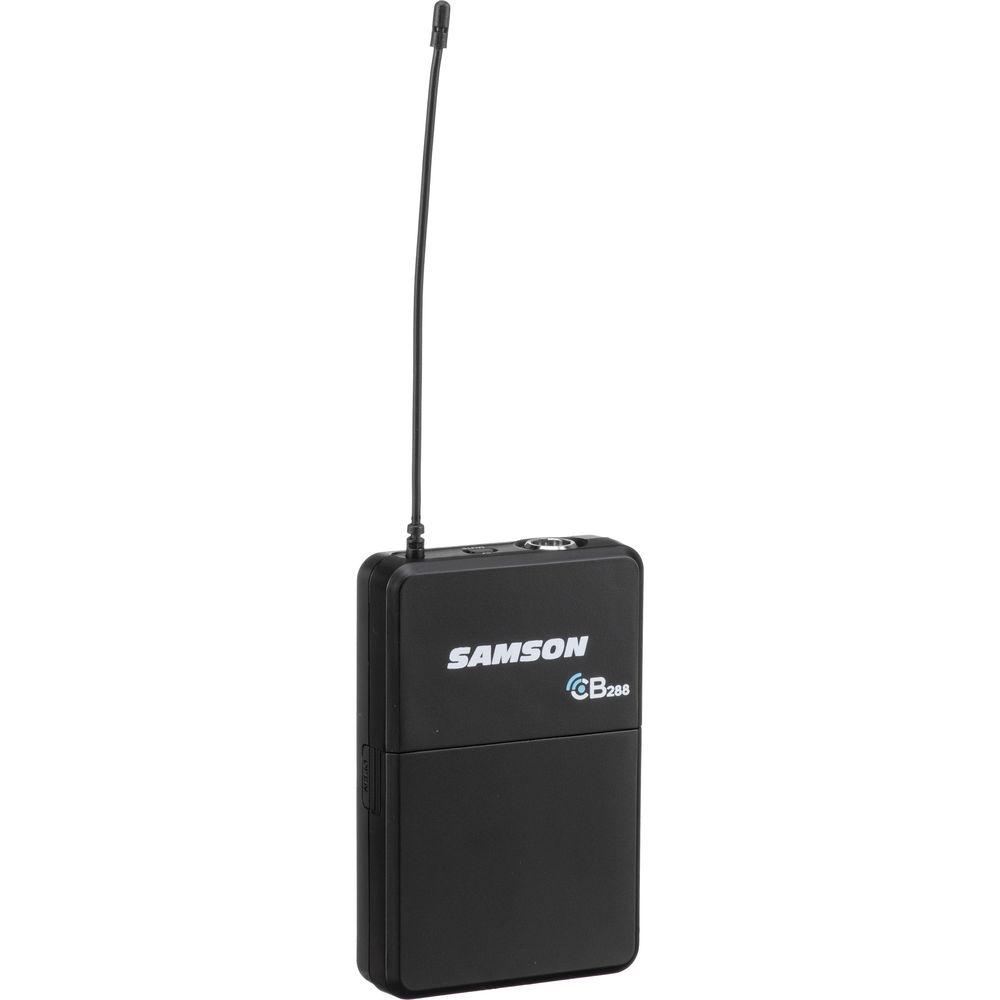

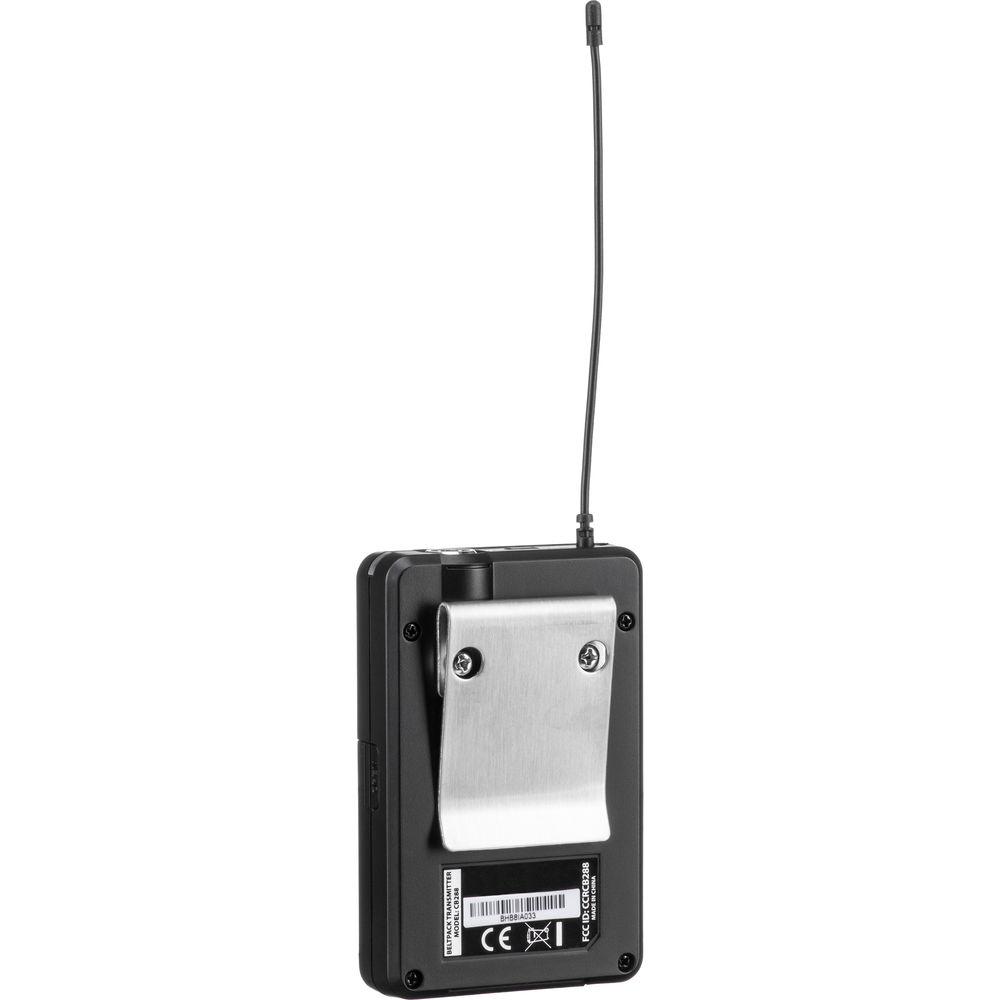

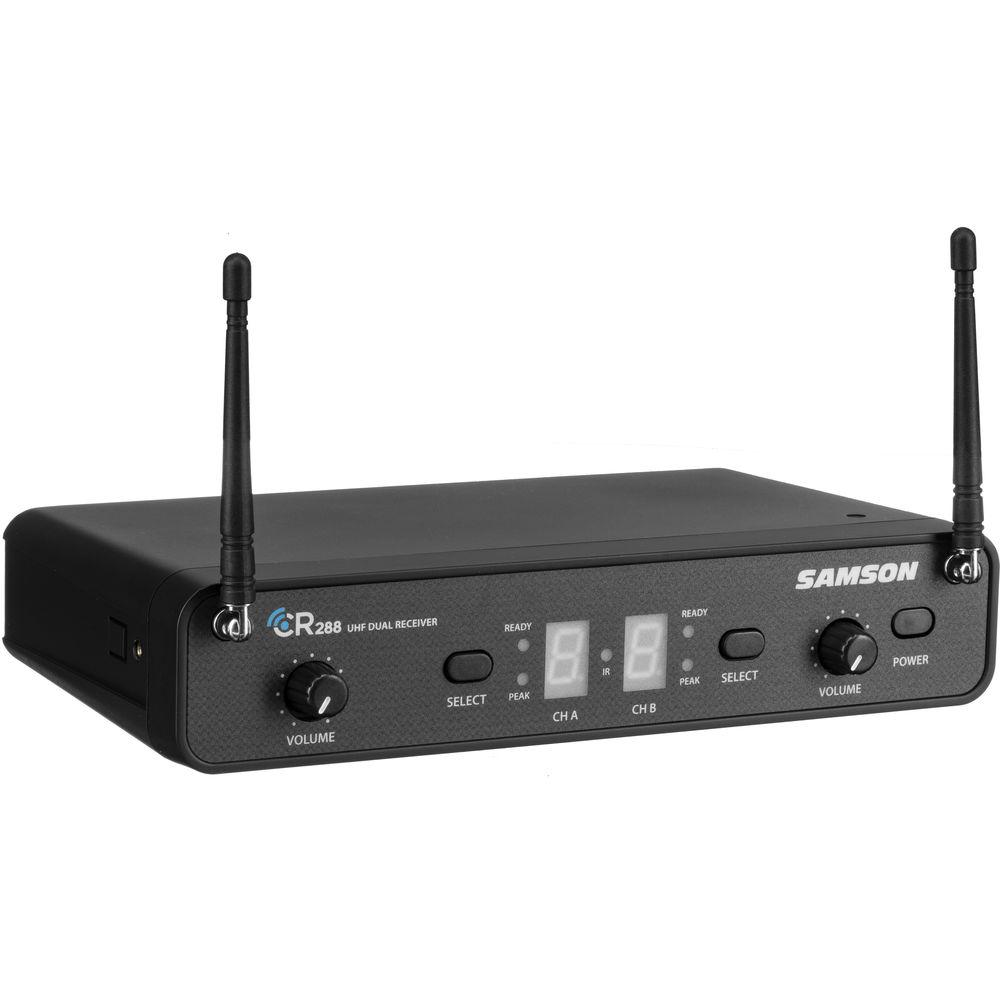

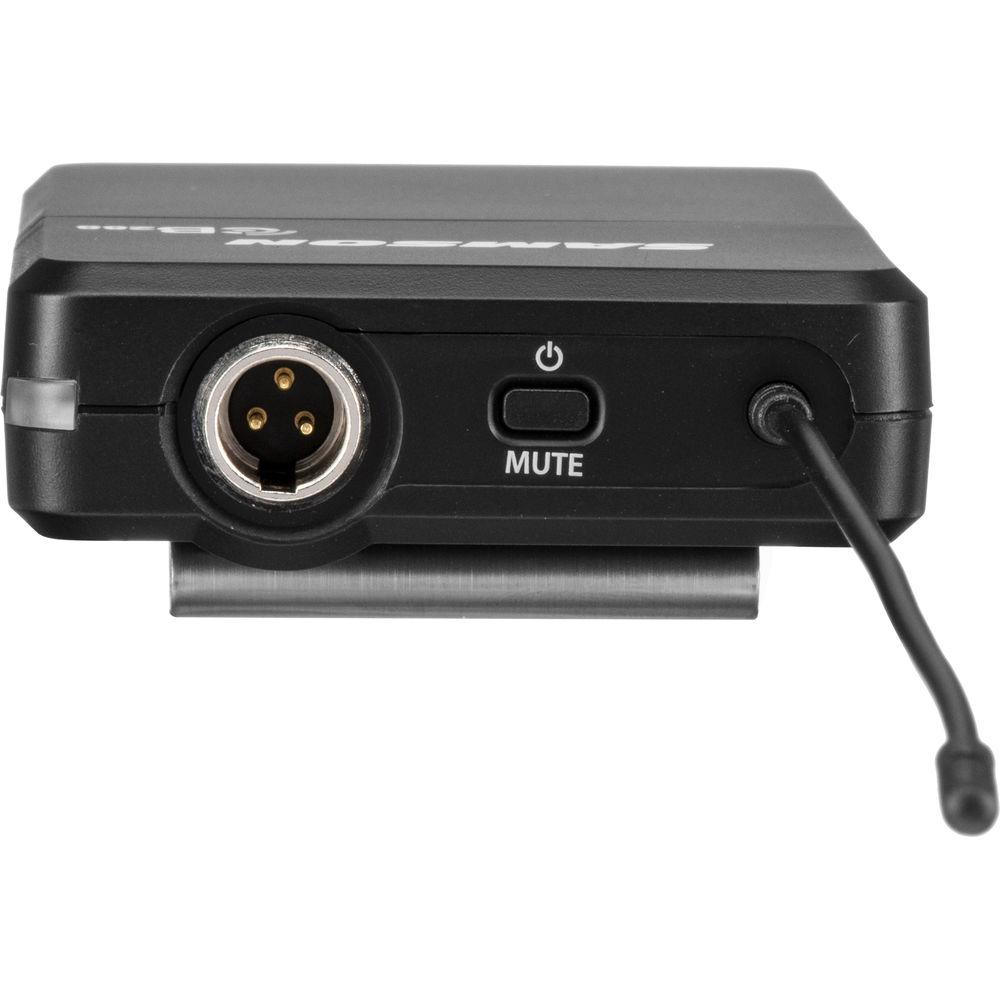

Product description The Concert 288 All-In-One Dual-Channel Wireless System from Samson is the ideal solution for any application requiring two wireless microphones. Featuring simple operation with 16 available channels per receiver, which is set by infrared transmitter channel, the Concert 288 can quickly be up and running out-of-the-box for vocal performances, presentations, Q&A sessions, houses of worship, and more. The All-In-One Combo system includes one CH288 handheld transmitter, a CB288 beltpack transmitter, one HS5 headset microphone, and one LM5 lavalier microphone. The mic options bring maximum versatility to any dual-user application, particularly duet performances, as well as audience participation and interview situations. Additionally, an AC adapter, rack ears and a 1/4" cable are also included. The CR288 wireless receiver has multiple frequency options for interference-free performance and there are separate volume controls for each channel. Built with dual balanced XLR outputs for routing signals to separate mixer channels, there is also a 1/4" unbalanced mix output option for combining signals to one output channel. Furthermore, the Q6 dynamic handheld transmitter, and the CB288 beltpack transmitter both offer up to eight hours of battery life using two AA batteries, and have an operating range of up to 300'. Also, the LM5 lavalier and the HS5 headset microphone with locking mini-XLR (P3) connectors help produce a clear and natural sound reproduction. Finally, Samson takes the worry out of wireless with the Concert 288 All-In-One Wireless System. Offering easy setup, flawless operation and premium sound, it's the ideal high-performance UHF wireless solution for your event. UPC: 809164214434 In the Box Samson Concert 288 All-In-One Dual-Channel Wireless System (I-Band, 518 to 566 MHz) 1/4" Audio Cable CR288 Wireless Receiver CH288 Handheld Transmitter with Q6 Dynamic Microphone Capsule CB288 Beltpack Transmitter LM5 Omnidirectional Lavalier Microphone HS5 Headset Microphone Rack Mount Kit AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 288 All-In-One Dual-Channel Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC288ALL-I Specs | | | Band | I | | Frequency Band | 518 to 566 MHz | | Working Range | 300' (100 m) line of sight | | Frequency Response | 50 Hz to 15 kHz | | Total Harmonic Distortion | <1% (@AF 1 kHz, RF 46 dBu) | | Dynamic Range | >100 dB A-weighted | | Signal to Noise | >85 dB | | Operating Temperature | 14° to 140°F (-10° to 60°C) | | Tone Key | Frequency: 32.768 kHz | | | | Input Connector | Mini-XLR (P3) | | Input Impedance | 1 MOhms | | Input Gain | Range: 38 dB | | RF Power | 10 mW EIRP | | Power Requirements | 2x AA (LR6) alkaline batteries | | Battery Life | 8 Hours | | Dimensions (H x L x D) | 3.75 x 2.44 x 0.75" (96 x 62 x 18.5 mm) | | Weight | 0.2 lb (93 g) | | | | Microphone Element | Q6 dynamic | | Input Gain | Range: 28 dB | | RF Power | 10 mW EIRP | | Power Requirements | 2x AA (LR6) alkaline batteries | | Battery Life | 8 hours | | Dimensions (H x Diam.) | 10.23 x 2.1" (260 x 54 mm) | | Weight | 0.48 lb (218 g) | | | | Audio Output Level | Mix Unbalanced: +14 dBu
Balanced: +14 dBu | | Audio Output Impedance | Unbalanced: 1 kOhms
Balanced: 470 ohms | | Sensitivity | -100 dBm / 20 dB sinad | | Image Rejection | >50 dB | | Operating Voltage | 15 VDC 300 mA | | Dimensions (L x W x H) | 8.25 x 4.9 x 1.75" (210 x 125 x 44 mm) | | Weight | 0.99 lb (450 g) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 14.961 x 11.575 x 9.685" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
