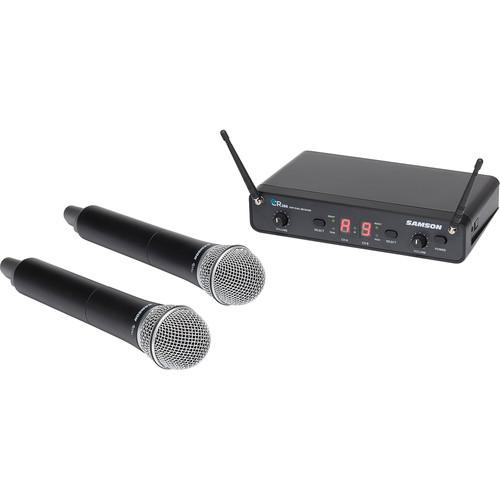

User Manual for Samson Concert 288 SWC288HQ6 Dual-Handheld 16-Channel True Diversity Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Concert 288 SWC288HQ6 Dual-Handheld 16-Channel
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Concert 288 SWC288HQ6 Dual-Handheld 16-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

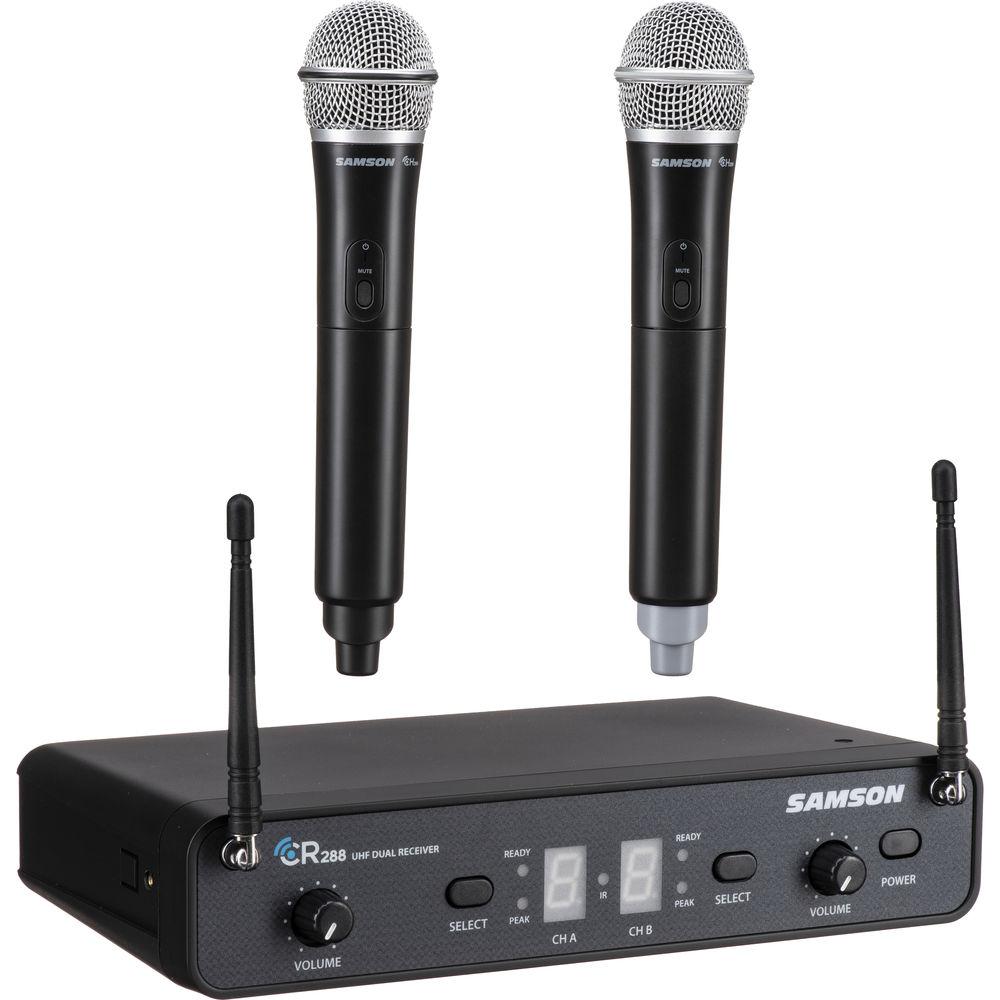

Product description The Concert 288 SWC288HQ6 Dual Handheld 16-Channel True Diversity Wireless System (UHF H-Band) from Samson offers a high-performance UHF wireless solution where the freedom of mobility is required for two performers simultaneously. It’s suitable for pairs of singers, business professionals, educators, and others looking for clear sound and versatility without cables.The frequency-agile SWC288HQ6 Handheld System allows for up to 24 systems (48 performers) to operate simultaneously across two frequency bands. The Concert 288 gives both performers a 300’ range of wireless operation between the transmitters and receiver, making the system suitable for large stages and crowd participation. To ensure interference-free performance, the Concert 288 features a true diversity design. In case a dropout occurs, the receiver’s Tone Key and Auto Mute functions eliminate any background noise until the signal is restored.Featuring a user-friendly front panel, the CR288 Wireless Receiver provides the system with fast and easy setup. The CR288 provides two Select buttons for auto syncing the receiver and transmitter channels via an infrared signal, allowing you to find your optimal channel. The panel also contains a dual seven-segment LED for the operating channels, two volume knobs, two tuned antennas, as well as Ready and Peak indicators for optimal functionality and monitoring. The back of the receiver features two separate balanced XLR outputs for routing signals to two separate channels on a mixer, as well as a 1/4” unbalanced mix output that condense both signals to a single channel for a direct connection into a PA speaker (not included).The SWC288HQ6 Handheld System features two CH88 Handheld Wireless Transmitters and Q6 Professional Dynamic Microphones. The transmitters, which can operate for up to eight hours on two AA batteries each, are engineered in detail to provide the ultimate in sound reproduction. - Concert 288 Dual Handheld System
-
- High-performance professional UHF wireless system
- Comes with a rackmount kit

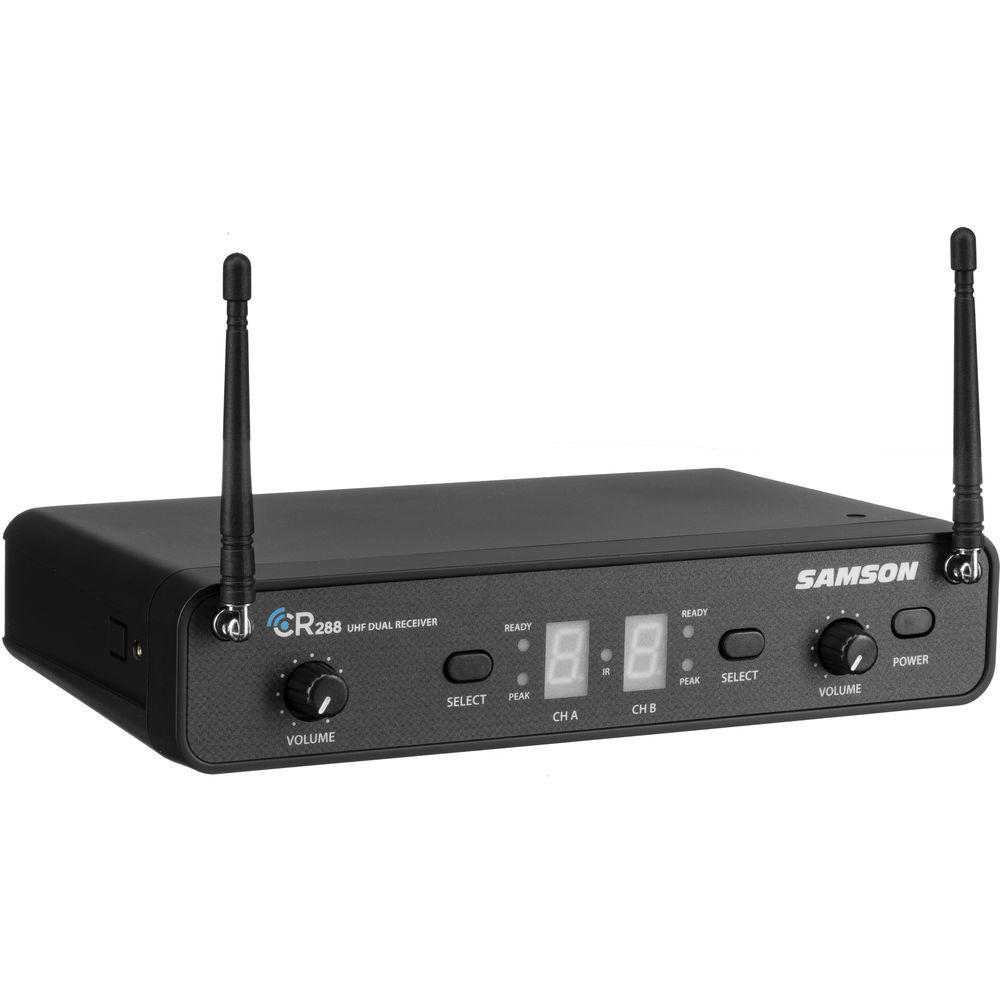

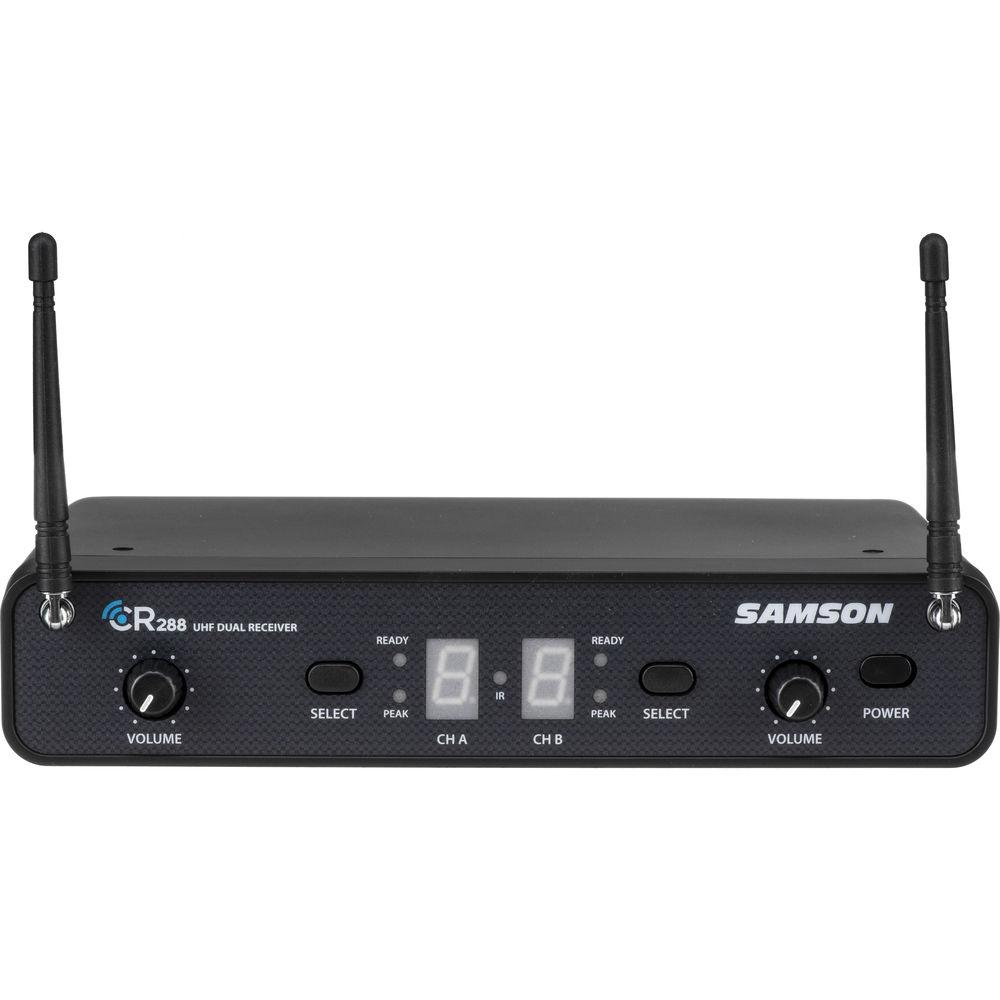

- CR288 Wireless Receiver
-
- True diversity design minimizes dropouts
- Up to 24 systems (48 performers) can be operated simultaneously across two frequency bands (region dependent)
- Tone Key and Auto Mute functions eliminate background noise during dropouts
- Infrared set links the receiver and transmitter channels

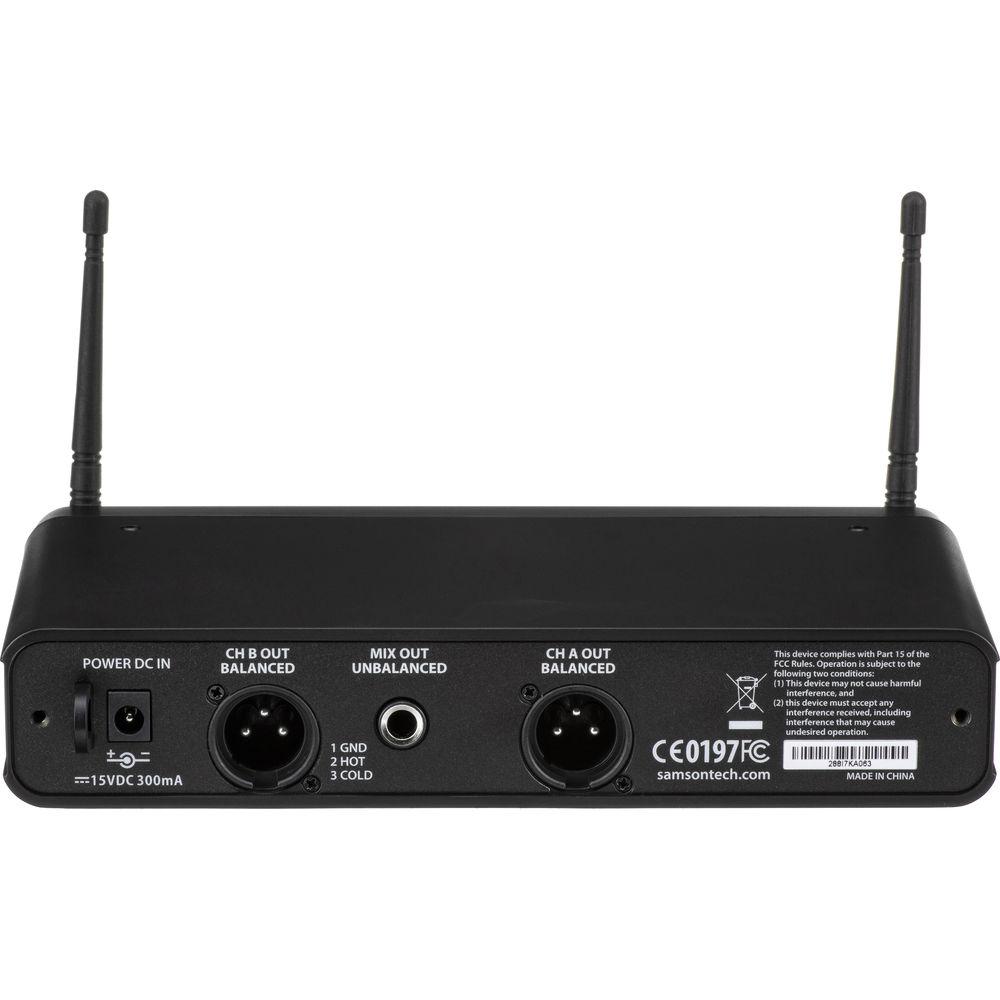

- Dual balanced XLR outputs for routing signals to two separate channels
- 1/4” unbalanced mix output to combine signals to one output channel
- Two separate volume controls for each signal
- Ready and Peak indicators for optimal functionality and monitoring

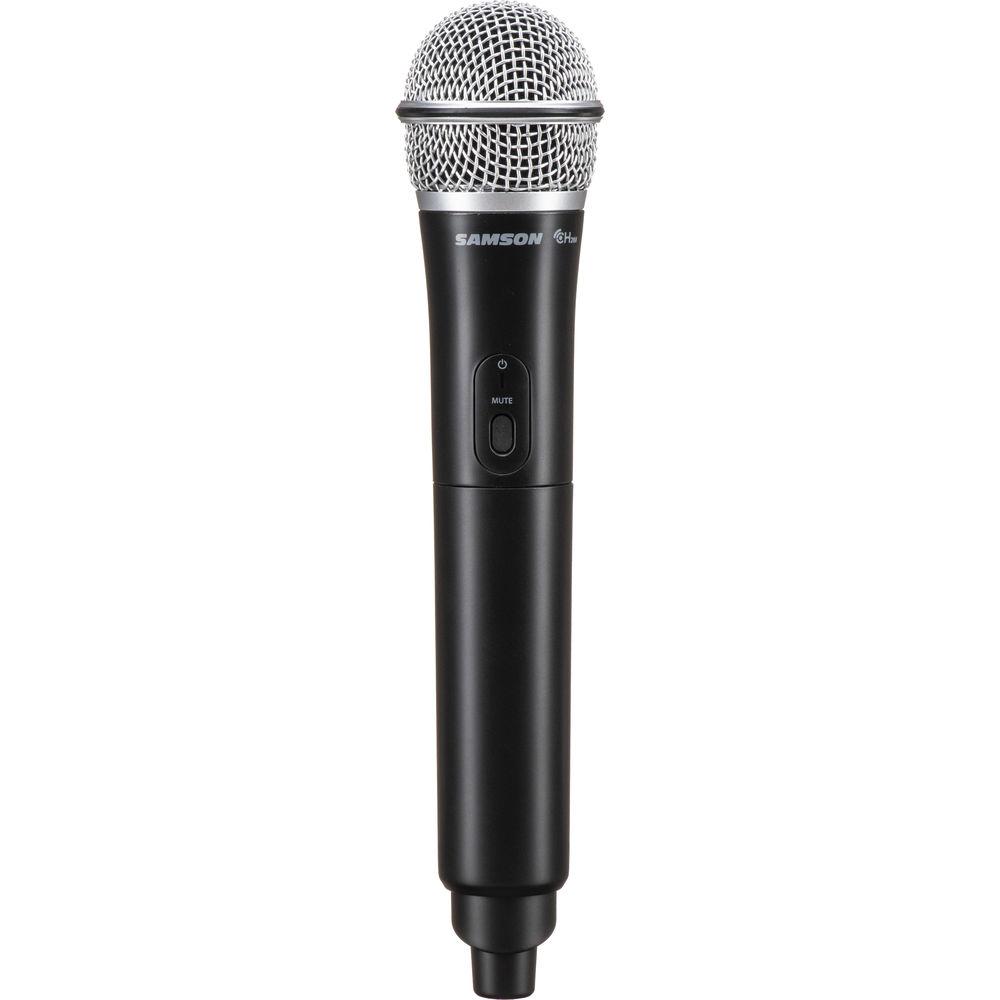

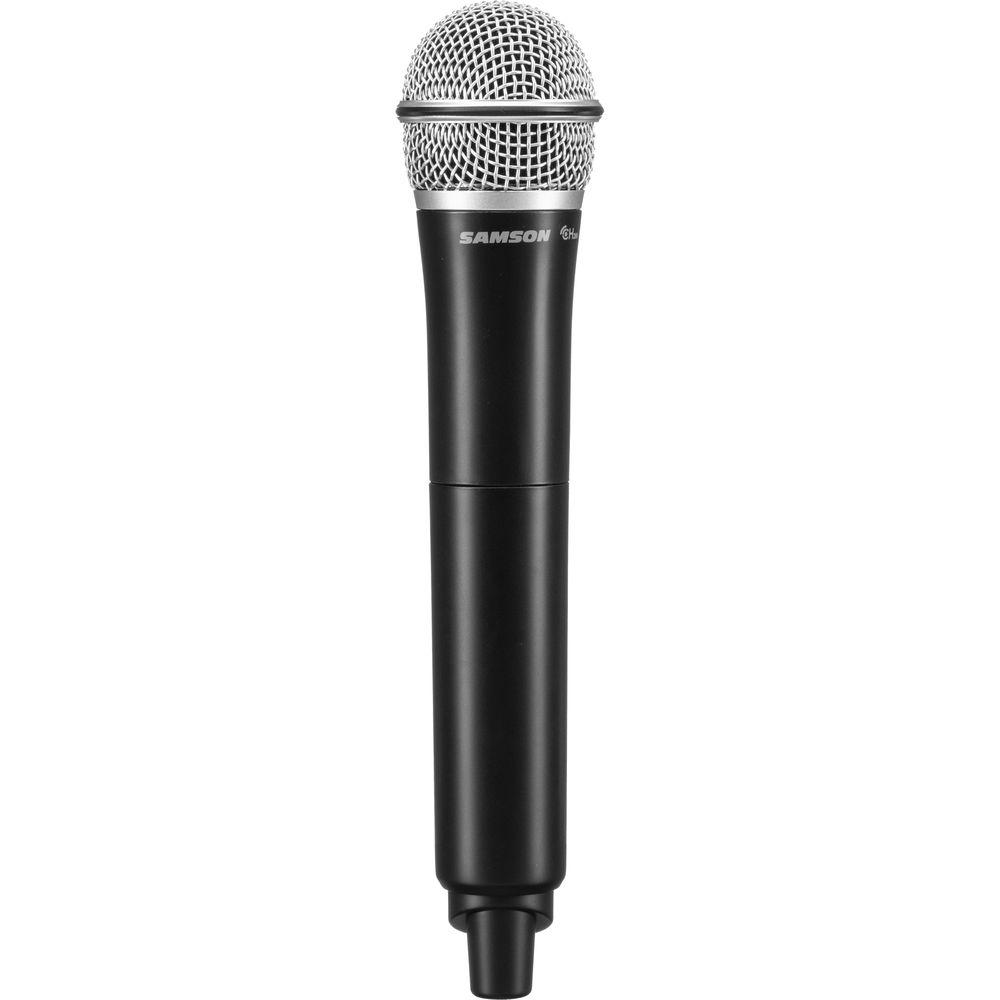

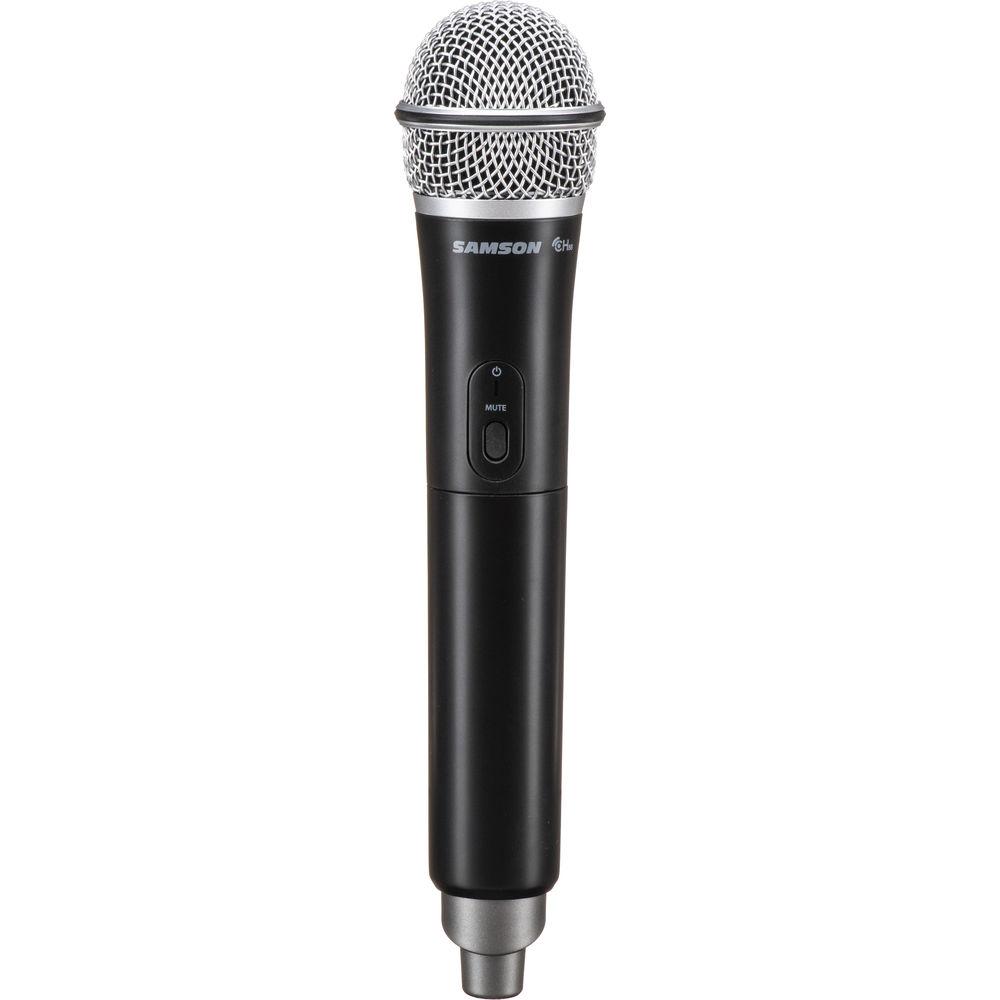

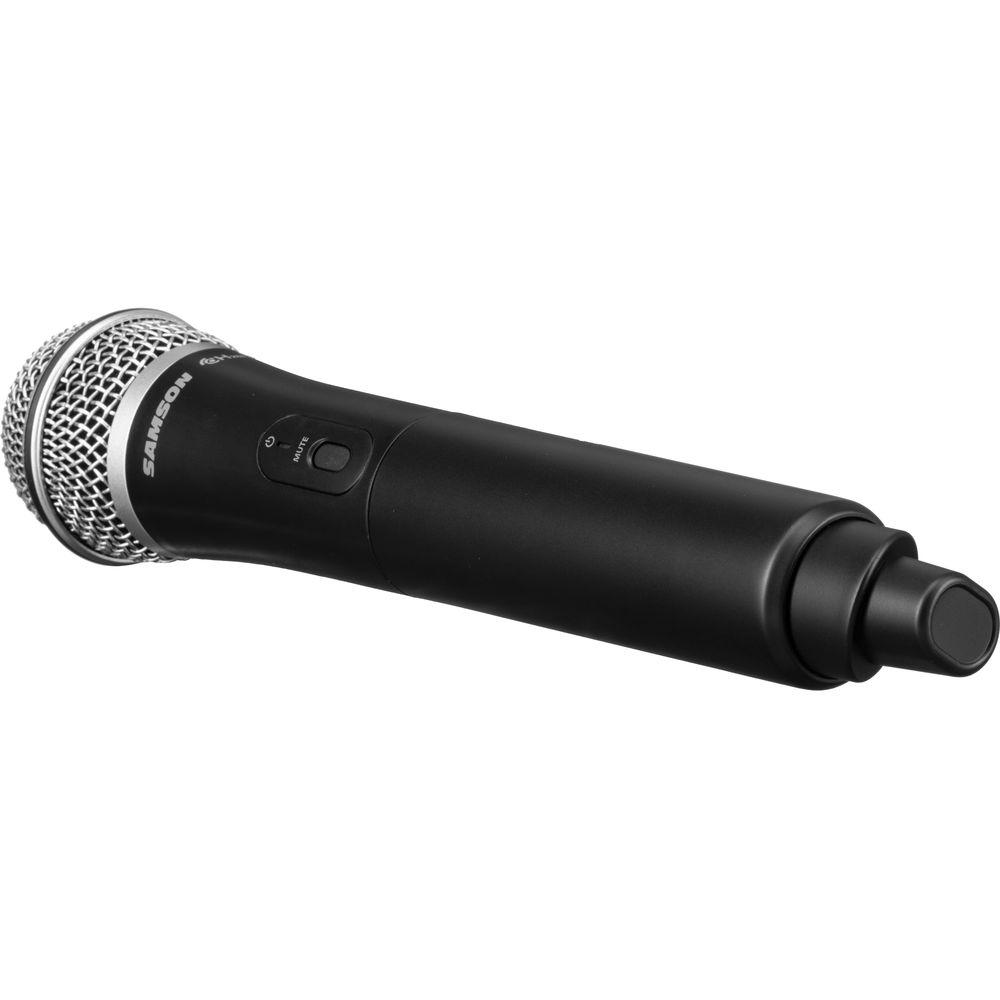

- Wireless Transmitter
-

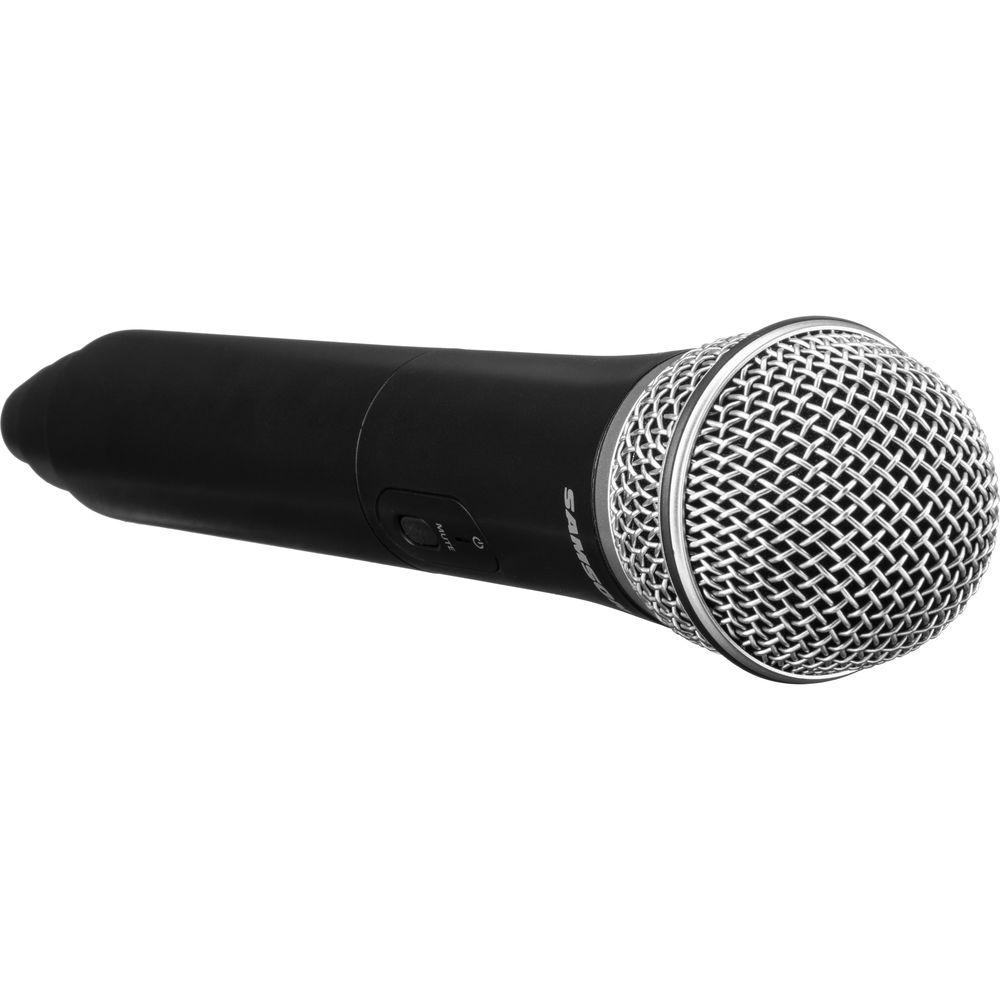

- Two Q6 Professional Dynamic Microphones
- Transmitters offer up to eight hours of battery life using two AA batteries each
- 300’ operating range
UPC: 809164213178 In the Box Samson Concert 288 SWC288HQ6 Dual-Handheld 16-Channel True Diversity Wireless System (UHF H-Band) CR288 Wireless Receiver 2 x CH288 Handheld Transmitter 4 x AA Alkaline Batteries 2 x Q6 Professional Dynamic Microphones Rackmount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 288 SWC288HQ6 Dual-Handheld 16-Channel True Diversity Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC288HQ6-H Specs | Working Range | 300' / 100 m | | Output | 2 x balanced XLR, 1/4" unbalanced | | Frequency Band | H-band | | Power Requirements | 2 x AA alkaline batteries (included) | | Battery Life | 8 hours | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 14.1 x 13.2 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
