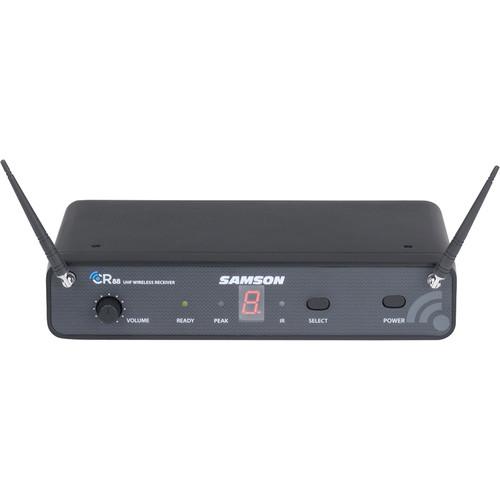

User Manual for Samson Concert 88 16-Channel Receiver with 110V Adapter Click to enlarge the picture
Contents of the user manual for the Samson Concert 88 16-Channel Receiver with
- Product category: Wireless Receivers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Receivers
|
User manual for the Samson Concert 88 16-Channel Receiver with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The Concert 88 16-Channel Receiver with 110V Adapter from Samson is a true diversity UHF wireless receiver. It can be used to capture audio when paired with a wireless handheld microphone transmitter or bodypack transmitter and microphone (both sold separately) for speech and vocal applications. The receiver features XLR and 1/4" outputs. Up to 16 systems can be operated simultaneously and the infrared set links the receiver and transmitter channels. In addition, the tone key and auto mute functions eliminate background noise during dropouts. A transmitter and microphone are required. - True Diversity Reception
- Switches between two antennas depending on whichever one is receiving the stronger signal to minimize dropouts in audio
- Infrared Link
- Connects the wireless receiver to the wireless transmitter
- Outputs
- The receiver features both XLR and 1/4" outputs
UPC: 809164212423 In the Box Samson Concert 88 16-Channel Receiver with 110V Adapter (D: 542 to 566 MHz) AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 88 16-Channel Receiver with 110V Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson CH88 Specs | | | Frequency Band | D: 542 to 566 MHz | | Operating Range | 300' / 91.4 m | | Frequency Response | 50 Hz to 15 kHz | | THD | < 1% at AF 1000 Hz, RF 46 dBu | | Dynamic Range | > 100 dB A-weighted | | Signal / Noise | > 90 dB | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Tone Key | 32.768 kHz | | | | Type | UHF | | Audio Output Level | Unbalanced: +14 dBu
Balanced: +9 dBu | | Audio Output Impedance | Unbalanced: 810 Ohms
Balanced: 240 Ohms | | Sensitivity | -100 dBm / 30 dB sinad | | Image Rejection | > 50 dB | | Operating Voltage | 15 VDC 200 mA | | Dimensions (L x W x H) | 8.25 x 4.9 x 1.75" / 210 x 125 x 44 mm | | Weight | 13.7 oz / 388 g |
