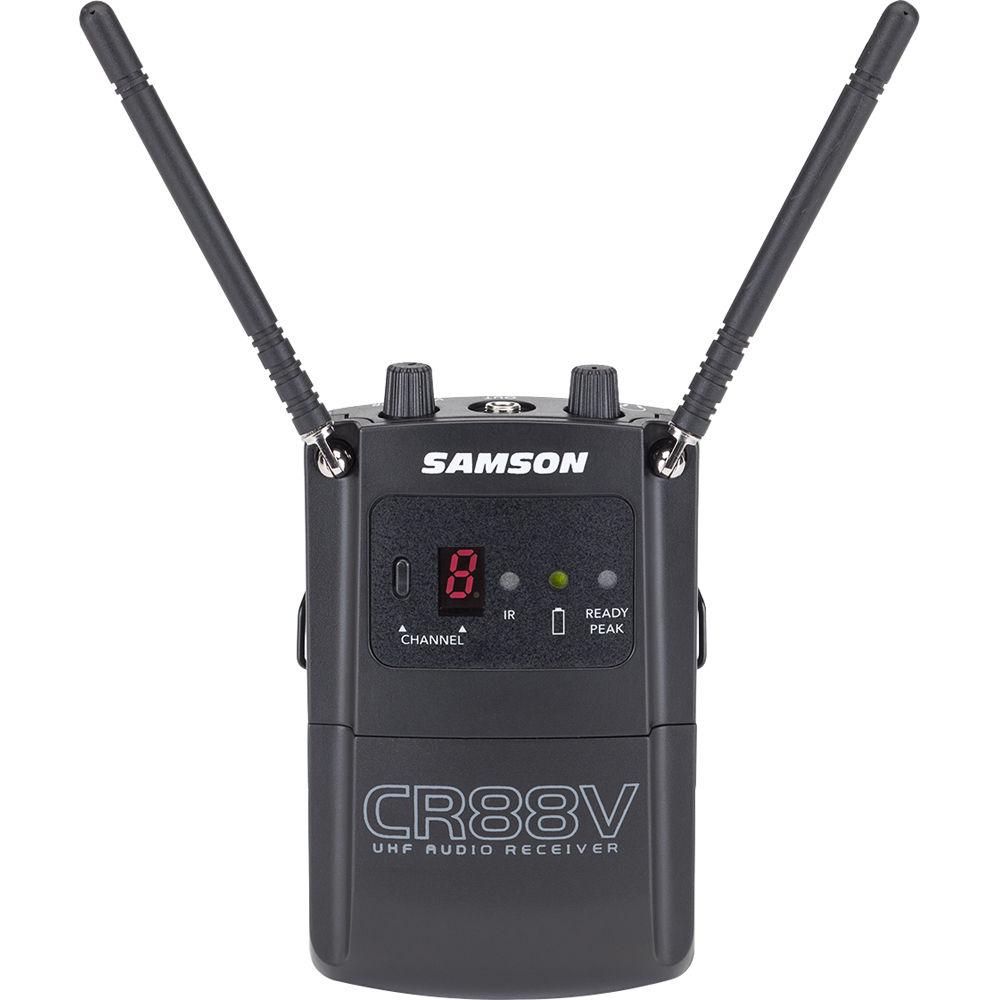

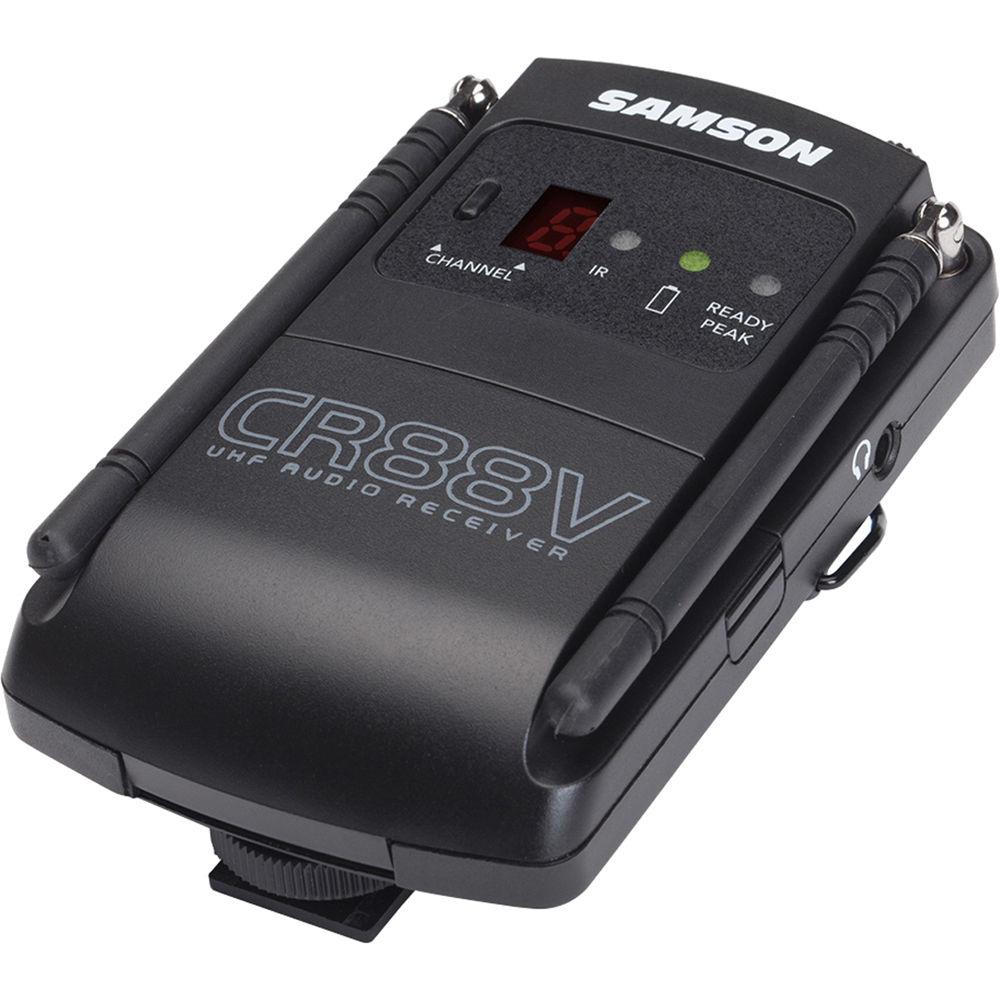

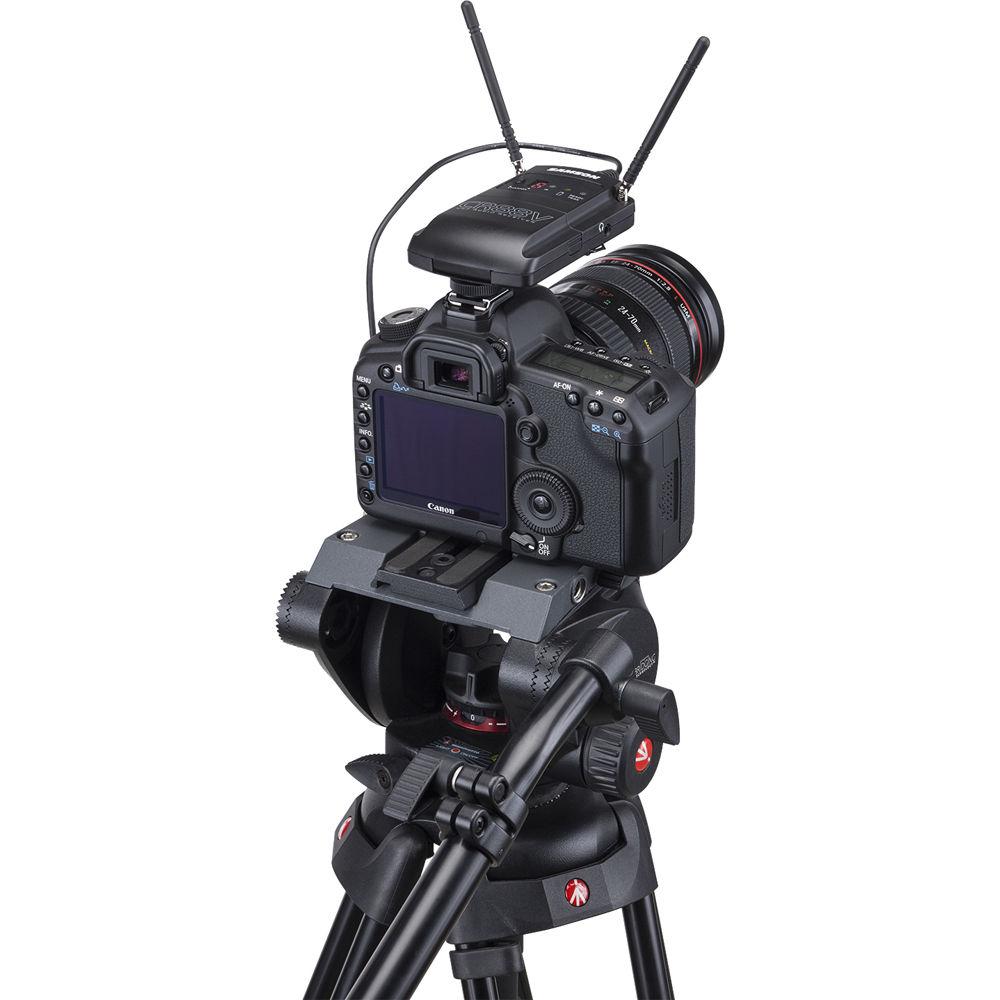

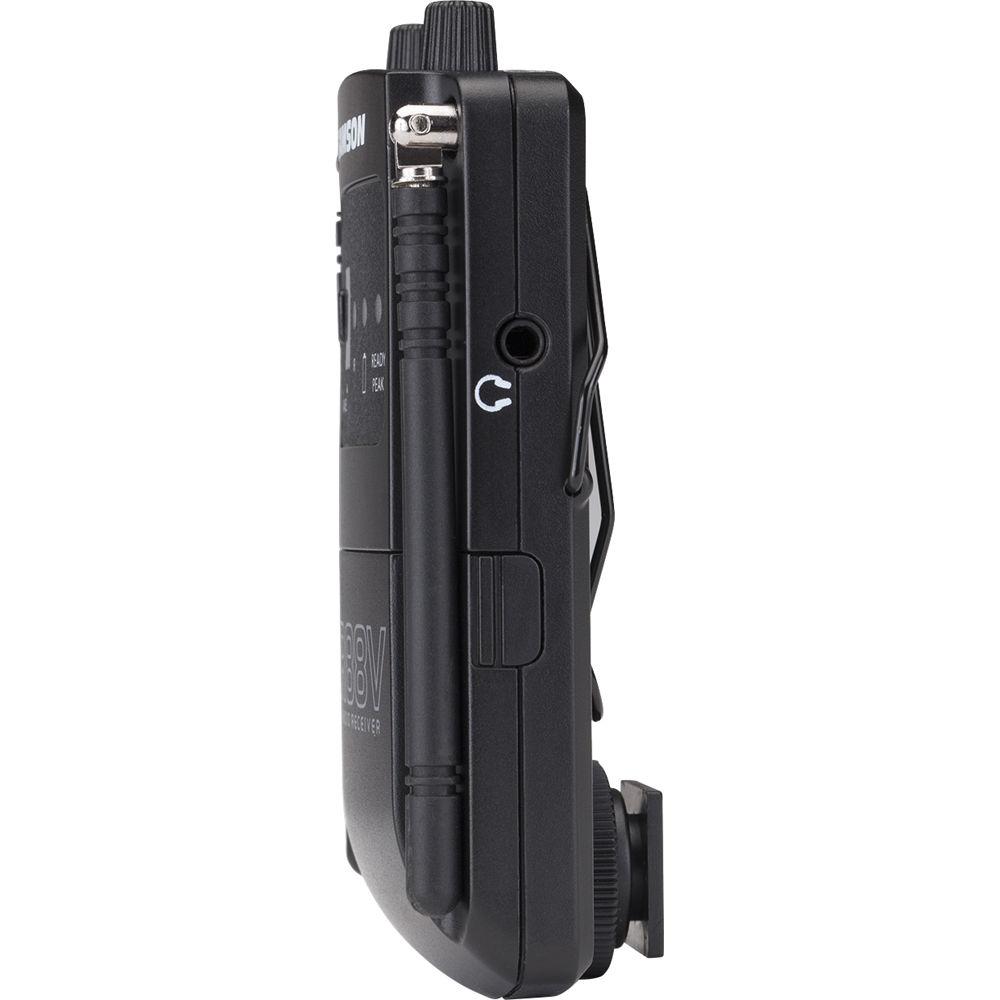

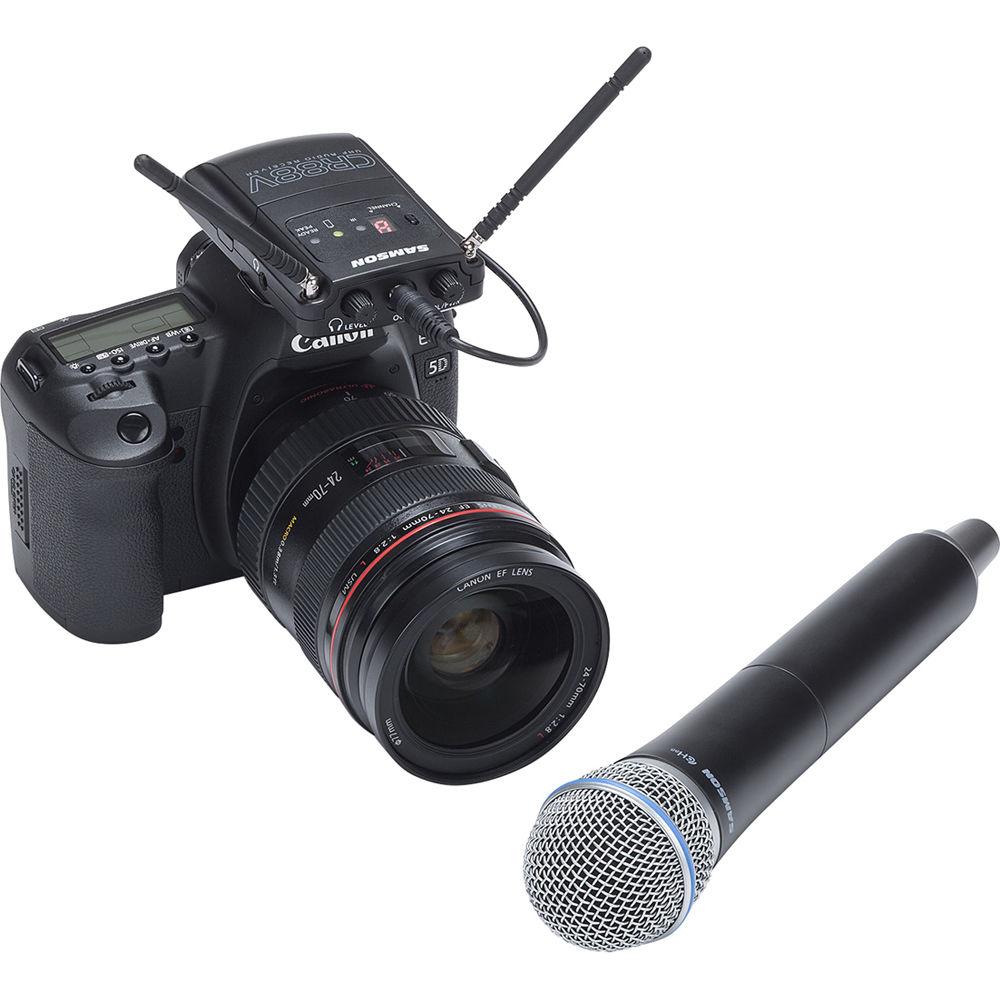

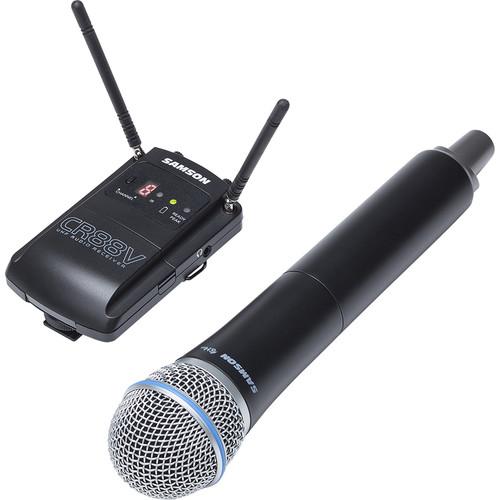

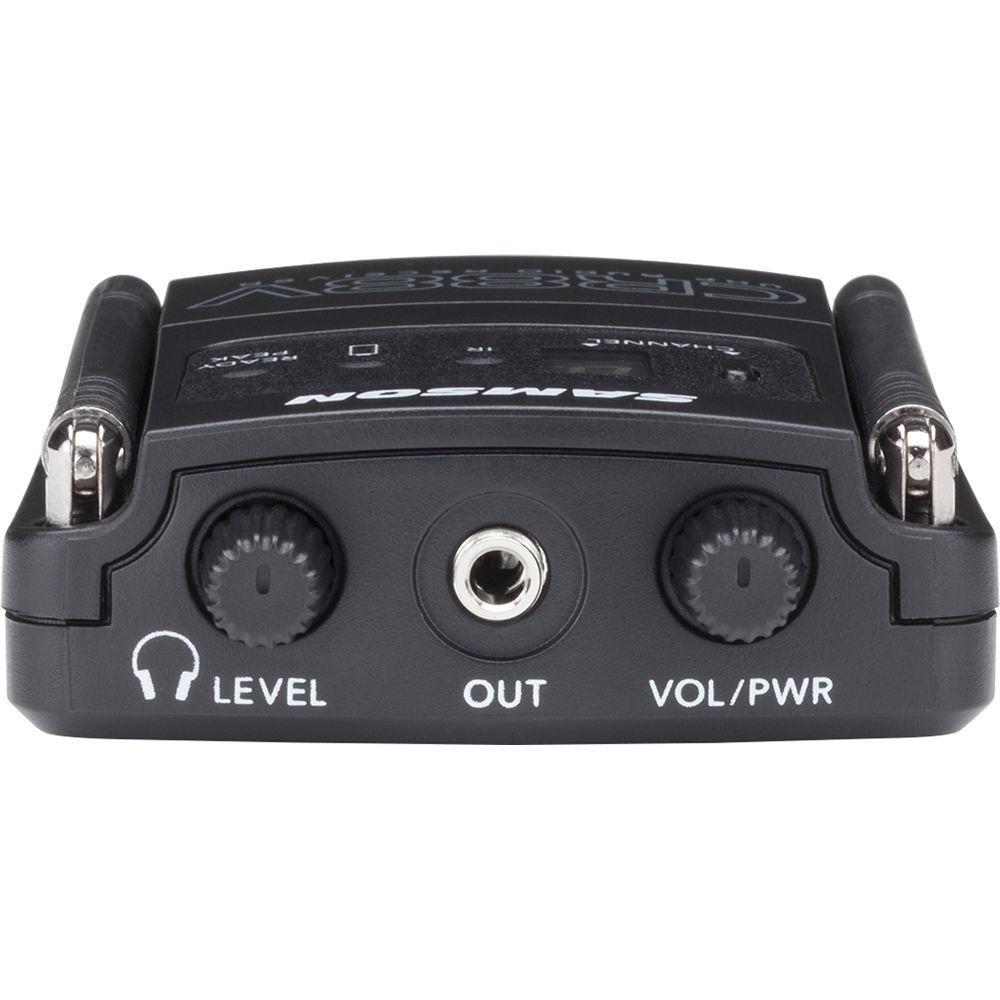

Product description The channel D Concert 88 Camera Handheld UHF Wireless System from Samson features a 300' wireless range and 16 selectable frequencies for interference-free operation. It can be used to capture audio for recorders, HD camcorders, and DSLR cameras. The handheld wireless system includes a CR88V micro wireless receiver, and a CH88 handheld transmitter with a Q8 capsule. For maximum user convenience, two AA batteries offer 8 hours of battery life (not included), and the removable lithium-ion battery about 12 hours on a single charge. A battery level indicator lets you know when it's time to change it for a backup. Additionally, an external battery charger is included that has a USB input for increased compatibility. - Recharge
- For maximum user convenience, the Concert 88 Camera offers 12 hours of battery life from a single rechargeable removable lithium ion battery (two included)
- UHF Reliable
- With a 300' wireless range, the Concert 88 Camera operates within the reliable UHF frequency band. This avoids interference from wireless routers and other handheld devices. The system's 16 selectable frequency options allow for multi-location shoots, while tone key signal threshold and selectable Squelch settings provide aggressive interference protection

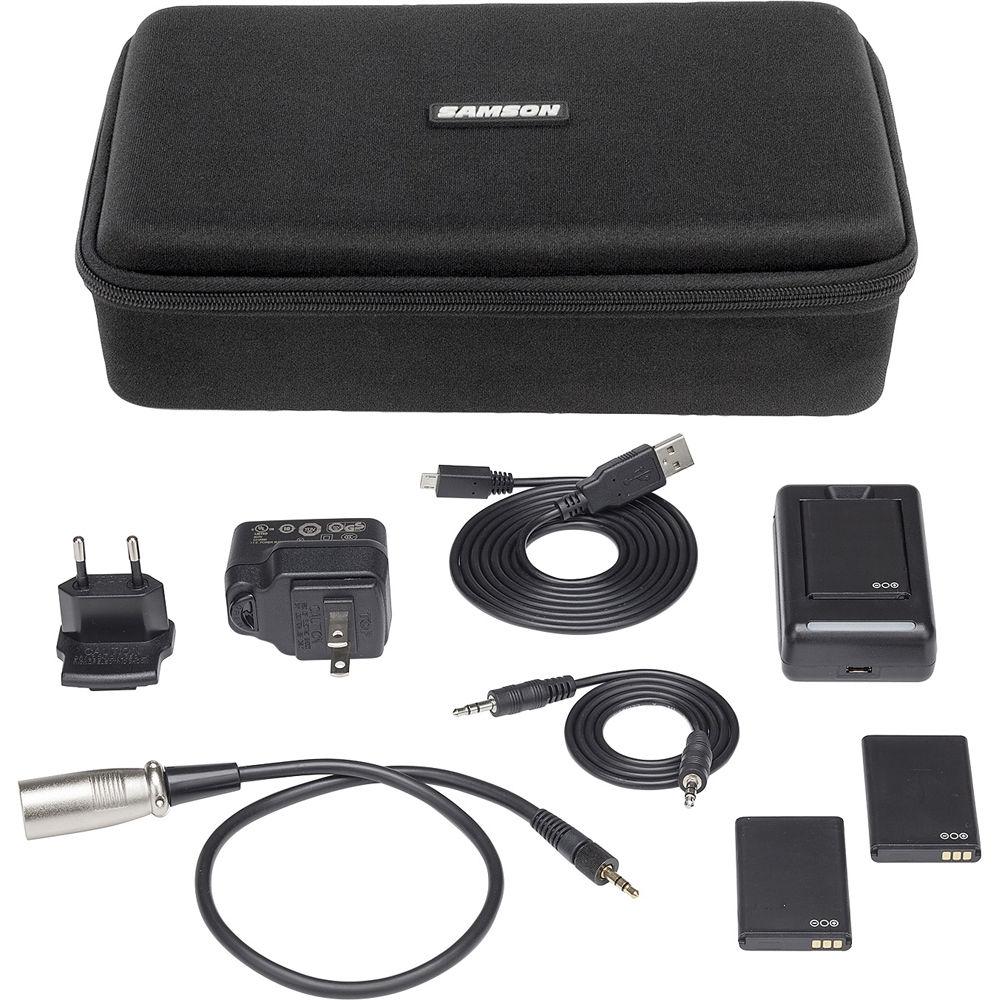

UPC: 809164211792 In the Box Samson Concert 88 Camera Handheld UHF Wireless System (Channel D) CR88V Micro Wireless Receiver CH88 Handheld Transmitter 2 x Audio Cables 2 x Lithium-ion Batteries USB Battery Charger/Cable Carry Case Limited 2-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 88 Camera Handheld UHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC88VHQ8-D Specs | | | Working Range | 300' (100 m) line-of-sight | | Channel Assignment | D | | Dynamic Range | > 100 dB A-weighted | | Signal to Noise | > 90 dB | | | | Audio Output Level | +9 dBu | | Audio Output Impedance | 1 kOhms | | Headphone Output Impedance | 16 ohms | | | | Microphone Element | Samson Q8 dynamic | | RF Power | 10 mW EIRP | | Battery Life | 8 hours from 2 x AA batteries | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 12.6 x 7.5 x 3.4" |
