User Manual for Samson Concert 88 Fitness System with Headset Microphone Click to enlarge the picture
Contents of the user manual for the Samson Concert 88 Fitness System with
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
|
User manual for the Samson Concert 88 Fitness System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

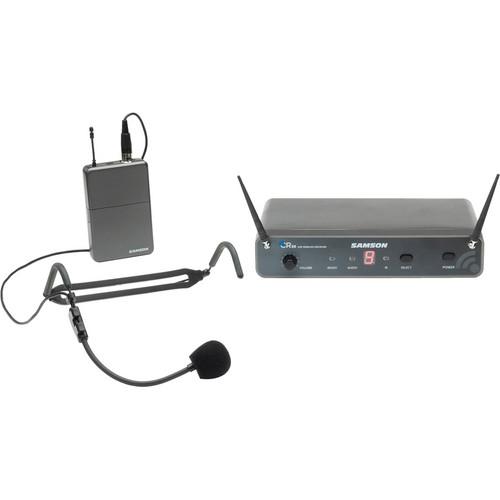

Product description The Concert 88 Fitness System with Headset Microphone from Samson includes the CR88 diversity UHF receiver, the CB88 beltpack transmitter and the HS5 Headset Microphone. It is designed for fitness instructors, dancers and others in need of a high-mobility wireless miking solution. The CR88 receiver features a true diversity system which is designed to help prevent signal dropouts during performance by automatically choosing to use the antenna that is receiving the strongest signal. If a signal dropout does occur, or if the transmitter is turned off, the CR88 uses its tone key and auto mute features to prevent itself from receiving extraneous signal transmissions that would otherwise result in unwanted noise. The CR88 also provides a select button on its front panel that when depressed will auto-sync the receiver to the CB88 beltpack transmitter via infrared signal. The transmitter, which operates for up to eight hours on two AA batteries, is designed to deliver high-quality sound reproduction up to 300 feet from the receiver. The HS5 headset microphone, which connects to the CB88 transmitter, is designed to maximize freedom of movement for the speaker or singer without sacrificing sound quality. - Receiver features 7-segment channel LED, volume knob, power button, two tuned antennas, as well as audio and ready indicators, for optimal functionality and monitoring
- Receiver can be mounted in a half-rack space, rack mount kit included
- Up to 16 systems can be operated simultaneously across two frequency bands
UPC: 809164211112 In the Box Samson Concert 88 Fitness System with Headset Microphone (D Band) CR88 Half-Rack Receiver CB88 Beltpack Transmitter HS5 Headset Microphone Power Supply 1/4" Audio Cable Rackmount Kit Limited 2-Year Warranty User Manual PDF 8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 88 Fitness System with Headset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC88BHS5-D Specs | | | Microphone | HS5 with locking mini-XLR (P3) connector | | | | Transmission Frequency | K: 470 to 494 MHz | | Operating Range | 300.0' (91.4 m) | | Frequency Response | 50 Hz to 15 kHz | | THD | < 1% at AF 1 kHz, RF 46 dBu | | Dynamic Range | > 100 dB A-weighted | | Signal / Noise | > 90 dB | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Tone Key | 32.768 kHz | | | | Input Connector | Mini-XLR (P3) | | Input Impedance | 1 MOhm | | Input Gain | 38 dB | | RF Power | 10 mW EIRP | | Power Requirements | Two AA (LR6) alkaline batteries | | Battery Life | 8 hours | | Sync System | Infrared | | Dimensions (H x W x D) | 3.75 x 2.44 x 0.75" (96.0 x 62.0 x 18.5 mm) | | Weight | 0.2 lb (93.0 g) | | | | Type | UHF | | Audio Output Level | Unbalanced: +14 dBu
Balanced: +9 dBu | | Audio Output Impedance | Unbalanced: 810 Ohms
Balanced: 240 Ohms | | Sensitivity | -100 dBm / 30 dB sinad | | Image Rejection | > 50 dB | | Operating Voltage | 15 VDC 200 mA | | Dimensions (L x W x H) | 8.25 x 4.90 x 1.75" (210 x 125 x 44.0 mm) | | Weight | 0.85 lb (3.88 kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 12.0 x 9.8 x 3.3" |
