User Manual for Samson Concert 88 Handheld 16-Channel True Diversity UHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Concert 88 Handheld 16-Channel True
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Concert 88 Handheld 16-Channel True contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

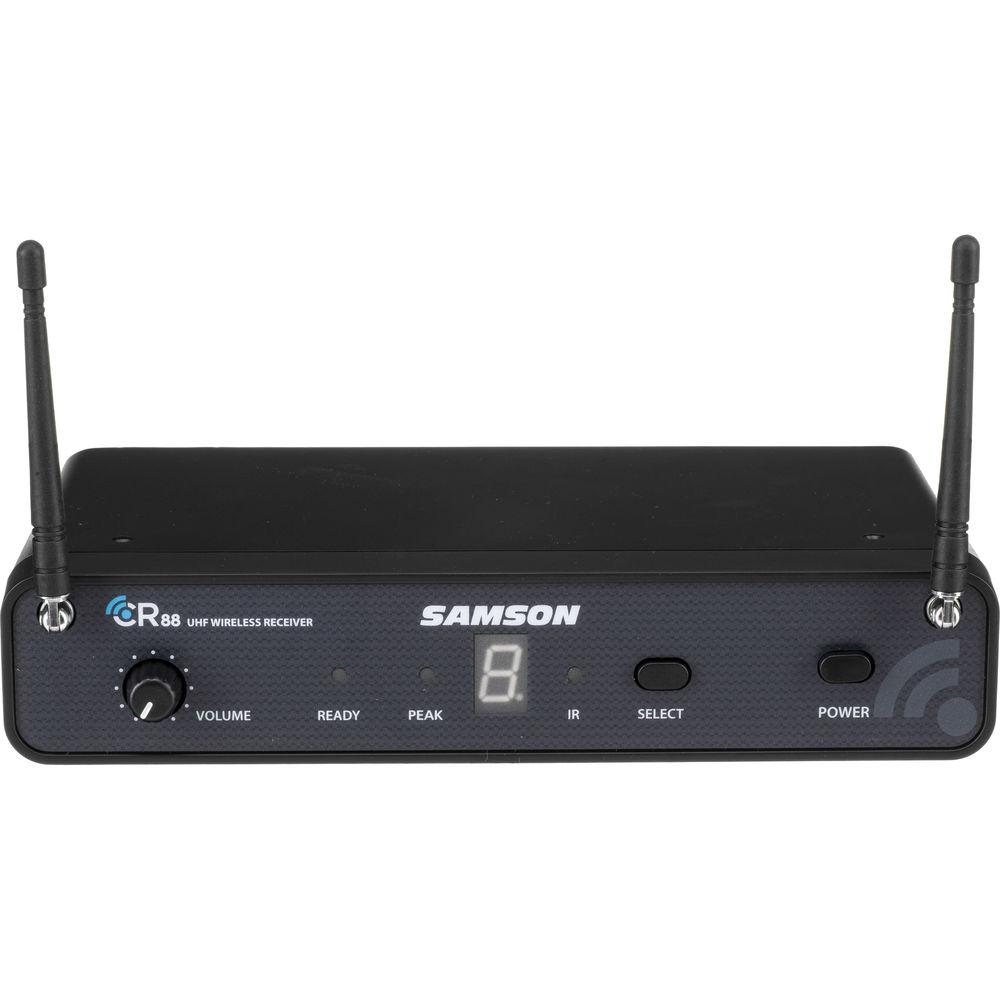

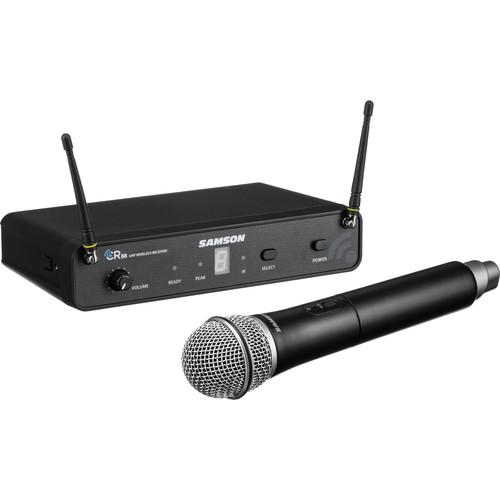

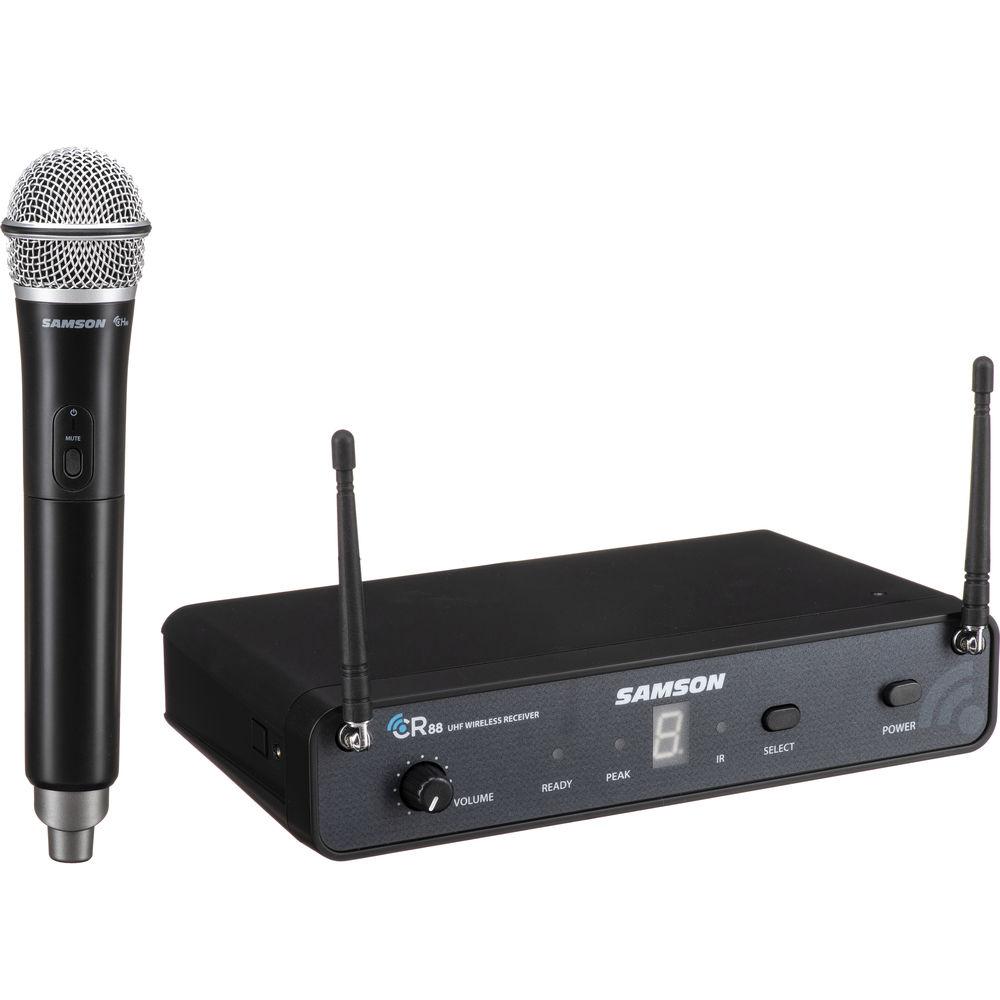

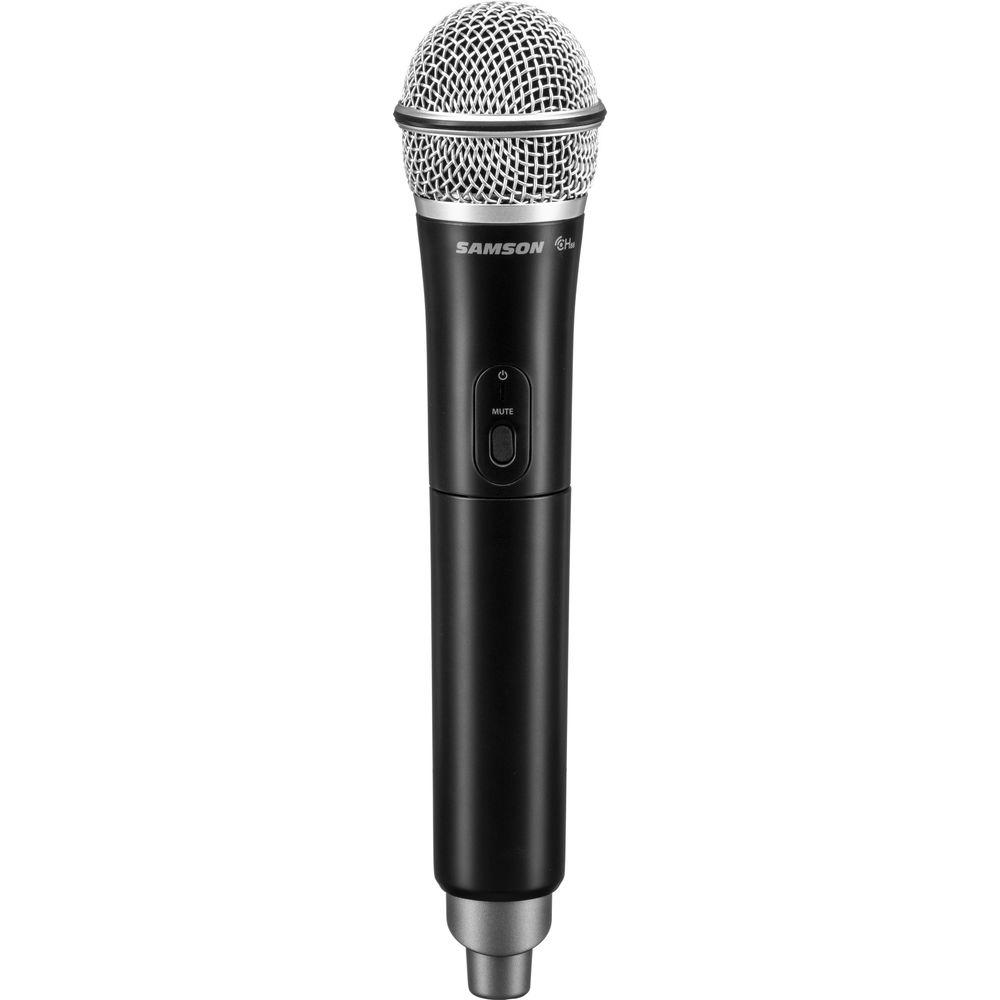

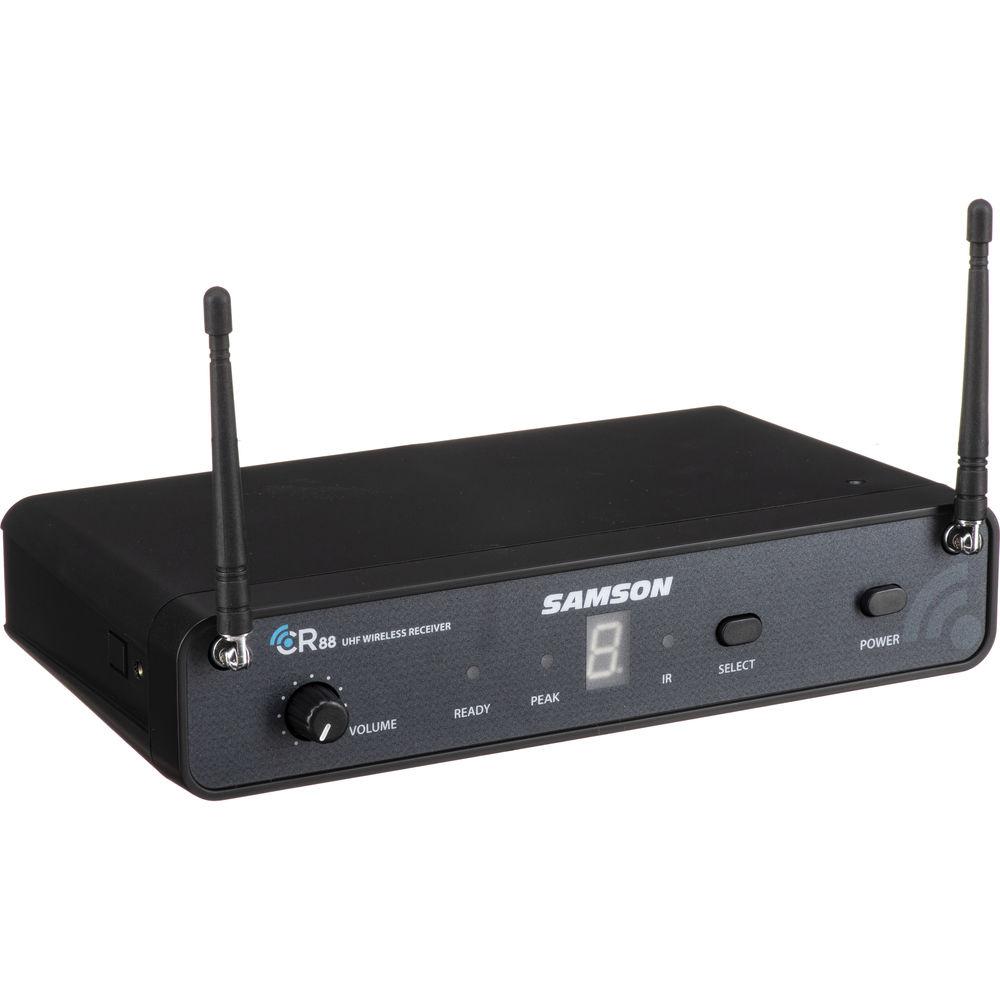

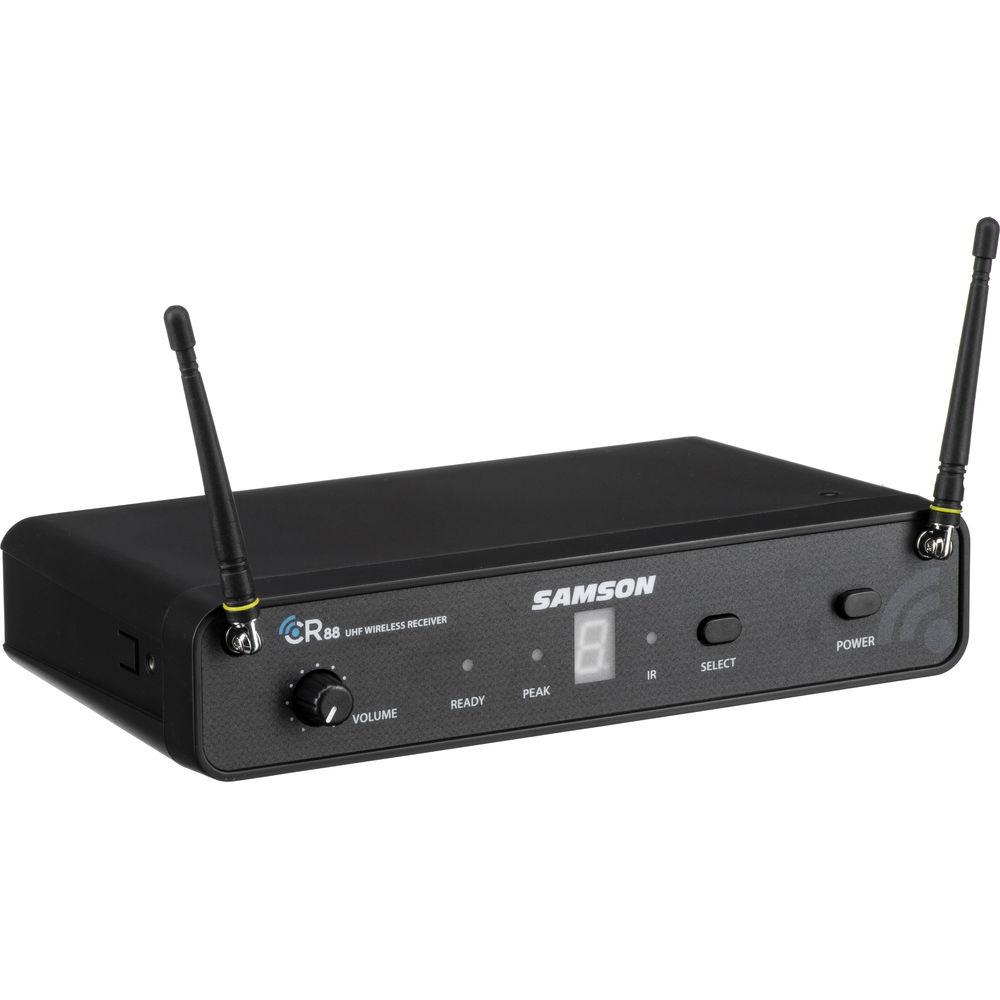

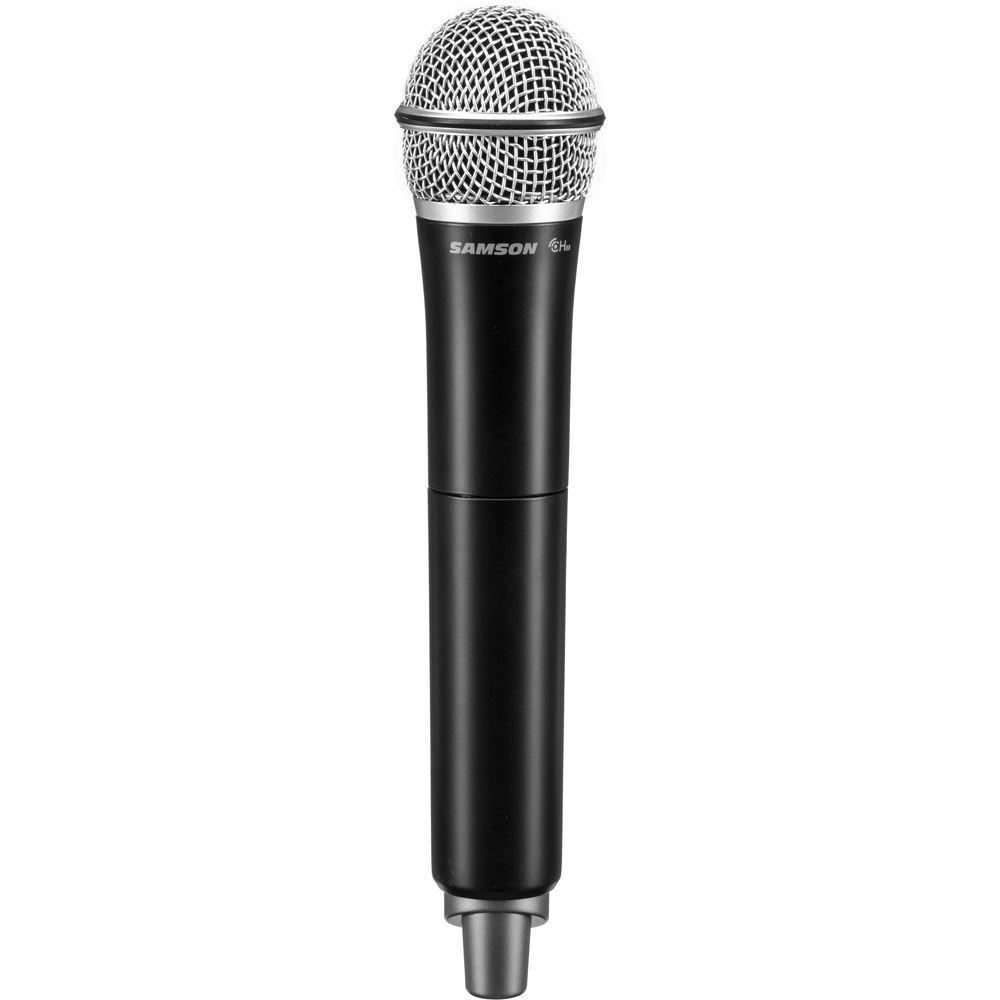

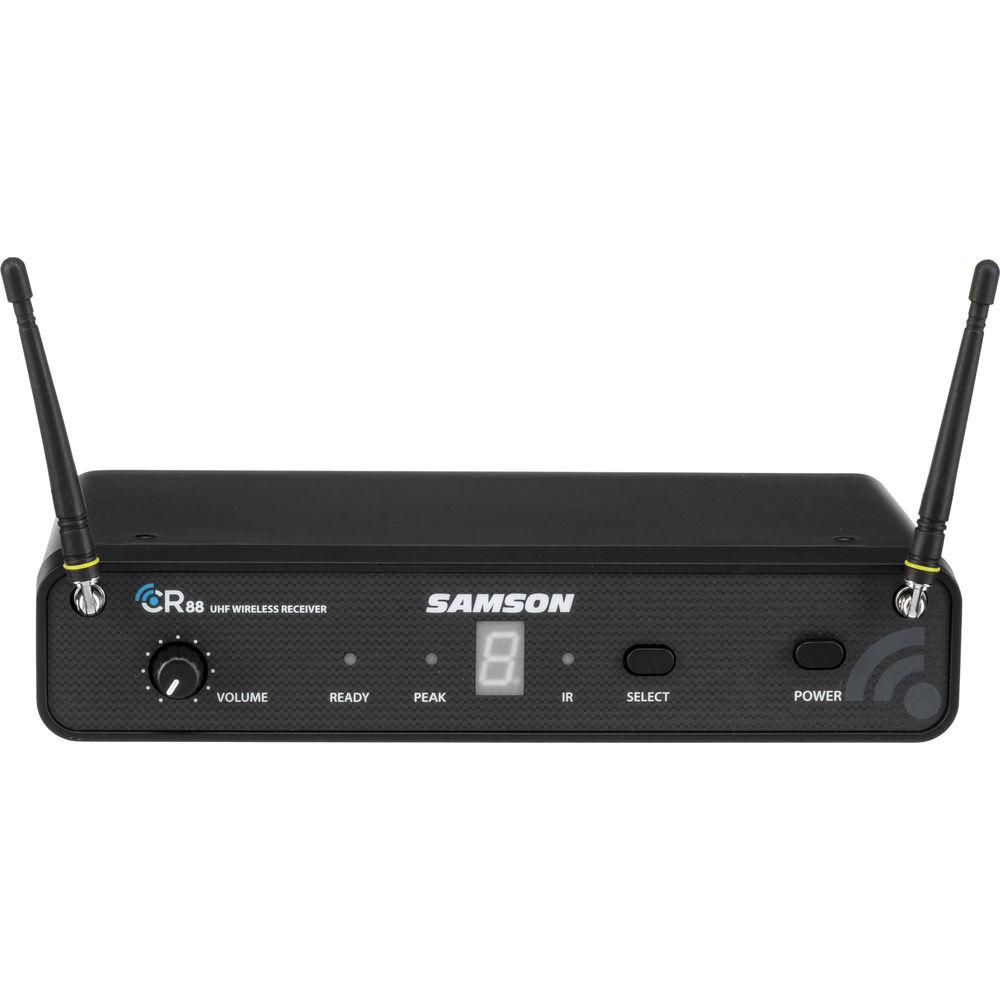

Product description The Concert 88 Handheld 16-Channel True Diversity UHF Wireless System from Samson consists of a CR88 half-rack UHF receiver and a CH88 handheld transmitter with Q6 dynamic microphone capsule. It is designed for live sound reinforcement applications and can be used wherein the vocalist, MC, or lecturer wants to be free to move around and sing or speak wirelessly. The receiver features a true diversity dual-antenna design whereby internal signal processing switches to the antenna that is receiving a stronger signal. This helps to prevent drop-outs and maintain a more accurate transmission. The unit includes a tone key and an auto-mute function to eliminate noise if the receiver ever loses the signal. For controls, the receiver features a power button, volume knob, select button, a 7-segment channel indicator LED, as well as audio ready, peak, and IR indicator lights. Up to 16 of these systems may operate simultaneously on two frequency bands from a maximum operating range of 300'. The CH88 handheld transmitter is synced with the receiver via infrared. It can operate for up to eight hours on two AA batteries. Additionally, it features an on and off/mute switch. - True Diversity Reception
- Switches between two antennas depending on whichever one is receiving the stronger signal to minimize dropouts in audio
- Infrared Link
- Connects the wireless receiver to the wireless transmitter
- Outputs

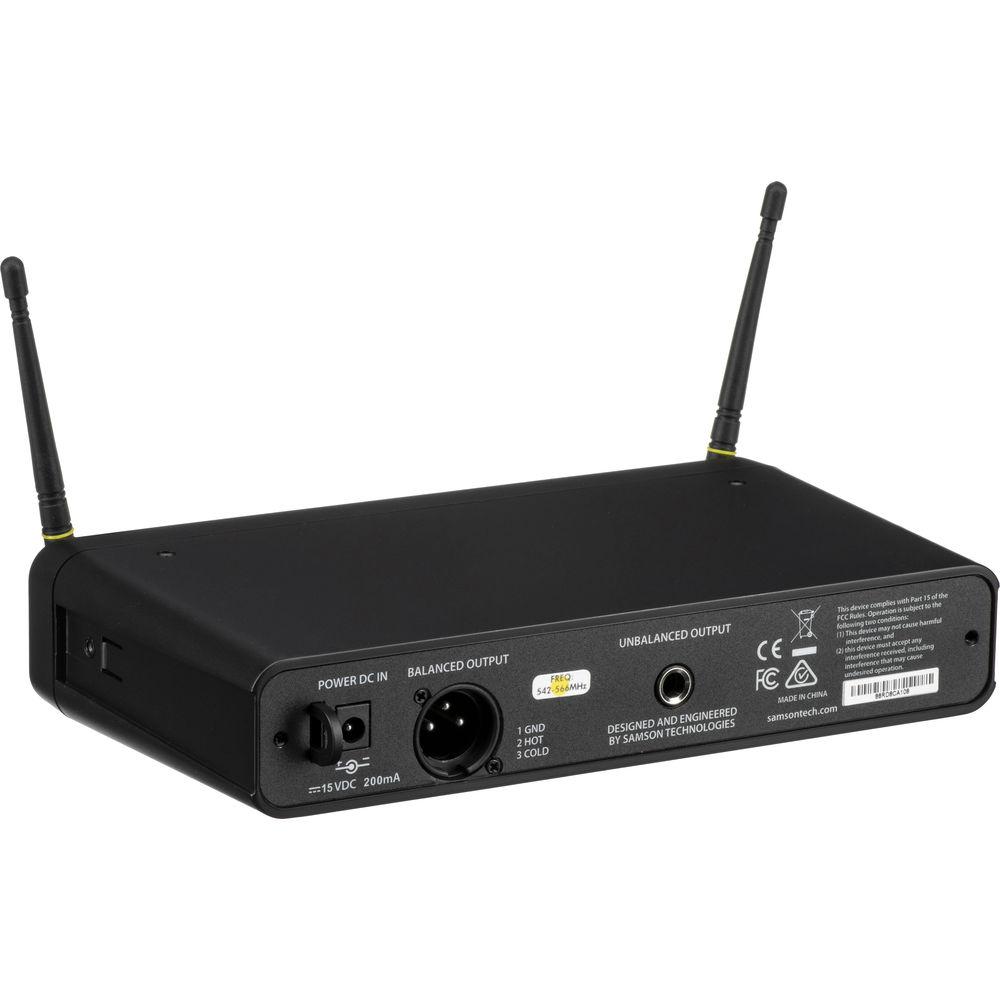

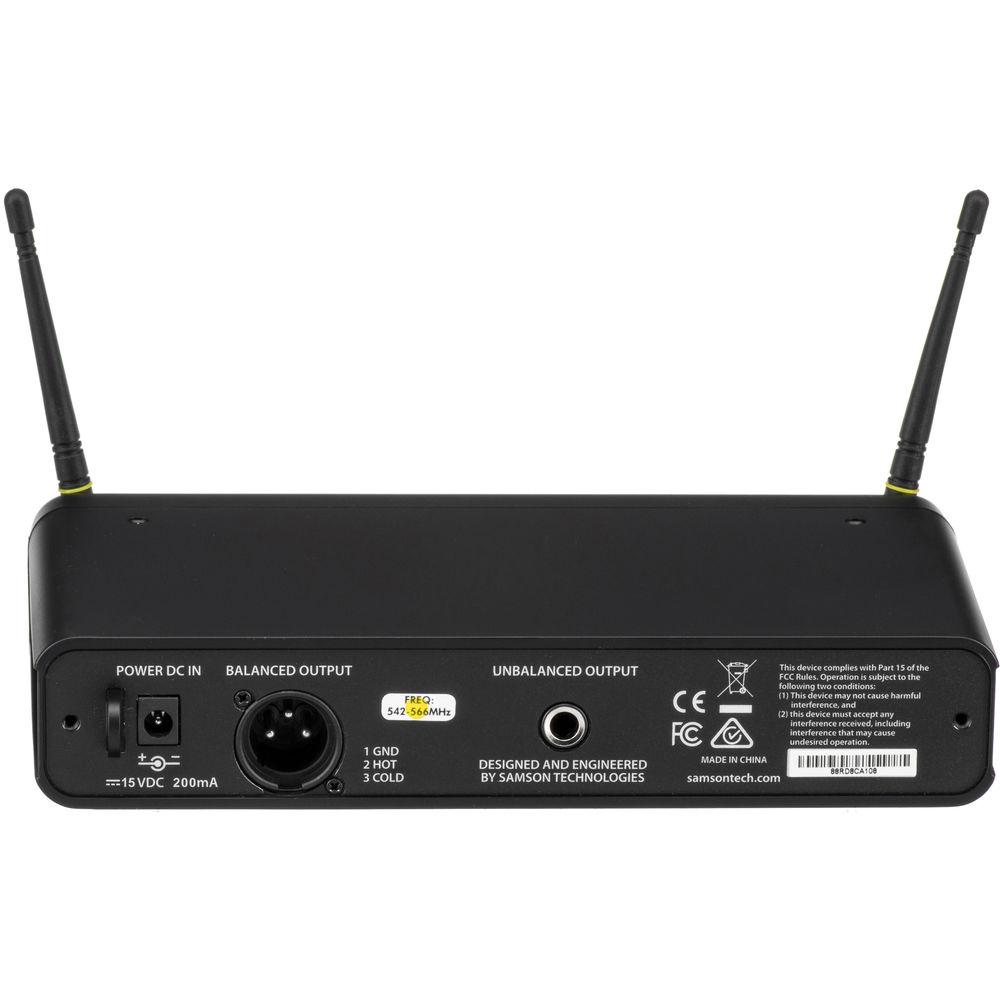

- The receiver features both XLR and 1/4" outputs
UPC: 809164211150 In the Box Samson Concert 88 Handheld 16-Channel True Diversity UHF Wireless System (D: 542 to 566 MHz) UHF Receiver Dynamic Microphone Transmitter Rackmount Kit Limited 2-Year Warranty User Manual PDF 8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 88 Handheld 16-Channel True Diversity UHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC88HCL6-D Specs | | | Frequency Band | D: 542 to 566 MHz | | Operating Range | 300' / 91.4 m | | Frequency Response | 50 Hz to 15 kHz | | THD | < 1% at AF 1000 Hz, RF 46 dBu | | Dynamic Range | > 100 dB A-weighted | | Signal / Noise | > 90 dB | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Tone Key | 32.768 kHz | | | | Microphone Element | Q6 Dynamic | | Input Gain | 28 dB | | RF Power | 10 mW EIRP | | Sync System | Infrared | | Power Requirement | Two AA (LR6) alkaline batteries | | Battery Life | 8 hours | | Dimensions (Diam. x H) | 2.10 x 10.23" / 54 x 260 mm | | Weight | 7.7 oz / 218 g | | | | Type | UHF | | Audio Output Level | Unbalanced: +14 dBu
Balanced: +9 dBu | | Audio Output Impedance | Unbalanced: 810 Ohms
Balanced: 240 Ohms | | Sensitivity | -100 dBm / 30 dB sinad | | Image Rejection | > 50 dB | | Operating Voltage | 15 VDC 200 mA | | Dimensions (L x W x H) | 8.25 x 4.9 x 1.75" / 210 x 125 x 44 mm | | Weight | 13.7 oz / 388 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 11.8 x 9.7 x 3.5" |
