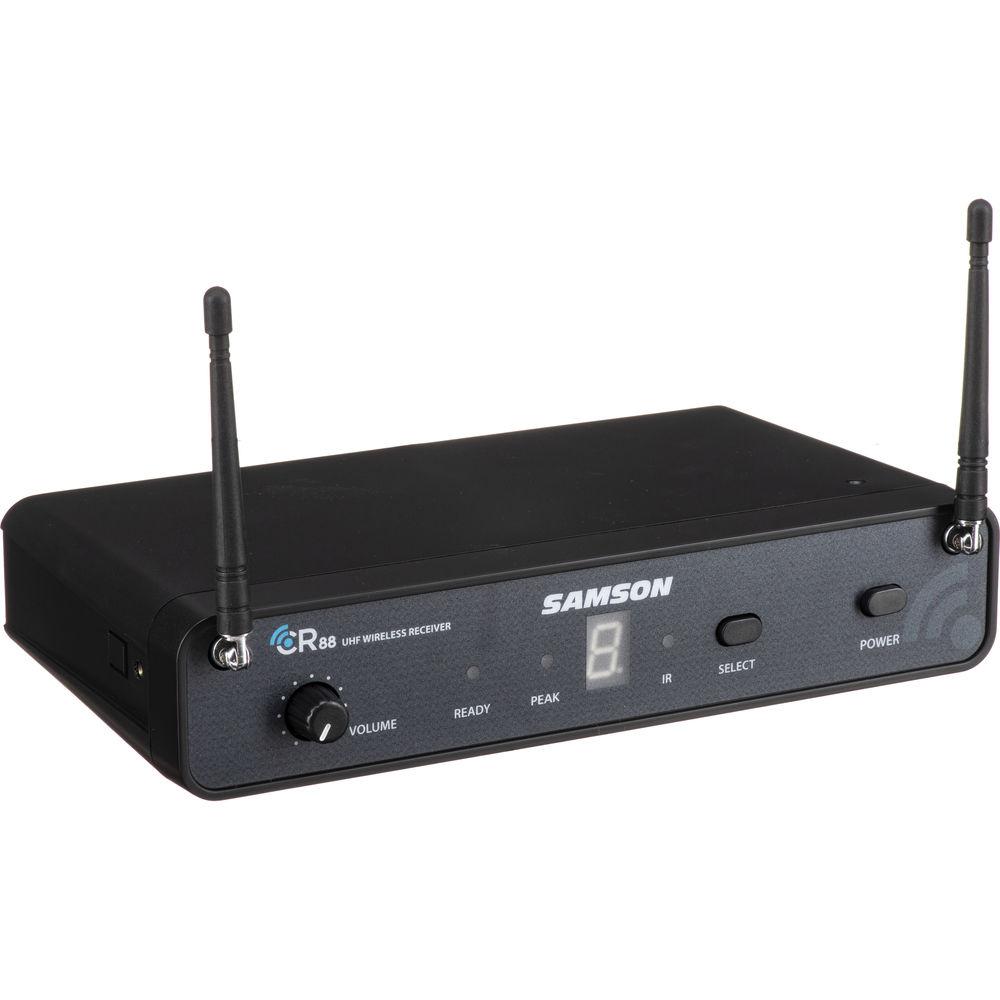

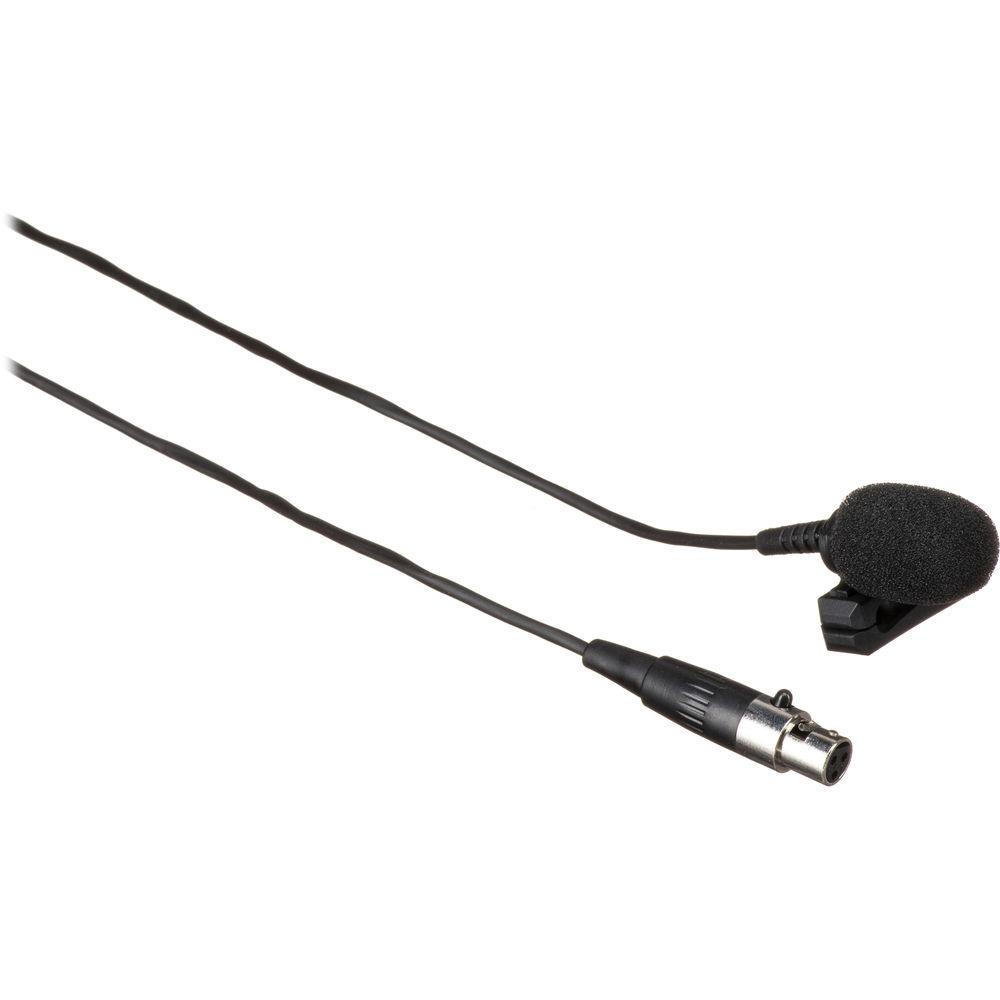

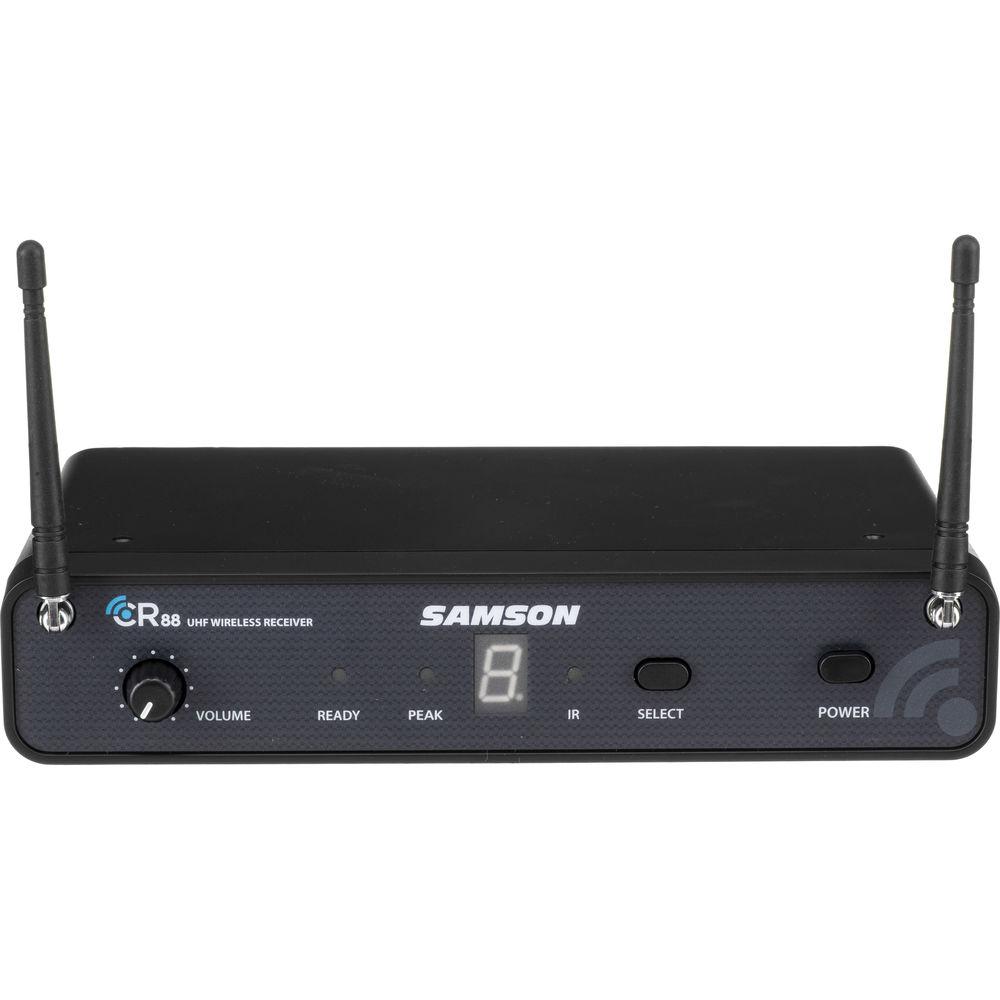

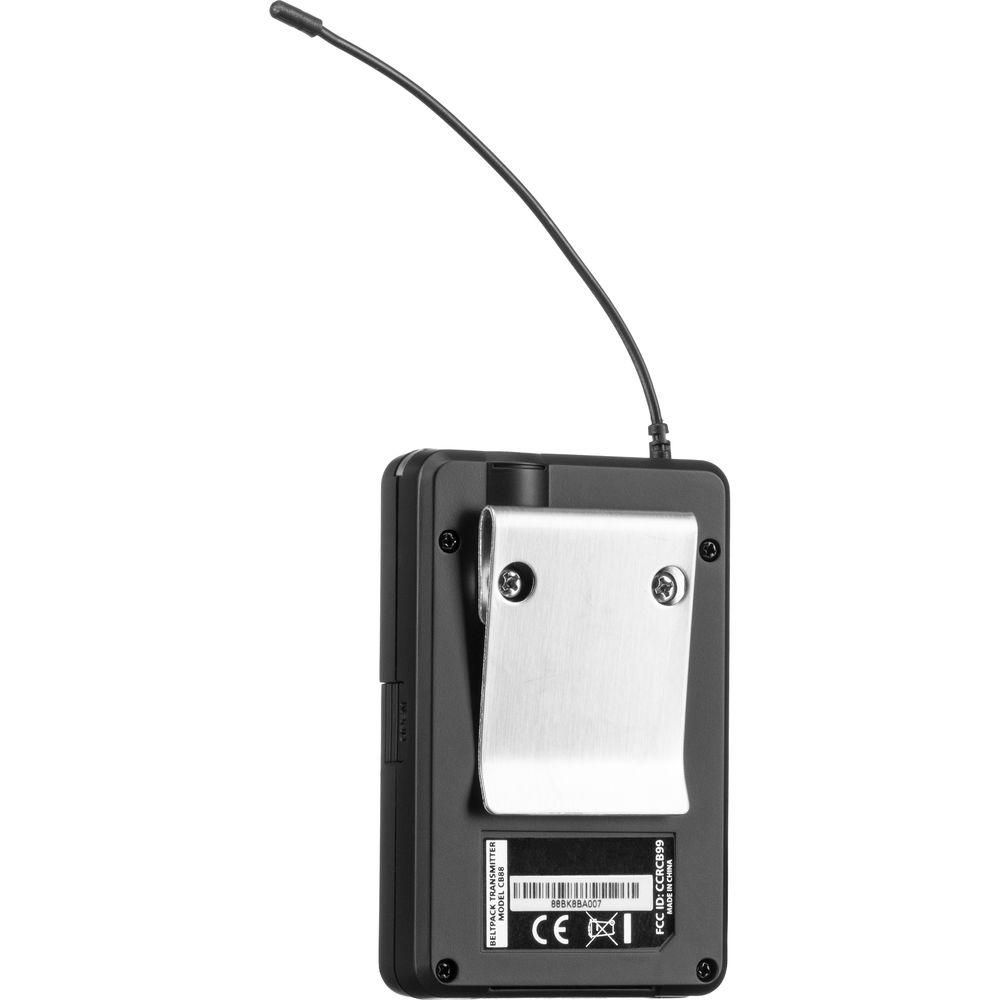

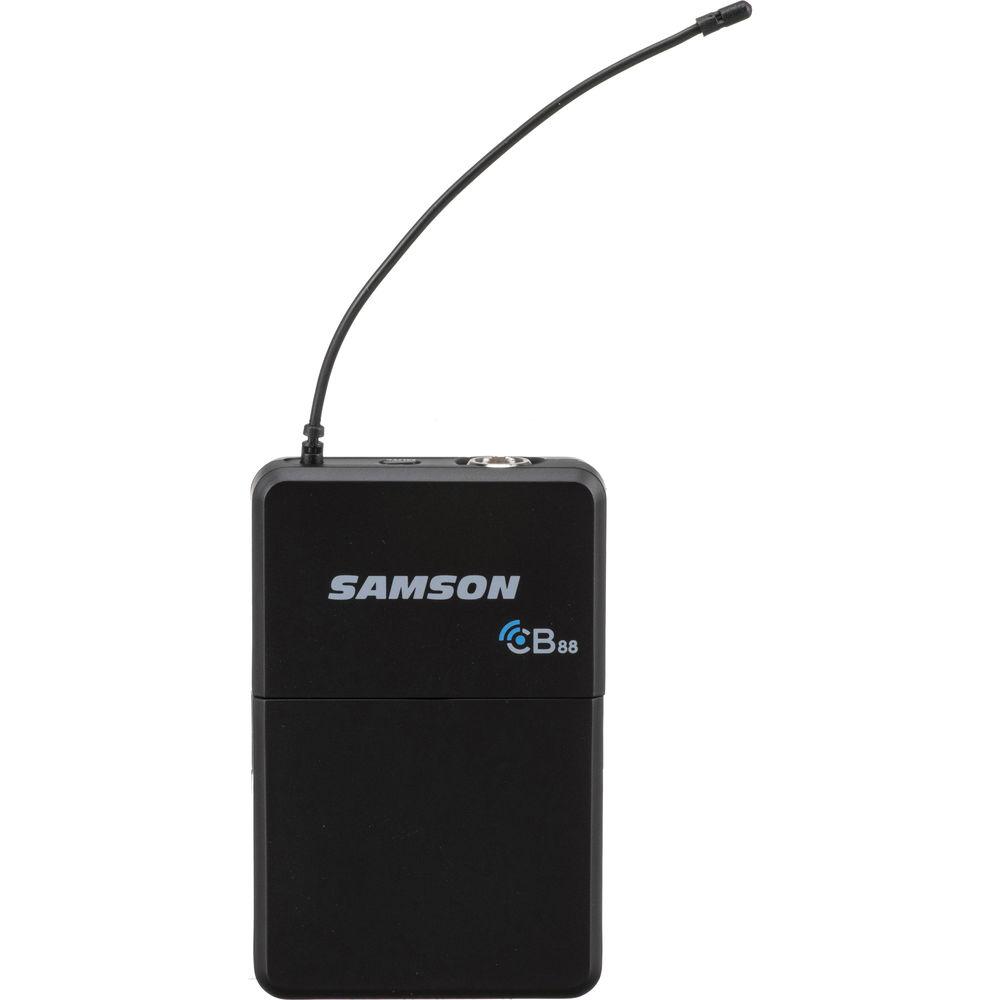

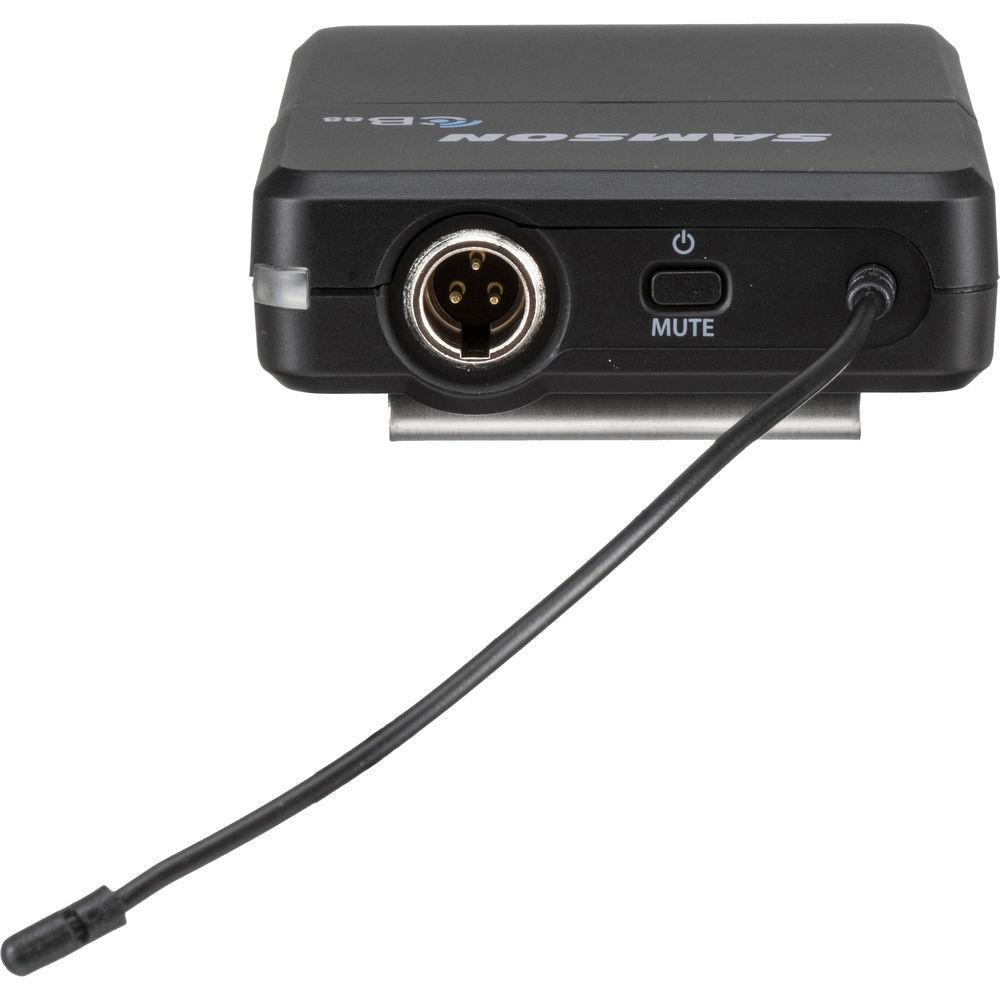

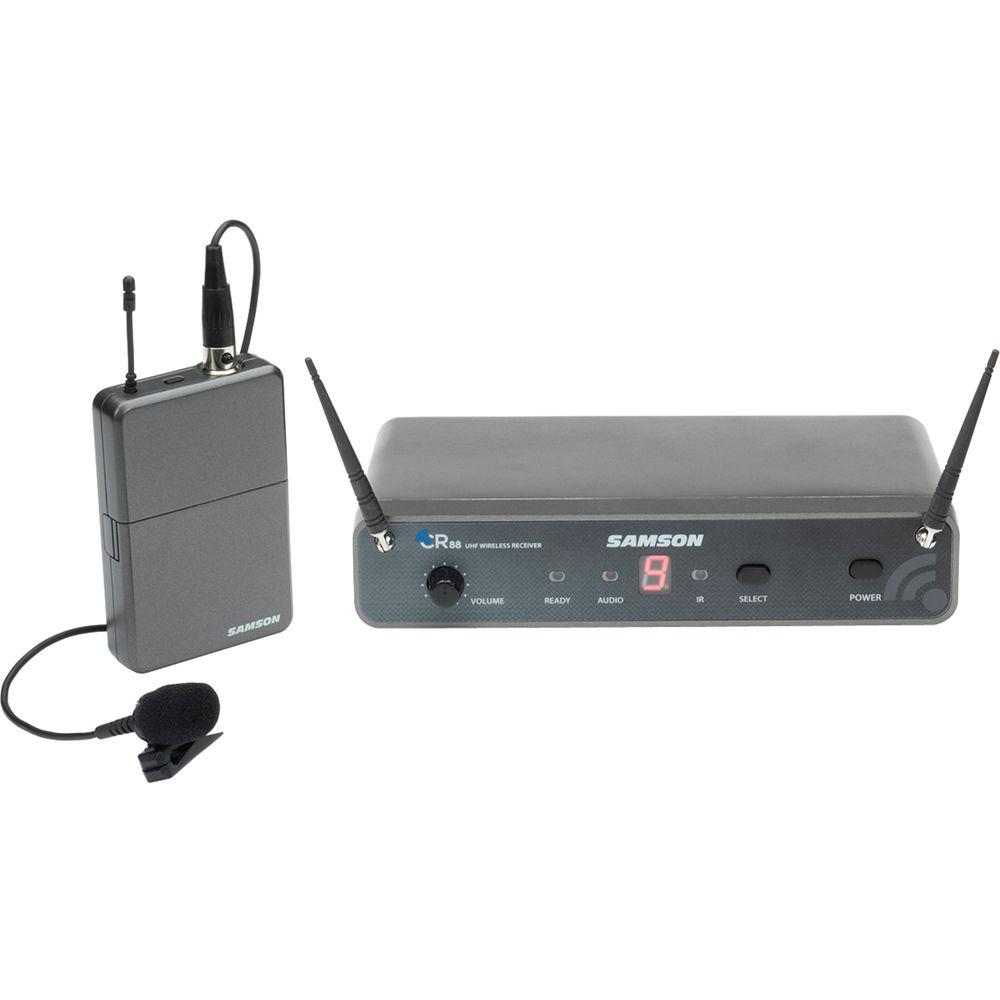

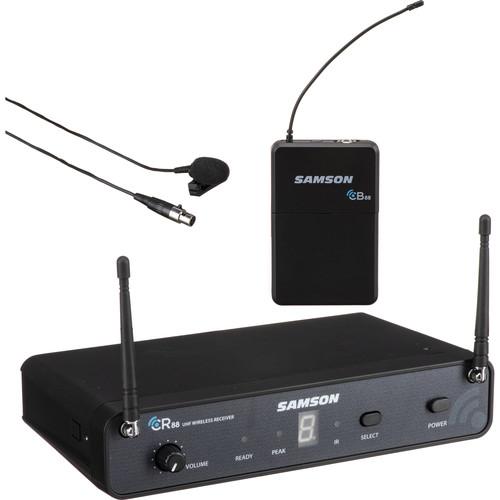

Product description The Concert 88 Lavalier UHF Wireless Microphone Presentation System from Samson consists of a CR88 half-rack UHF receiver, a CB88 bodypack transmitter, and an LM5 lavalier microphone with clip. It can be used in live sound reinforcement applications for capturing speech wherein the speaker wants to be free to move around. The receiver features a true diversity dual-antenna design whereby internal signal processing switches to the antenna that is receiving a stronger signal. This helps to prevent drop-outs and maintain a more accurate transmission. The unit includes a tone key and an auto-mute function to eliminate noise if the receiver ever loses the signal. For controls, the receiver features a power button, volume knob, select button, a 7-segment channel indicator LED, as well as audio ready, peak, and IR indicator lights. Up to 16 of these systems may operate simultaneously on two frequency bands from a maximum operating range of 300'. The bodypack transmitter is synced with the receiver via infrared and can operate for up to eight hours on two AA batteries. For convenience, the lavalier microphone includes a spring-loaded clip so you can attach it to your lapel. UPC: 809164218951 In the Box Samson Concert 88 Lavalier UHF Wireless Microphone Presentation System (K: 470 to 494 MHz) UHF Receiver Bodypack Transmitter LM5 Lavalier Microphone Rackmount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 88 Lavalier UHF Wireless Microphone Presentation System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

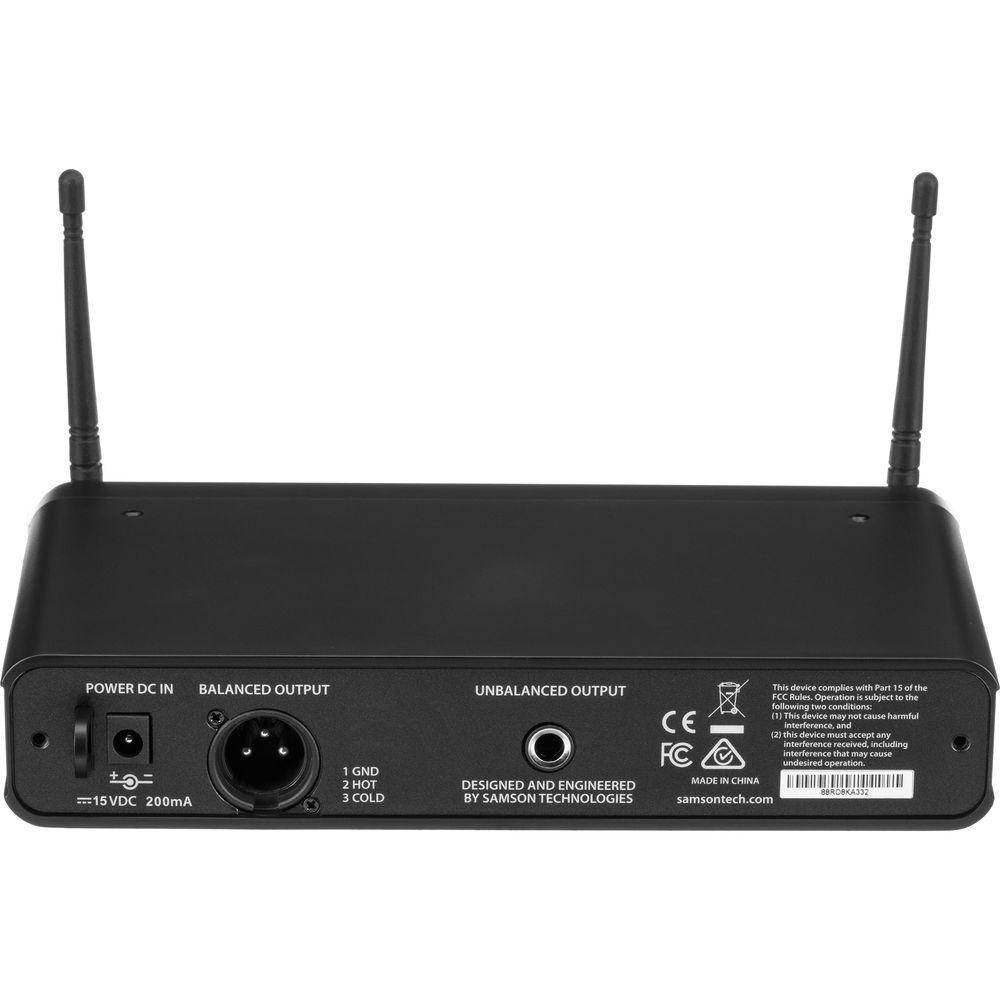

Technical parametersSamson SWC88BLM5-K Specs | | | Microphone | LM5 lavalier microphone with locking mini-XLR (P3) connector | | | | Transmission Frequency | K: 470 to 494 MHz | | Operating Range | 300.0' / 91.4 m | | Frequency Response | 50 Hz to 15 kHz | | THD | < 1% at AF 1 kHz, RF 46 dBu | | Dynamic Range | > 100 dB A-weighted | | Signal / Noise | > 90 dB | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Tone Key | 32.768 kHz | | | | Input Connector | Mini-XLR (P3) | | Input Impedance | 1 MOhm | | Input Gain | 38 dB | | RF Power | 10 mW EIRP | | Power Requirements | Two AA (LR6) alkaline batteries | | Battery Life | 8 hours | | Sync System | Infrared | | Dimensions (H x W x D) | 3.75 x 2.44 x 0.75" / 96.0 x 62.0 x 18.5 mm | | Weight | 0.2 lb / 93.0 g | | | | Type | UHF | | Audio Output Level | Unbalanced: +14 dBu
Balanced: +9 dBu | | Audio Output Impedance | Unbalanced: 810 Ohms
Balanced: 240 Ohms | | Sensitivity | -100 dBm / 30 dB sinad | | Image Rejection | > 50 dB | | Operating Voltage | 15 VDC 200 mA | | Dimensions (L x W x H) | 8.25 x 4.9 x 1.75" / 210 x 125 x 44 mm | | Weight | 0.85 lb / 3.88 kg | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.9 x 9.7 x 3.5" |
