User Manual for Samson Concert 88 Micro Headset 16-Channel True Diversity UHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Concert 88 Micro Headset 16-Channel
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
|
User manual for the Samson Concert 88 Micro Headset 16-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

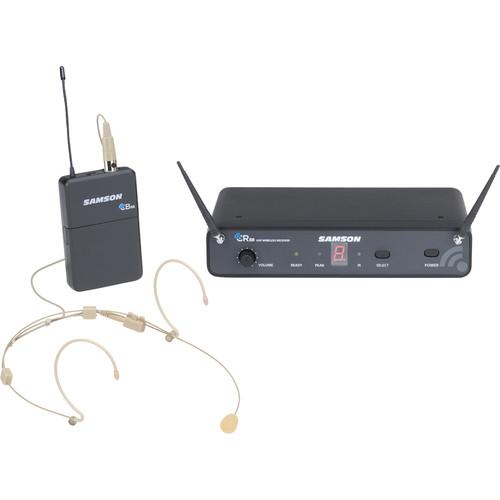

Product description Operating in the 542 to 566 MHz frequency band, the Samson Concert 88 Micro Headset is a 16-channel true diversity UHF wireless system featuring the CR88 half-rack receiver, a CB88 beltpack transmitter, and a DE10 miniature condenser headset microphone. The frequency-agile UHF system can be used for clear voice capture in various environments, and offers up to 300' of reliable performance for singers, active performers, presenters, and more. It supports operation of up to 16 simultaneous systems for large productions. The CR88 receiver features a true diversity, dual-antenna design that minimizes signal dropouts by automatically choosing whichever antenna is receiving the strongest signal. In the event of a signal dropout or loss of transmitter power, the CR88 uses its tone key and auto mute features to prevent itself from receiving extraneous signal transmissions that would otherwise result in unwanted noise. Its XLR and 1/4" outputs ensure compatible connectivity with a variety of mixers and PA systems. The CR88 also provides a front-panel button to auto-sync the receiver to the CB88 beltpack transmitter via infrared signal. The transmitter, which operates for up to eight hours on two AA batteries (available separately), conveniently clips to a belt or waistband. Transmitter gain and receiver volume are adjustable for easy optimization of signal levels. CR88 Wireless Receiver - True RF diversity design minimizes dropouts
- Supports up to 16 simultaneous systems (additional systems available separately)
- IR sync wirelessly matches receiver and transmitter channels
- Tone key and auto mute prevent unwanted noise when transmitter is off or out of range
- Receiver features a 7-segment channel LED, volume knob, power button, two tuned antennas, and LED indicators for audio and ready status
- Receiver can be mounted in a half-rack space using the supplied rackmount kit
- Balanced XLR and unbalanced 1/4" outputs
CB88 Beltpack Transmitter - Clips directly to belt or waistband
- Battery life up to eight hours via two AA batteries (available separately)
- 300' operating range (line of sight)
- LED indicates normal operation, low battery, and mute status
DE10 Headset Microphone - Miniature condenser microphone capsule
- Omnidirectional polar pattern
- Dual-ear design ensures a secure fit
UPC: 809164215400 In the Box Samson Concert 88 Micro Headset 16-Channel True Diversity UHF Wireless System (D: 542 to 566 MHz) Rackmount Kit AC Adapter 1/4" Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 88 Micro Headset 16-Channel True Diversity UHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson 88 Specs | | | Wireless Transmission | Digital UHF | | Number of RF Channels | 16 | | Included Transmitters | 1 x Bodypack with Microphone | | Diversity | True Diversity | | RF Frequency Band | D: 542 to 566 MHz | | Max Operating Range | 300' / 91.4 m (Line of Sight) | | Max Systems per Setup | 16 | | Dynamic Range | >100 dBA | | Encryption | None | | Pilot Tone | 32.768 kHz | | | | Form Factor | Table-Top | | Mounting Options | Rackmount (with Included Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x External, Fixed (Front-Mount) | | Number of Audio Channels | 1 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output | | Audio Output Level | XLR Output:
+9 dBu (Balanced)
1/4" Output:
+14 dBu (Unbalanced) | | Phantom Power Protection | Not Specified by Manufacturer | | Frequency Response | 50 Hz to 15 kHz | | Network I/O | None | | Word Clock I/O | None | | Impedance | XLR Output:
240 Ohms (Balanced)
1/4" Output:
810 Ohms (Unbalanced) | | Approximate RF Sensitivity | -100 dBm | | Adjacent Channel Isolation | >50 dB | | Power Requirements | AC Input | | AC/DC Power Adapter | 15 VDC at 200 mA, Center-Positive (Included) | | Display & Indicators | 1 x Multi-Segment LED (Channel)
1 x LED (RF Level)
1 x LED (Clip) | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 8.3 x 1.8 x 4.9" / 21.1 x 4.6 x 12.4 cm (without Antennas) | | Weight | 13.7 oz / 388.0 g | | | | Form Factor | Bodypack with Microphone | | RF Output Power | 10 mW (EIRP) | | Audio I/O | 1 x TA3/Mini XLR 3-Pin Male Balanced Input | | Pad | None | | Gain Range | Up to 38 dB | | Signal Processing | None | | Frequency Response | 50 Hz to 15 kHz | | Sync Method | IR | | Antenna | 1 x External, Fixed | | Power Requirements | Battery | | Battery Type | 2 x AA (Not Included) | | Approx. Battery Life | 8 Hours (Alkaline) | | USB Port | None | | Display & Indicators | 1 x LED (Battery Status, Mute, Sync) | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 2.4 x 3.8 x 0.8" / 6.1 x 9.7 x 2.0 cm (without Antennas) | | Weight | 3.3 oz / 93.0 g | | | | Form Factor | Headworn | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Electret Condenser | | Diaphragm | 0.12" / 3 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 120 dB SPL | | Impedance | 2 kOhms ± 30% | | Sensitivity | -45 dB at 1 kHz | | Output Connectors | 1 x TA3/Mini XLR 3-Pin Female Balanced | | Cable Length | 3.94' / 1.2 m | | Operating Voltage | 1.5 to 12 V | | Weight | 0.46 oz / 13 g |
