User Manual for Samson Concert 99 Presentation Frequency-Agile UHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Concert 99 Presentation Frequency-Agile UHF
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Concert 99 Presentation Frequency-Agile UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

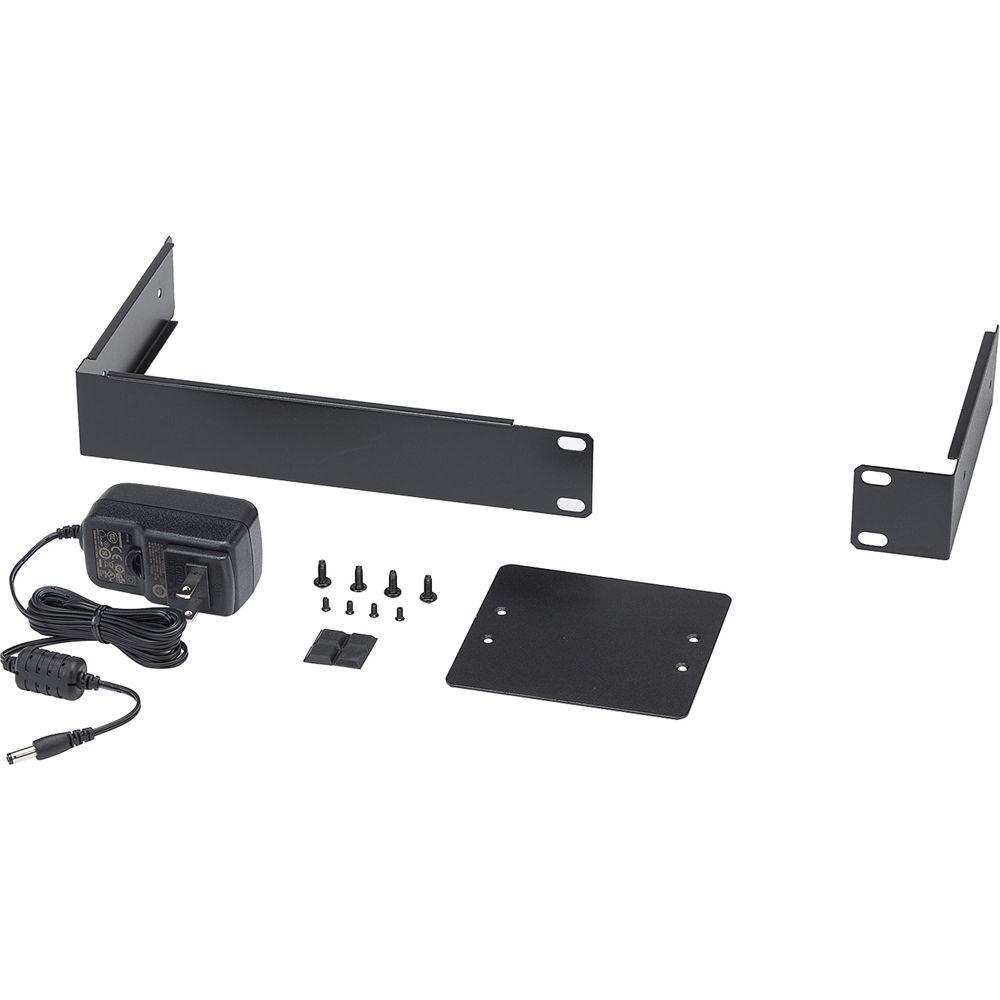

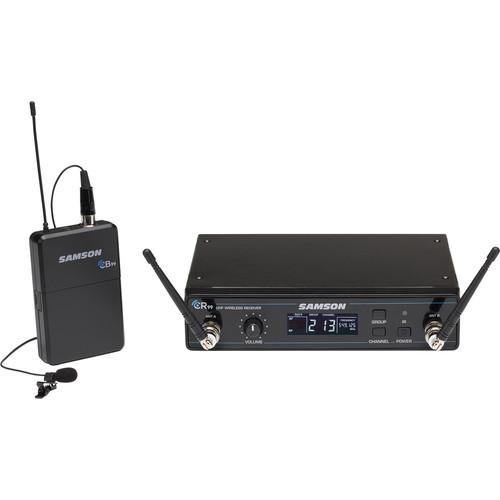

Product description The Concert 99 Presentation Frequency-Agile UHF Wireless System from Samson is an ideal solution for the active performer who needs a reliable, great-sounding system for wireless applications. It can be used to capture audio for presenters, educators, house of worship speakers, fitness instructors, and others in search of wireless freedom. Featuring a large backlit LCD display, simple operation with auto-scan channel selection, and infrared set for syncing the transmitter and receiver channel, the Concert 99 is simple-to-use and operate. It delivers clear, interruption-free performance, and utilizes true RF diversity with pilot tone-key and auto-mute functions. Furthermore, the Concert 99 comes in four configurations. The vocal handheld system includes the CH99 handheld transmitter with Samson's Q8 dynamic microphone capsule. The CB99 belt pack system can be configured with either the SE10 earset microphone, LM10 lavalier microphone, or a 1/4" instrument cable. In addition, the Concert 99 includes a standard 19" rackmount kit for permanent installations or transporting in a mobile rack. - Wireless to the Nines
- Samson's Concert 99 Presentation combines 80 channels of high-definition audio and reliability into an all-metal, rack-mountable chassis with a stage-ready backlit display. With simple 1-touch setup, convenient monitoring, a 300' UHF operating range, and impressive transmitter battery life, this frequency-agile system offers unprecedented value to singers, business professionals, educators, and others in search of reliable wireless freedom
- Simple Setup

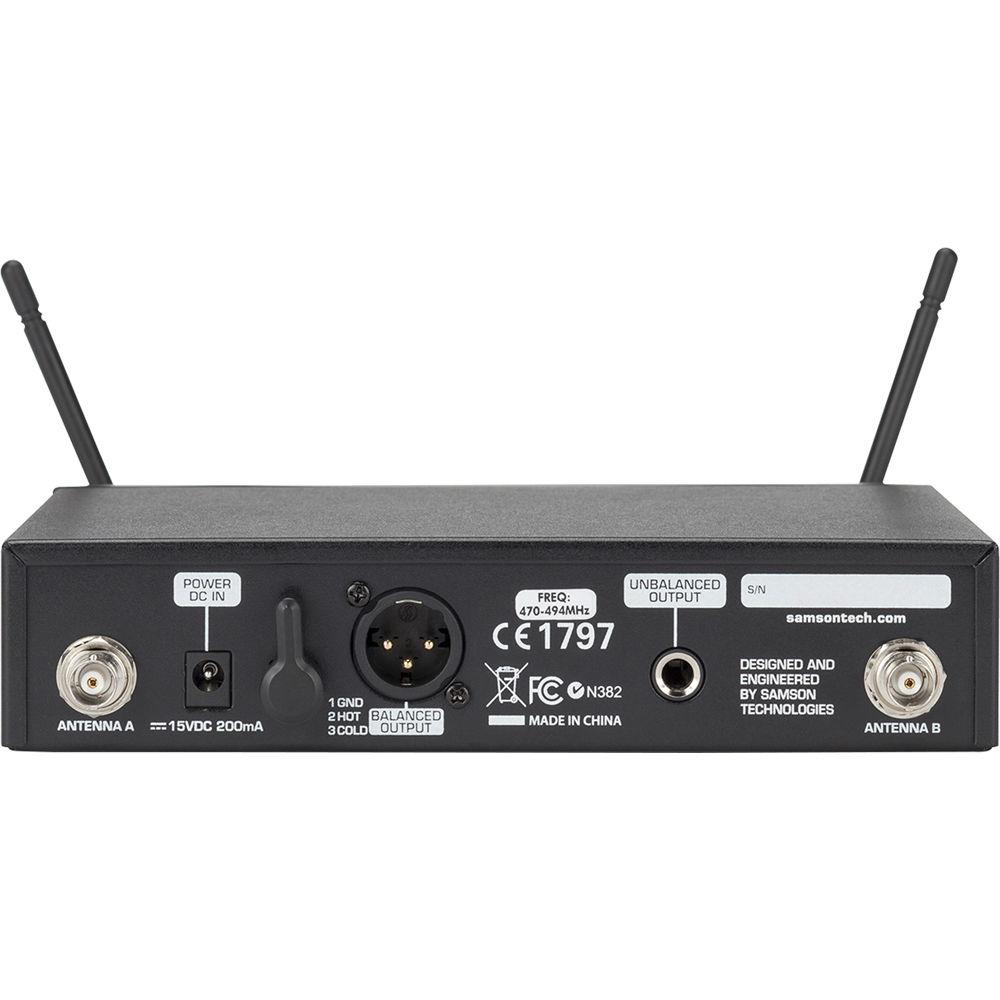

- In both single and multi-system arrangements, the CR99 wireless receiver offers 80 total operating channels for selecting the best frequency option in your area. Quick to setup, the CR99's group scan helps avoid conflicting frequencies, while its IR sync function allows users to wirelessly match the transmitter to the receiver's operating frequency
- More Monitoring
- The CR99 receiver features a bright, backlit LCD for monitoring on dark stages, even at long distances. The LCD also shows the exact battery life of your transmitter, along with the channel number and its corresponding UHF frequency

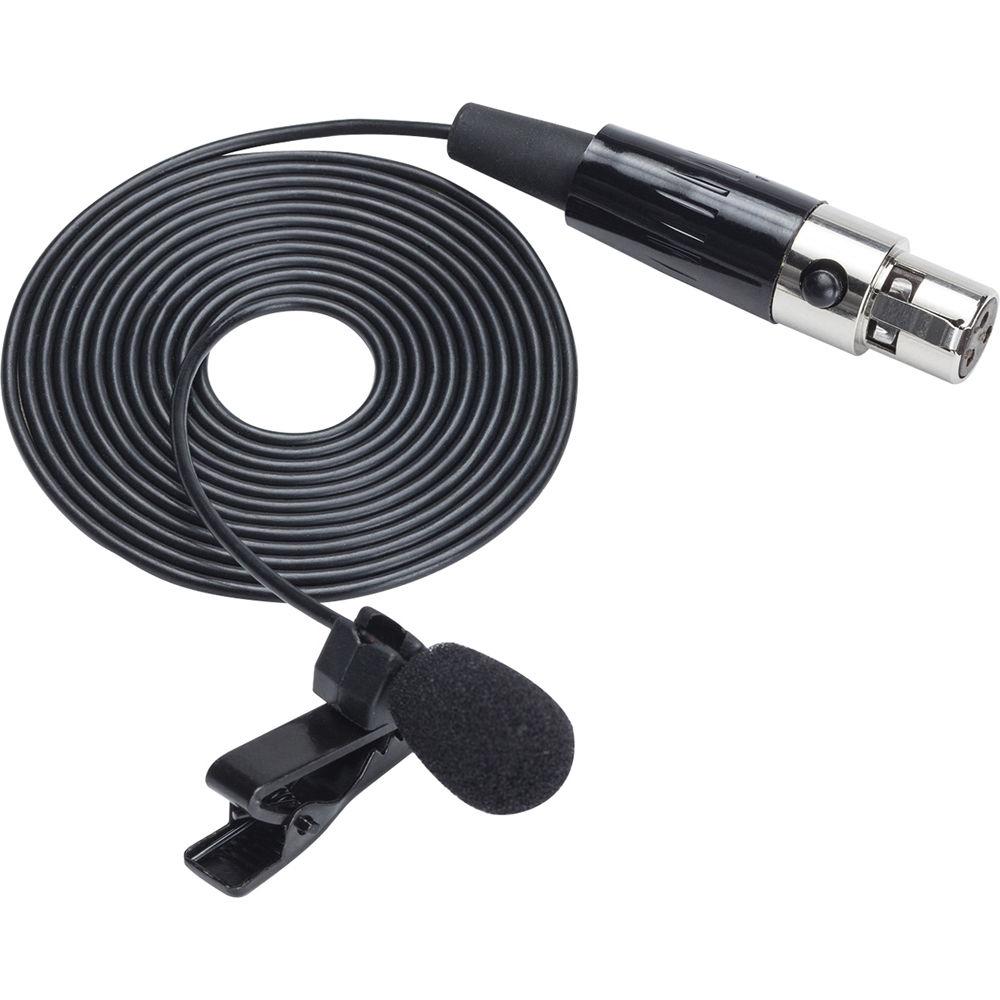

- LM10 Lavalier Mic

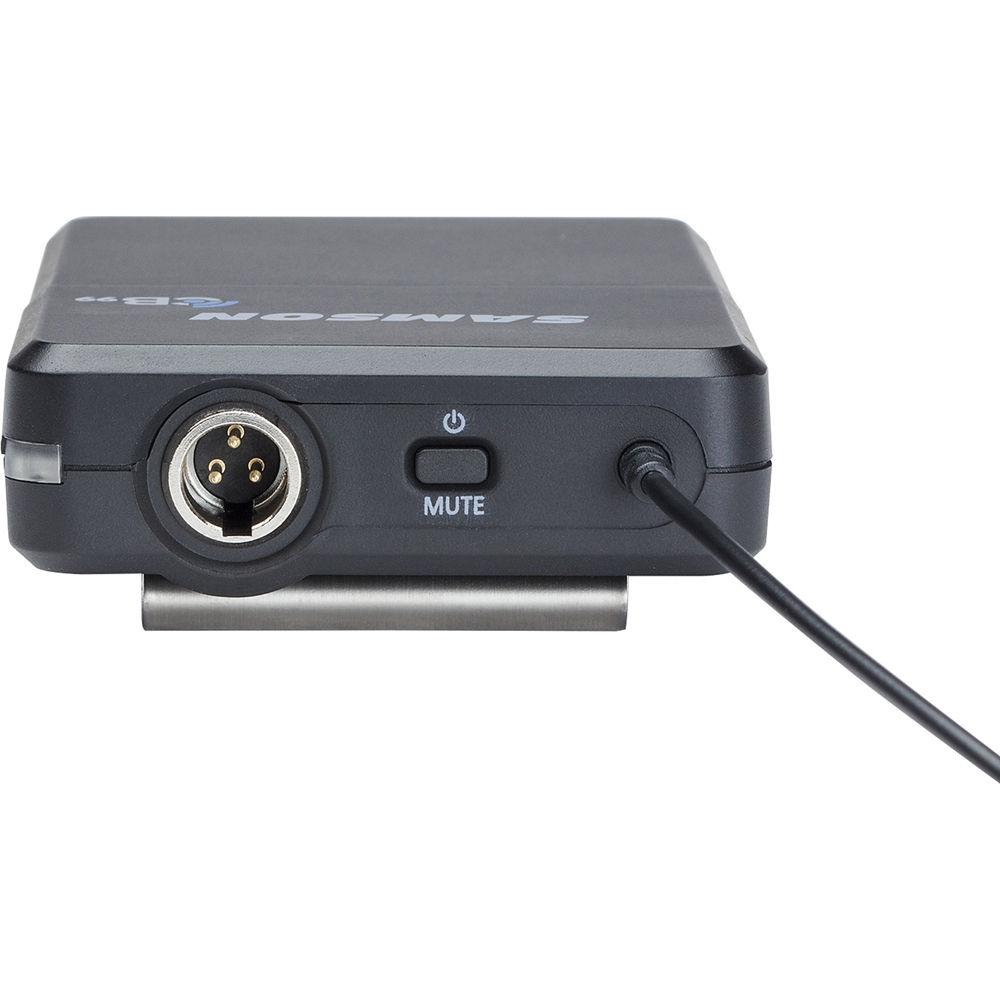

- Audio reaches the CR99 wireless receiver via the CB99 beltpack transmitter, which includes a Samson's LM10 omnidirectional lavalier microphone. Offering eight hours of battery life using two AA batteries (not included), the CB99 transmitter features a variable gain control, a popless 1-touch mute button, and a metal belt clip
UPC: 809164211181 In the Box Samson Concert 99 Presentation Frequency-Agile UHF Wireless System (D: 542-566 MHz) CR99 Receiver CB99 Beltpack Transmitter LM10 Lavalier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 99 Presentation Frequency-Agile UHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC99BLM10-D Specs | | | Working Range | 300' (100 m) line of sight | | Audio Frequency Response | 50 Hz to 15 kHz | | Total Harmonic Distortion (THD) | Less than 1% (@ AF 1 kHz, RF 46 dBu) | | Dynamic Range | >103 dB A-weighted | | Signal to Noise Ratio | >90 dB | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Tone Key | Frequency: 35,000 kHz | | | | Audio Output Level | Unbalanced: +14 dBu
Balanced: +9 dBu | | Audio Output Impedance | Unbalanced: 810 Ohms
Balanced: 240 Ohms | | Sensitivity | -100 dBm / 30 dB sinad | | Image Rejection | >50 dB | | Operating Voltage | 15 VDC 200 mA | | Dimensions (L x W x H) | 7.87 x 5.9 x 1.6" (200 x 150 x 42 mm) | | Weight | 2.08 lb (0.946 kg) | | | | Type | Beltpack: CB99
Input Connector: Mini-XLR (P3)
Input Impedance: 1 MOhm
Input Gain Range: 38 dB
RF Power: 10 mW EIRP
Power Requirements: 2 x AA (LR6) alkaline batteries
Battery Life: 8-hours
Dimensions H x L x D: 3.75 x 2.44 x 0.75" (96 x 62 x 18.5 mm)
Weight: 0.2 lb (93 g) | | | | Capture Device | LM10 Lavalier | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.724 x 11.575 x 3.386" |
