Product description Offering 80 operating channels and infrared syncing capabilities, as well as a large backlit display for monitoring in low-light situations, the Samson Concert Wireless 99 Guitar System (Band K) allows guitarists, bassists, and other electrified instrument players to maintain an active presence in their particular performance scenario. This system occupies a UHF frequency band between 470 to 494 MHz and employs a True RF Diversity design to ensure transmission ranges of up to 300 feet with little to no background interference.

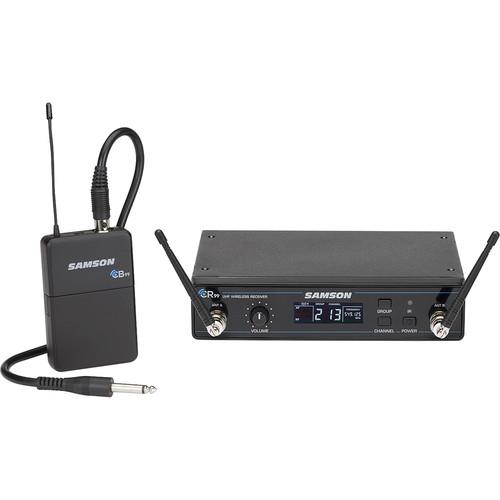

The Concert Wireless 99 Guitar System includes a beltpack transmitter, a wireless receiver, a complementing guitar cable with a locking connector, and a rack-mounting kit, should you wish to affix the receiver within 1 RU of rack space. An embedded 32 kHz frequency tone key ensures that your audio—and your audio alone—comprises the sole content of any transmission, while an auto-mute automatically kills the output level if the transmitter is either powered off or out of range. On the beltpack transmitter is an input stage capable of handling both balanced and unbalanced signals, and thus, suitable to pair with your instrument. Furthermore, pairing between the transmitter pack and the receiver can be conveniently accomplished with the use of an infrared signal. - Concert 99 Guitar System Features
-
- Intended for use in live sound and sound-contracting applications
- True RF Diversity technology for reduced interference
- 80 available channels operating in Band K (470 to 494 MHz)
- Up to eight simultaneous systems per frequency band (region dependent)
- Metal half-rack receiver can be used freestanding or can be mounted in any standard 19" rack using the included rack kit
- Tone key and auto-mute
- Up to 300-foot range (line of sight)
- Up to eight hours of battery life, using two standard AA batteries (available separately)
- AC adapter included
- CR99 Wireless Receiver Features
-
- All-metal, rack-mountable chassis
- Multi-functional backlit LCD (RF, audio, transmitter battery levels)
- Group scan for single- or multi-system setups
- IR sync wirelessly matches receiver and transmitter frequency
- True RF Diversity design to minimize dropouts
- Tone Key technology prevents interference
- Removable 1/4-wave antennas

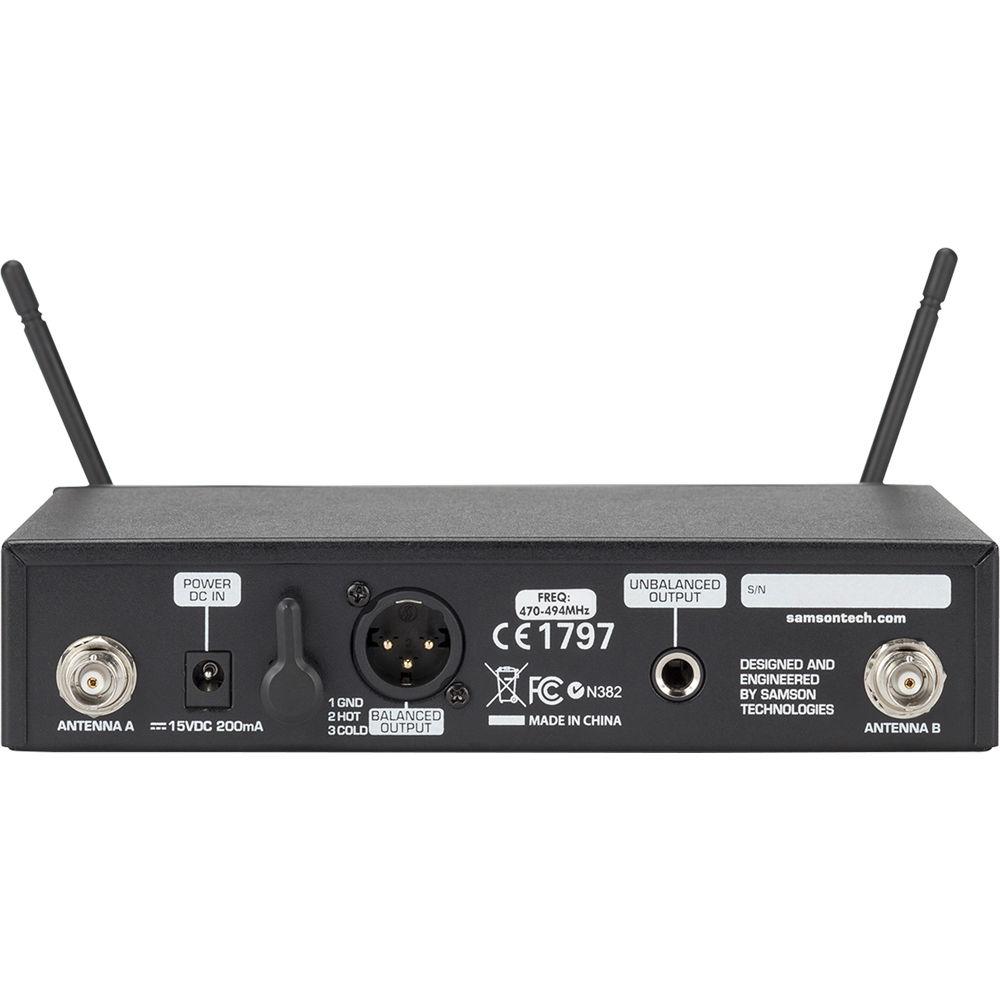

- Balanced XLR and 1/4" outputs

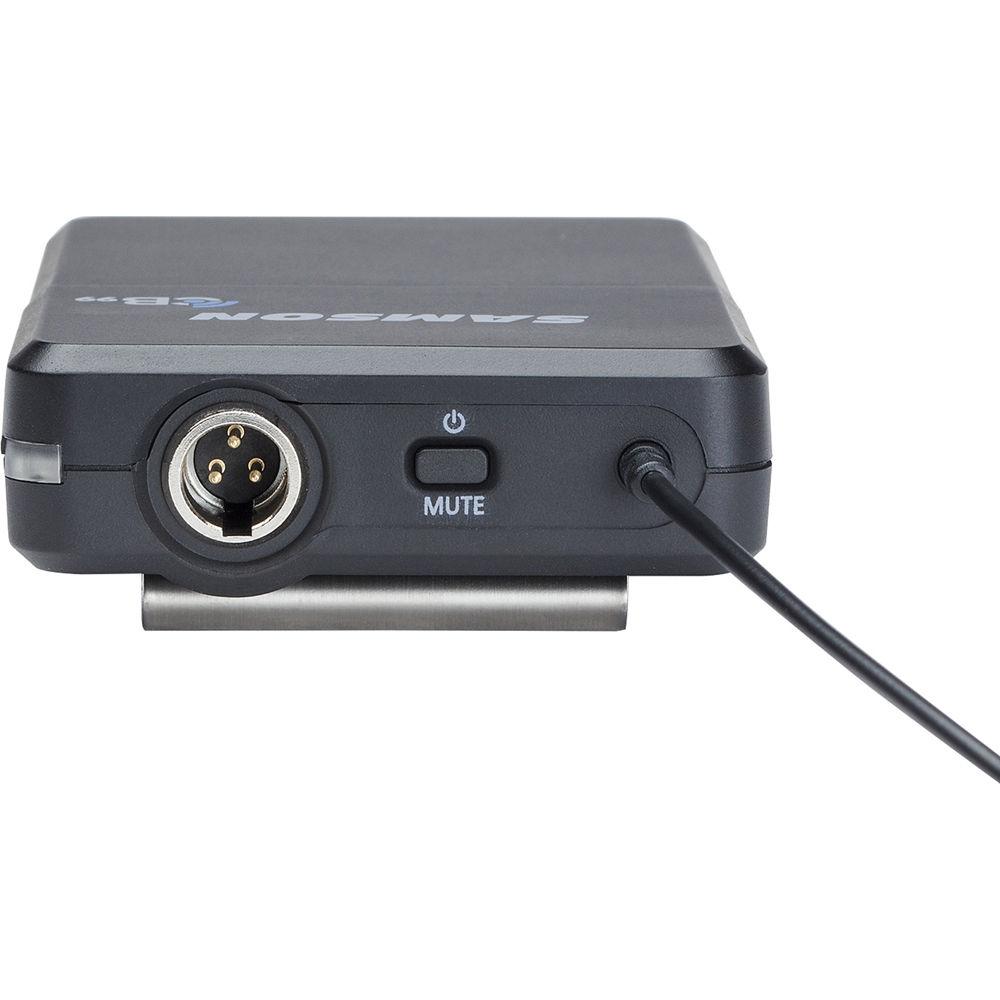

- CB99 Beltpack Transmitter
-

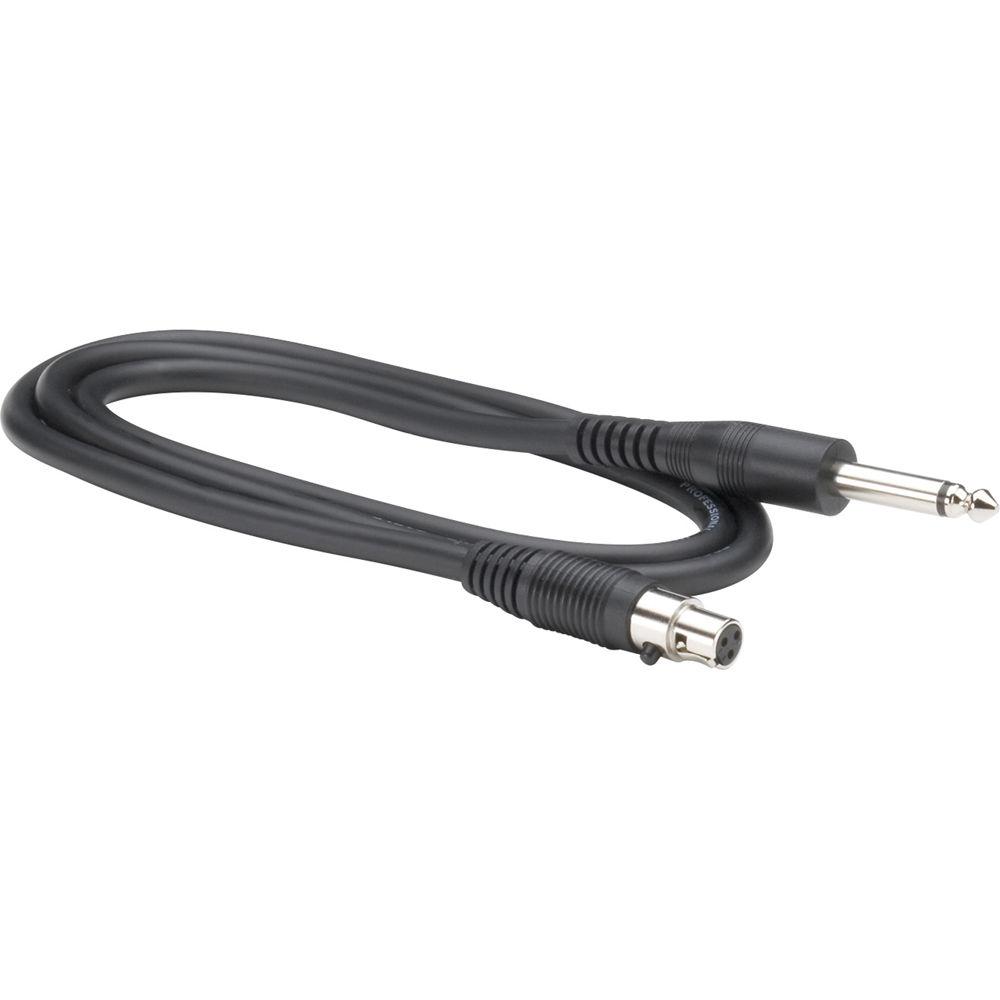

- GC32 Guitar Cable with locking connector
- Offers up to eight hours of battery life using two AA batteries (available separately)
- Variable Gain control
- One-Touch Mute
- Metal belt clip

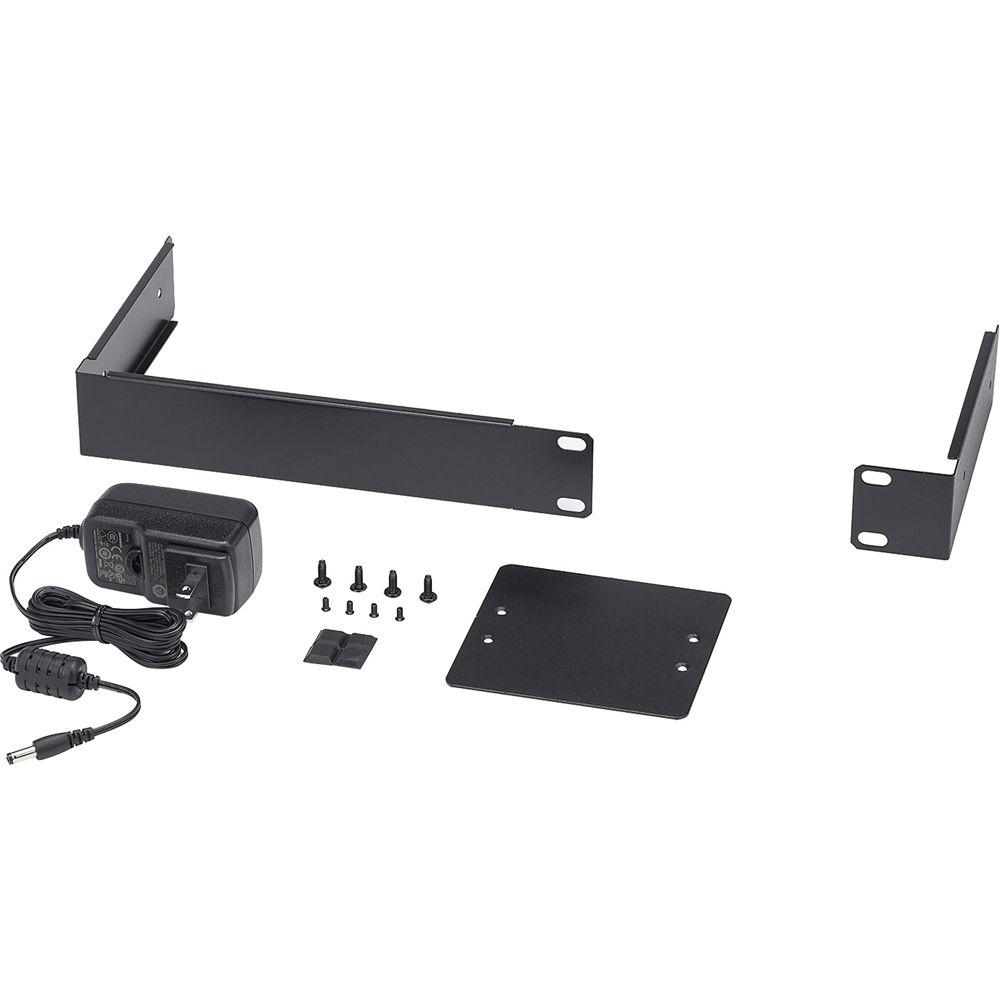

UPC: 809164211174 In the Box Samson Concert 99 Wireless Guitar System with GC32 Guitar Cable (Band K, 470 to 494 MHz) CB99 Beltpack Transmitter CR99 Receiver GC32 Guitar Cable AC Adapter Rackmount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Concert 99 Wireless Guitar System with GC32 Guitar Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC99BGT-K Specs | | | Working Range | 300' / 100 m line of sight | | Audio Frequency Response | 50 Hz to 15 kHz | | Total Harmonic Distortion | < 1% (at AF 1 kHz, RF 46 dBu) | | Dynamic Range | > 103 dB, A-weighted | | Signal to Noise | > 90 dB | | Operating Temperature | 14 to 140°F / -10 to +60°C | | Tone Key | Frequency: 35 kHz | | | | Input Connector | Mini-XLR (P3) | | Input Impedance | 1 MOhm | | Input Gain | 38 dB | | RF Power | 10 mW EIRP | | Power Requirements | 2 x AA alkaline batteries (available separately) | | Battery Life (approx.) | 8 hours | | Dimensions (H x L x D) | 3.8 x 2.4 x 0.8" / 9.6 x 6.2 x 1.9 cm | | Weight | 0.2 lb / 0.1 kg | | | | Audio Output | Unbalanced: +14 dBu
+9 dBu | | Audio Output Impedance | Unbalanced: 810 Ohms
Balanced: 240 Ohms | | Sensitivity | -100 dBm / 30 dB SINAD | | Image Rejection | > 50 dB | | Operating Voltage | 15 VDC 200 mA | | Dimensions (L x W x H) | 7.9 x 5.9 x 1.6" / 20.0 x 15.0 x 4.2 cm | | Weight | 2.1 lb / 0.9 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 14.803 x 11.653 x 3.386" |
