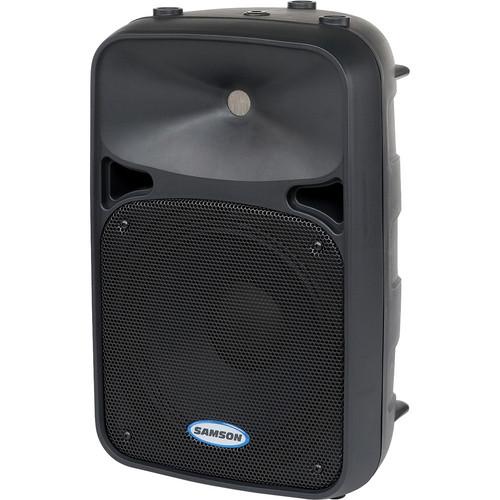

User Manual for Samson D210A 2-Way Active Loudspeaker Click to enlarge the picture
Contents of the user manual for the Samson D210A 2-Way Active Loudspeaker
- Product category: PA Speakers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson PA Speakers
|
User manual for the Samson D210A 2-Way Active Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The Samson Auro D210A 2-Way Active Loudspeaker is a rugged, lightweight and compact powered PA speaker well suited for musicians, stage monitoring, DJs, presenters, houses of worship and much more. The D210A delivers full-range audio with articulate bass and pristine, lucid highs. The rear panel features 1/4" line and XLR inputs capable of microphone or line level signals. The XLR output provides a link to multiple D210A speakers. The D208 is pole mountable with a 1 3/8-inch (35mm) at the base. - 200 watt, two-way active loudspeakers for live sound applications
- 150W LF + 50W HF power amplifiers (peak)
- Ultra-wide, flat frequency response
- Custom-designed, heavy-duty, 8"/10" long throw low frequency drivers provide enhanced bass response
- 1" high frequency driver with 1" throat for smooth high-end reproduction
- Additional Balanced mic/line input with Volume control and Peak LED
- 1 3/8-inch (Two-band LF and HF shelving equalizer
- Floor XLR Line Output connectors to "daisy-chain" multiple Auro cabinets
- Multi-band dynamics processing with audibly transparent limiting
- Internal 24 dB/octave time aligned electronic crossover
- 35° monitor angle for the D208 and 45° degree monitor angle for the D210
- Standard 1 3/8-inch (35mm) speaker stand receptacle
- Versatile, portable design with integrated side handles
- Tuned, ported bass reflex design for extended low end
- Rugged, lightweight polypropylene cabinet construction
UPC: 809164013266 In the Box Samson D210A 2-Way Active Loudspeaker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson D210A 2-Way Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson D210A Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 200 W | | Amplifier Power Rating | LF:
135 W RMS
160 W Peak (at 8 Ohms)
HF:
20 W RMS
40 W Peak (at 8 Ohms) | | | | HF Driver | 1 x 1" / 25 mm Tweeter | | LF Driver | 1 x 10" / 25.4 cm Woofer | | | | Frequency Response | 60 Hz to 20 kHz -3 dB | | Maximum SPL | 113 dB SPL | | Coverage Angle | 90° H x 60° V | | THD | <1% | | | | Audio I/O | 1 x XLR Balanced Line/Mic Input
1 x 1/4" TRS Balanced Line/Mic Input
1 x XLR Balanced Line Output | | | | Crossover | 2.1 kHz, 24 dB/Octave Linkwitz-Riley | | EQ | HF Shelf:
±15 dB at 12 kHz
LF Shelf:
±15 dB at 80 Hz | | Dynamic Processing | Optical Limiter | | | | AC Input Power | 100 to 115 VAC, 60 Hz (T 5 A L 250 V)
220 to 240 VAC, 50 Hz (T 2.5 A L 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 300 W (Max) | | | | Mounting | 1 x 1.38" / 3.5 cm Pole Socket 1 x Fly point | | Dimensions | 11.5 x 9.6 x 18.3" / 292.0 x 244.0 x 464.0 mm | | Weight | 18.8 lb / 8.5 kg | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 21.0 x 14.6 x 12.2" |
