User Manual for Samson DE50x Omnidirectional Micro-Miniature Headset Microphone for Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the Samson DE50x Omnidirectional Micro-Miniature Headset Microphone
- Product category: Microphones for Wireless Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Microphones for Wireless
 |
User manual for the Samson DE50x Omnidirectional Micro-Miniature Headset Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

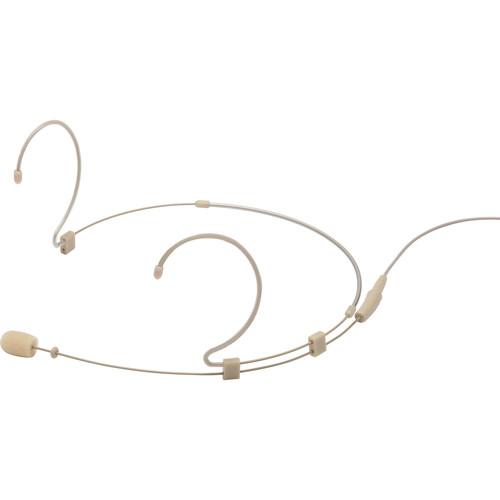

Product description Designed for a wide variety of speech and vocal applications including live and broadcast work, theater, presentations, and fitness training, the beige Samson DE50x Omnidirectional Micro-Miniature Headset Microphone for Wireless Transmitters is a low-profile headset mic featuring a double-ear design with adjustable frame and boom. The mic offers a wide 20 Hz to 20 kHz frequency response and its omnidirectional pick-up pattern is ideal for capturing clear and consistent speech, even when the subject is turning his or her head and moving around on stage. Its micro-miniature capsule is designed to handle sound pressure levels up to 130 dB.The DE50x sports an IP65 rating, meaning it's resistant to both dust and moisture, allowing it stand up to sweat and still perform both in the gym and under the hot lights of stage and studio. Built to work with a wide variety of wireless systems, the microphone includes 4 detachable adapter cables with the following connectors: 3.5mm, Horose 4-pin, Swithcraft TA3F, and Switchcraft TA4F. Also included are four windscreens, a collar clip, and a carry case. -

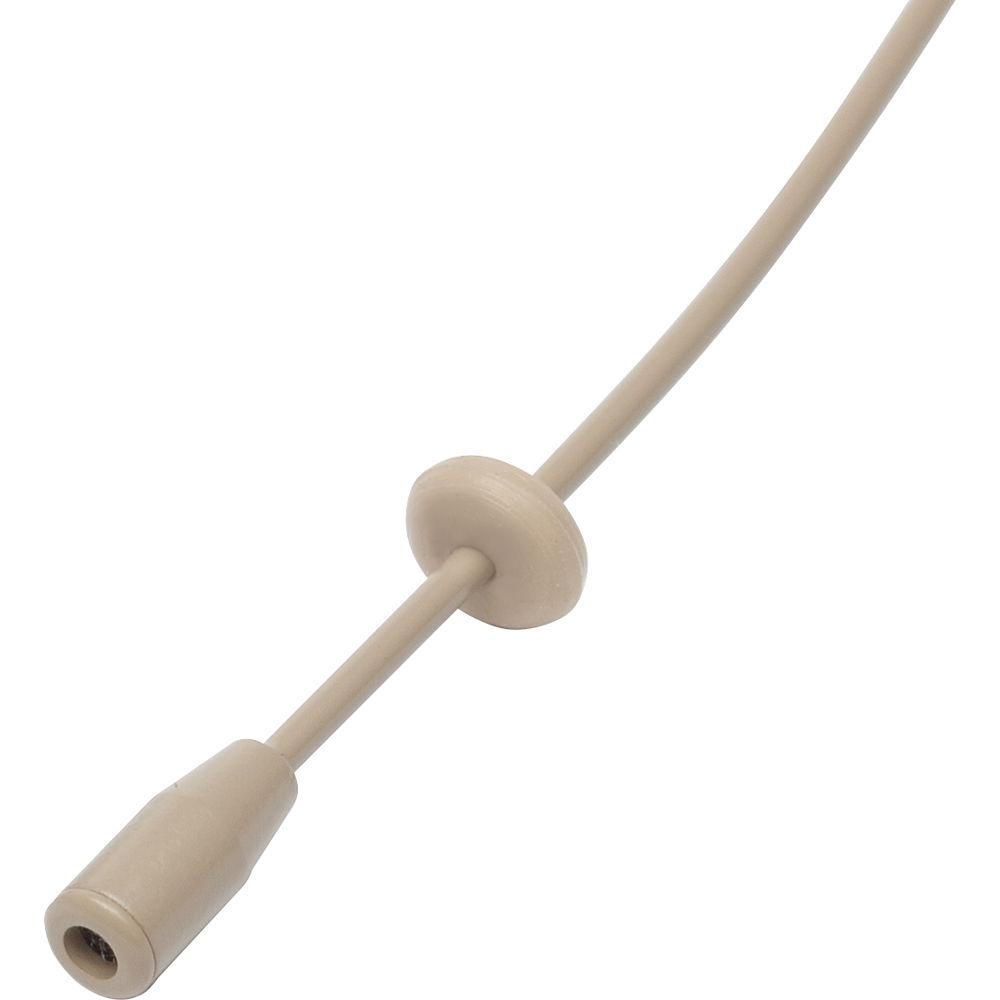

- Headset microphone with 2.5mm micro-miniature condenser mic capsule

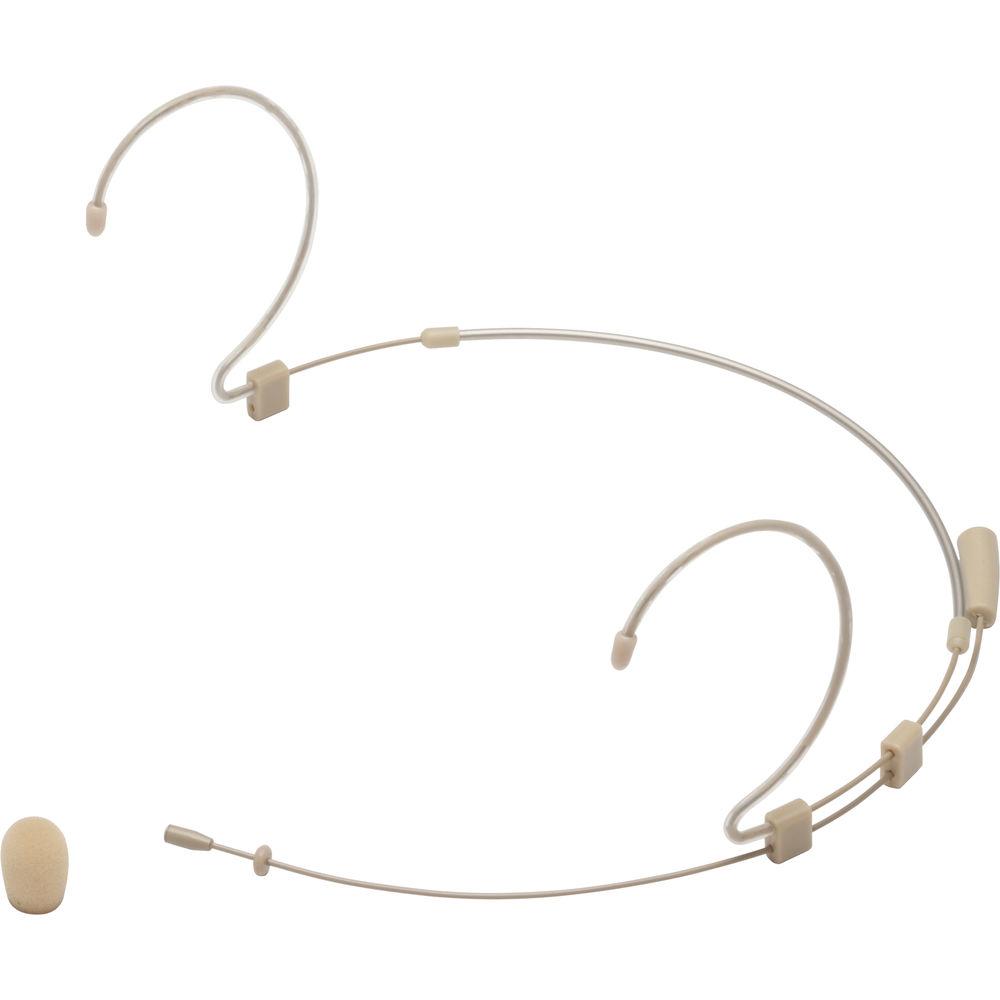

- Low-profile, double-ear design with adjustable frame and mic boom
- Ideal for live and broadcast vocal applications, presentations, houses of worship, theaters, fitness, and more
- Omnidirectional pickup pattern
- 20 Hz to 20 kHz frequency response
- 130 dB maximum SPL

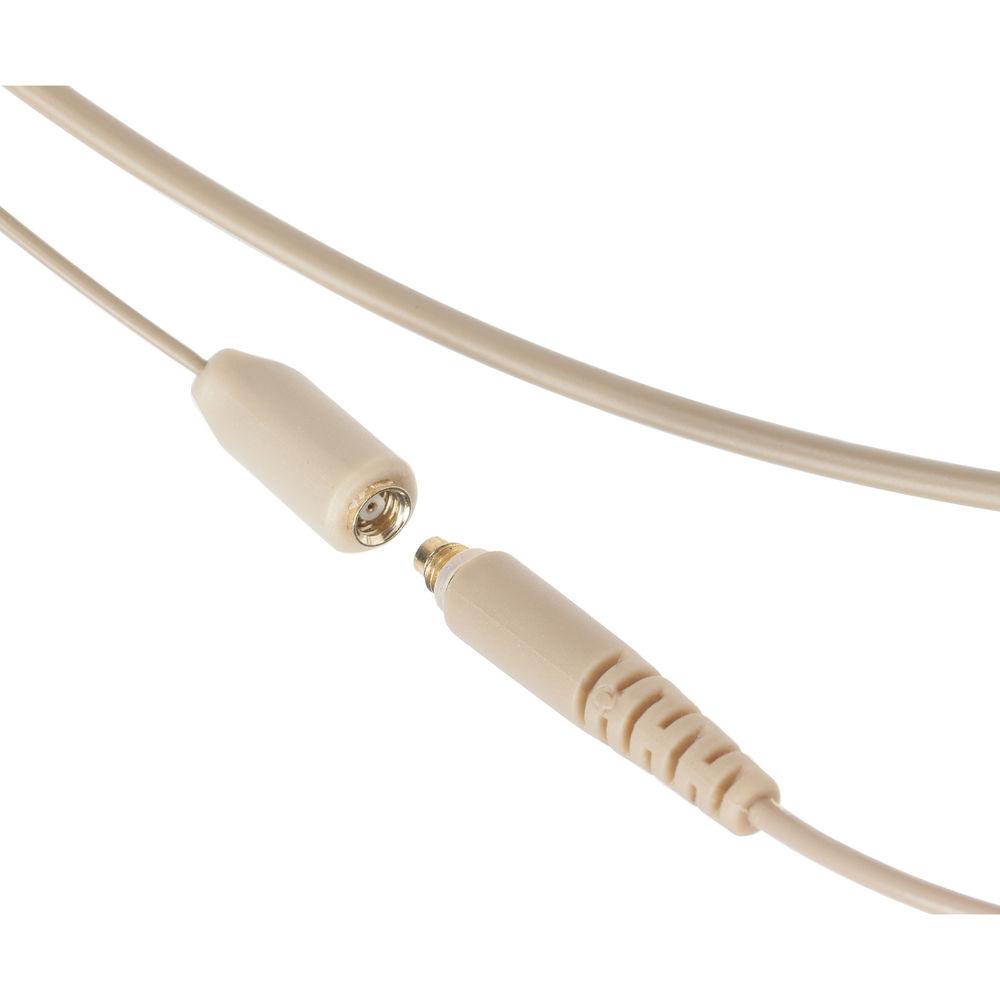

- Gold-plated connector, moisture-resistant coating, and stainless-steel mesh grille
- Rated at IP65 for dust and water/sweat resistance

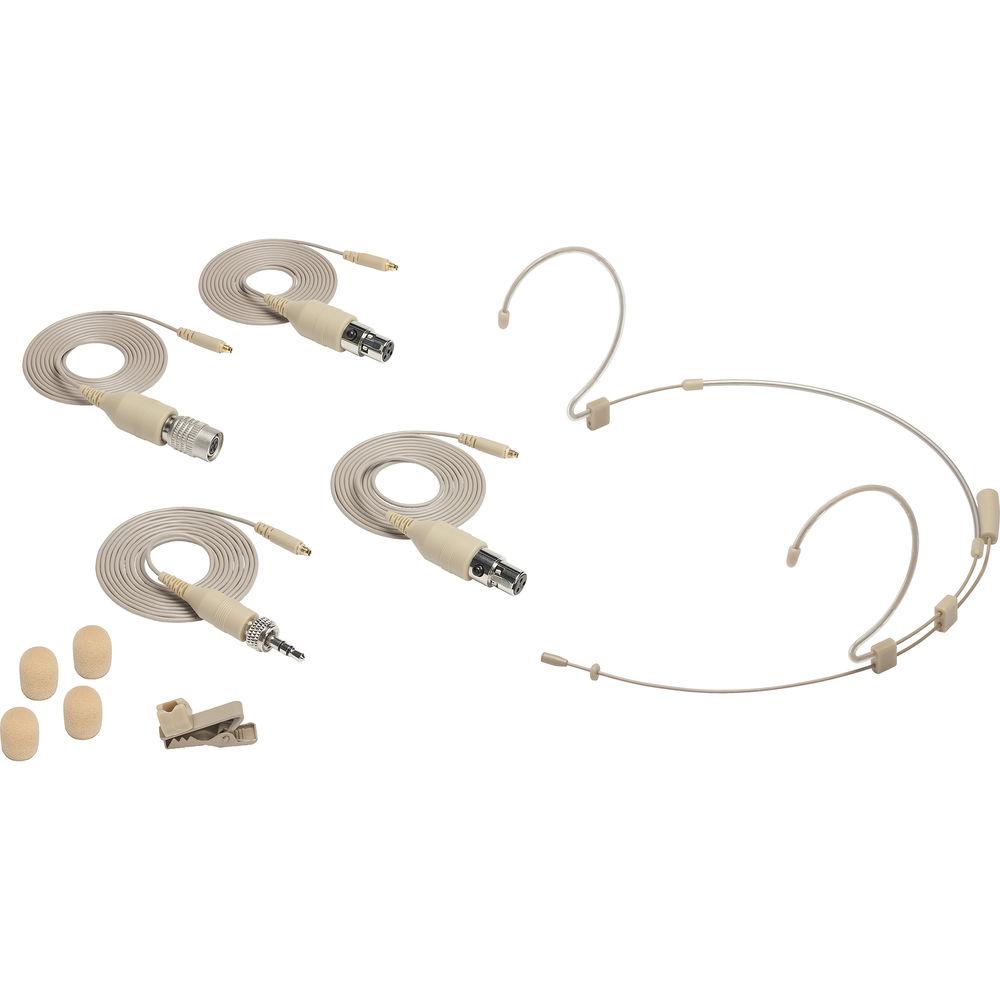

- Includes four detachable adapter cables for compatibility with most popular wireless transmitters: 3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F

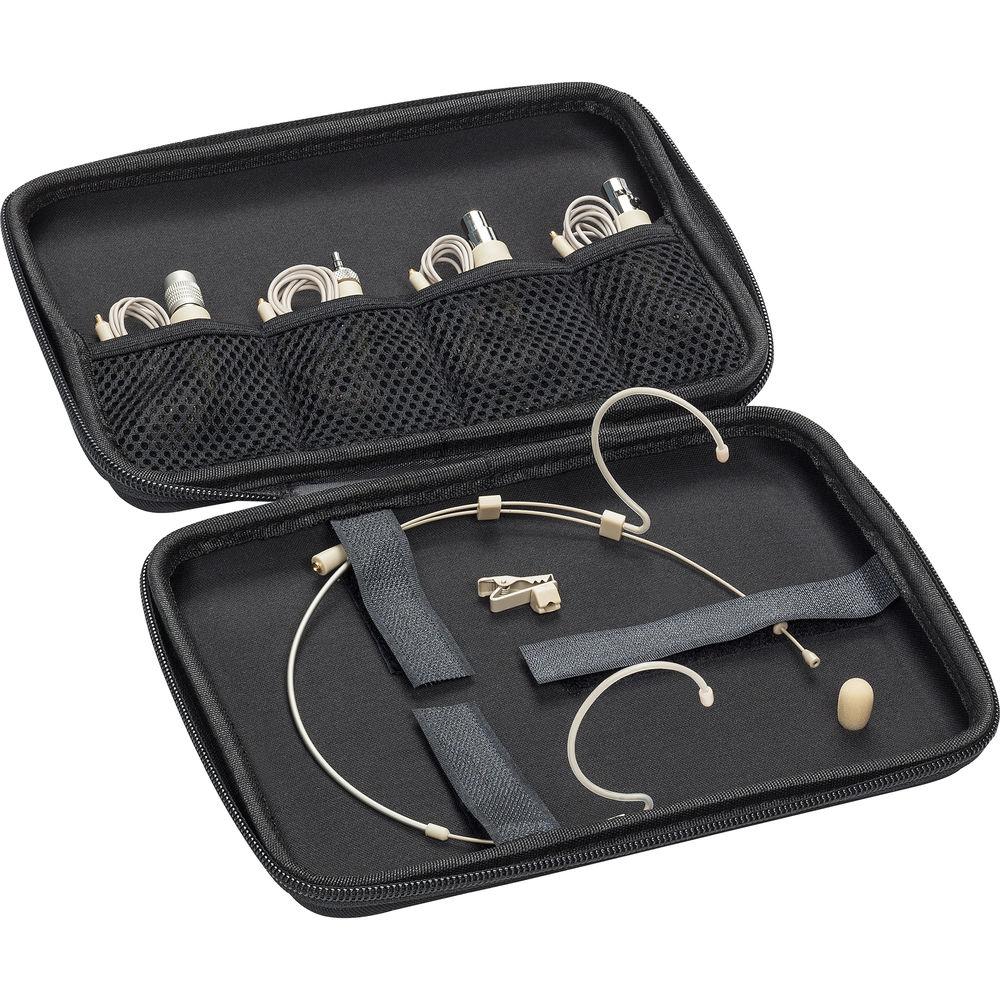

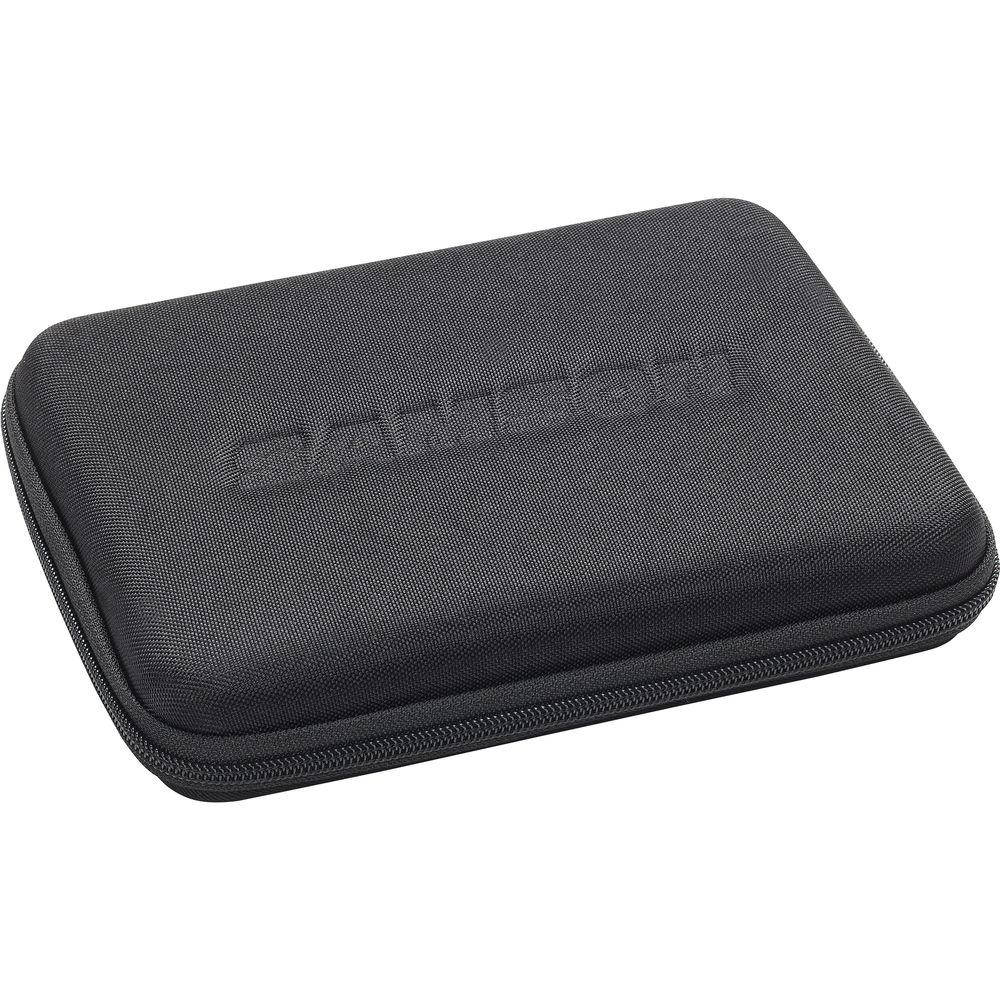

- Four windscreens, collar clip, and protective carry case also included
UPC: 809164022756 In the Box Samson DE50x Omnidirectional Micro-Miniature Headset Microphone for Wireless Transmitters (Beige) 3.5mm Adapter Cable Hirose 4-Pin Adapter Cable Switchcraft TA3F Adapter Cable Switchcraft TA4F Adapter Cable 4 x Windscreens Clothing Clip Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson DE50x Omnidirectional Micro-Miniature Headset Microphone for Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson DE50x Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Diaphragm | 0.10" / 2.5 mm (Electret Condenser) | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 130 dB SPL | | Impedance | 2 kOhms ± 30% | | Sensitivity | -35 dB at 1 kHz | | | | Output Connector | 1/8" / 3.5 mm 3 Additional Adapter Cables Included: Hirose 4-Pin, Switchcraft TA3F, and Switchcraft TA4F | | Cable Length | 3.94' / 1.2 m | | Operating Voltage | 1.5 to 12 V | | Diameter | 0.10" / 2.5 mm | | Weight | 0.25 oz / 7 g | | | | Package Weight | 0.57 lb | | Box Dimensions (LxWxH) | 10.0 x 7.1 x 2.0" |
