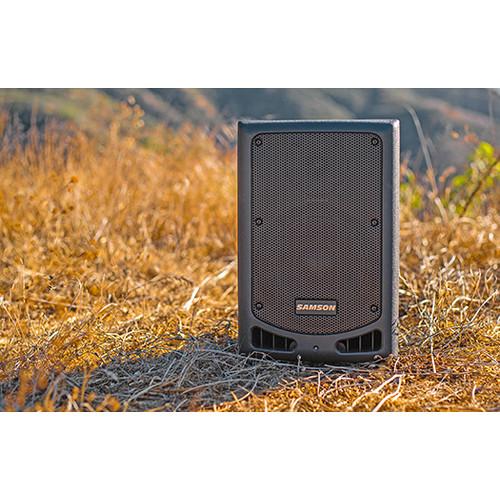

User Manual for Samson Expedition XP108w 8" 2-Way 200W All-In-One Portable Bluetooth-Enabled PA System Click to enlarge the picture
Contents of the user manual for the Samson Expedition XP108w 8" 2-Way 200W
- Product category: Portable PA Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Portable PA Systems
 |
User manual for the Samson Expedition XP108w 8" 2-Way 200W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

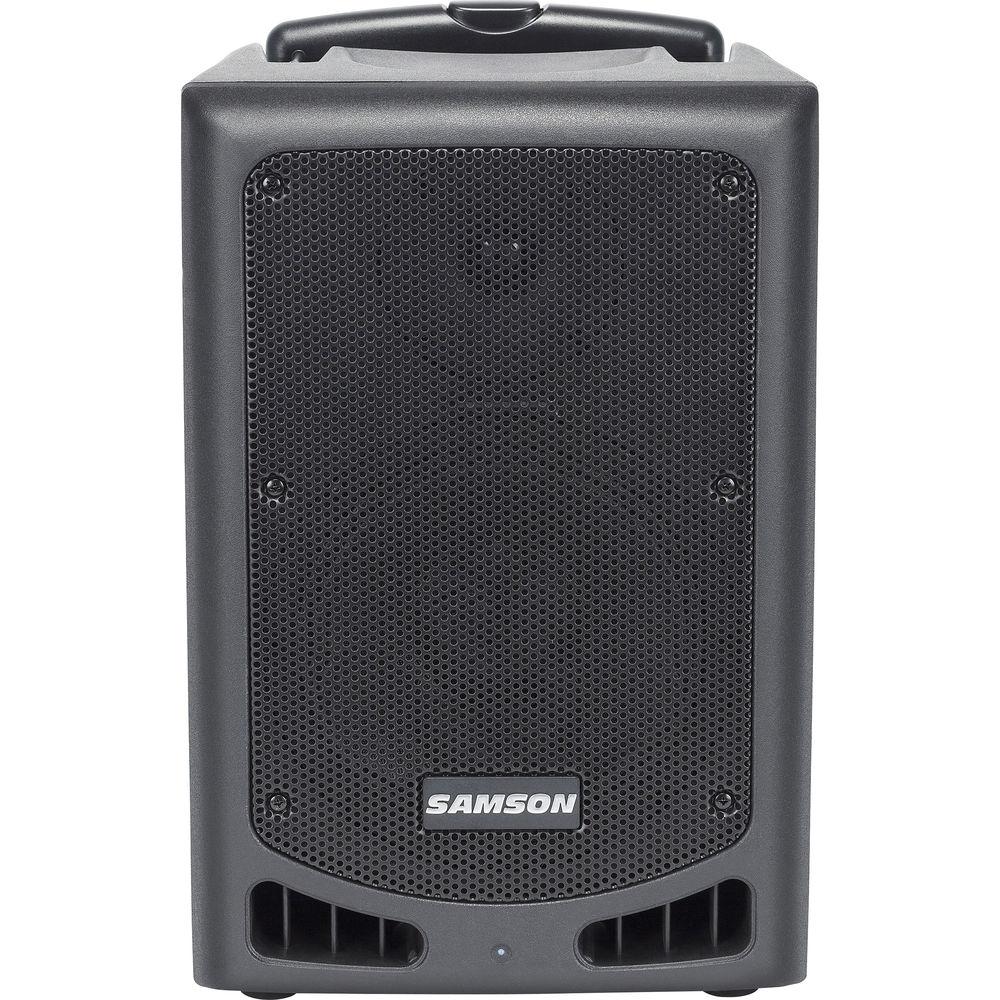

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Samson Expedition XP108w is an 8" 2-way 200W all-in-one portable Bluetooth-enabled PA system designed to provide convenient signal mixing and amplification for musicians, vocalists, and presenters in clubs, special events, and small concert venues. 200W of amplification drive an 8" woofer and a 1" tweeter to produce a frequency response of 60 Hz to 18 kHz. A 1/4" line output allows easy daisy-chaining of other PAs for additional sound reinforcement. The integrated 4-channel mixer features an XLR-1/4" combo jack and a 3.5mm stereo mini-jack input to accommodate signal from microphones, line sources, or non-Bluetooth devices. A built-in Bluetooth receiver enables wireless streaming of music from smartphones, tablets, and laptops. Charge your mobile device via the rear-panel USB Type-A port. Use the included wireless handheld dynamic microphone from up to 200' away or utilize the USB port to integrate a Samson XPD digital wireless system (available separately). The built-in mixer offers selectable ducking, treble and bass equalization, and level controls. Power the XP108w via AC power or its built-in, 20-hour rechargeable battery. Versatile transport options include an integrated carry handle, telescoping luggage handle, and two rolling wheels. - Built-in rolling wheels and telescoping luggage handle for easy transport
- 200W of Class-D amplification
- 2-way system with an 8" woofer and 1" tweeter
- Built-in Bluetooth receiver allows wireless streaming of music from your smartphone, tablet, or computer

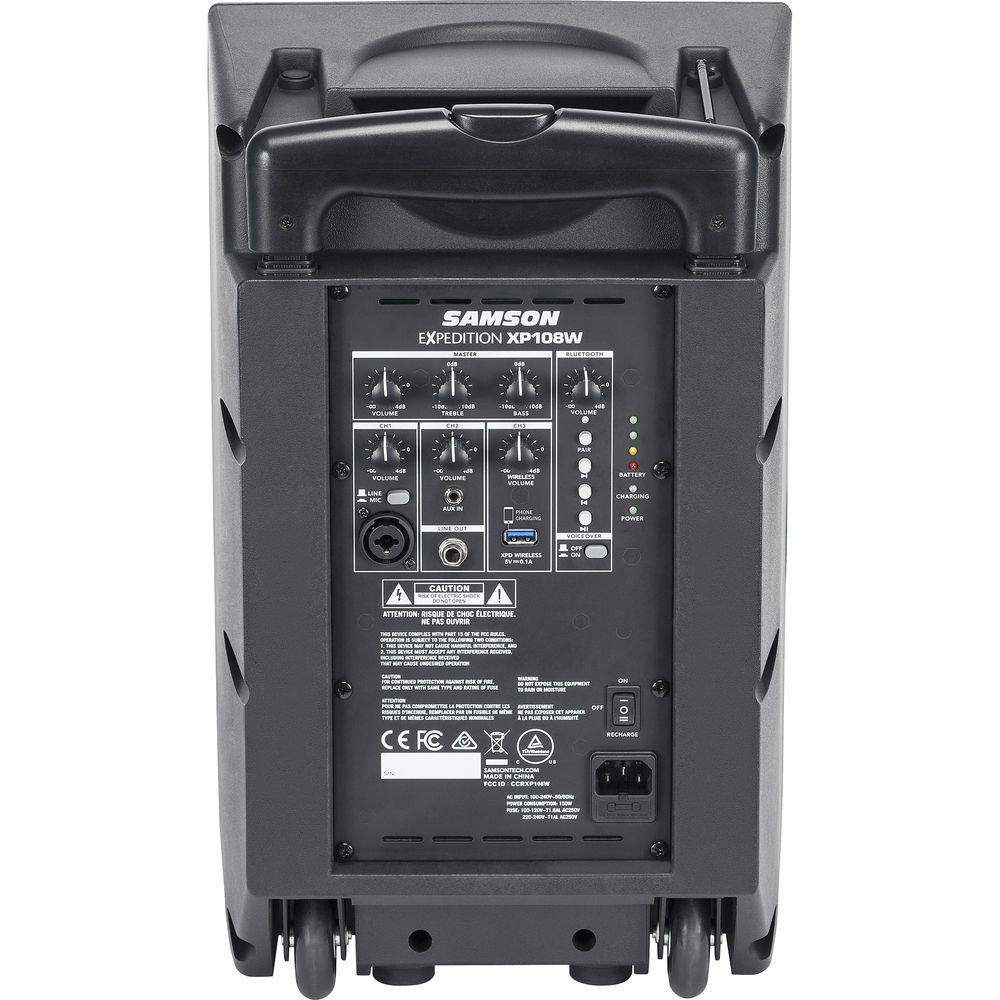

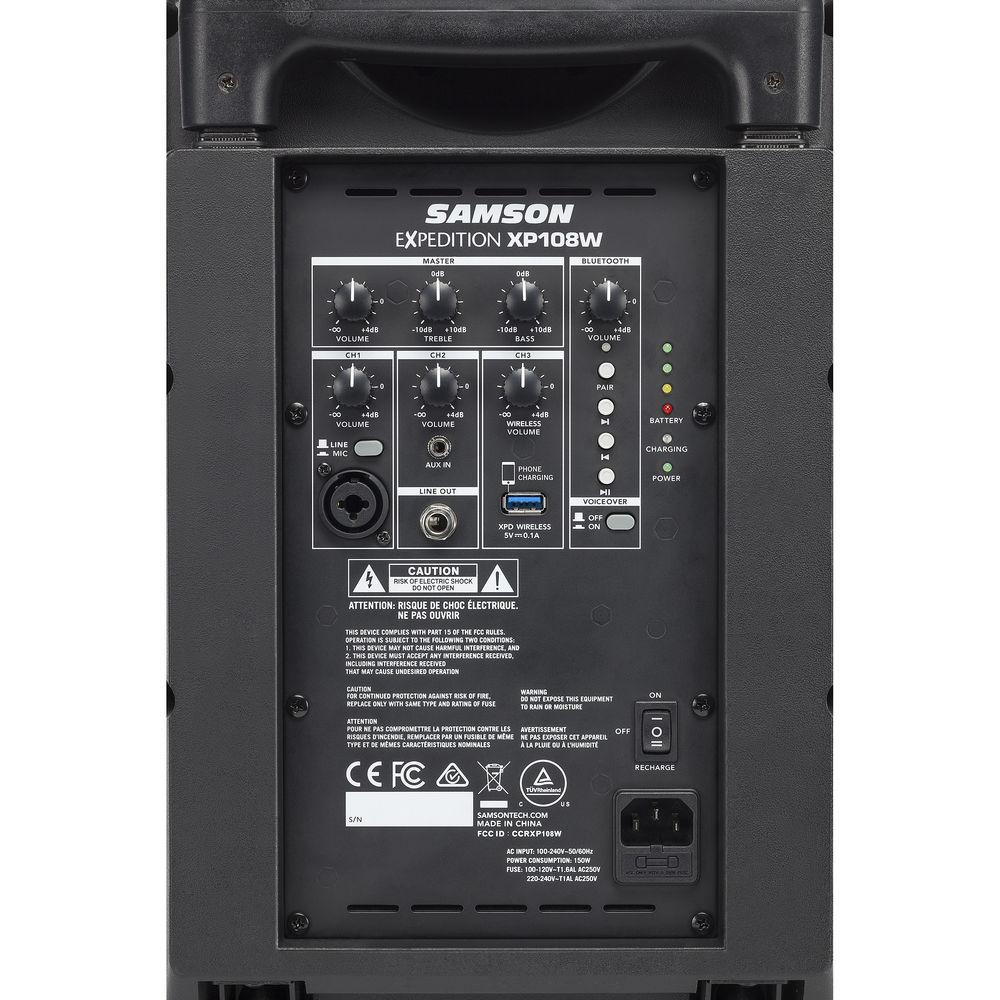

- Rear-panel Bluetooth playback controls
- 4-channel mixer with 2-band equalizer
- XLR-1/4" combo jack and 3.5mm stereo mini-jack inputs
- USB Type-A port for integration of Samson XPD wireless system (available separately)
- Built-in, 20-hour rechargeable battery enables mobile operation

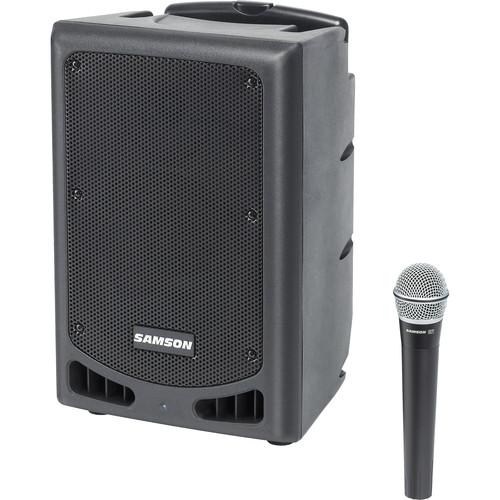

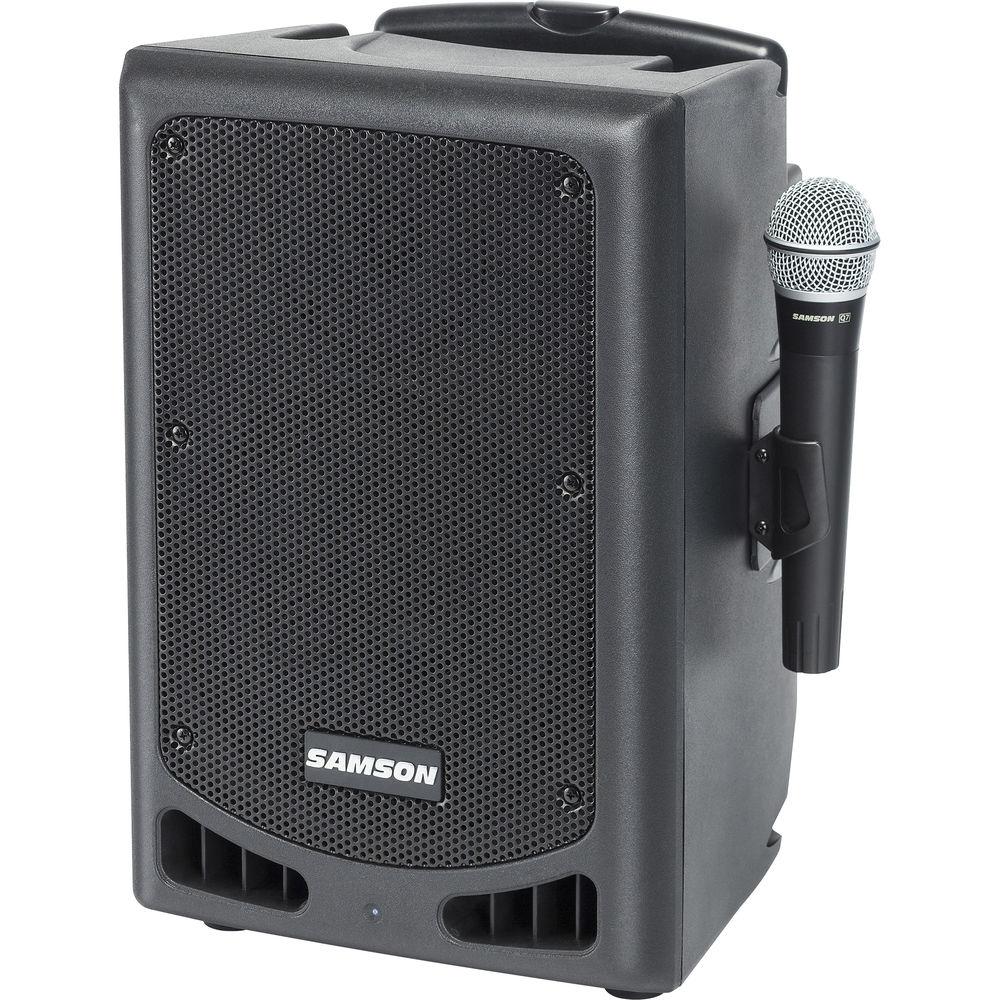

- Includes wireless handheld dynamic microphone and mic mounting clip
- Voiceover control with priority ducking
- 1/4" line output for daisy-chaining multiple systems

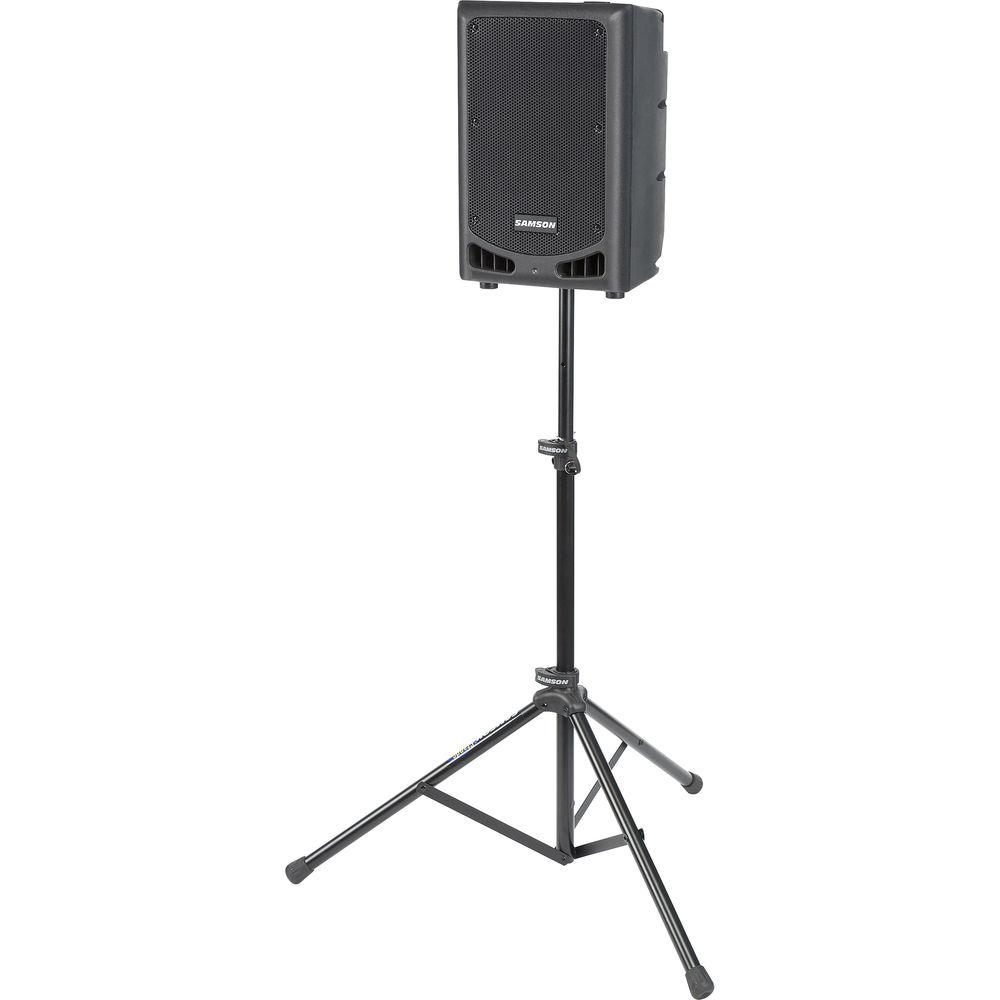

- Integrated 1-3/8" speaker stand mount
- Battery level, charging, and power LED indicators
UPC: 809164020387 In the Box Samson Expedition XP108w 8" 2-Way 200W All-In-One Portable Bluetooth-Enabled PA System (Channel 11) Wireless Handheld Dynamic Microphone Microphone Mounting Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Expedition XP108w 8" 2-Way 200W All-In-One Portable Bluetooth-Enabled PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson Expedition XP108w Specs | LF Driver | 8" / 203.2 mm woofer | | HF Driver | 1" / 25.4 mm tweeter | | Amplifier Class | Class-D | | Amplifier Power | 200 W peak | | Inputs | 1 x XLR-1/4" combo jack
1 x 1/8" (3.5 mm) stereo mini-jack | | Outputs | 1 x 1/4" line output | | Frequency Response | 60 Hz to 18 kHz (-3 dB) | | USB | 1 x USB Type-A (for XPD USB wireless systems and device charging) | | Bluetooth | Version: 4.0

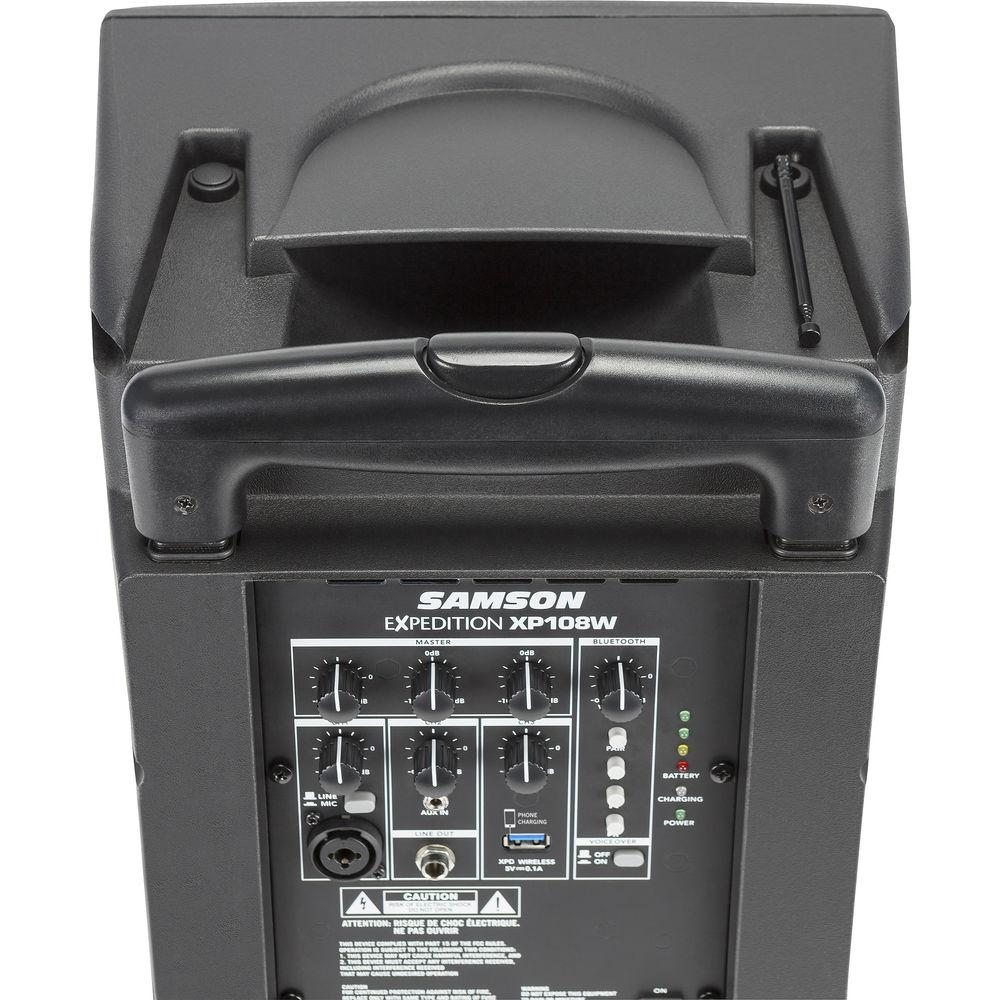

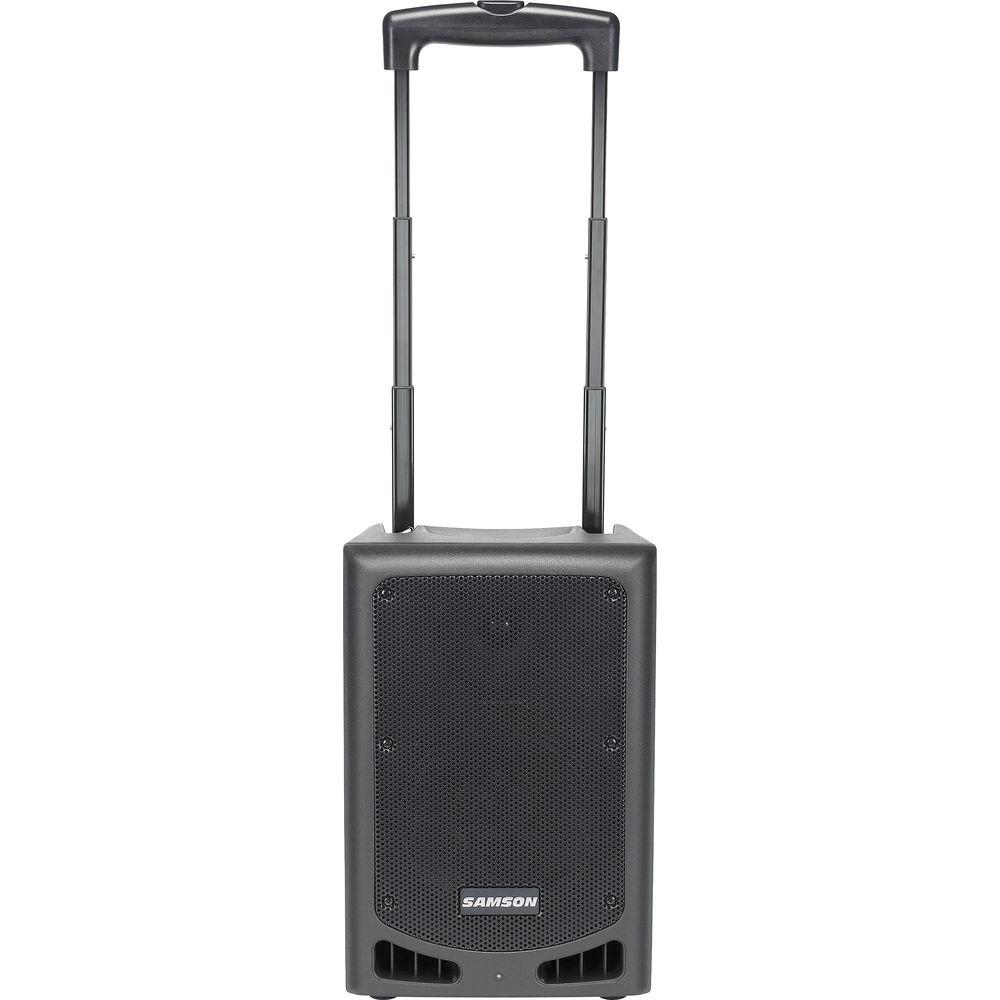

Profile: A2DP | | Wireless Frequency | 200 MHz | | Wireless Range | Up to 200' / 61 m (line of sight) | | Battery | 12 V, 8 Ah sealed | | Battery Life | Up to 20 hours | | Battery Charging | Approximately 4 to 6 hours | | Carrying Options | Rolling wheels
Telescoping handle | | Mounting Options | 1-3/8" speaker stand mount | | Dimensions (W x H x D) | 10.9 x 9.9 x 16.9" / 276.9 x 252.0 x 429.3 mm | | Weight | 23.8 lb / 10.8 kg | | | | Package Weight | 30.35 lb | | Box Dimensions (LxWxH) | 19.3 x 15.0 x 14.0" |
