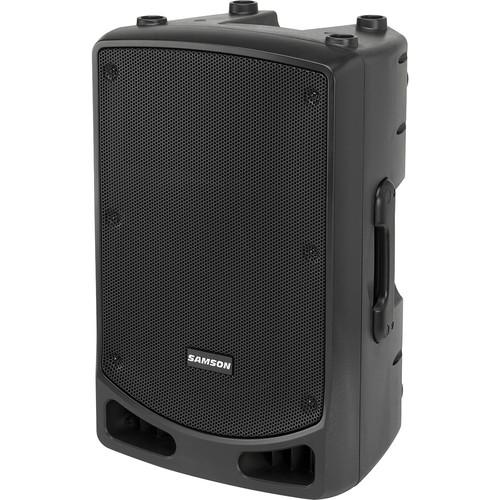

User Manual for Samson Expedition XP112A 2-Way Active PA Speaker Click to enlarge the picture
Contents of the user manual for the Samson Expedition XP112A 2-Way Active PA
- Product category: PA Speakers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson PA Speakers
 |
User manual for the Samson Expedition XP112A 2-Way Active PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

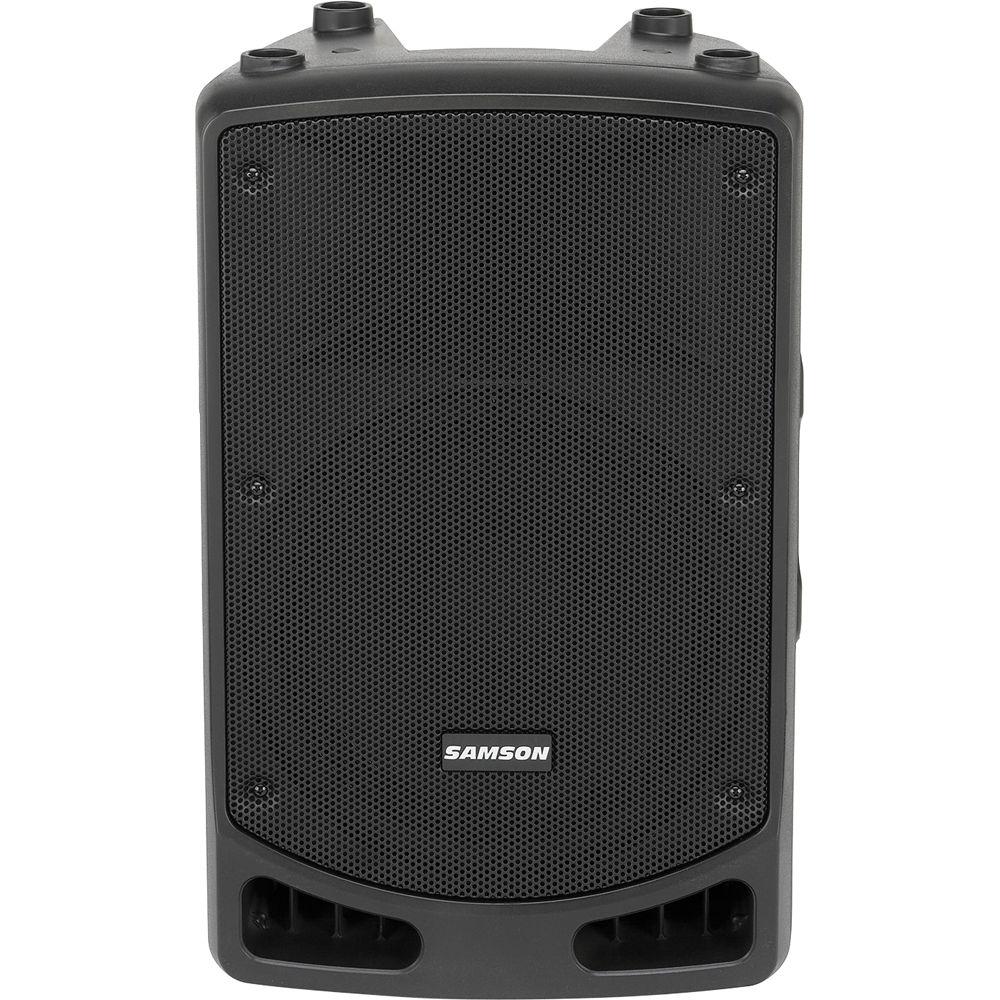

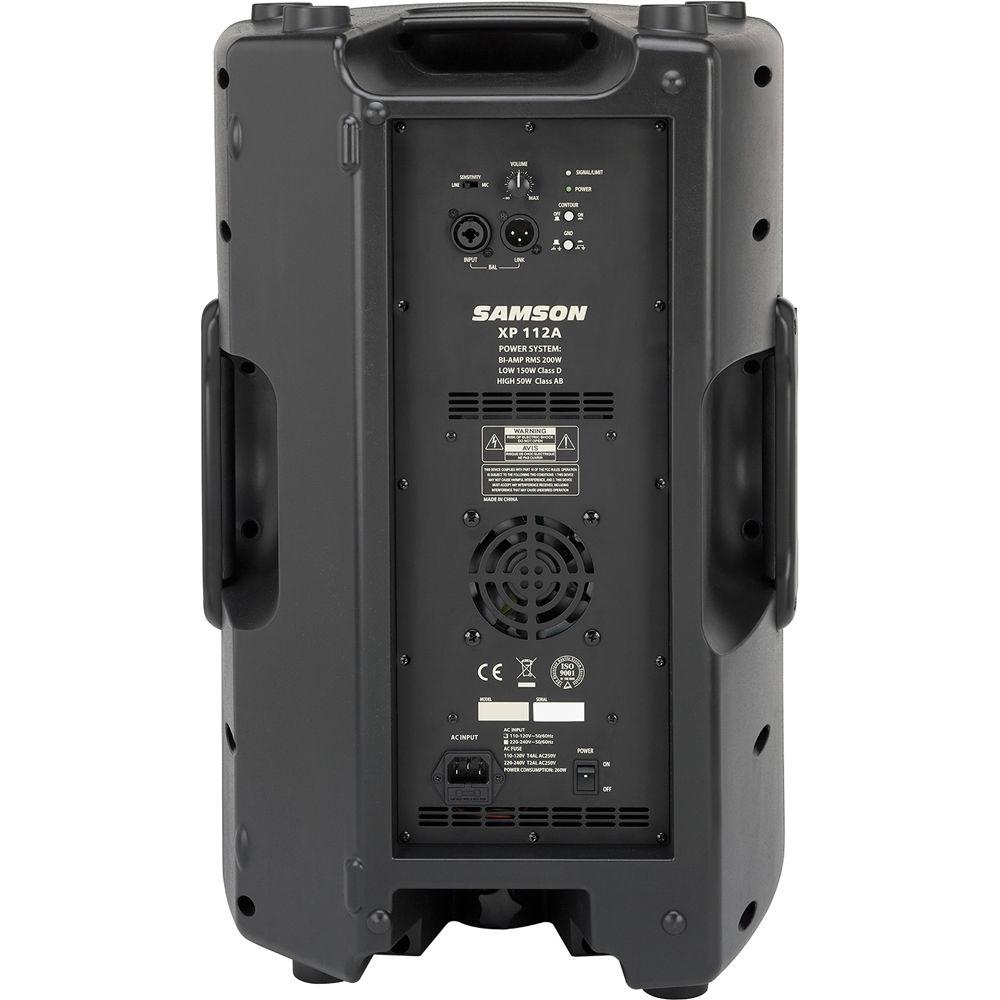

Product description The Expedition XP112A 2-Way Active PA Speaker by Samson is for sound reinforcement, and can be used in various environments for applications such as, bands, DJ setups, vocal presentations, in houses of worship, and more. It features a lightweight speaker, with 500 W of peak output power, and delivers low end sound with high-end punch through their respective 12" woofer and 1" high frequency driver. The back panel offers an XLR-1/4" combo input for microphone and line level devices as well as a contour equalization switch for customizing your sound. This speaker also provides an XLR link output connector for daisy chaining additional speakers to expand your PA setup. With a frequency response of 60 Hz to 20 kHz and electronic protection to prevent overload, the Expedition XP112A is sure to get the job done. The speaker enclosure of the XP112A is constructed of solid polypropylene, ensuring durability and road-worthiness. The cabinet design also provides a tilt-back monitor positioning option, and 1 3/8" speaker stand mount for flexible setup. For additional convenience and portability, the XP112A offer both top and side carry handles. Samson's Expedition offers good value to performers in search of serious PA support. - Lightweight 2-way active PA speaker, weighing only 30.8 lb (14 kg)
- Tilt-back design for floor monitor positioning
- 1 3/8" speaker stand mount
- Integrated top/side carry handles
- Rugged polypropylene cabinet construction
UPC: 809164016533 In the Box Samson Expedition XP112A 2-Way Active PA Speaker Limited 2-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Expedition XP112A 2-Way Active PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson XP112A Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 500 W Peak
250 W RMS | | Amplifier Power Rating | LF:
400 W Peak
200 W RMS
HF:
100 W Peak
50 W RMS | | | | HF Driver | 1 x 1" / 2.5 cm Tweeter | | HF Voice Coil | 1" / 2.5 cm | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2" / 5.1 cm | | Magnet | HF:
Neodymium | | | | Frequency Response | 60 Hz to 20 kHz | | Maximum SPL | 119 dB | | Coverage Angle | 90° H x 60° V | | Protections | Overcurrent, Thermal | | | | Audio I/O | 1 x Combo XLR / 1/4" Balanced Line/Mic Input
1 x XLR Balanced Line Output | | | | Crossover | 2.5 kHz, 12 dB/Octave | | EQ | Contour Contour 100 Hz & 12 kHz Boost | | Dynamic Processing | Compression, Optical Limiter | | | | AC Input Power | 110 to 120 VAC, 60 Hz (T 4 A 250 V)
220 to 240 VAC, 60 Hz (T 2 A 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 260 W | | | | Mounting | 1 x 1.38" / 3.5 cm Pole Socket | | Dimensions | 15.0 x 12.9 x 23.9" / 380.0 x 327.0 x 606.5 mm | | Weight | 30.8 lb / 14 kg | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 26.75 x 17.75 x 15.75" |
