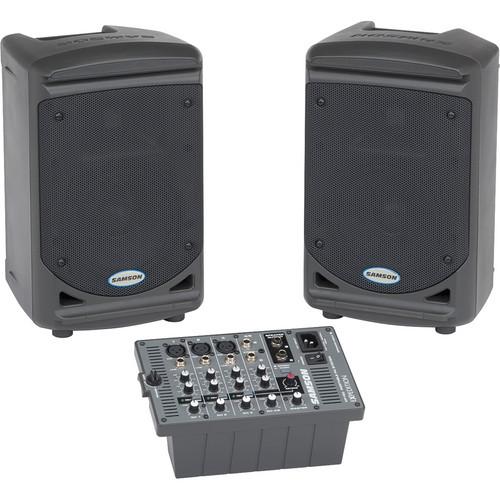

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More fdatdwcztewsfd The Expedition XP150 Portable PA System from Samson is a compact PA system with dual 2-way speakers, a 5-channel mixer and a 150 watt power amplifier that packs into a single unit weighing 24 pounds. The XP150 is a mobile PA system that can be used in a variety of small- to medium-size PA applications such as musical performances, school presentations and business conferences.

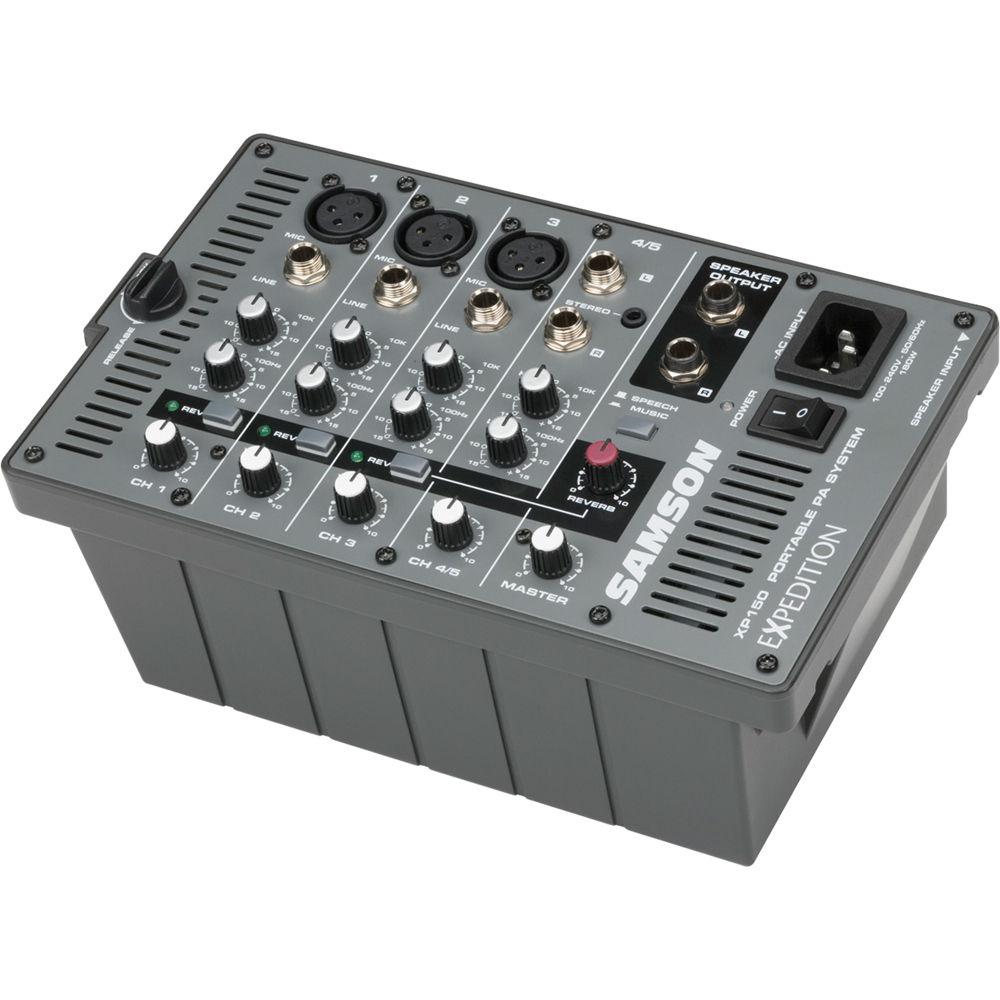

The five channel mixer features three mic/line inputs with XLR and 1/4" inputs, allowing you to connect microphone or line signals. In addition, it also has one stereo 1/4" input to connect line level external devices like keyboards and drum machines. On each channel there are EQ knobs for LF (bass) and HF (treble) allowing you to equalize the frequency response of each individual input. To add reverb to vocals or instruments there is a REVERB button on each channel and a rotary knob for precise adjustments. To change the overall frequency response or tone contour of your audio source there is a speech/music switch. The 1/8" mini stereo input allows you to connect headphones, CD or MP3 players and other audio devices.

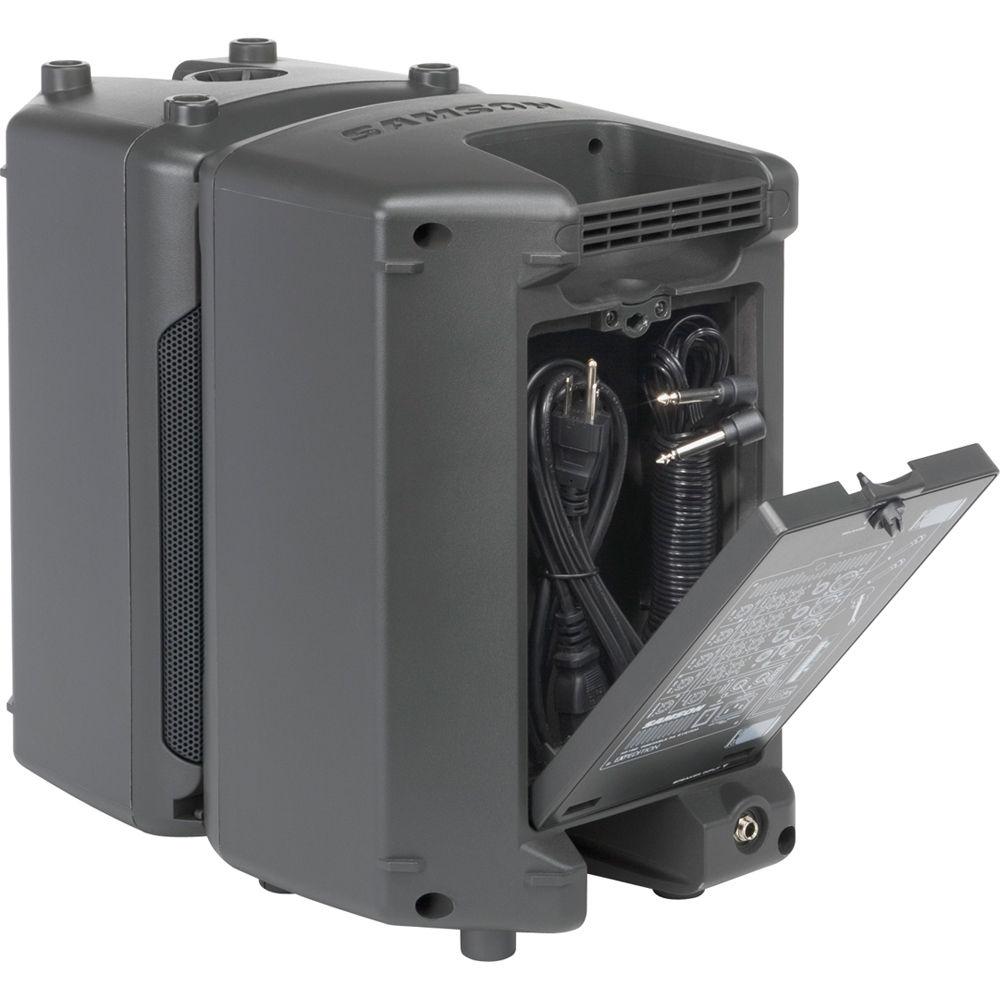

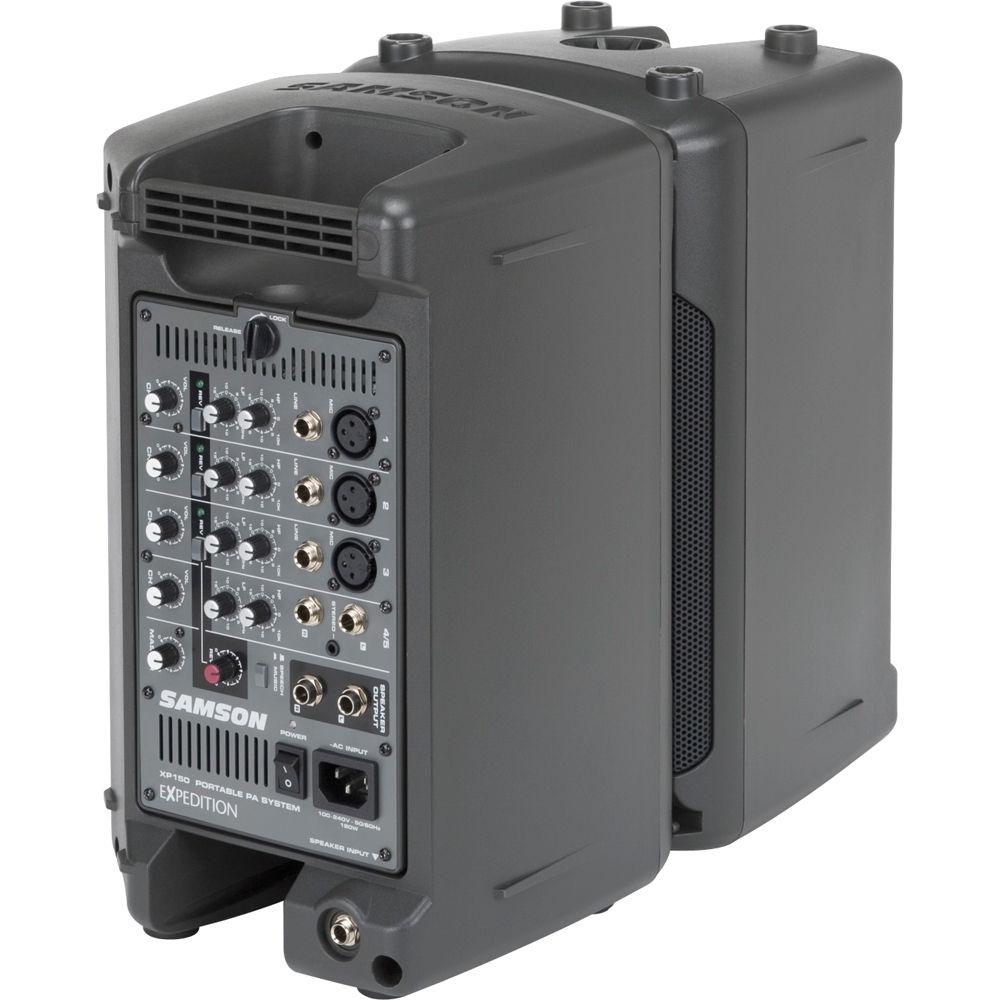

The "Slide and Lock" speaker enclosures, allow you to store all the components inside and carry as a portable case. You can store the mixer in one of the speaker cabinets and the second cabinet has a compartment for storing the speaker cables, microphones, and other accessories. After the speakers are sealed you then slide and lock to connect the speakers together into a single easy to move unit. The unit weighs 24 pounds and is versatile and convenient for portable PA sound applications. - Multiple uses for live performance, music education, fitness, DJ, house of worship, and karaoke.
- Matched speaker system with dual 2-way enclosures, proprietary 6-inch woofers, and 1-inch tweeters.
- The internal 2 x 75 watt lightweight "Class D" power amplifier produces 150-watts total power.
- You can engage the Phantom Power switch if you are using condenser microphones.
- The mixer can be removed from the speaker for tabletop use.
- The speaker cabinets feature a tilt back monitor position for use as floor monitors.
- To help project sound to a larger audience, the speakers have integral pole mount receptacles that can be mounted on standard speaker stands or LS2 Lightweight speaker stands.
- Durably built from ABS high-impact plastic construction.
UPC: 809164012870 In the Box Samson Expedition XP150 Portable PA System AC Adapter Cable 2 x 1/4" to 1/4" Speaker Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Expedition XP150 Portable PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson XP150 Specs | | | RMS Power Output | 150 W @ 8 Ohms (75 W per Channel) | | Frequency Response | 40 Hz - 20 kHz | | Power Consumption | 100-240 VAC, 50/60 Hz, 180 W | | | | Transducer | Low Frequency: 6" Bass Transducer | | Tweeter | High Frequency: 1" Tweeter | | | | Inputs | XLR, 1/4" Balanced Stereo | | Outputs | 1/4" Speaker Output | | Phantom Power | +15 VDC, Fixed Phantom Voltage | | Input Equalization | High: 10 kHz Shelving ±15 dB
Low: 100 Hz Shelving ±15 dB | | Filter | Speech/Music: 150 Hz, 18 dB/Octave | | Indicators | Two Color LED- Power/Peak | | Dimensions | 15.6 x 8.6 x 13.9" / 395 x 218 x 354 mm | | Weight | 24 lb / 10.8 kg | | | | Package Weight | 28.6 lb | | Box Dimensions (LxWxH) | 19.4 x 18.2 x 12.4" |
