User Manual for Samson Expedition XP800 800W Portable PA System with Stage XPD1 Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Samson Expedition XP800 800W Portable PA
- Product category: Portable PA Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Portable PA Systems
 |
User manual for the Samson Expedition XP800 800W Portable PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

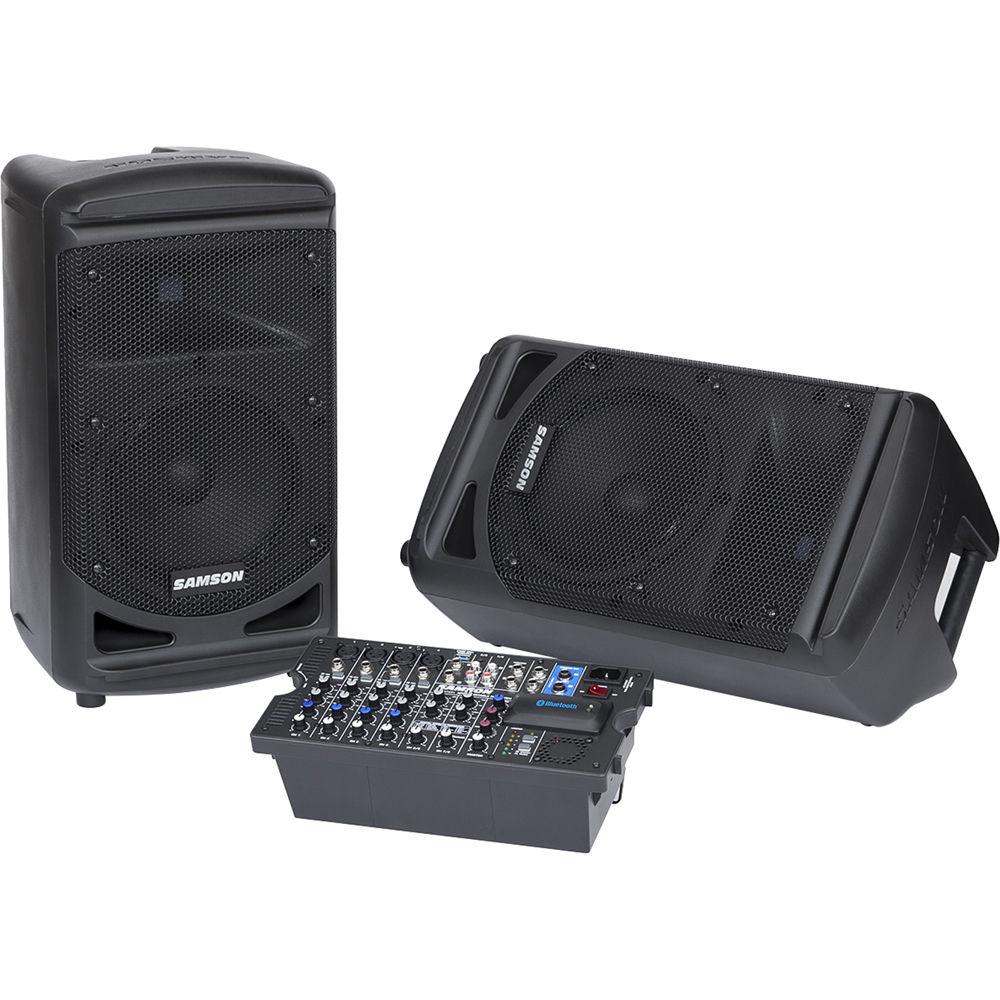

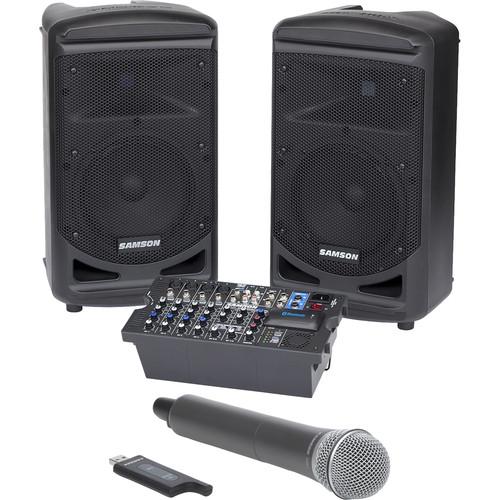

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Expedition XP800 800W Portable PA System with Stage XPD1 Handheld Wireless Microphone System from Samson consists of dual speakers with a removable 8-channel mixer, and a USB digital wireless system with a handheld microphone. It can be used for live music performance, DJ sets, parties, and office or academic applications. The on-board Class-D amplifier offers up to 800 watts of combined output to each speaker, which include an 8" woofer and a 1" high frequency driver. Their ABS enclosures have an integrated 1-3/8" speaker stand mount and a 30° kickback design to allow for versatility in mounting or floor placement options.
The XP800's mixer has a variety of input options, including Bluetooth audio streaming, 4 XLR and 1/4" mic/line inputs, and stereo 1/4", 1/8", and RCA auxiliary inputs. Each channel has an independent bass and treble control for tone shaping, as well as built-in 24-bit effects with a selection of 16 presets. The XP800 ships with a power cord and two 25' speaker cables. The Stage XPD1 Handheld wireless microphone system delivers high-definition audio with a 20 Hz to 16 kHz frequency response. It offers convenient 1-touch setup with Mute function and adjustable Volume controls, and can reliably operate within a 100' range. - Expedition XP800 PA System
-
- 800-watt portable PA system
- Ideal for small to medium-sized venues (audiences of 60–100)

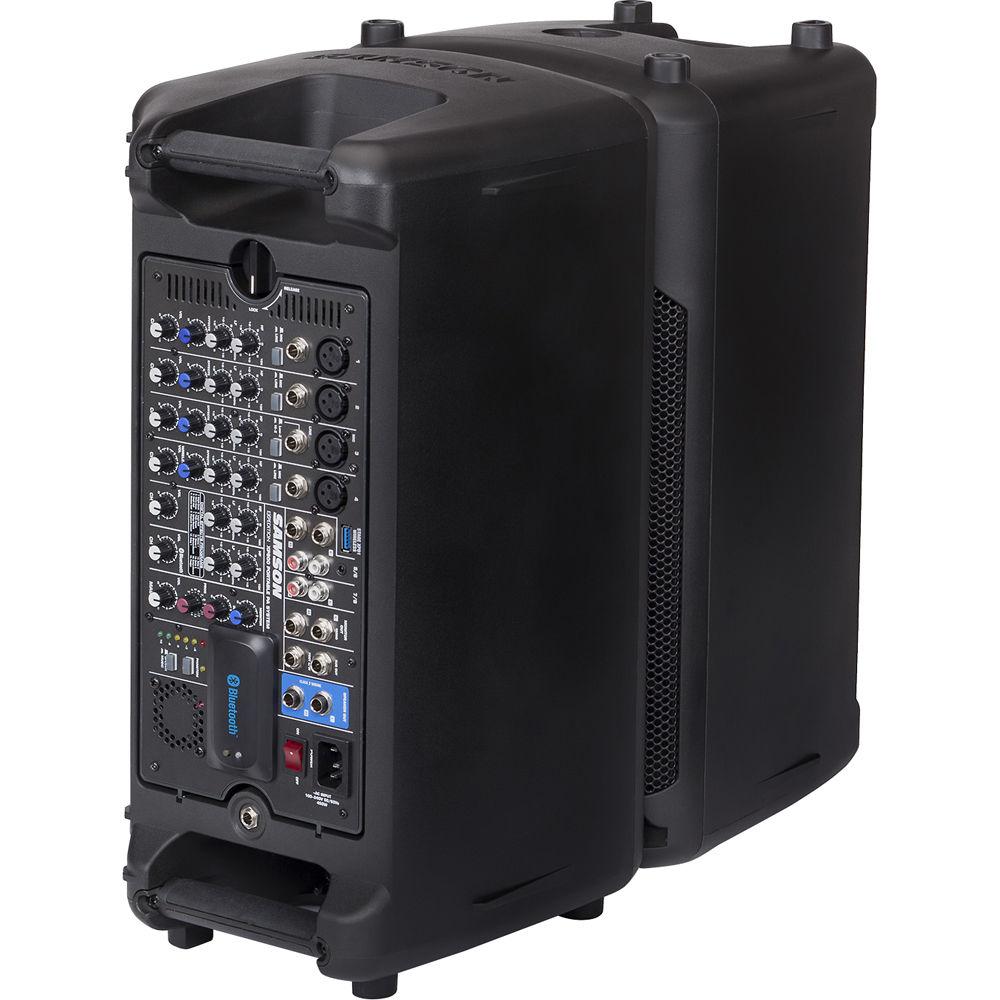

- Packs up into a single portable unit that weighs just over 40lb
- Lightweight Class-D amplifier produces 2 x 400 watts of stereo power
- Dual 2-way speakers with 8" woofers and 1" HF drivers
- Bluetooth connectivity to wirelessly stream music

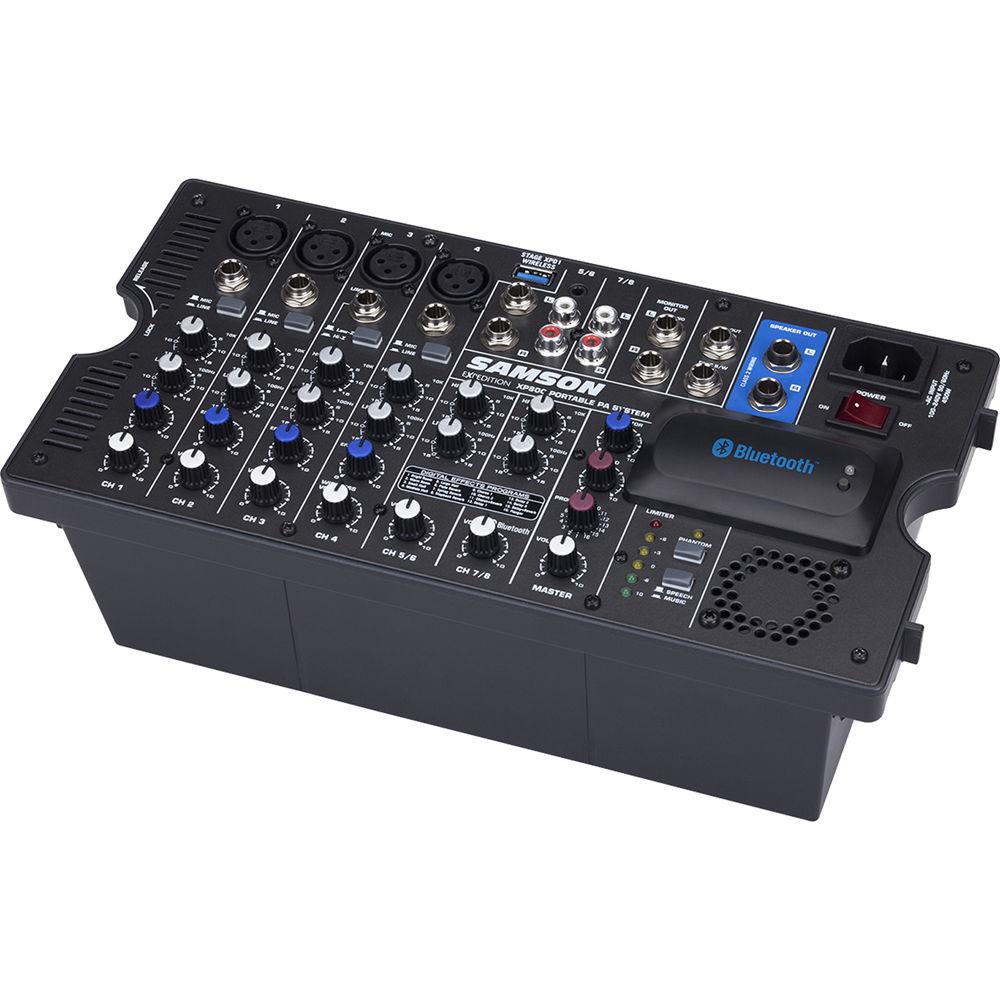

- Removable 8-channel mixer
- Four Mic/Line inputs (XLR and 1/4") for microphones and line level devices
- Hi-Z input for direct guitar connections
- Two stereo channels with multiple input options (1/4", 1/8", RCA) for connecting external devices (MP3 players, keyboards, etc.)
- USB Wireless port for use with Samson's XPD USB Digital Wireless Systems (sold separately)
- Bass and treble controls on each channel
- 16 presets of 24-bit digital effects with Send level control
- Footswitch jack for remote FX control
- Phantom power for condenser microphones
- Sub output for active subwoofers
- Music/Speech switch for optimizing output EQ for speech or music playback
- Stereo monitor outputs with level control
- Durable ABS high-impact plastic construction
- 1-3/8" speaker stand mounts
- Tilt-back design for using speakers as floor monitors

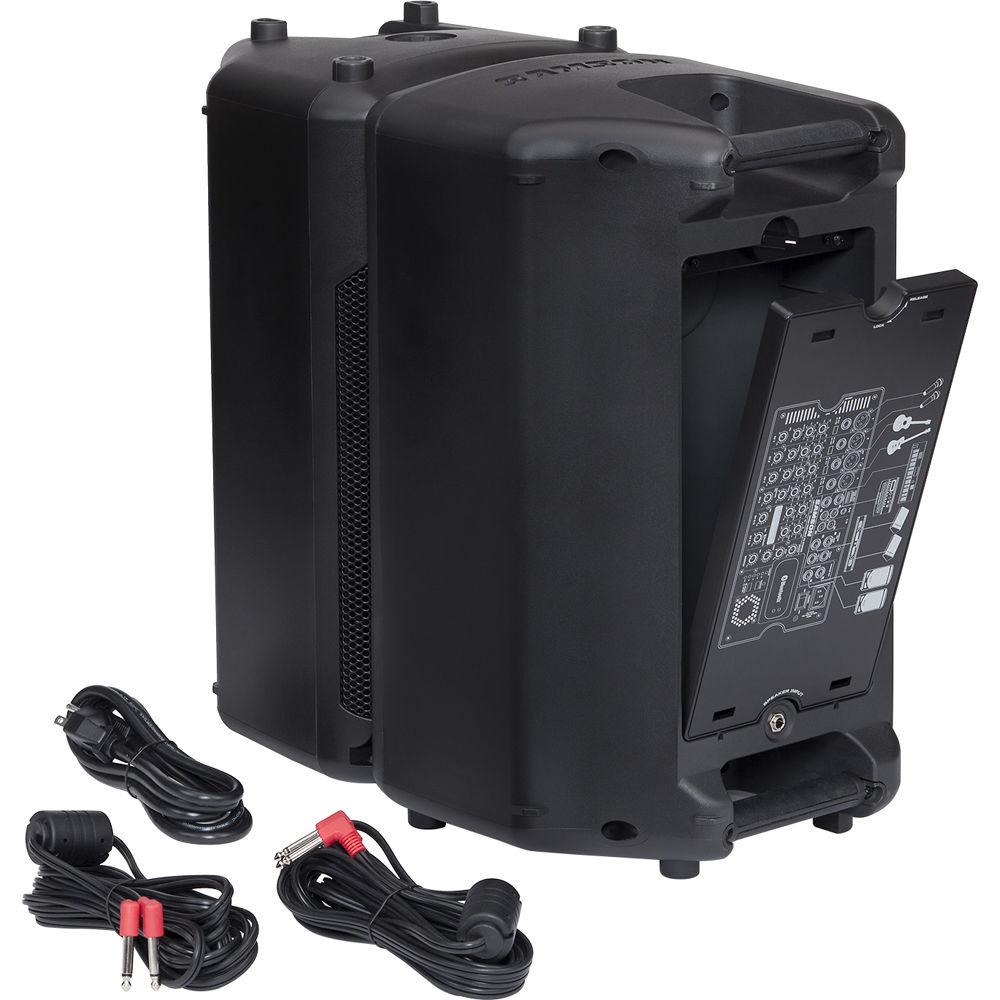

- Two 25' speaker cables included

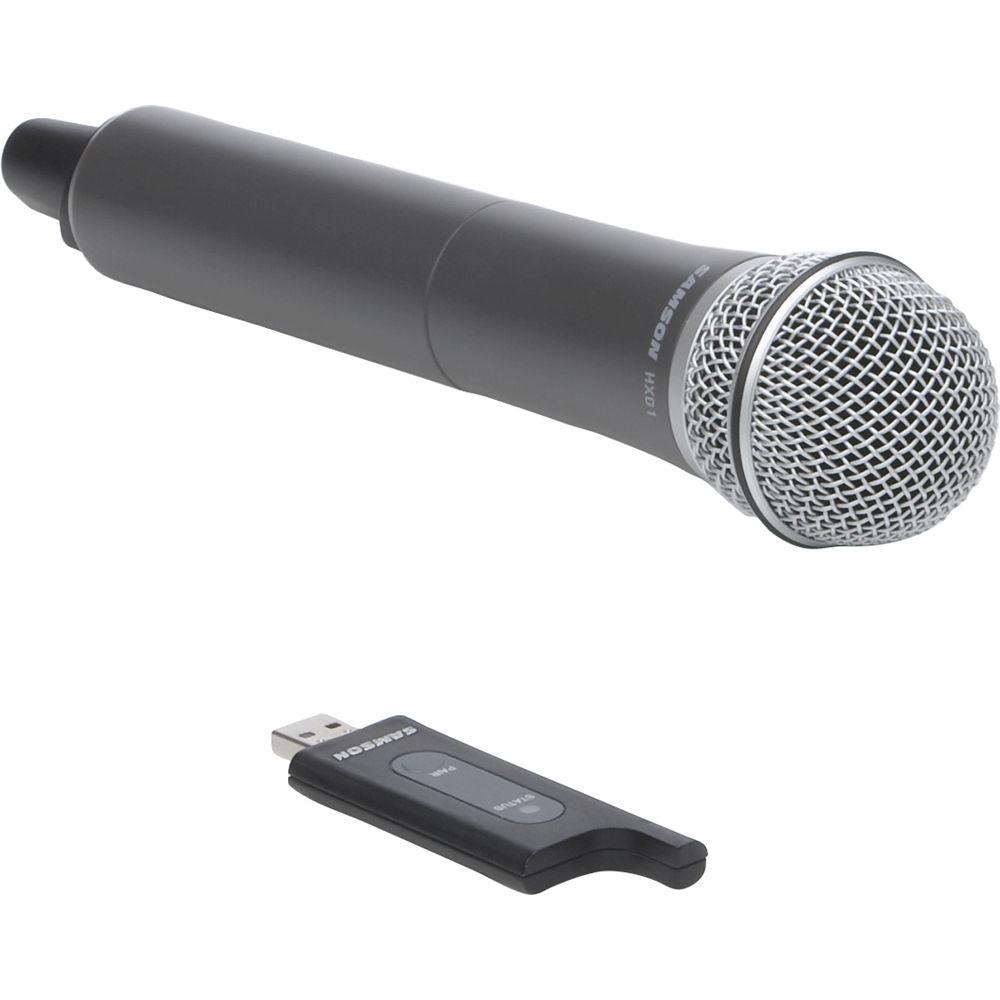

- Stage XPD1 Handheld Wireless System
-
- Handheld microphone transmitter with Samson Q6 dynamic microphone element
- 2.4 GHz USB digital wireless system
- Ideal for presentations, live performances, lectures, DJs, houses of worship, karaoke, and more
- Plug-and-play operation
- Transmitter offers 20 hours of battery life using two AA batteries (batteries not included)
- 100' operating range (environment dependent)
- 1-touch Mute function and adjustable Volume controls on transmitter
- Compatible with Samson Expedition Series Portable PAs that feature USB wireless ports
UPC: 809164019732 In the Box Samson Expedition XP800 800W Portable PA System with Stage XPD1 Handheld Wireless Microphone System Expedition XP800 800W Portable PA System Stage HXD1 Handheld Transmitter Stage RXD1 USB Receiver 2 x 25' Speaker Cables Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Expedition XP800 800W Portable PA System with Stage XPD1 Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

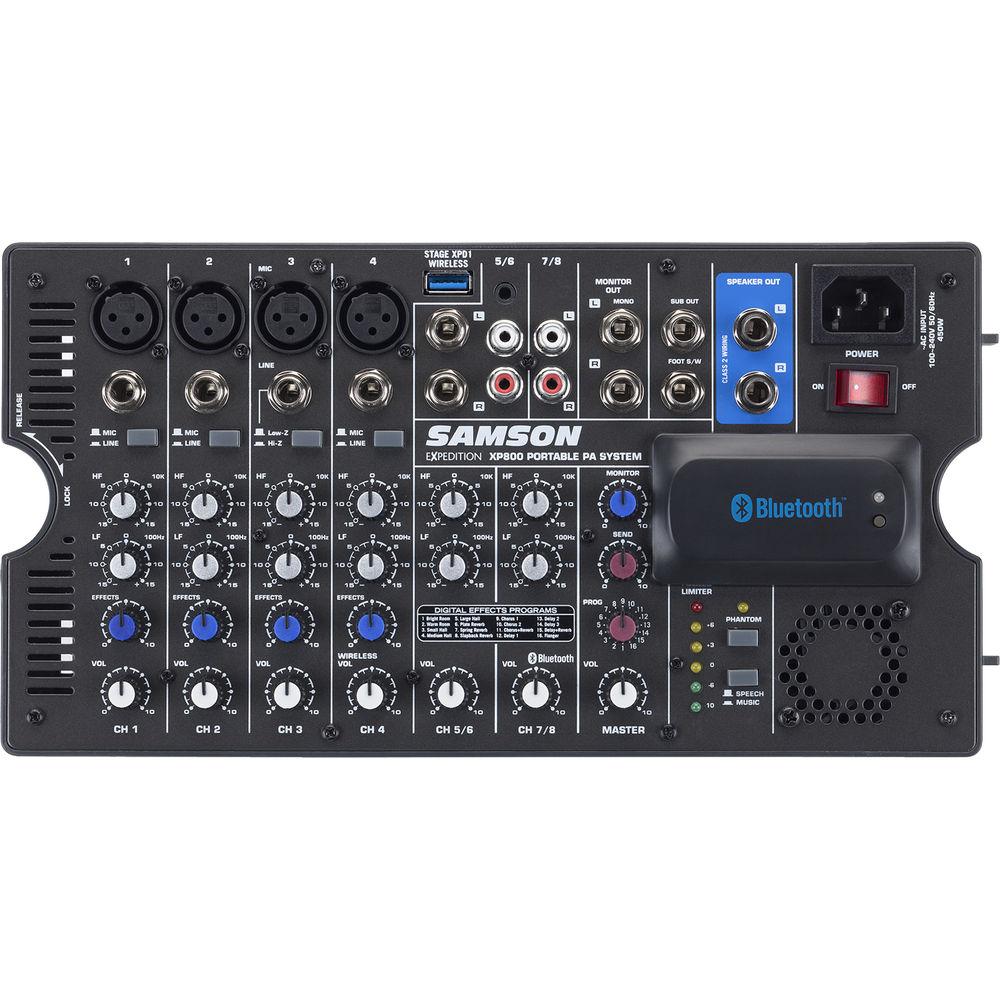

Technical parametersSamson SAXP800W Specs | | | Power Output | 800 W (400 x 2), Class-D amplification | | Speakers | 1 x 8.0" (20.3 cm) woofer per speaker
1 x 1" (25.4 mm) high-frequency driver per speaker | | Frequency Response | 20 Hz to 20 kHz | | Mixer | 8-channel mixer
Channels 1-4: 4 x XLR / 1/4" mic/line inputs
Channel 3: Hi-Z instrument input
Channel 5-6: 2 x 1/4" (6.3 mm) / stereo RCA / 1/8" (3.5 mm)
Channel 7-8: Stereo RCA inputs
1 x Bass control per channel
1 x Treble control per channel
1 x USB port for optional Samson Stage XPD1 wireless system
2 x 1/4" (6.3 mm) monitor outputs
2 x 1/4" (6.3 mm) speaker outputs | | Indicators | 1 x 6-segment level meter with limiter indicator | | Bluetooth | Bluetooth 3.0, A2DP | | Effects | 16 preset, 24-bit DSP | | Dimension | 20.1 x 10.6 x 19.0" (510.5 x 269.2 x 482.6 mm) | | Weight | 40.5 lb (18.4 kg) | | | | Frequency Band | 2.404 to 2.476 GHz | | Range | 100' / 30 m, line of sight | | Modulation Type | GFSK | | # Of Simultaneous Systems | 2 | | Frequency Response | 20 Hz to 16 kHz | | THD | <0.1%, at 1 kHz, -10 dBu | | Signal to Noise | >85 dB | | Operating Temperature | 14° to 104° F / -10° to +40° C | | Transmitter | Type: Stage HXD1 handheld microphone
Microphone Element: Q6, dynamic capsule
RF Power: <10 mw eirp
Power Requirements: 2 x AA (LR6) alkaline batteries
Battery Life: 20 hours
Dimensions: Length 10.2" / 259.0 mm, Diameter: 2.1" / 53.3 mm
Weight: 0.5 lb / 226.7 g | | Receiver | Type: Stage RXD1, USB receiver
Maximum Analog Audio Output Level: 0 dBu
Audio Output Impedance: 100 kOhms
USB Audio Sample Rate: 32 kHz
USB Audio Support: Vista, Windows 7, 8, Mac OS X (no driver needed)
Operating Voltage: 5 VDC
Dimensions (L x D x H): 3.5 x 0.9 x .31" / 88.9 x 22.8 x 7.8 mm
Weight: 0.35 oz / 9.92 g | | | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 26.5 x 24.7 x 17.0" |
