User Manual for Samson LM8x Omnidirectional Lavalier Microphone for Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the Samson LM8x Omnidirectional Lavalier Microphone for
- Product category: Microphones for Wireless Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Microphones for Wireless
 |
User manual for the Samson LM8x Omnidirectional Lavalier Microphone for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

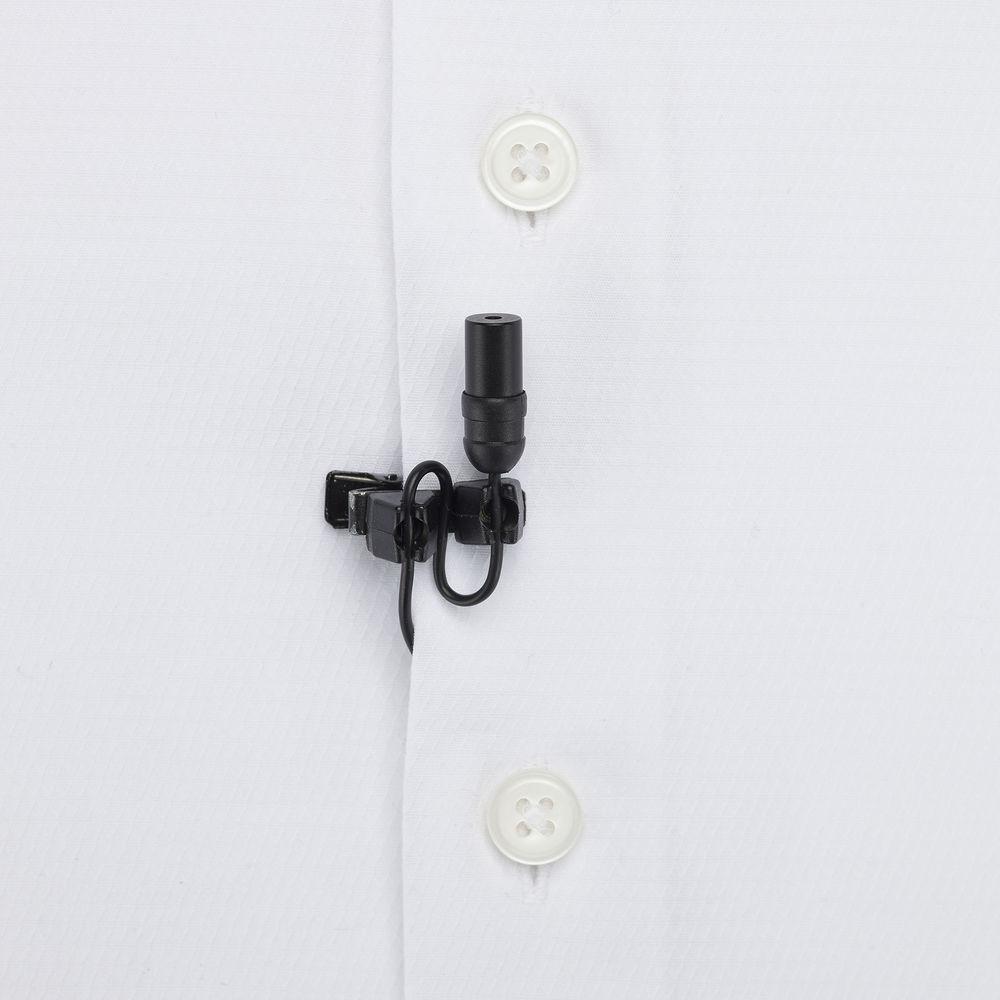

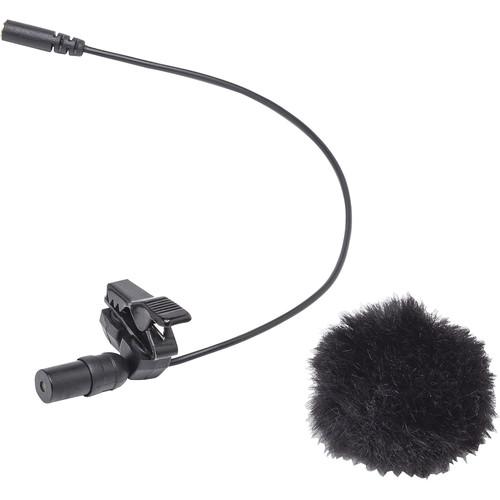

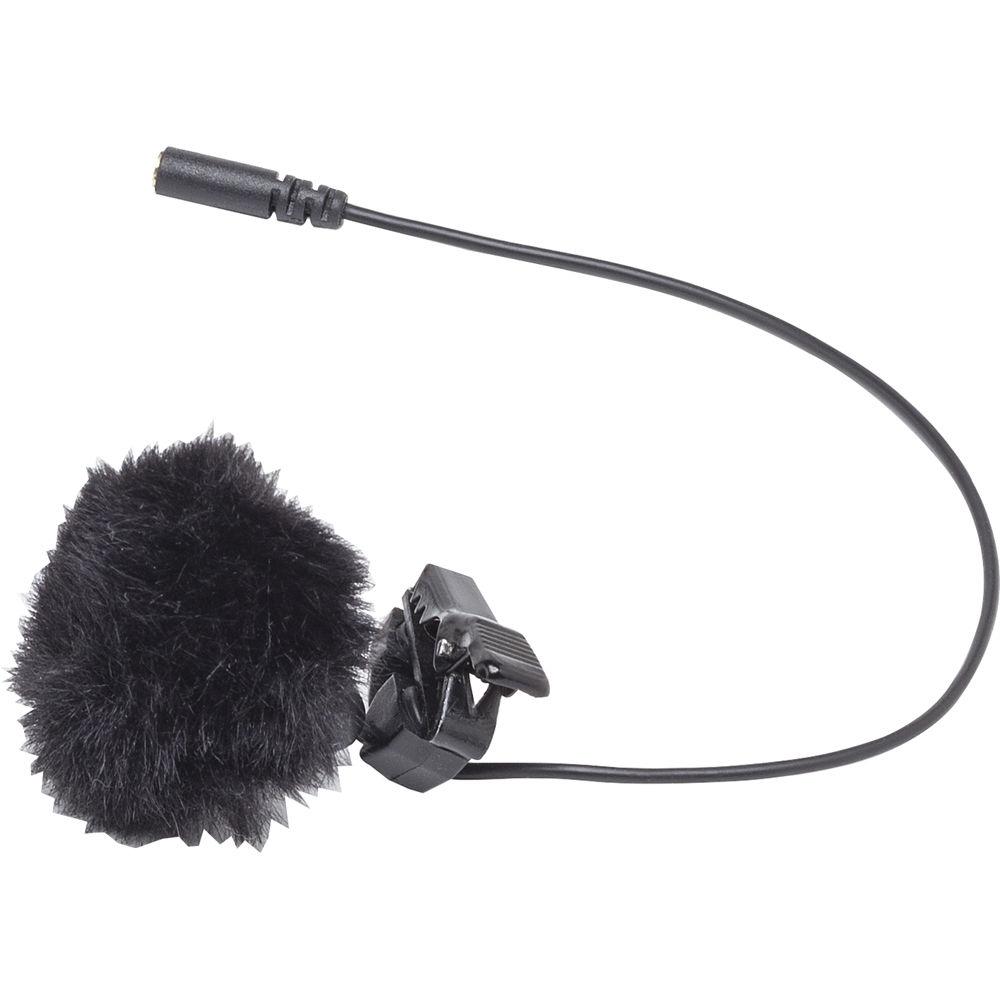

Product description Designed for a wide variety of speech and vocal applications including broadcast and theater production, presentations, ENG, and vlogging, the Samson LM8x Omnidirectional Lavalier Microphone for Wireless Transmitters is a lightweight, low-profile lav mic featuring a 6.59mm miniature condenser capsule that handles sound pressure levels up to 125 dB while providing a 50 Hz to 16 kHz frequency response for clear and accurate vocal reproduction. Its omnidirectional pick-up pattern is ideal for reliably capturing sound from all directions without proximity effect or off-axis coloration.Built to work with a wide variety of wireless systems, the LM8x includes four detachable 3.9' adapter cables with the following connectors: 3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F. Also included are four standard windscreens, a "cat fur" windscreen, a mic clip, and a carry case. -
- Lavalier microphone with 6.59mm miniature condenser capsule
- Lightweight, low-profile design
- Ideal for broadcast vocal applications, presentations, houses of worship, theaters, ENG, and more
- Omnidirectional pickup pattern captures audio from all directions while preventing proximity effect and off-axis coloration
- 50 Hz to 16 kHz frequency response
- 125 dB maximum SPL

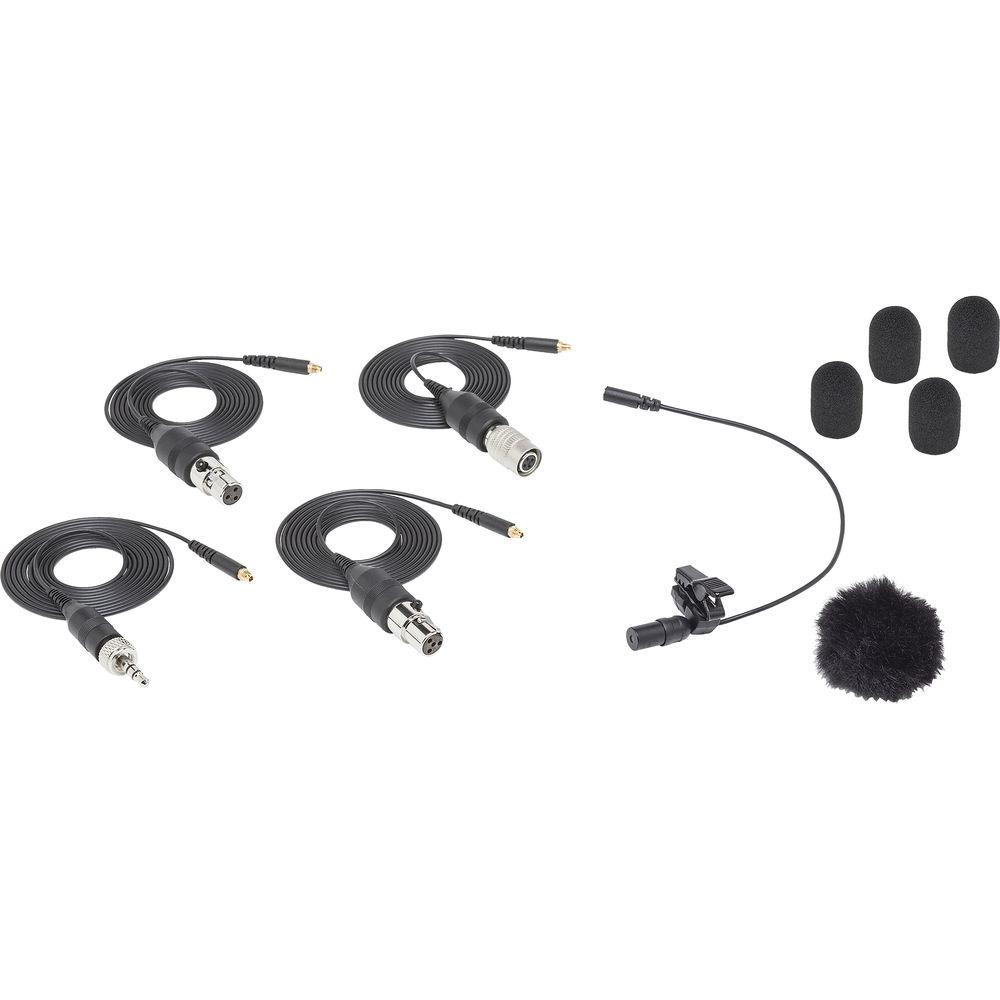

- Includes four detachable 3.9' adapter cables—3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F—for compatibility with most popular wireless transmitters

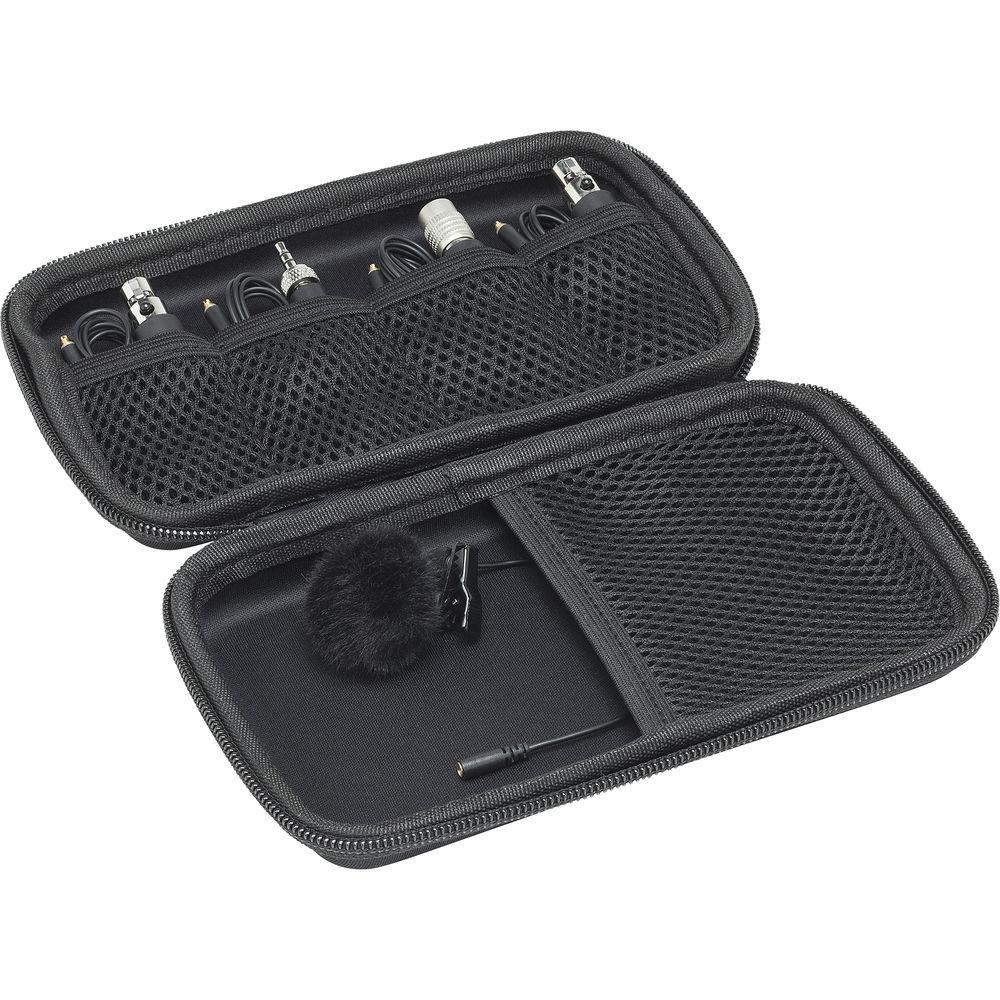

- Four standard windscreens, "cat fur" windscreen, mic clip, and protective carry case also included
UPC: 809164024873 In the Box Samson LM8x Omnidirectional Lavalier Microphone for Wireless Transmitters Microphone Cable with 3.5mm Jack Microphone Cable with 4-Pin Hirose Jack Microphone Cable with TA3F Jack Microphone Cable with TA4F Jack "Cat Fur" Windscreen 4 x Standard Windscreens Mic Clip Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson LM8x Omnidirectional Lavalier Microphone for Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SALM8B Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Electret Condenser | | Diaphragm | 0.26" / 6.59 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 50 Hz to 16 kHz | | Maximum SPL | 125 dB SPL | | Impedance | 2.2 kOhms ± 30% | | Sensitivity | -45 dBV/Pa at 1 kHz | | | | Output Connector | Proprietary | | Cable Length | 3.94' / 1.2 m | | Operating Voltage | 1.5 to 12 V | | Weight | 0.07 oz / 2 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
