User Manual for Samson MediaOne M30 Powered Studio Monitors Click to enlarge the picture
Contents of the user manual for the Samson MediaOne M30 Powered Studio Monitors
- Product category: Studio Monitors Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Studio Monitors
 |
User manual for the Samson MediaOne M30 Powered Studio Monitors contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

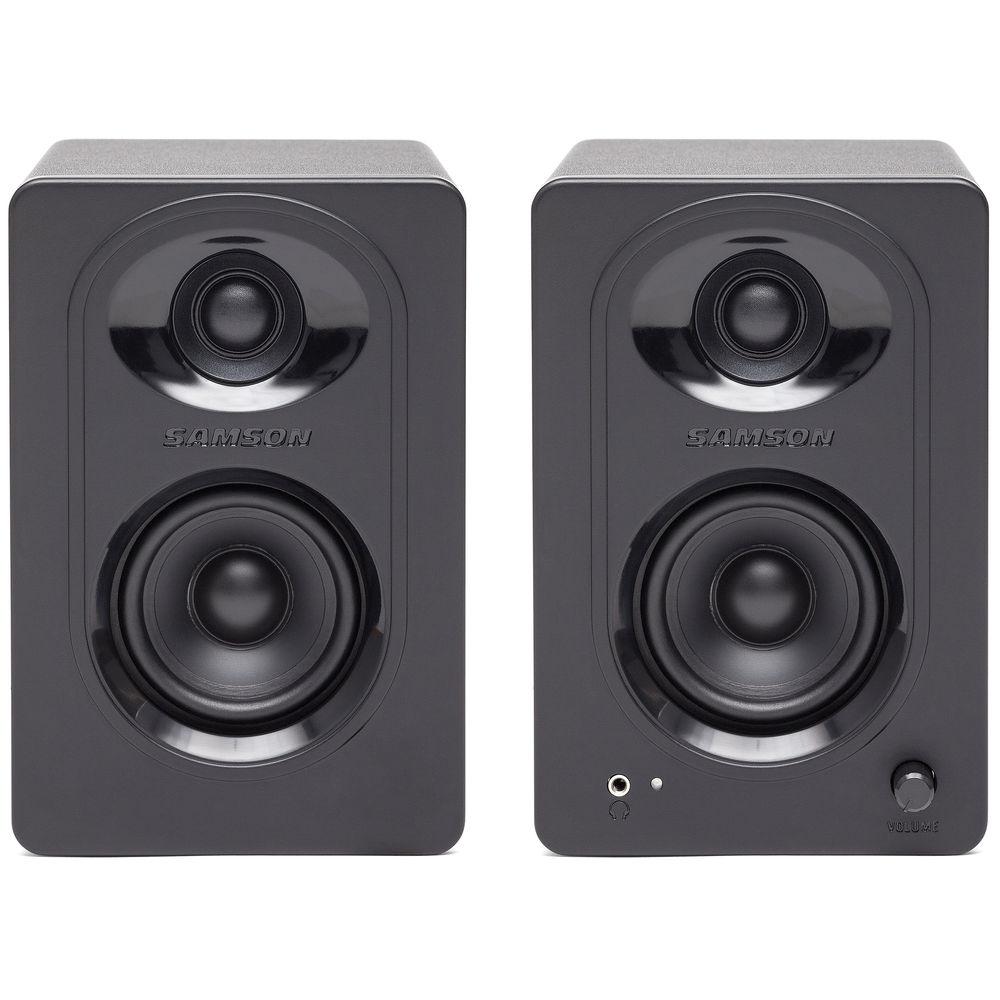

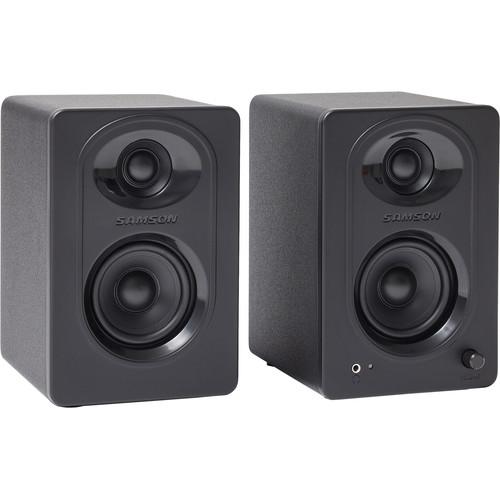

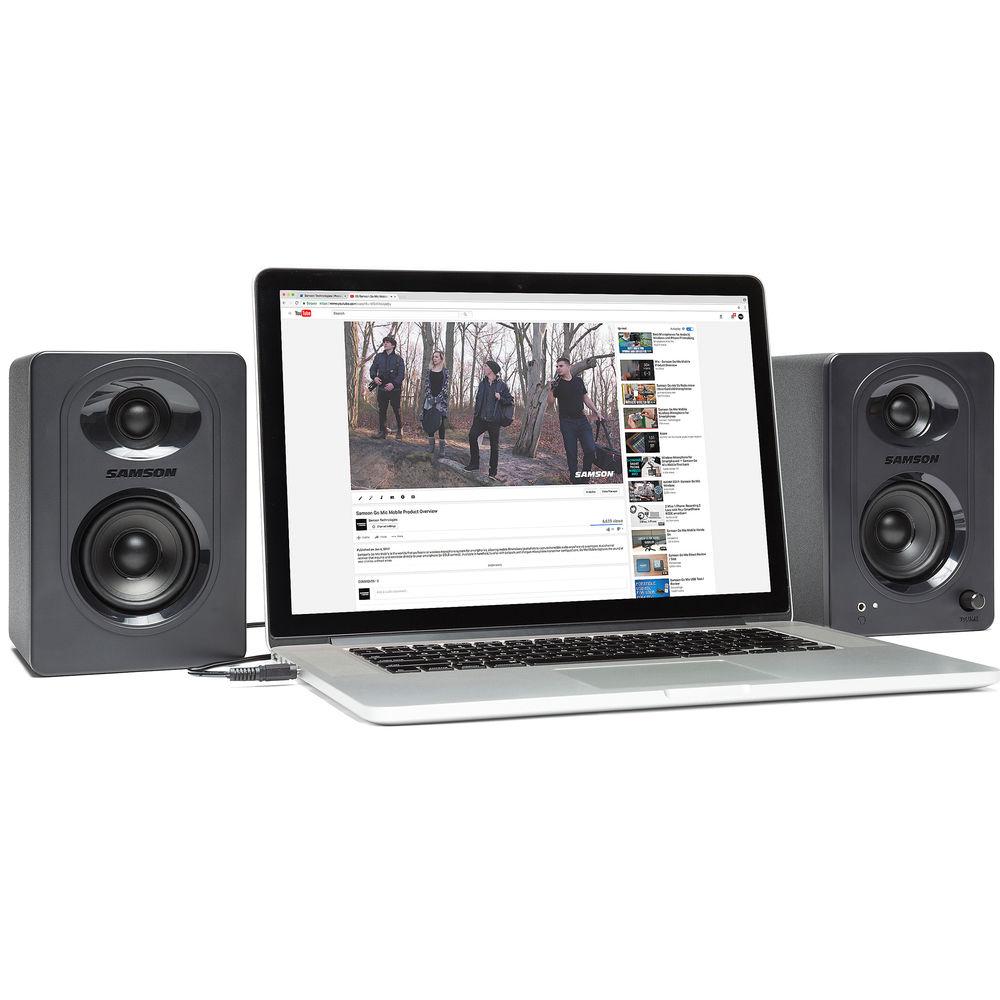

Product description The Samson MediaOne M30 are a pair of small-format, powered studio monitors with full-range sound for all your desktop and multimedia applications including listening to music, music production, video production, and gaming. The M30 utilize two 10W amplifiers to drive each speaker's 3" co-polymer woofer and 3/4" silk-dome tweeter, which combine to provide a frequency response of 50 Hz to 20 kHz (at -2 dB).
The right speaker houses both amplifiers and offers a 1/8" speaker output to connect to the left speaker. The front panel offers a 1/8" headphone output and a power/volume knob, while the rear panel offers stereo RCA inputs, a 1/8" subwoofer output, and a bass boost switch, which adds +5 dB at 150 Hz. The solid wood cabinet construction with rear porting ensures maximum efficiency and low response without mechanical power loss. The Samson MediaOne M30 ship with a power cord and a speaker cable. -
- Compact multimedia speaker system
- Sold as stereo pair (one active speaker, one passive speaker)
- Ideal in home studios for music playback, production, gaming, and video applications
- 20W (10W per channel)
- 3” co-polymer woofers
- 3/4” silk-dome tweeters
- Clear high-end performance
- Extended bass response
- Bass Boost switch (+5 dB at 150 Hz)
- Stereo RCA inputs
- Stereo 1/8” sub and headphone outputs
- Sleek all-black vinyl finish
- Speaker cable included
UPC: 809164020240 In the Box Samson MediaOne M30 Powered Studio Monitors (Pair) Speaker Cable Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson MediaOne M30 Powered Studio Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson M30 Specs | Amplifier | Type: Class-AB
Power Rating: 2 x 10 W (RMS) @ 8 Ohms | | Drivers | Woofer: 3.0" / 76.2 mm co-polymer
Tweeter: 0.75" / 19.05 mm silk-dome | | Frequency Response | 50 Hz to 20 kHz (at -2 dB) | | Signal-to-Noise Ratio (SNR) | 85 dB | | THD | <0.1% | | Input Impedance | 18 kOhms | | Connectors | Input: Stereo RCA
Output:
Stereo 1/8" / 3.5 mm sub output
Stereo 1/8" / 3.5 mm headphone output
1/8" / 3.5 mm to left speaker | | Controls | Power/volume knob
Bass Boost switch | | Bass Boost | Bass Boost: +5 dB at 150 Hz | | Indicators | Power LED | | Finish | Black vinyl | | Dimensions | 5.0 x 5.8 x 7.5" / 127.0 x 146.1 x 190.5 mm | | Weight | 6.5 lb / 2.9 kg | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 13.5 x 12.7 x 7.6" |
