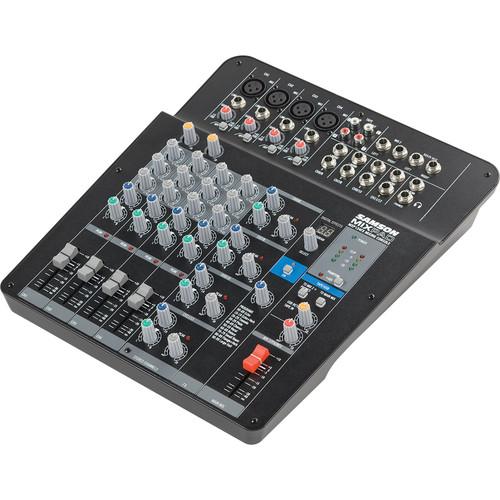

User Manual for Samson MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB Click to enlarge the picture
Contents of the user manual for the Samson MIXPAD MXP124FX Analog Stereo Mixer
- Product category: Analog Recording Mixers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Analog Recording Mixers
|
User manual for the Samson MIXPAD MXP124FX Analog Stereo Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description For blending sounds the MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB by Samson is a good choice to get the job done. It can be used to deliver intuitive mixing and audio quality for small clubs, houses of worship, bars, restaurants and more. It features 100 24-bit, low noise digital effects, a Mix 2 output, Headphone monitoring with level control, RCA Tape out, and USB for recording your performances. Output flexibility makes the MXP124FX a worthy companion, regardless of venue size, giving you precise fader control, over your main mix.The MXP124 features 4 balanced Class A MDR (Maximum Dynamic Range) XLR mic preamps with 48V phantom power. Each channel is built with a 3-band EQ, gain trim, high pass filter and a pre-fader Aux send. In addition a compressor is available on 2 channel inputs. The MXP124FX features four Stacked-Stereo channels for increased input versatility and portability. A four segment LED for level metering in dark environments is provided for safe and efficient operation. Portable, easy to use and packed with many features that ensure optimal control over your performance, Samson's MXP124 represents a great choice for an affordable live mixer. - Call up one of the 100 built-in, low-noise digital effects presets to enhance your sound
- Ultra-low noise, high headroom analog mixer
- Four Class A, MDR (Maximum Dynamic Range) mic preamps with 3-band EQ and four Stacked-Stereo channels
- Features 48-volt phantom power for condenser microphones
- Two single-knob, studio-quality compressors on 2 channels
- Good quality precision faders to control your mix
- All mic channels are equipped with input gain and high pass filters
- Tape inputs assignable to Main Mix or Mix 2/Phones outputs
UPC: 809164016090 In the Box Samson MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson MXP124FX Specs | Frequency Response | Trim @ Min, Unity Gain ± 3 dB:
Mic to Main: 20 Hz to 30 kHz
Line to Main: 20 Hz to 30 kHz
Aux Return to Main: 20 Hz to 30 kHz
Line to Aux Send: 20 Hz to 30 kHz | | Total Harmonic Distortion (THD) | Trim @ Min, +4 dBu Output, Unity Gain, 1kHz w/30 kHz LPF:
Mic/Line to Main (Mono Ch): <0.03%
Line to Main (Stereo Ch): <0.03%
Line to Aux Send: <0.03% | | Equivalent Noise | Input A filter on, Input Shorted:
Mic Trim @ Min, Fader set to 0: < 90 dB 20 Hz to 30 kHz A-weighted
Line Trim @ Min, Fader set to 0: < 90 dB 20 Hz to 30 kHz A-weighted | | Maximum Voltage Gain | Mic to Main: 63dB
Line to Main (Mono Ch): 39 dB
Line/Tape to Main (Stereo Ch): 26 dB
Mic to Aux Send: 63 dB
Line to Aux Send (Stereo Ch): 29 dB | | Residual Noise | Main (All Fader Min): -105 dBu A-weighted
Aux Send (All Fader Min): -94 dBu A-weighted | | Cross Talk | @ 1 kHz w/30 kHz LPF:
Ch vs Ch (Trim @ min, fader set 0 >75 dB A-weighted
Input vs Output: >60 dB A-weighted | | Meter Peak Indication | Mic (Mono Ch): + 16 dBu
Line (Stereo Ch) +16 dBu
Headphone Output 600Ω load: +16 dBu | | Maximum Input Level | 1 kHz, ± 3 dB:
Mic Input Mono: +16 dBu
Line Input Mono: +40 dBu | | Input Channels | Equalizer (± 3 dB) | | Mic/Line Inputs | 4x balanced XLR mic
4x stereo line 1/4" (6.3 mm)
1x stereo pair unbalanced RCA (tape L, R) | | Outputs | 2x Master: 1/4" (6.3 mm) (L, R)
2x Mix 2: 1/4" (6.3 mm) (L, R)
1x Headphones: 1/4" (6.3 mm)
Tape: 1x pair RCA (stereo) (L, R) | | EQ Section | 3 band | | Channel Level Control | Faders on channel 1 to 4
Master Fader | | Trim/Gain Control | Channels 1 to 4 | | Phantom Power | 48 V ± 3 V | | Power Requirement | AC18 V 1000 mA | | Power Consumption | <18 W | | USB | Bus Power: USB 2.0 +5 VDC 0.5 A Max
USB A-type female | | Metering | LED | | Internal Digital Effects | 100 presets | | Dimensions (W x D x H) | 12.9 x 11.7 x 3" (32.7 x 29.8 x 75 cm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 18.2 x 13.1 x 6.0" |
