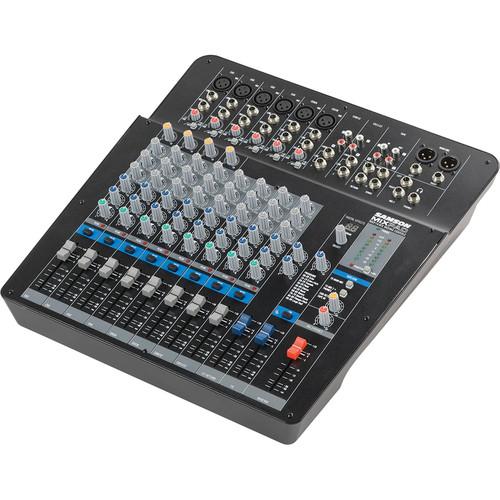

Product description The MixPad MXP144FX 14-Channel Analog Stereo Mixer from Samson offers six MDR mic preamps with four of the channels equipped with single-knob compressors. All channels on the MXP144FX are controlled via precision 60mm faders and feature a 3-band EQ, Gain trim, high pass filter and mute switch. In addition, each channel on the MXP144FX has a pre-fader Aux send for your monitor mix and a post-fader Aux send for introducing external effects.With 100 24-bit, low-noise digital effects, the MXP144FX mixer offers a studio-inspired effects processor to give your mixes a professional touch. The mixer also feature a high-integrity, bi-directional USB connection for recording a mix to your favorite DAW or integrating digital music files from your computer into a project.The mixer features selectable 48V phantom power allowing you to mix in the warm, natural response of your favorite condenser microphones. Further catered to live performance, the MixPad includes brightly colored knobs, as well as 8-segment LED level metering for safe and efficient operation in dark environments. - Low-noise, high-headroom analog mixer
- Six Class A MDR (Maximum Dynamic Range) mic preamps
- Four stereo channels with multiple input options (1/4" and RCA)
- Four TRS inserts for external signal processing
- 100 24-bit, low-noise digital effects
- High-integrity, bi-directional USB interface
- High-quality, precision 60mm faders
- Four single-knob studio-quality compressors
- Pre-fader Aux send for monitor mix
- Post-fader Aux Send for external effects
- All mic channels equipped with input Gain and high pass filters
- 48 V phantom power for condenser microphones
- Multiple outputs: Main Mix, Mix 2, Phones and Tape
- XLR and 1/4" Main Mix outputs
- USB and tape inputs assignable to Main Mix or Mix 2/Phones outputs
UPC: 809164016175 In the Box Samson MixPad MXP144FX 14-Channel Analog Stereo Mixer with Digital Effects and USB Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson MixPad MXP144FX 14-Channel Analog Stereo Mixer with Digital Effects and USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson MXP144FX Specs | Frequency Response | Trim @ Min, unity gain ± 3 dB
Mic to Main: 20Hz to 30 kHz
Line to Main: 20 Hz to 30 kHz
Aux Return to Main: 20 Hz to 30 kHz
Line to Aux Send: 20 Hz to 30 kHz | | THD | Trim @ Min, +4 dBu output, unity gain, 1 kHz w/30 kHz LPF
Mic/Line to Main (Mono Ch): <0.03 %
Line to Main (Stereo Ch): <0.03 %
Line to Aux Send: <0.03 % | | Equivalent Input Noise | "A" filter on, input shorted
Mic (Trim @ Min, Fader set "0"): < -90 dB 20 Hz to 30 kHz A-weighted
Line (Trim @ Min, Fader set "0"): < -90 dB 20 Hz to 30 kHz A-weighted | | Maximum Voltage Gain | Mic to Main (bal): 70 dB
Line to Main (bal) (Mono Ch): 43 dB
Line/Tape to Main (Stereo Ch): 33 dB
Aux Return to Main: 25 dB
Mic to Aux Send: 75 dB
Line to Aux Send (Stereo Ch): 30 dB | | Residual Noise | 30 kHz LPF, all control Min
Main (All fader min): -100 dBu A-weighted
Aux Send (All fader min): -105 dBu A-weighted | | Crosstalk | at 1 kHz w/ 30 kHz LPF
Ch vs. Ch (Trim @ min, Fader set 0) >75 dB A-weighted
Input vs. Output: >60 dB A-weighted | | Monaural/Stereo Input Peak Indicator | Mic (Mono Ch): +16 dBu
Line (Stereo Ch): +16 dBu | | Headphone Output | +20 dBu at 600 Ω load | | Maximum Input Level | 1 kHz, ± 3 dB
Mic Input (Mono Ch): +16 dBu
Line Input (Mono Ch): +40 dBu | | Input Equalization | ± 3 dB
High: ±15 dBu
Mid: ±15 dBu
Low: ±15 dBu | | USB | USB 2.0 +5 VDC 0.5 A max, USB A-Type Female | | DSP Effects | 100 presets | | Phantom Power | 48 V ±3 V | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz | | Fuse | T1.6A AL250 V | | Power Consumption | <48 W | | Dimensions (W x D x H) | 15.3 x 14.5 x 3.9" (391 x 370 x 100 mm) | | Weight | 8.3 lb (3.8 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 18.11 x 17.95 x 6.34" |
