User Manual for Samson PA1 Active Unidirectional Antennas Click to enlarge the picture
Contents of the user manual for the Samson PA1 Active Unidirectional Antennas
- Product category: Antennas Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Antennas
 |
User manual for the Samson PA1 Active Unidirectional Antennas contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

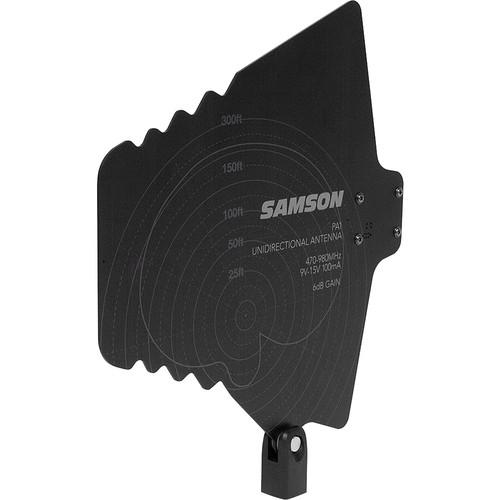

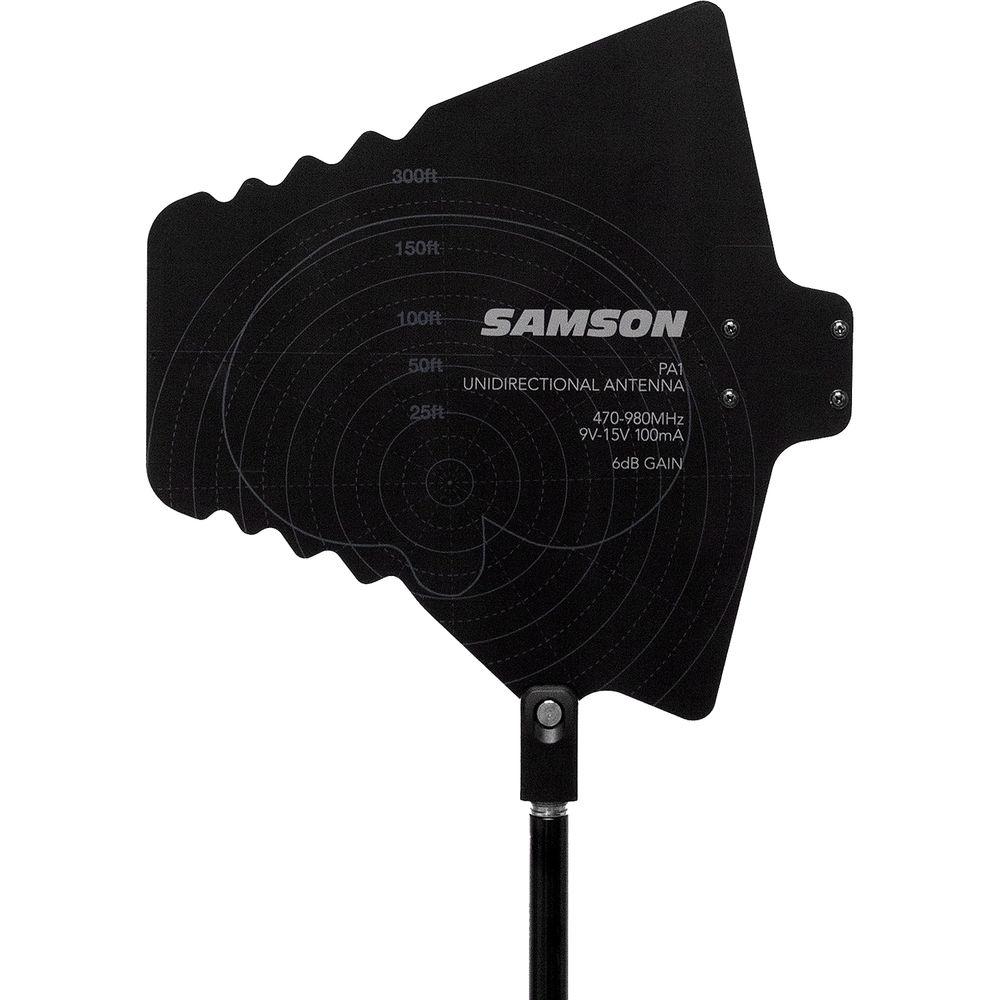

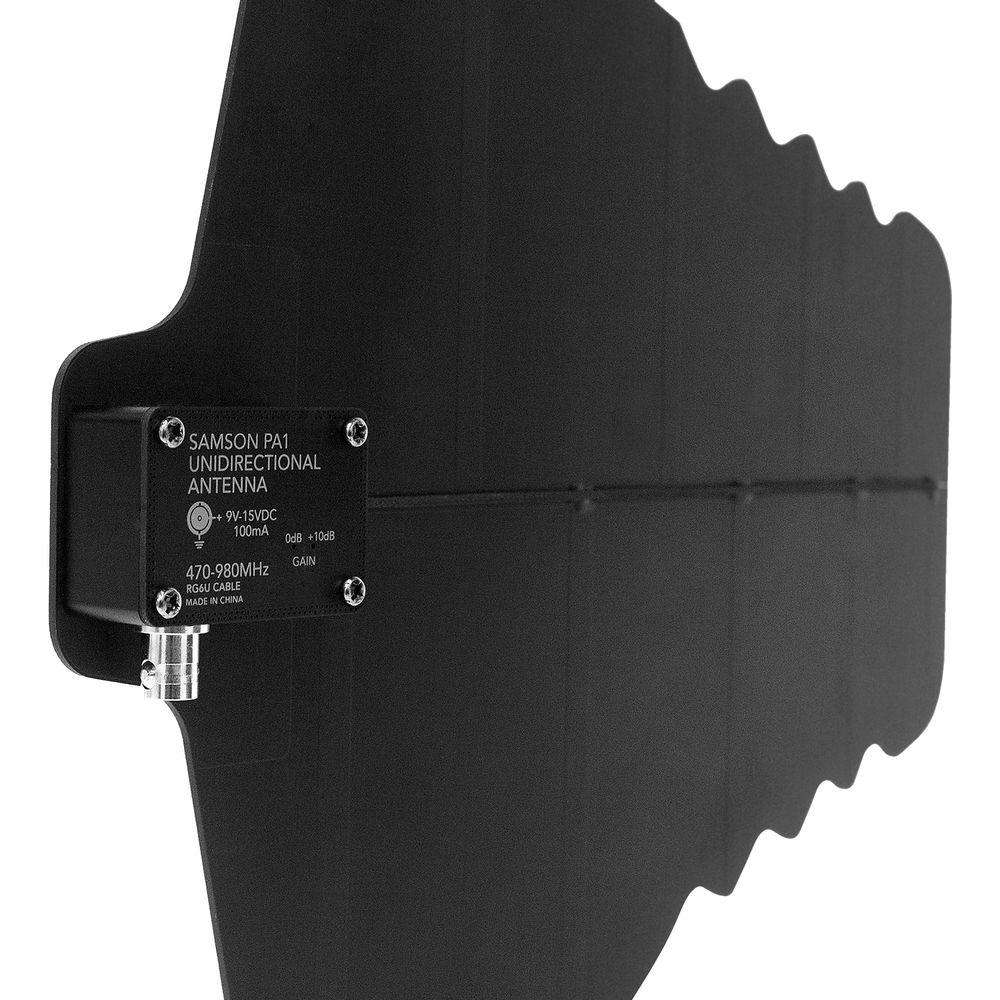

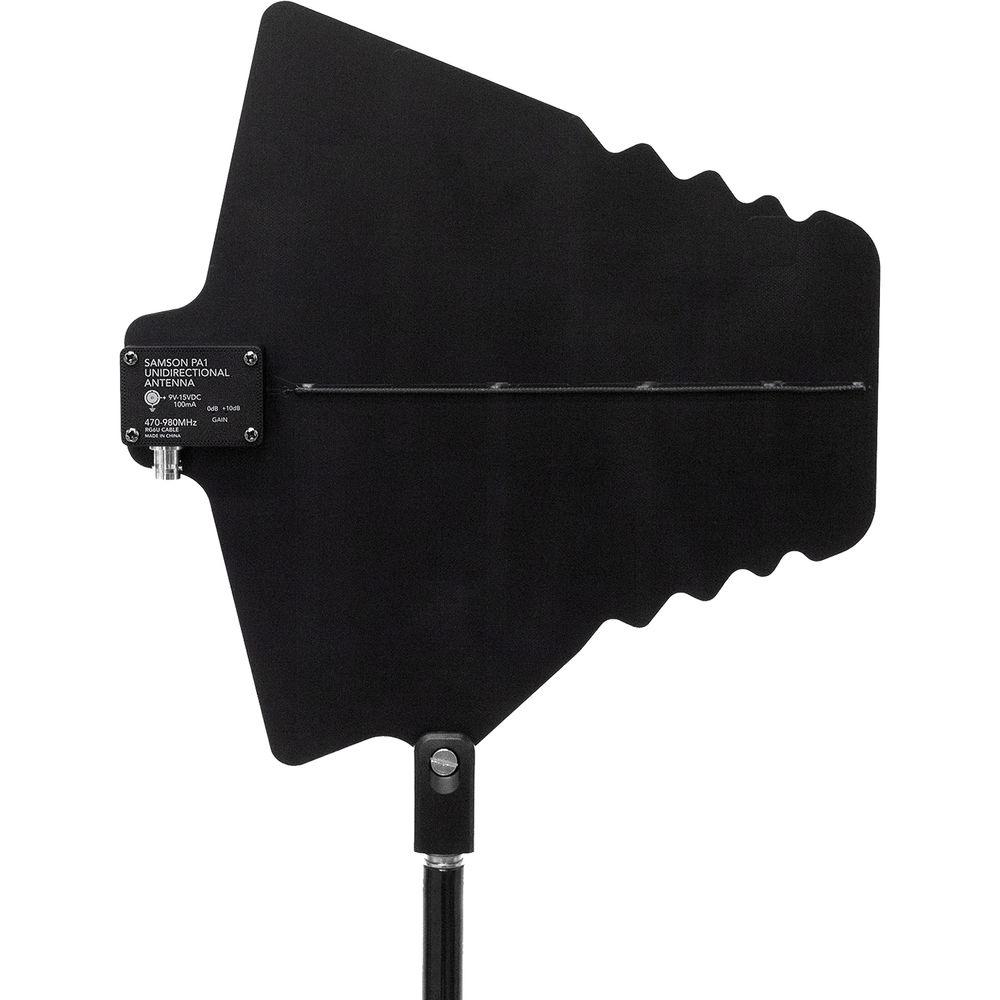

Product description The pair of PA1 Active Unidirectional Antennas from Samson are log-periodic dipole array (LPDA) antennas that are designed to improve wireless reception. They can be used to focus the pickup pattern towards the desired coverage area increasing the overall range of your wireless system and reducing unwanted RF from surrounding locations and sources.The paddle antennas cover a bandwidth of 470 to 980 MHz frequency range. This allows them to be utilized for multi-band and frequency-agile wireless systems. The PA1 antennas are compatible with Synth 7 and Concert 99 wireless systems as well as any wireless receiver or antenna distribution system that delivers 9 to 15 VDC bias.Furthermore, each antenna is built with a BNC connector and integrated amplifier that compensates for signal loss in coaxial cables, long cable runs, or when using RF splitters. The PA1 antennas can be mounted on a stand, ceiling, or wall mount using the included US and Euro mic stand adapters, and swivels. - Two active unidirectional antennas
- Compatible with select Samson wireless receivers and antenna distribution systems that provide 9-15 VDC bias
- 2-position gain selector switch
- Low-noise signal amplifier compensates for signal loss in coaxial cables
- Mic stand adapters and swivels for mounting antennas
- Works with RG-6/U cables with BNC connectors (not included)
In the Box Samson PA1 Active Unidirectional Antennas (Pair) 2 x Microphone Stand Adapters and Swivels Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson PA1 Active Unidirectional Antennas in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWPA1 Specs | Connector | BNC female for each antenna | | Impedance | 50 Ohms | | Power Requirements | 9 to 15 VDC bias from coaxial connection, 100 mA | | Frequency Range | 470 to 980 MHz | | Antenna Gain | 6 dB | | Signal Gain | 0 dB, +10 dB | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 14.5 x 13.8 x 2.9" |
