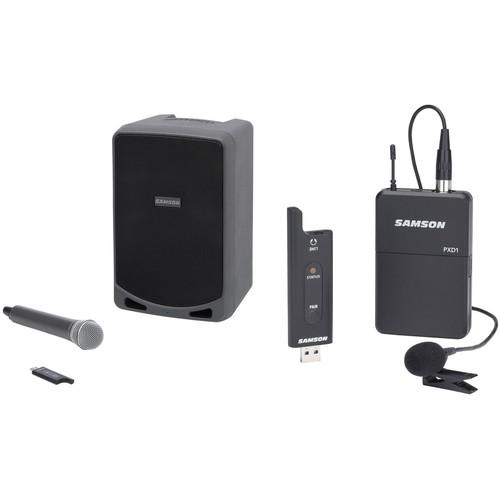

User Manual for Samson Portable PA Kit with Wireless Lavalier and Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Samson Portable PA Kit with Wireless
- Product category: Portable PA Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Portable PA Systems
|
User manual for the Samson Portable PA Kit with Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More baauxwuqxczdxdrcyd This B&H Kit combines the Samson Expedition XP106w Portable PA System with the Samson Stage XPD1 Presentation USB Digital Wireless System to form a portable wireless PA system well suited for presentations, outdoor events, fitness classes, guided tours, and more. - Samson Expedition XP106w Portable PA System with Wireless Handheld Mic System & Bluetooth
- Samson Expedition XP106w Product Overview
The Expedition XP106w Portable PA System from Samson is a single-speaker PA system that includes Samson's Stage XPD1 USB digital wireless system with a handheld dynamic microphone. It is capable of up to 100 watts of power output and is powered by a Class D amplifier. The XP106w supports Bluetooth streaming audio, and features a variety of other input options including a combo XLR/TRS mic/instrument input, a 1/4" line input, a 1/8" MP3 player input, and a USB port for compatibility with an additional Stage XPD1 USB digital wireless system (sold separately). The built-in rechargeable battery provides up to 20 hours of operation per charge. - Your Sound, Anywhere
- The XP106w features a 6" woofer and a 1" high frequency driver. A lightweight, 100-watt Class D amplifier, matched to its drivers for high efficiency and low current draw, powers the XP106w. The unit's rechargeable battery also increases the system's portability, allowing for up to 20 hours of continuous use wherever great sound is needed
- Make Connections
- The XP106w's 4-channel mixer features multiple input options with separate level controls, including an XLR-1/4" combo channel (for the included dynamic handheld mic and other Mic/Line level devices), a 1/4" channel (guitars and other line level devices), an 1/8" channel (MP3 players, keyboards, etc.) and a Bluetooth channel to wirelessly stream music from your smartphone, tablet or laptop. The XP106w also has a Line Out to cascade multiple systems together and expand your sound, as well as a Music/Speech switch for optimizing output EQ for speech or music playback
- Dynamic Learning
- The XP106w can be used by teachers, professors, instructors, and lecturers alike. The system's 100 watts of power is able to fill medium to large classrooms with sound, while its lightweight design, top carry handle, and 20 hours of battery life allows the XP106w to be used by tour guides and mobile lecturers
- Outdoor Expeditions
- Whether you're at a backyard party, company picnic, or just relaxing by the pool, the XP106w delivers an outdoor music listening experience. Pair the XP106w with your smartphone or tablet via Bluetooth and DJ the party while in the midst of all the fun. Use the wireless mic to make speeches, toasts, and other announcements commemorating a festive occasion with family and friends. With a 20-hour battery life, you can keep the party going well into the night
- Getting Down To Business
- From PowerPoint presentations and product demonstrations to company meetings and corporate events, the XP106w gives you full range sound to convey your ideas in a clear, concise manner. Speakers can take advantage of the included wireless mic, or the system's 1/8" stereo Aux input can be used to amplify the sound of your MP3 player or computer presentation
- From Concerts To Karaoke
- When it comes to live music, the XP106w can be used in small venues such as coffee houses and studio spaces. Beyond the included mic delivering vocal performances to the XP106w, the system's onboard mixer lets you bring guitars, keyboards, and other instruments into the mix. The XP106w can also be used for karaoke events. Use the Bluetooth and microphone channels simultaneously to create a night of karaoke fun you'll never forget
- Fit For Fitness
- Fit for fitness applications, the XP106w can easily provide the power and performance needed to run small yoga classes and dance studios. The XP106w can also be used in front of higher intensity exercise methods, including outdoor aerobics, Zumba, and CrossFit. Use the Bluetooth or 1/8" stereo Aux (MP3 player) channels to engage your favorite workout playlists, or pick up the mic to provide your class with words of encouragement and motivation
- Features at a Glance
- All-in-one, lightweight portable PA system
Bluetooth connectivity to wirelessly stream music
Rechargeable battery for up to 20 hours of continuous use
2-way speaker enclosure with 6" woofer
1" high frequency driver
Class D amplifier produces 100 watts of power
4-channel mixer
XLR-1/4" combo input for microphones and other line level devices
1/4" input for guitars and other line level devices
1/8" stereo Aux input allows for stereo line level devices (MP3 players, keyboards, etc.)
Line output to cascade multiple systems together
Music/Speech switch for optimizing output EQ for speech or music playback
USB Wireless port for use with Samson's Stage XPD1 USB Digital Wireless System (sold separately)
Battery level LED indicator
Integrated carry handle
1 3/8" speaker stand mount UPC: 809164015970 - Samson XPD2 Lavalier USB Digital Wireless System
- Samson Expedition XP106w Product Overview
The XPD2 Lavalier USB Digital Wireless System from Samson is a 2.4 GHz, portable wireless bodypack transmitter and lavalier microphone with a USB stick receiver. It can be used to capture audio for broadcast, presentation, and live sound applications and more. The XPD2 offers simple setup, professional full-range audio, and 100' of wireless operation. The RXD2 USB stick receiver connects directly to Windows or Mac computers, or with any Samson Expedition Series portable PA system (sold separately) that features a USB wireless port. A 1/8" output allows for headphone monitoring or connection to any device with an analog line input, including smartphones and other mobile devices. Furthermore, the XPD2 wireless system delivers audio via digital transmission, which enables the LM8 lavalier microphone and PXD1 bodypack transmitter to send uncompressed signal to the receiver. The result is greater signal-to-noise ratio when compared to a traditional wireless system, and a performance that sounds as good as using a wired microphone. - 2.4 GHz USB digital wireless system
- Ideal for broadcasting, live streaming, presentations, and more
- Plug-and-play operation with Mac and Windows
- Works with iPad via Apple's Lightning to USB Camera Adapter
- Works with Android devices via a host OTG adapter
- Receiver features a 3.5mm headphone/monitor output
- PXD1 beltpack transmitter with Samson LM8 lavalier microphone
- Transmitter offers 20 hours of battery life using two AA batteries (not included)
- 100' operating range (line of sight, environment dependent)
- 1-touch pairing, adjustable volume controls on transmitter
- Compatible with Samson Expedition Series Portable PAs that feature USB wireless ports
- Includes lapel clip and USB extension cable
UPC: 809164220381 In the Box - Expedition XP106w Portable PA System with Wireless Handheld Mic System & Bluetooth baauxwuqxczdxdrcyd
- Stage XPD1 - USB Digital Handheld Wireless Microphone System
- Limited 2-Year Warranty
- XPD2 Lavalier USB Digital Wireless System baauxwuqxczdxdrcyd
Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Portable PA Kit with Wireless Lavalier and Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Samson Expedition XP106w Portable PA System with Wireless Handheld Mic System & Bluetooth
| Power Output | 100 W, Class D Amplification | | Speakers | 1x 6" (152.4 mm) woofer
1x 1" (25.4 mm) high frequency driver | | Mixer | 4-channel mixer
1x Combo XLR/TRS Mic/instrument input
1x 1/4" (6.3 mm) line input
1x 1/8" (3.5 mm) MP3 input
1x USB port for optional Samson XPD1 USB digital wireless system
1x Bluetooth streaming audio channel
1x 1/4" (6.3 mm) line output for daisy chaining | | Battery | Type: Built-in rechargeable battery
Battery Life: Up to 20 hours | | | | Box Dimensions (LxWxH) | 21.5 x 14.0 x 14.0" | - Samson XPD2 Lavalier USB Digital Wireless System
| | | # Of Simultaneous Systems | 2 | | Working Range | 100' line of sight | | Working Frequency | 2.404~2.476 GHz | | Modulation Type | GFSK | | Audio Frequency Response | 20 Hz to 17 kHz (-1 dB) | | Total Harmonic Distortion (THD) | <0.1% (at 1 kHz, -10 dBu) | | Signal to Noise | >85 dB | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Input Connector | Mini-XLR (P3) | | RF Power | <10 mW EIRP | | Power Requirements | 2 x AA (LR6) alkaline batteries | | Battery Life | 20 hours | | Audio Sample Rate | 32 kHz | | Dimensions (L x Diam) | 3.75 x 2.44 x 0.75" / 9.53 x 6.20 x 1.91 cm | | Weight | 0.2 lb / 0.1 kg | | | | Maximum Audio Output Level Analog | 9 dBu | | Headphone Output | 22 mW into 16 or 32 Ohms | | Operating Voltage | 5 VDC | | Dimensions (L x D x H) | 3.5 x 0.9 x 0.3" / 8.9 x 2.3 x 0.8 cm | | Weight | 0.35 oz / 10 g | | | | Box Dimensions (LxWxH) | 6.1 x 5.0 x 2.0" |
