Product description

• Samson Q2U Recording & Podcasting Pack (Silver)
  • Samson Q2U Recording and Podcasting Pack Product Overview

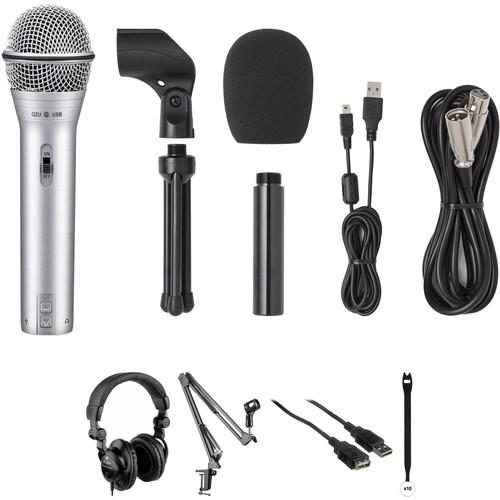

  The silver Samson Q2U Recording & Podcasting Pack includes a USB/XLR handheld dynamic microphone, a desktop tripod stand with extension tube, a mic clip, foam windscreen, USB cable, and an XLR mic cable. The Q2U Recording Pack is a cost-effective solution for the stage, rehearsal studios, and project recording applications. The microphone features both XLR and USB outputs that enable flexible digital recording to any Mac or Windows based computer workstation, while simultaneously connected to any analog mixer, preamplifier or PA system.An on/off switch controls the signal at the XLR output, and its cardioid polar pattern eliminates noise and feedback at the off-axis sections of the capsule. The Q2U Recording & Podcasting Pack delivers clear audio quality with a wide frequency response and digital resolution up to 16-bit/48 kHz. The microphone is completely plug-and-play, and there are no drivers to load.

  Key Features

  • Ideal for podcasting, live sound, and music recording applications
  • Dynamic microphone with cardioid polar pattern; good for vocals, instruments, and amplifiers
  • USB output connector for connecting to Mac and Windows computers
  • Plug-and-play, no driver installation required
  • XLR output for connecting to any mixer/PA system
  • On/off switch controls both USB and XLR audio outputs
  • Near-zero-latency headphone monitoring, with level control
  • Dual-color power/clip LED
  • Compatible with most computer-based digital audio workstation softwares
  • USB bus-powered via computer or iPad
  • Solid, die-cast construction with heavy-gauge mesh grille
  • 44.1/48 kHz, 16-bit resolution

  Included Accessories

  • Desktop tripod stand and extension piece for convenient placement in front of your computer
  • Mic clip for use with this desktop stand or with any standard microphone stand
  • Foam windscreen to minimize wind noise and vocal plosives such as pops
  • USB cable (7.38') & XLR mic cable (9.84')
  UPC: 809164022909
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones
  • Samson Q2U Recording and Podcasting Pack Product Overview
  The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488
• Musicians Value MCrane1 Microphone Suspension Crane Arm
  • Samson Q2U Recording and Podcasting Pack Product Overview
  The MCrane1 Microphone Suspension Crane Arm from Musicians Value is a spring-loaded suspension arm that can support a microphone with a shockmount/holder, and a microphone pop filter. The MCrane1 arm can be used in several environments for voice-over, podcast, and radio or DJ applications. A desk-mount clamp is included that allows the arm to swivel for smooth and precise positioning. In addition, it is forward and backward adjustable and height adjustable. UPC: 817802015411
• Pearstone USB 2.0 Type A Male to Type A Female Extension Cable (6')
  • Samson Q2U Recording and Podcasting Pack Product Overview
  The Pearstone USB 2.0 Type A Male to Type A Female Cable (6') is a premium quality cable that extends your existing USB device by 6' (1.8 m). It meets all specifications of USB 2.0 and is backward compatible with USB 1.1 devices. This premium extension cable supports error-free data transfer rates of up to 480 Mbs. Braided copper shielding and an aluminum foil wrap protects against electromagnetic and radio interference and ensures a clean signal transfer, even with large files at high speed. The connectors are hot pluggable and install with Plug-and-Play ease. This cable is manufactured under RoHS guidelines with no environmentally hazardous cadmium or lead and is UL rated and FCC certified.
  Speed
  • Transfers data at speeds of up to 480 Mbps
  Compliance
  • • Meets all specifications of USB 2.0

    • Backward compatible with USB 1.1
  UPC: 847628020535
• Pearstone 0.5 x 12" Touch Fastener Straps (Black, 10-Pack)
  • Samson Q2U Recording and Podcasting Pack Product Overview
  The black 10-pack of Pearstone 0.5 x 12" Touch Fastener Straps provides a cost-effective way to bundle and organize cables. The straps are easy to use, featuring a loop-through slot and touch fastener attachment. Each tie can be refastened at least 200 times.
  • Reusable hundreds of times
  • One-piece, double-sided touch fastener
  Easy to Use
  • • Wrap the strap around the first cable, fuzzy side out; feed the tail through the slot
    • Pull the tail completely through the slot and push tab down to fasten
    • Gather other cables to your first cable to make a tight bundle
    • Wrap the strap around the bundle and fasten by pressing the strap onto itself
  UPC: 847628021426

• Q2U Recording & Podcasting Pack (Silver) fryzqcydbtbqfeec
• Desktop Tripod Stand with Extension Piece
• Mic Clip
• USB Cable
• XLR Cable
• Limited 2-Year Warranty

• Polsen - HPC-A30 Closed-Back Studio Monitor Headphones fryzqcydbtbqfeec

• Musicians Value - MCrane1 Microphone Suspension Crane Arm

• Pearstone - USB 2.0 Type A Male to Type A Female Extension Cable (6')

• Pearstone - 0.5 x 12" Touch Fastener Straps (Black, 10-Pack) fryzqcydbtbqfeec

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Samson Q2U Recording & Podcasting Pack (Silver)

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 15 kHz
  Maximum SPL	148 dB SPL
  Sensitivity	-54 dB

  Bit Depth	16-Bit
  Sample Rate	48 kHz

  Output Connectors	1 x 3-Pin XLR 1 x USB (Type Unspecified)
  Headphone Connector	1 x 1/8" (3.5 mm)
  Length	7.5" / 190.50 mm
  Diameter	2.2" / 55.88 mm
  Weight	11.2 oz / 0.32 kg

  Box Dimensions (LxWxH)	10.15 x 7.55 x 2.55"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"

• Musicians Value MCrane1 Microphone Suspension Crane Arm

  Arm Length	27.6" / 70.0 cm
  Standard Mounting Bracket	3.0" / 7.5 cm
  Dimensions (L x W x H)	Not specified by manufacturer
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	15.75 x 4.75 x 1.8"

• Pearstone USB 2.0 Type A Male to Type A Female Extension Cable (6')

  Interface	USB 2.0 (480 Mb/s)
  Connector 1	USB Type-A Male
  Connector 2	USB Type-A Female
  Cable Type	Cable
  Cable Length	6' / 1.8 m
  Variable Length	No

  Box Dimensions (LxWxH)	6.0 x 6.0 x 0.5"

• Pearstone 0.5 x 12" Touch Fastener Straps (Black, 10-Pack)

  Quantity	10
  Size	0.5 x 12" (1.3 x 20.5 cm)

  Box Dimensions (LxWxH)	6.2 x 2.4 x 0.9"
