User Manual for Samson Q7x Dynamic Supercardioid Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Samson Q7x Dynamic Supercardioid Handheld Microphone
- Product category: Dynamic Microphones Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Dynamic Microphones
 |
User manual for the Samson Q7x Dynamic Supercardioid Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

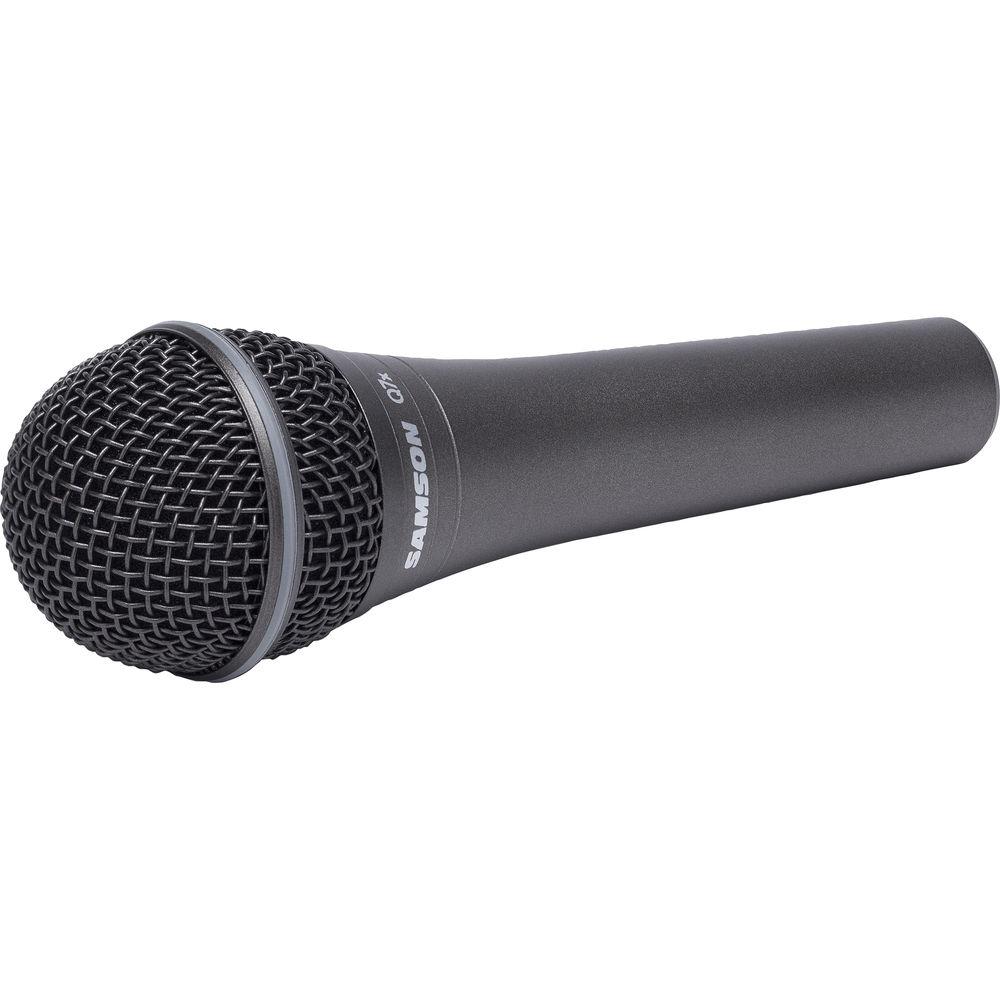

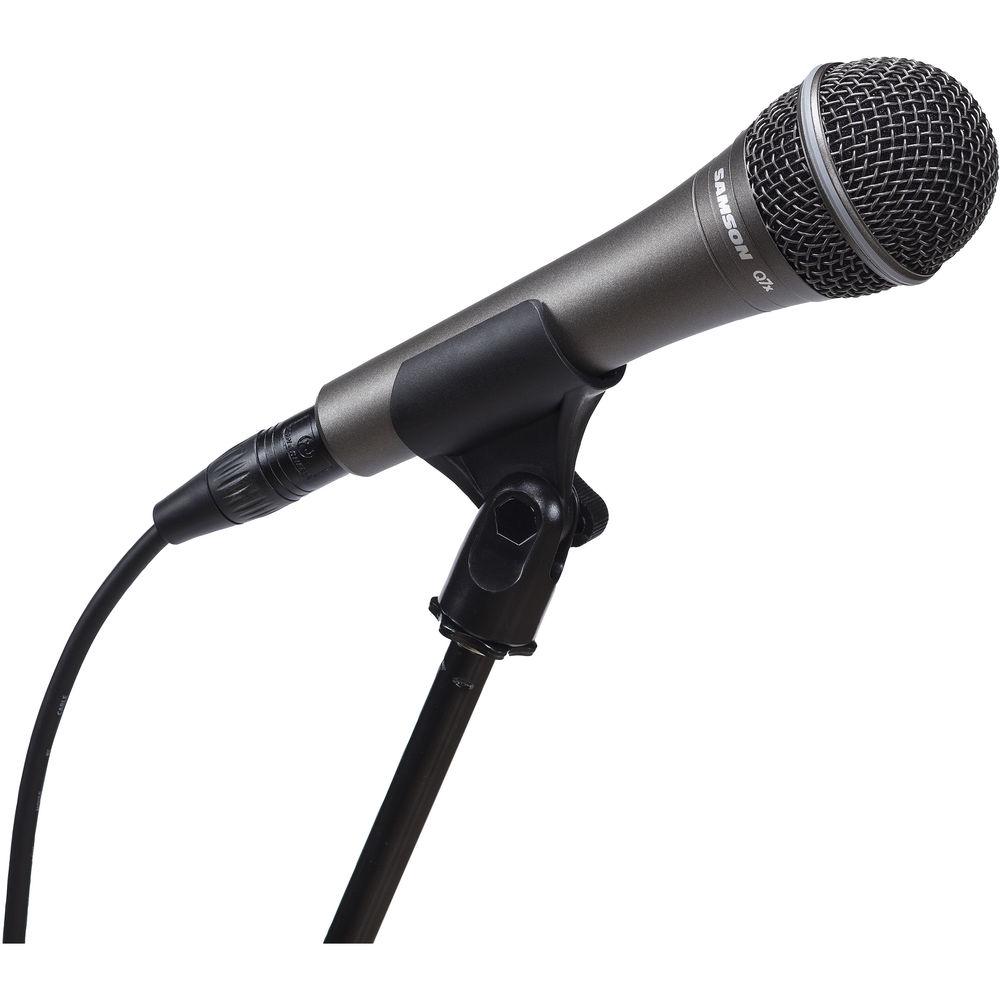

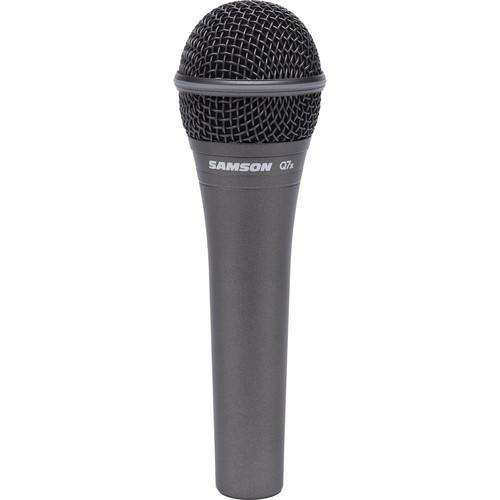

Product description Designed primarily for vocal applications, the Samson Q7x is a dynamic, handheld microphone. Its supercardioid polar pattern makes it quite suitable for the stage, as it tends to only pick up sound directly in front of the capsule. In this manner, feedback coming from monitors, mains, and other sound-reinforcement equipment can be greatly reduced. The frequency response of the microphone extends from 80 Hz to 12 kHz, and has been tweaked to suit the voice, with a roll off in the lows to reduce muddiness and a bump in the midrange to improve clarity. Encased in a pneumatic shockmount, the diaphragm is quite safe from handling noise. A rugged, die-cast zinc-alloy casing has been employed to ensure a reliable performance for years to come. This mic boasts a max SPL of 145 dB, meaning it can handle loud situations with aplomb. You'll find a mic clip included with the Q7x. - Key Features at a Glance
-
- Dynamic mic element with neodymium magnet provides clear, crisp sound
- Sensitive diaphragm picks up all of nuances of performance
- Frequency response tailored for vocal performance with a midrange lift and low-frequency roll off
- Supercardioid polar pattern minimizes feedback problems and effectively rejects signals not originating directly in front of the mic capsule
- Able to withstand high SPLs (Sound Pressure Levels), lending itself to a wide range of situations
- Pneumatic shockmount greatly reduces handling noise
- Rugged zinc alloy die-casting case ensures reliable performance
- Gold plated XLR Connector
- Includes mic clip
UPC: 809164020141 In the Box Samson Q7x Dynamic Supercardioid Handheld Microphone Mic Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Q7x Dynamic Supercardioid Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson Q7x Specs | | | Sound Field | Mono | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 16 kHz | | Maximum SPL | Supercardioid: 145 dB SPL Peak | | Pad | None | | Impedance | Supercardioid: 200 Ohms | | Sensitivity | Supercardioid: -55.2 dBV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.08" / 179.83 mm | | Diameter | 2.16" / 54.86 mm | | Weight | 0.89 lb / 0.40 kg | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.45 x 4.1 x 2.7" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
