Samson QH4 4-Channel Headphone Amplifier

Search your instruction manual in PDF to download

User Manual for Samson QH4 4-Channel Headphone Amplifier

Click to enlarge the picture
Samson QH4 4-Channel Headphone Amplifier Contents of the user manual for the Samson QH4 4-Channel Headphone Amplifier
  • Product category: Headphone Amplifiers Samson
  • Brand: Samson
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Samson Headphone Amplifiers

Samson QH4 4-Channel Headphone Amplifier Samson QH4 4-Channel Headphone Amplifier Samson QH4 4-Channel Headphone Amplifier Samson QH4 4-Channel Headphone Amplifier
User manual for the Samson QH4 4-Channel Headphone Amplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Samson product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!



Product description

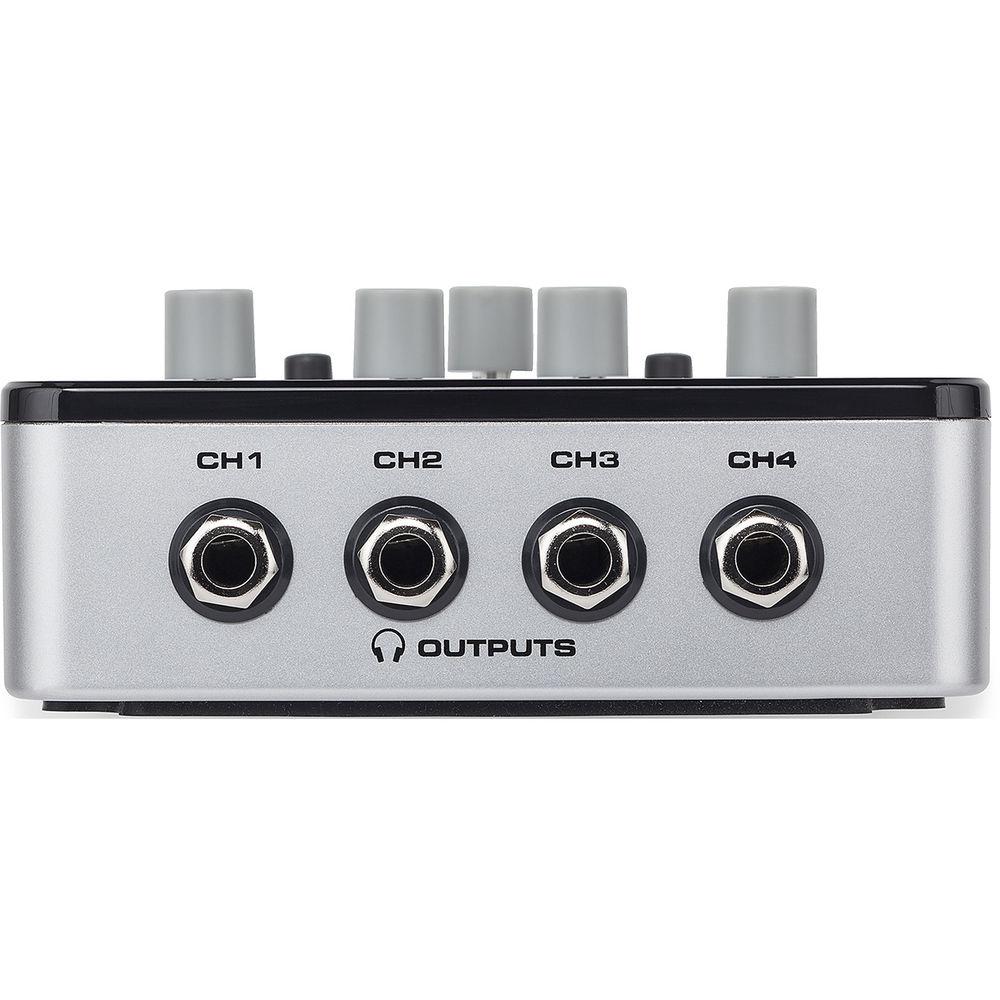

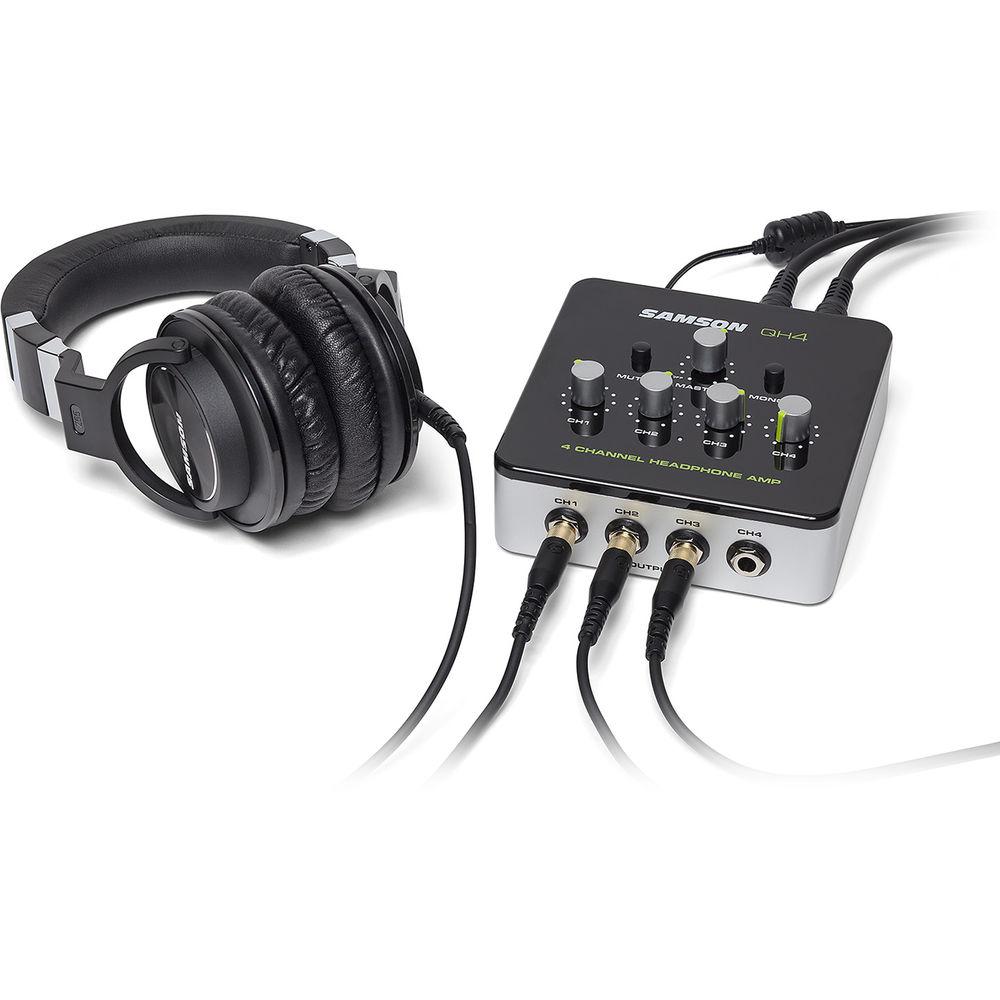

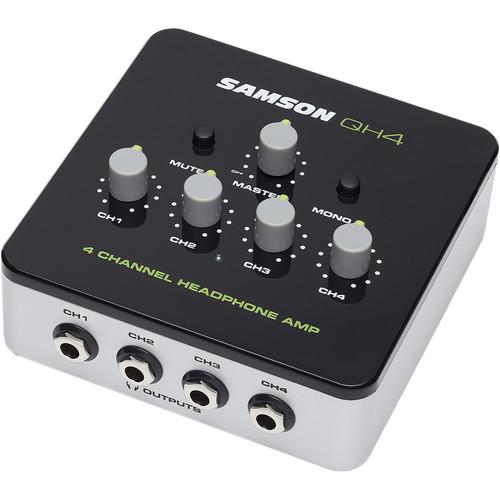

Split one audio source into four discrete channels with the QH4 Headphone Amplifier from Samson. Simply route audio into the device through two 1/4" balanced inputs—or one stereo 3.5mm auxiliary TRS input—and then, through its multiple stereo 1/4" jacks, you can plug in up to four pairs of headphones, all the while manipulating the individual volume of each pair with four on-board knobs.

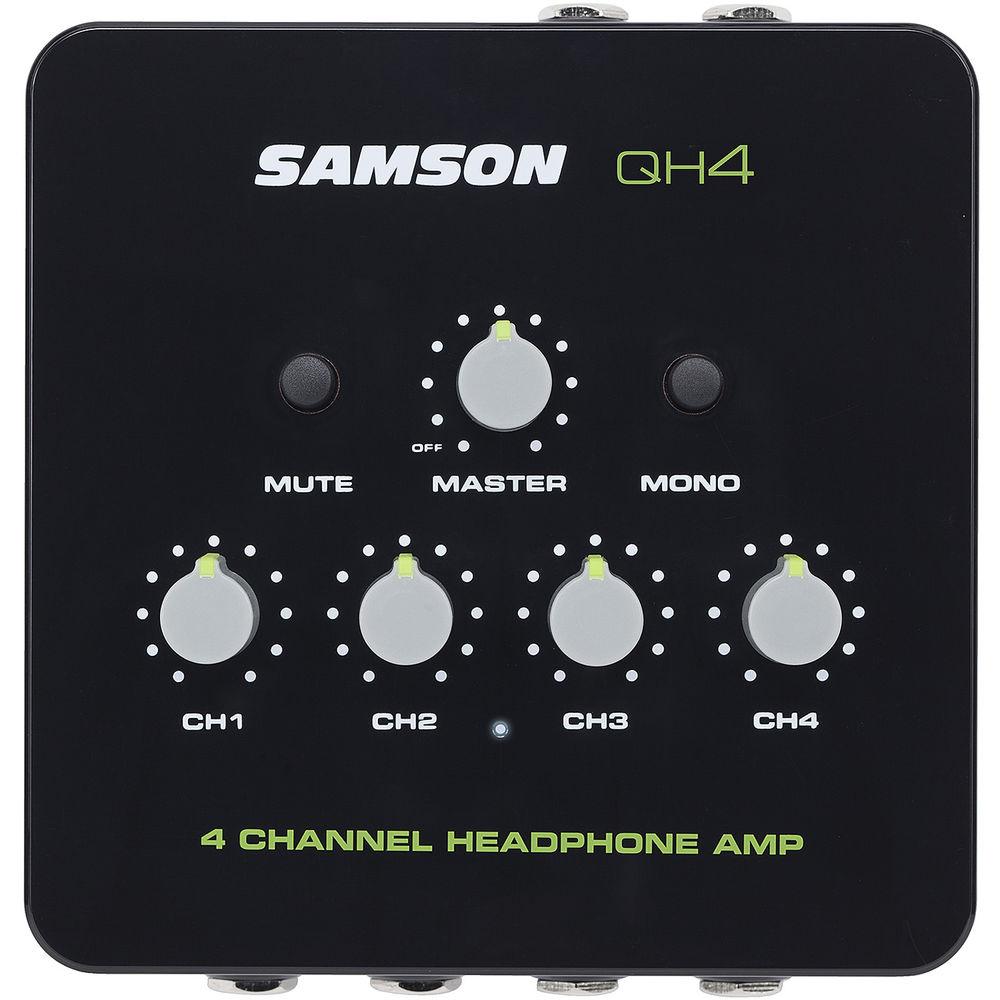

You also get a few master controls as well: a master volume allows you to attenuate or boost all four channels at once, while a master mute button will instantiate silence for every pair of headphones. Additionally, a master mono button will come in quite handy should you want to check the stereo phase of your mix through headphones.

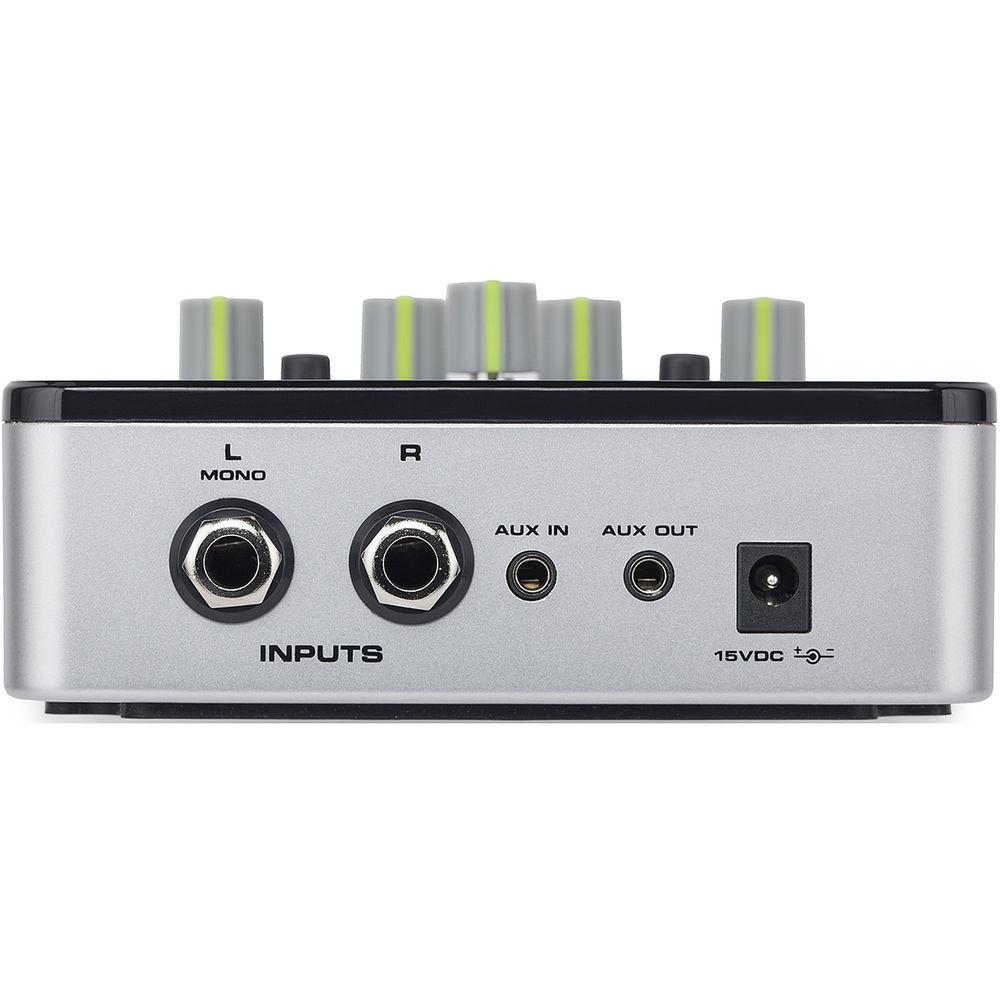

To facilitate the connection of multiple QH4s—thereby achieving more than four headphone outputs by daisy-chaining units together—the QH4 features a stereo 3.5mm input jack and a stereo 3.5mm output jack. This high-power amplifier will work with headphones operating between 16 and 600 Ohms and can handle 564mW per channel. As such, is a suitable addition to your project studio, desktop workstation, or portable studio setup. UPC: 809164019879 In the Box Samson QH4 4-Channel Headphone Amplifier
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Samson QH4 4-Channel Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Samson QH4 Specs

    Type Stereo headphone amplifier
    Frequency Response 17 Hz to 47 kHz (-3 dB)
    Maximum Output 8.3 dBu, 1% THD+N, loaded 16 R
    Dynamic Range 22 dB, 22 kHz, BW
    Noise Floor -114 dBu, 22 kHz BW, unweighted
    Input Connectors 2 x 1/4" balanced inputs 1 x stereo 1/8" / 3.5 mm unbalanced TRS input
    Output Connectors 4 x stereo 1/4" unbalanced
    1 x stereo 3.5 mm unbalanced TRS output
    Controls 1 x master volume knob
    1 x master mute button
    1 x master mono knob
    4 x channel volume knobs
    Headphone Impedance Range 16 to 600 Ohms
    Power Handling 564 mW per channel
    Power 15 VDC
    Dimensions 10 x 6 x 2.75" / 257 x 155 x 67 mm
    Weight 0.8 lb / 400 g
    Package Weight 1.495 lb
    Box Dimensions (LxWxH) 11.5 x 6.25 x 2.7"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5.0 of 5

    This product has already been rated by 45 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Samson QH4 4-Channel Headphone Amplifier

    Subject: qh 4 samson headphone amp
    Date: 22.02.2022 11:23:00Name: Dharam Maharaj
    I have purchesed a head phone amplifier [ QH4 Samson ]the problem i am having is via my mixing desk
    [ Soundcraft S.I Performer 16 ] music that is played via the mixer is audio clear however vocals cannot be heard. i am using Nieuman head phones and shure headphones both are high quality products
    please can you help ?
    regards
    D.Maharaj
