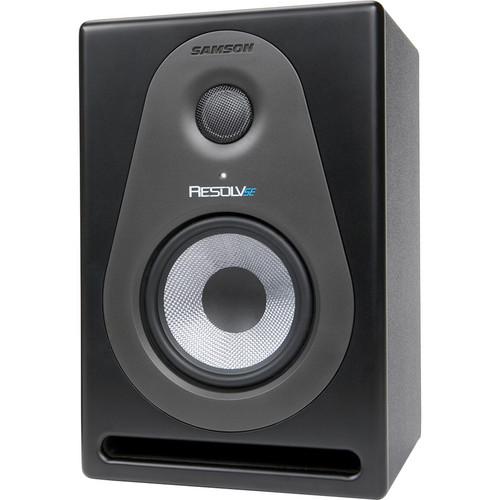

User Manual for Samson Resolv SE5 Two-Way Active 5" Studio Monitor Click to enlarge the picture
Contents of the user manual for the Samson Resolv SE5 Two-Way Active 5"
- Product category: Studio Monitors Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Studio Monitors
|
User manual for the Samson Resolv SE5 Two-Way Active 5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description Each Resolv SE5 Two-Way Active 5" Studio Monitor from Samson features 70 watts of power, a dedicated power amp and an electronic crossover. The 5" woven carbon fiber woofer provides tight and controlled low frequency response, while its 1.25" soft dome tweeter gives the high frequencies a natural sound without unwanted resonance. The Resolv SE5 also includes a 4-position high frequency lift control, allowing the monitor to be optimized for different mixing environments.
This Resolv's enclosure is constructed of solid MDF. Inset into the panel is a time-aligned waveguide that allows for a wide listening area with minimum diffraction. The SE5 is AV shielded for seamless operation near CRT monitors and other sensitive electronics. The rear panel has a balanced 1/4" TRS input as well as an unbalanced RCA input. Additionally, the front ports are slotted with rounded inner edges, helping reduce port noise at high SPLs. UPC: 809164013938 In the Box Samson Resolv SE5 Two-Way Active 5" Studio Monitor (Each) Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Resolv SE5 Two-Way Active 5" Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SE5 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1.25" / 3.17 cm Silk Dome Tweeter
LF Driver: 1 x 5" / 127 mm Carbon Fiber Woofer | | Amplification | HF Amplifier: Rated at 20 W
LF Amplifier: Rated at 50 W | | | | Frequency Response | 45 Hz to 27 kHz ± 3 dB | | Protections and Limiting | Fuse | | | | EQ | 1 x HF Shelf: -2 to +4 dB at 4 kHz (2 dB Increments) | | | | Crossover Frequency | 3.2 kHz, 24 dB/Octave Slope | | Crossover Type | Linkwitz-Riley | | | | I/O | 1 x 1/4" (6.3 mm) TRS Balanced Analog Input (10 kOhms)
1 x RCA Unbalanced Analog Input | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 8.6 x 12.3 x 8.0" / 218.0 x 312.0 x 204.0 mm | | Weight | 15.2 lb / 6.9 kg | | | | Package Weight | 18.9 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 11.6" |
