User Manual for Samson Resound VX8.1 Portable Column Array System Click to enlarge the picture
Contents of the user manual for the Samson Resound VX8.1 Portable Column Array
- Product category: Portable PA Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Portable PA Systems
 |
User manual for the Samson Resound VX8.1 Portable Column Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

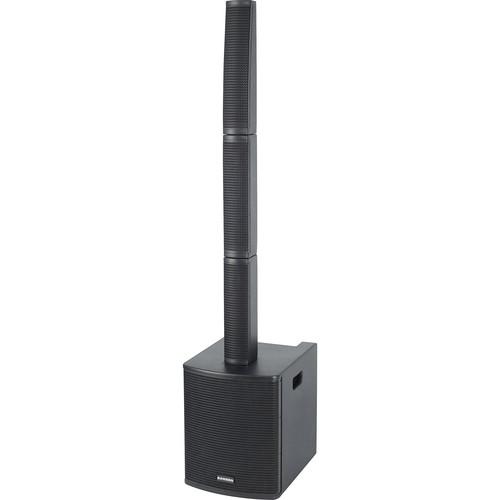

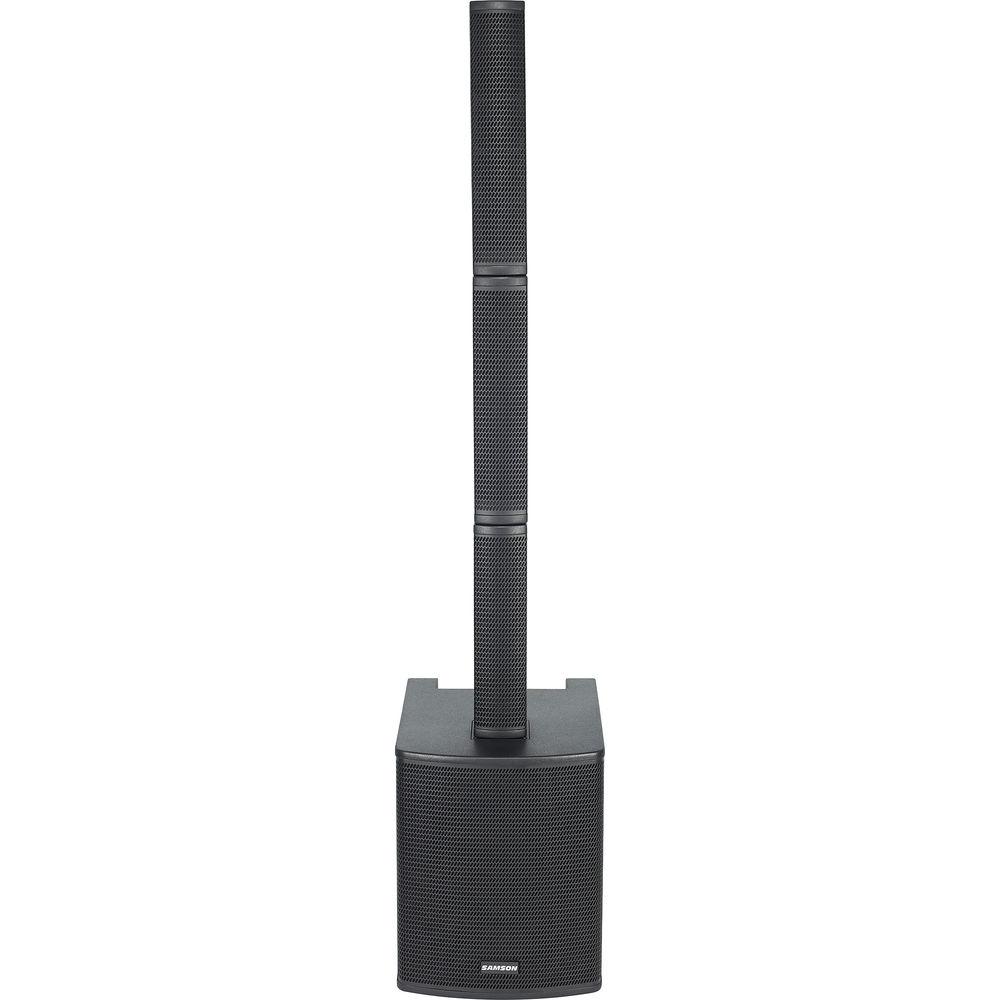

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More xyzrwxdbsvuwazdrvc The Resound VX8.1 Portable Column Array System from Samson is a portable column array system that delivers premium sound in a sleek, easy-to-transport package. It can be used for mobile DJs, bands, singer-songwriters, or anywhere high-quality sound reinforcement is needed.The Resound VX8.1 active 700W system includes a 12" subwoofer with a 3-channel mixer and eight 3.5" drivers arranged in a vertical column array that provides 120 to 200° of horizontal coverage. It features a lightweight Class-D amplifier that delivers the 700W of power to the system—350W Sub / 350W Array—and boasts onboard 4-preset DSP processing.Furthermore, the three-channel mixer includes connections for microphones, instruments, and line-level devices; backing tracks of music playback can be streamed via Bluetooth from any mobile device. The Resound VX8.1 Portable Column Array System is constructed of solid plywood with textured paint and steel grilles.Finally, interlocking components make setup a breeze, and a thru output enables you to integrate a second VX8.1 system to further expand your sound. - All-in-one portable column array system that weighs 67 lb
- Class-D amplifier produces 700W of power (350W Sub / 350W Array)
- Eight 3.5" full-range drivers in a 2-segment vertical column
- Full system frequency response of 40 Hz to 20 kHz (-3 dB)

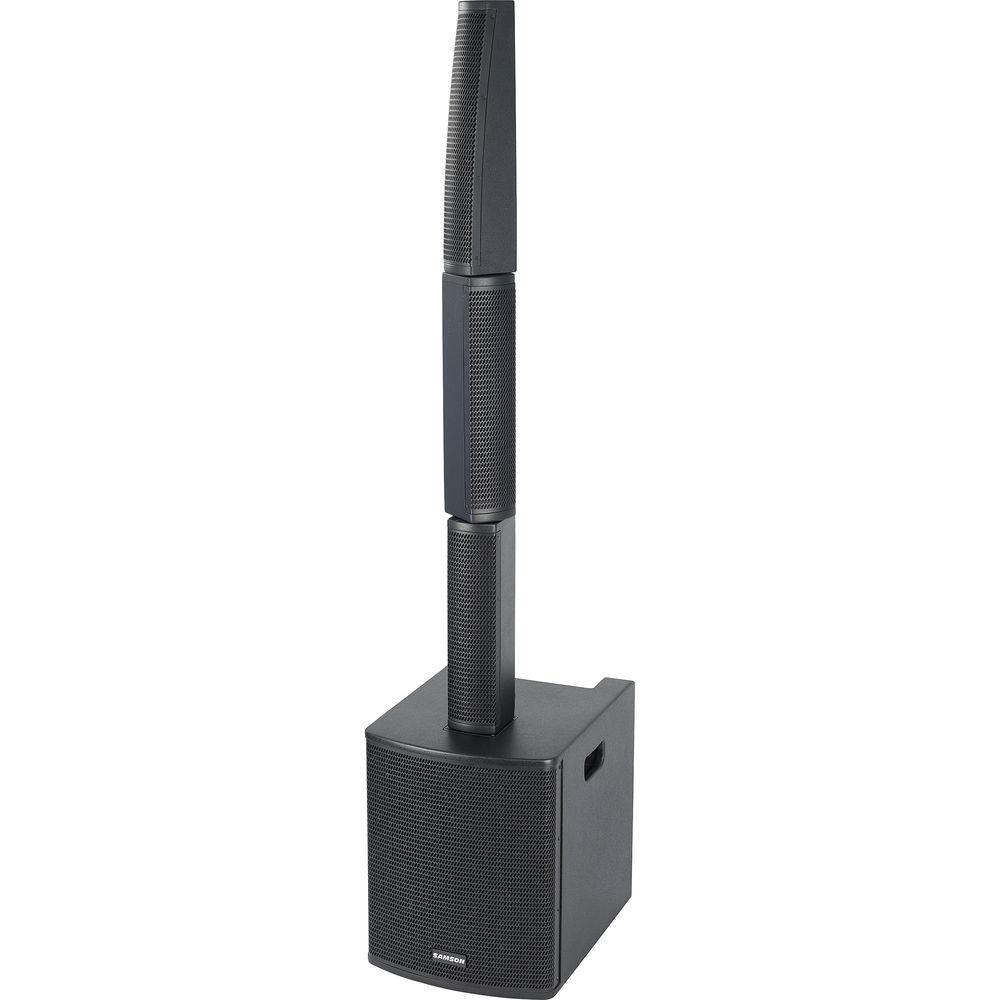

- Horizontal coverage of 120° (full center) to 200° (45° L/R array rotation)

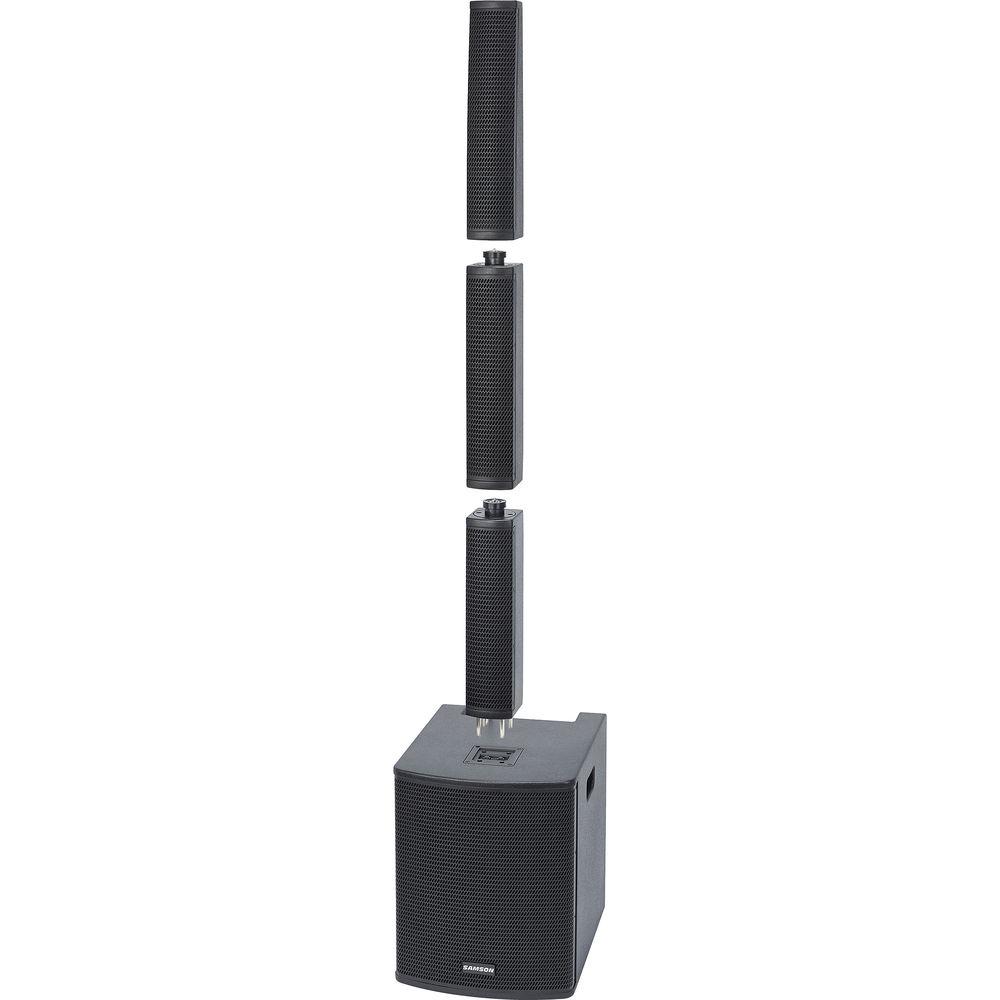

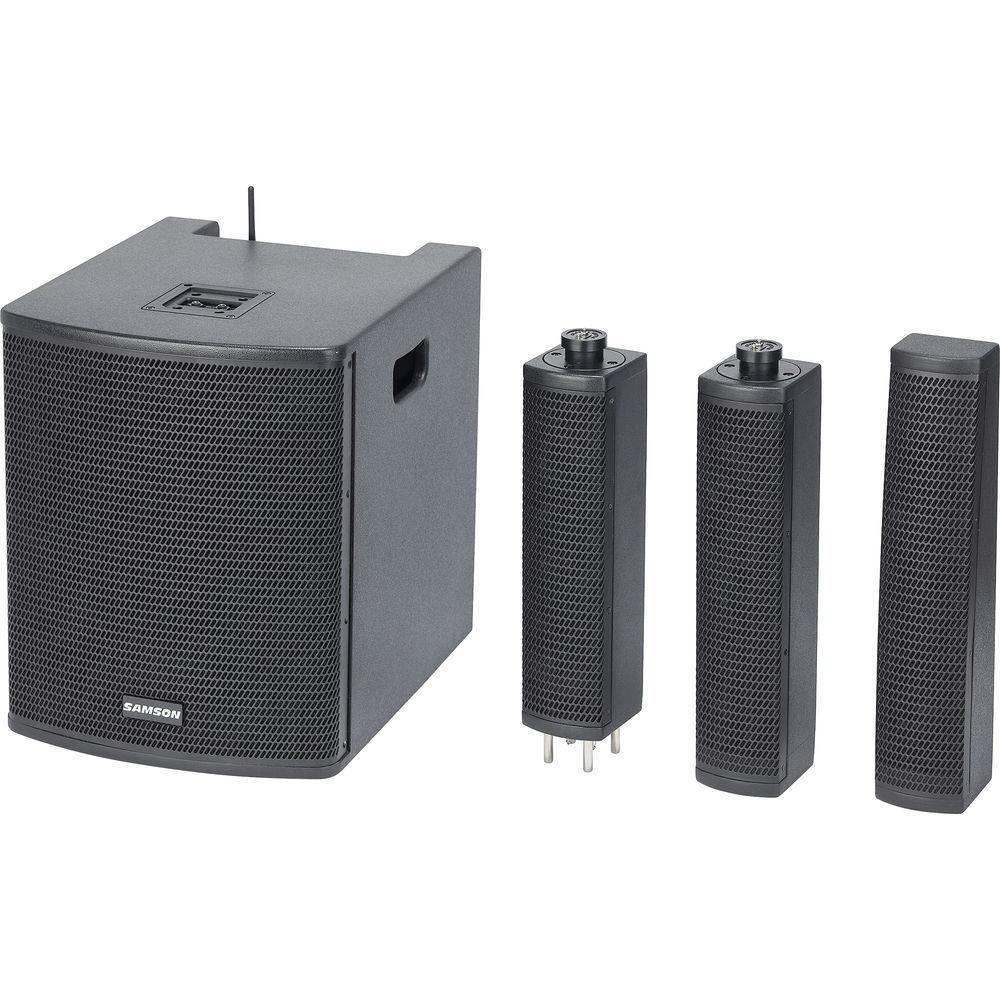

- Included extension segment connects subwoofer and array column
- Interlocking components for easy setup

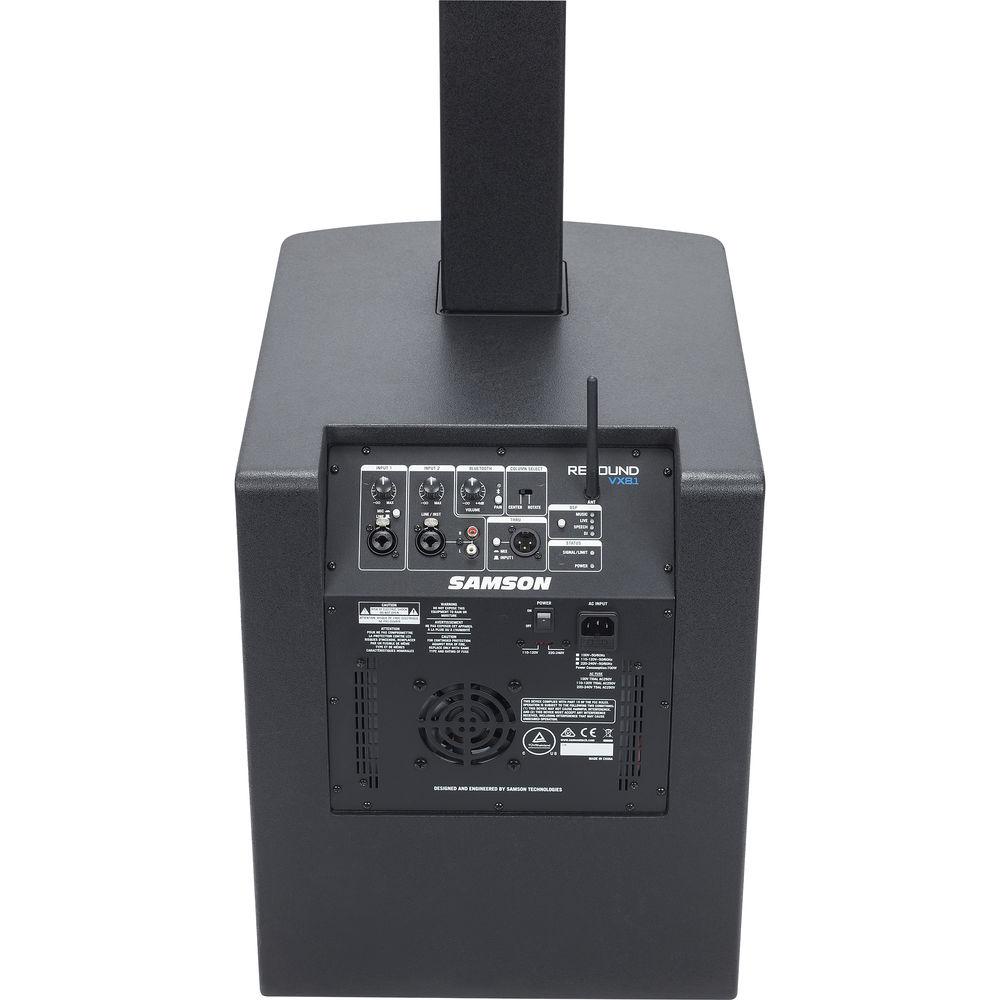

- Top-mounted 3-channel mixer (on subwoofer)
- 4-preset DSP processing (Music, Live, Speech, DJ)
- Channel 1: XLR-1/4" combo selectable mic/line input for microphones and line-level devices
- Channel 2: XLR-1/4" combo line/instrument input for line-level devices and instruments + stereo RCA input
- Channel 3: Bluetooth connectivity to connect wireless music sources
- Independent volume control on each channel
- Column select (center/rotate) EQ switch
- Thru (Mix/Channel 1 selectable) output to daisy-chain multiple systems together
- Signal/limit and power LED indicators
- 3-point electronic protection circuitry with temperature-controlled fan
- Solid plywood enclosures with textured paint, steel grilles, and side carry handles
UPC: 809164024897 In the Box Samson Resound VX8.1 Portable Column Array System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Resound VX8.1 Portable Column Array System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson VX8 Specs | Amplifier | Class-D | | System Output | 700 W (350 W Sub / 350 W Array | | Frequency Response | 40 Hz to 20 kHz (-3 dB) | | Maximum SPL | 130 dB | | Subwoofer | 12.0" / 30.5 cm Active | | Satellite Speakers | 8 x 3.5" / 8.9 cm Passive (In 2-Segment Column) | | Horizontal Coverage Angle | 120° (Center), 200° (45° L/R Rotation) | | Inputs | Ch 1: 1 x XLR-1/4" Combo Mic/Line
Ch 2: 1 x XLR-1/4" Combo Line/Instrument, RCA
Ch 3: 1 x Bluetooth | | Outputs | XLR Thru (Mix/Channel 1) | | Level Controls | Channels 1-2, Bluetooth | | DSP | 4 Presets (Music, Live, Speech, and DJ) | | EQ Controls | Column Select (Center/Rotate) Switch | | Dynamics | Control: Reverb, Voiceover (Switch) | | Bluetooth | 4.0, A2DP | | Material of Construction | Plywood, Textured Paint, Steel Grille, Integrated Handles, Interlocking Design | | Other Features | Extension Segment | | Dimensions (H x W x D) | 72.5 x 14.9 x 18.6" / 184.2 x 37.8 x 47.2 cm | | Weight | 67.0 lb / 30.4 kg |
