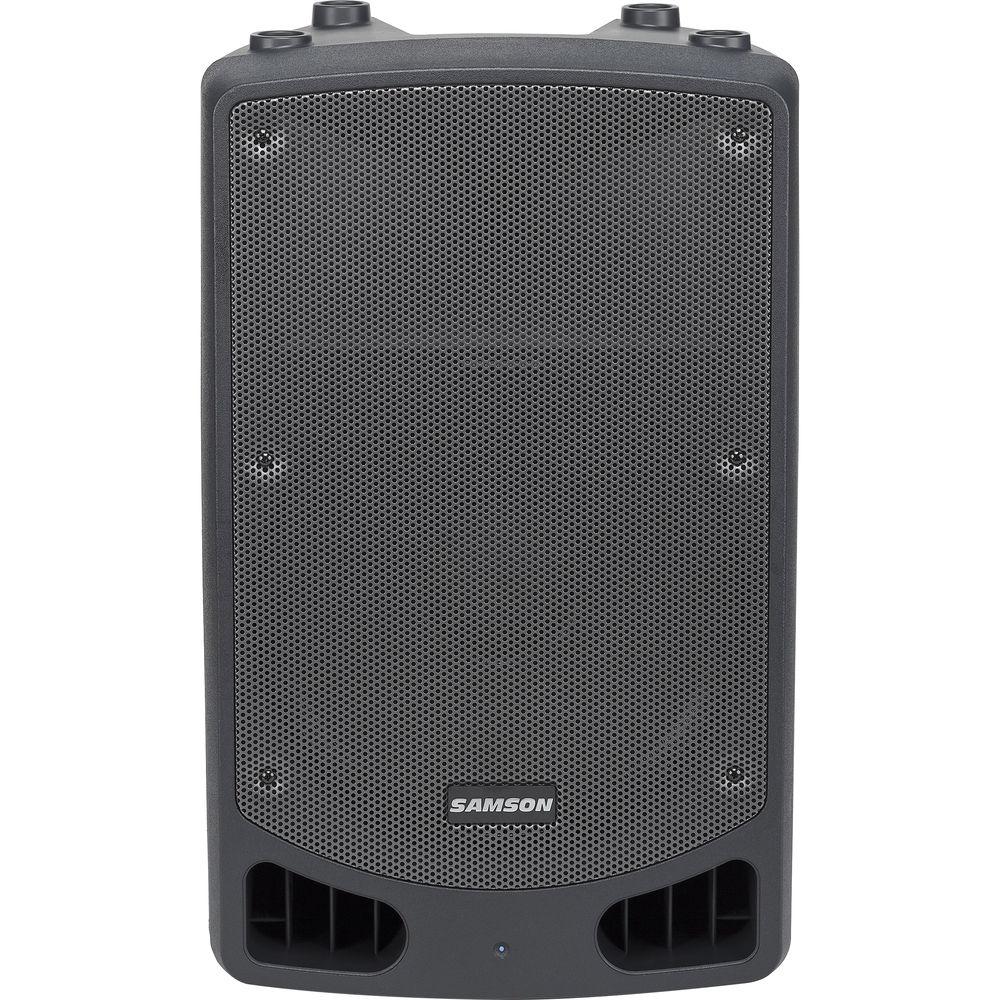

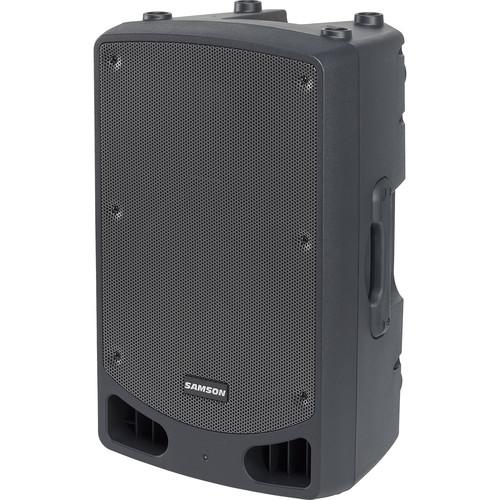

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Samson RL115A is a 15" 2-way active loudspeaker well suited for DJs, lecturers, special events, singer/songwriters, instrumentalists, and acoustic duos. The integrated 800W Class-D amplifier delivers 700W to the 15" woofer and 100W to 1" tweeter, which combine to offer a frequency response of 50 Hz to 20 kHz and a maximum SPL of 122 dB.

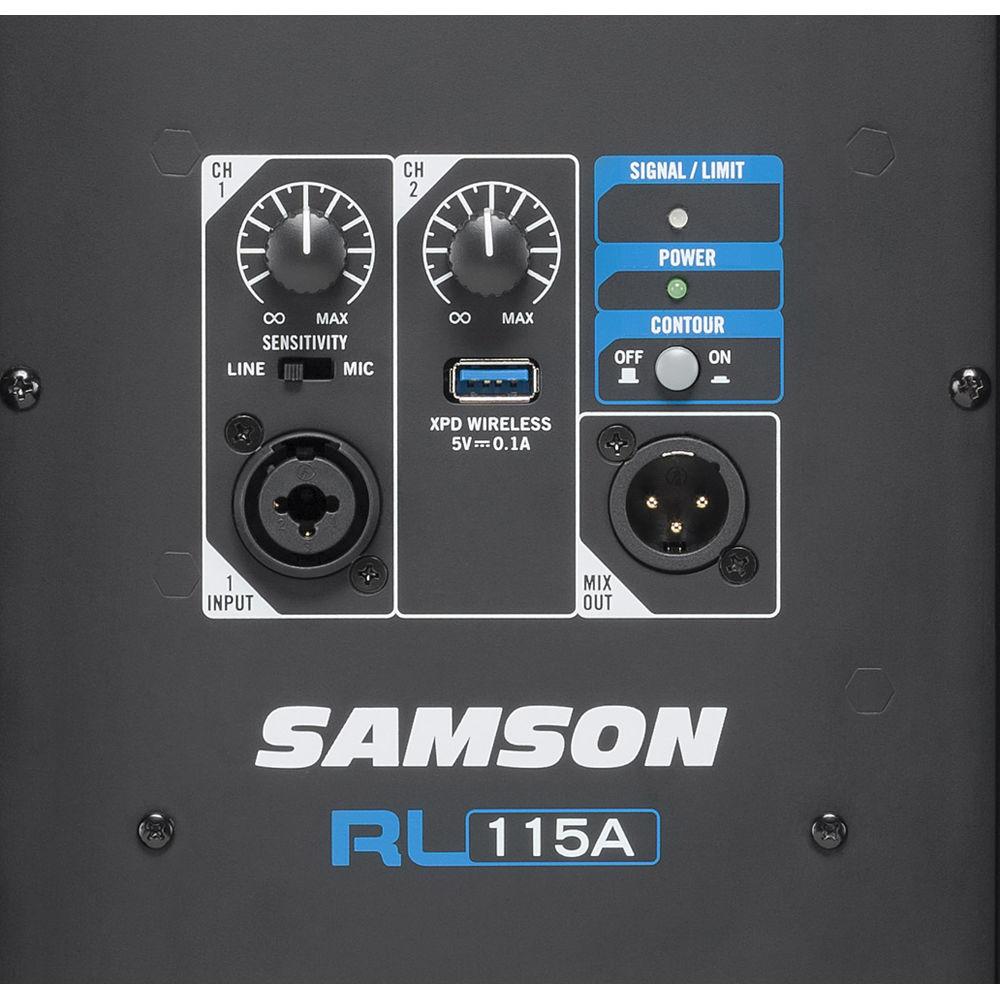

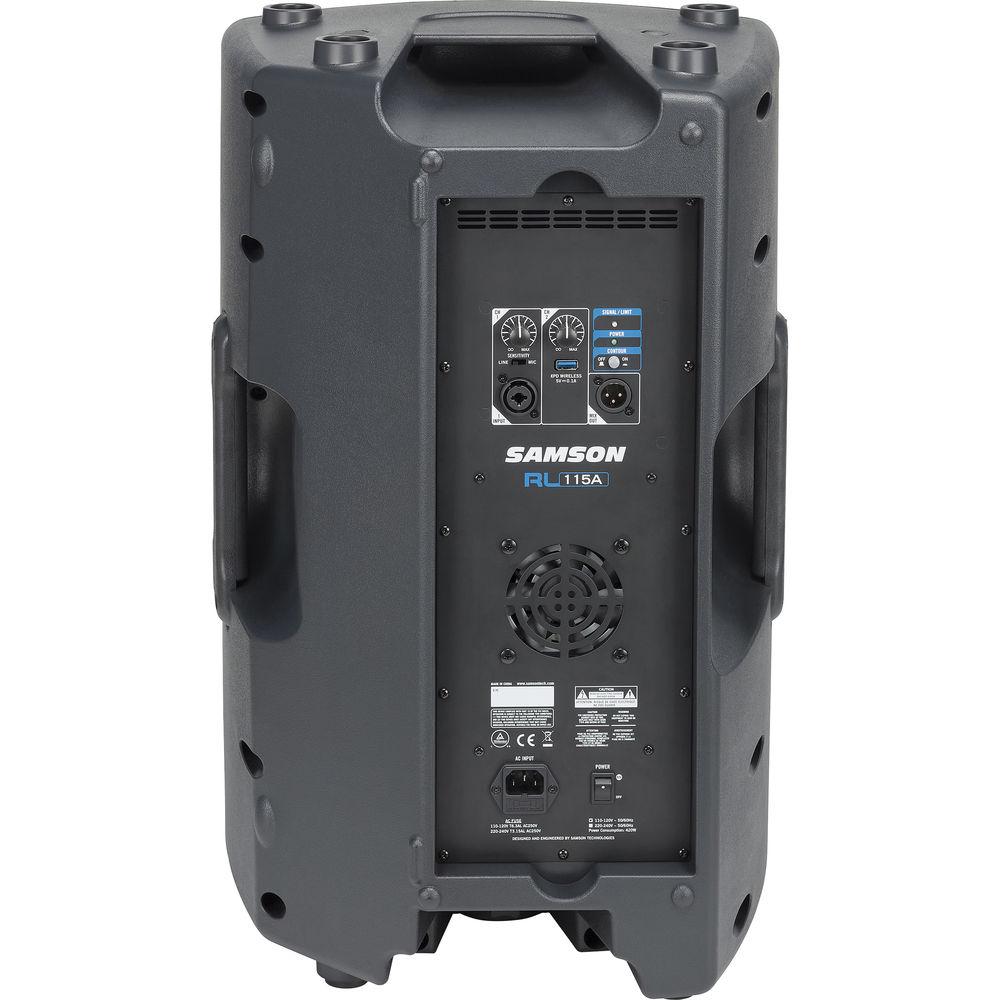

The rear panel sports a balanced combo XLR-1/4" input for channel one with a mic/line selector switch and volume knob, while the channel 2 includes an XPD Wireless port for use with the optional Samson XPD-Series USB digital wireless systems, as well as a volume knob. Additionally, the RL115A includes a balanced XLR mix output for connecting to additional speakers and a contour EQ button, which boosts 100 Hz and 12 kHz for DJ/music playback material. The enclosure is constructed from rugged polypropylene and features a metal grille, rubber feet, three carrying handles, and an integrated 1-3/8" speaker stand mount. -
- Lightweight, Class-D 2-way active loudspeaker
- 800W peak / 400W RMS of power
- 15" extended range low-frequency driver with 2" voice coil
- 1" neodymium high-frequency driver
- Selectable Mic/Line XLR-1/4" combo input with independent volume control
- XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
- XLR Mix output for daisy chaining additional speakers
- Signal/Limit indicator
- Contour switch for popular DJ/music playback EQ
- 4-point electronic protection circuitry
- Solid polypropylene enclosure with impact-resistant design
- Full perforated metal grille protects all speaker components
- Three large ergonomic carry handles

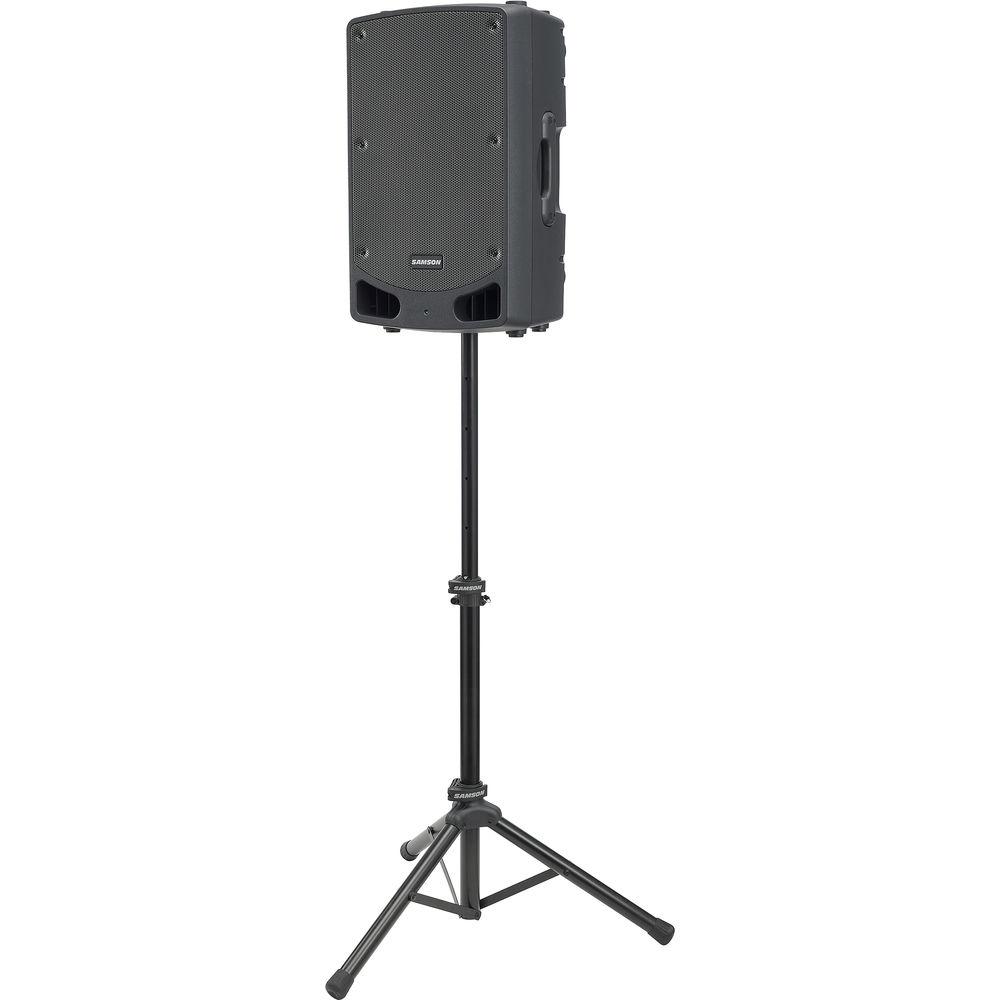

- Integrated 1-3/8" speaker stand mount

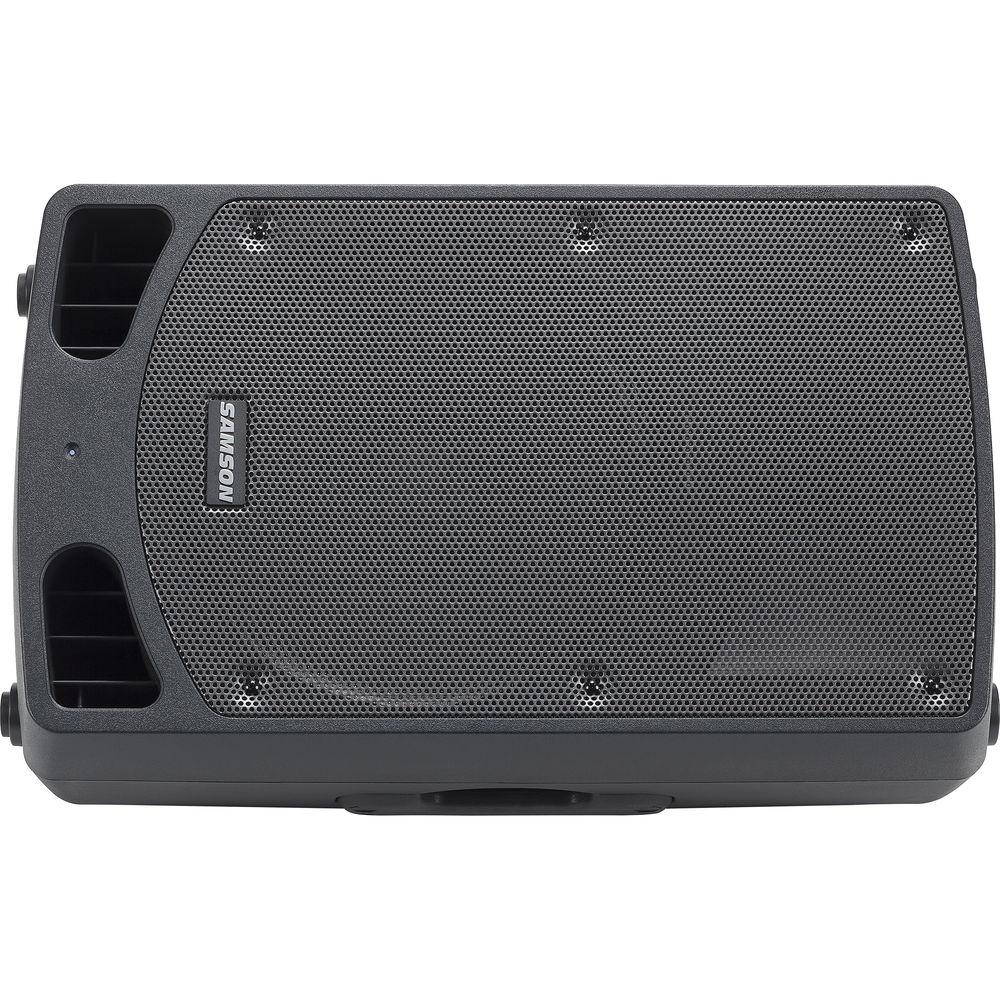

- Floor monitor positioning option
UPC: 809164023104 In the Box Samson RL115A - 800W 2-Way Active Loudspeaker Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson RL115A - 800W 2-Way Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson RL115A Specs | Output Power | Peak: 800 W (700 LF + 100 HF at 1 kHz)
RMX: 400 W (350 LF + 50 HF at 1 kHz) | | Drivers | LF Driver: 15.0" / 381.0 mm Woofer, 2.0" / 50.8 mm Voice Coil
HF Driver: 1.0" / 25.4 mm Neodymium Tweeter, 1.0" / 25.4 mm Voice Coil | | Frequency Response | 50 Hz to 20 kHz | | Maximum SPL | 122 dB | | Limiter | Optical (Electronic Clip) | | Coverage | 90° H x 60° V | | Crossover Frequency | 2.5 kHz at 12 dB/Oct | | Inputs | Channel 1: Balanced Combo XLR-1/4" / 6.35 mm (Mic/Line)
Channel 2: XPD Wireless | | Output | Balanced XLR Mix Output | | Equalization | Contour Equalization: 100 Hz and 12 kHz Boost | | Protection | Thermal, Overload, Analog Limiter, Compressor | | Enclosure | Polypropylene
Metal Grille
Rubber Feet
Three Carry Handles
1-3/8" Speaker Stand Mount | | Power | AC Connector: 3-Pin IEC Male
Power Input: 110 to 120 VAC, 60 Hz, 20 A
Power Consumption: 420 W
Fuse: 110 to 120 V T6.3A AC250V | | Dimensions | 15.2 x 14.0 x 24.9" / 386.1 x 355.6 x 632.5 mm | | Weight | 32.6 lb / 14.8 kg |
