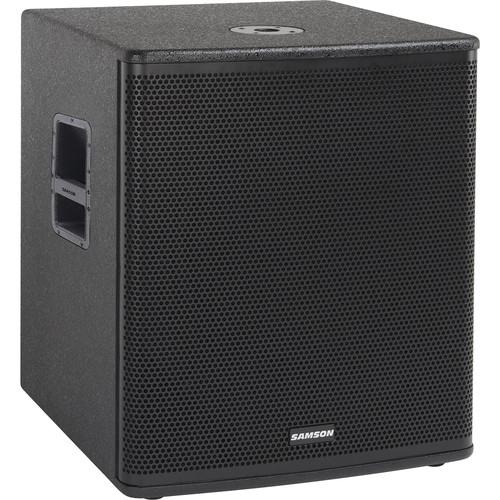

User Manual for Samson RSX18A 2000W 18" Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Samson RSX18A 2000W 18" Powered Subwoofer
- Product category: PA Speakers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson PA Speakers
|
User manual for the Samson RSX18A 2000W 18" Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The black RSX18A 2000W 18" Powered Subwoofer from Samson is a compact yet powerful speaker cabinet featuring an 18" long-excursion driver. Equipped with a 2000W Class-D power amplifier, this subwoofer offers both stereo full-range and high-pass outputs for running your satellite speakers or linking multiple RSX18A Speaker cabinets together to create large sound-reinforcement systems.The subwoofer enclosure is constructed with 18mm plywood, heavy-duty textured black paint, oversized steel handles, and includes large casters that offer excellent protection against wear and tear for truly portable audio. The RSX18A Active Subwoofer is ideal for live music, DJs, and installed sound applications where power and high sound quality are desired. - Heavy-duty, 18" low-frequency transducer with Butyl rubber surrounds
- Built-in 2000W, efficient Class-D power amplifier
- Dual-balanced XLR inputs for mono or stereo operation
- Stereo balanced XLR full-range and high-pass outputs
- Internal 126 Hz active crossover
- Selectable polarity and variable-volume control
- Heavy-duty, rear-mounted casters included
- Two large, steel carry handles
- 35mm pole-mount receptacle
- 18mm plywood construction, internally braced
- Durable textured black polyurethane paint
In the Box Samson RSX18A 2000W 18" Powered Subwoofer (Black) Casters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson RSX18A 2000W 18" Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson RSX18A Specs | Amplifier | 2000 W | | THD | < 0.1% | | Design | Class-D | | | | Driver | 18" (46 cm) paper cone, 3" (8 cm)voice coil diameter | | Sensitivity | 95 dB SPL @ 1 W / 3.3' (1 m) | | | | Frequency Response | 30 to 135 Hz (+/-3 dB) | | Max SPL Level | 125 dB SPL @ 2000 W | | | | Crossover Type | 24 dB/oct Linkwitz-Riley | | Crossover Frequency | 126 Hz | | Controls | Inputs (L and R) balanced female XLR - line level
High pass outputs (L and R) balanced male XLR - line level
Full range outputs (L and R) balanced male XLR - line level
Controls master level rotary, phase switch
Indicators peak, signal, power | | | | Power Consumption | 645 W maximum | | AC Connector | 3-pin IEC 250 VAC, 20 A male | | Fuse | 100 to 120 VAC T8AL / 250 V
220 to 240 VAC T4AL / 250 V | | | | Construction | 0.7" (18 mm) plywood | | Casters | 4 x 3" (7.6 cm) | | Handles | 2 x steel | | Grille | Perforated steel | | Mounting Method | Integral 1 3/8" (35 mm) pole mount receptacle | | Dimensions (L x W x H) | 20.5 x 27.0 x 24.7" (68.6 x 52.2 x 62.9 cm) | | Weight | 86 lb (39 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
