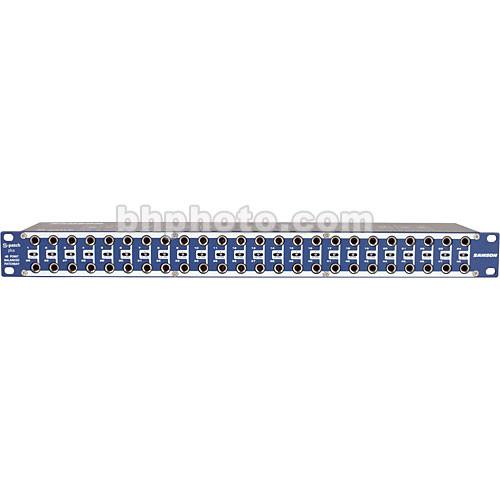

User Manual for Samson S-Patch Plus - 48-Point Audio Patch Bay with 1 4" Phone Connections Click to enlarge the picture
Contents of the user manual for the Samson S-Patch Plus - 48-Point Audio
- Product category: Audio Patchbays Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Audio Patchbays
|
User manual for the Samson S-Patch Plus - 48-Point Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The Samson S-patch Plus is a rugged 48-point audio patch bay designed for use in project and professional recording studios, musician rigs, video editing facilities, etc. The patch bay enables easy audio signal routing, eliminating the clutter of excess cable and complex routing configurations. The Samson S-patch Plus is capable of Normal, Half-normal and Thru mode operation, features 1/4" phone connections and easily mounts into a single-space, 19-inch rack. - Mode Toggle Switches
- The S-patch plus features a toggle switch for each patch point, making it easy to switch between Normalled, Half-normalled and Thru modes without setting jumper connections.
- Normalled Mode
- In Normalled mode, the S-patch Plus's top rear panel input connections automatically sends audio signal flow to the bottom rear panel output connections. Signal flow is interrupted only when patch connections are made on the front of the patch bay. This is ideal for "hard-wiring" keyboards or other signal sources, to dedicated channels on a mixing console.
- Half-Normalled Mode
- Half-normalled mode allows signal flow from the top rear input connections to continuously flow to the bottom rear panel output connections, even when a patch connection is made in the top connection on the front of the patch bay. The rear input signal flow is disrupted only when a patch is made at the front panel bottom connection. The Half-normalled configuration is used to patch mixer insert points to external processors.
- Thru Mode
- Thru mode simply passes signal from the rear top input connection, to the front top output connection. The opposite is true for the bottom row of connections. The front bottom input connections pass audio to the rear bottom output connections. This mode is deal for directly patching keyboards and player devices directly to mixing console channels.
- 1/4" Phone Connections
- Durable 1/4" phone connections are built to last and 1/4" phone cables are easily accessible.
UPC: 809164003144 In the Box Samson S-Patch Plus - 48-Point Audio Patch Bay with 1/4" Phone Connections Limited 2-Year Warranty User Manual PDF 165.1kbfdfqdbvtvdqzvxtuecfcs Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson S-Patch Plus - 48-Point Audio Patch Bay with 1 4" Phone Connections in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson S-patch Plus Specs | Connections | 48-point
24 - 1/4" Phone top row 24 - 1/4" Phone bottom row | | Modes | Normalled, Half-normalled, Thru | | Dimensions | 19-inch, single space rackmount | | | | Package Weight | 4.19 lb | | Box Dimensions (LxWxH) | 19.7 x 4.65 x 2.85" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
