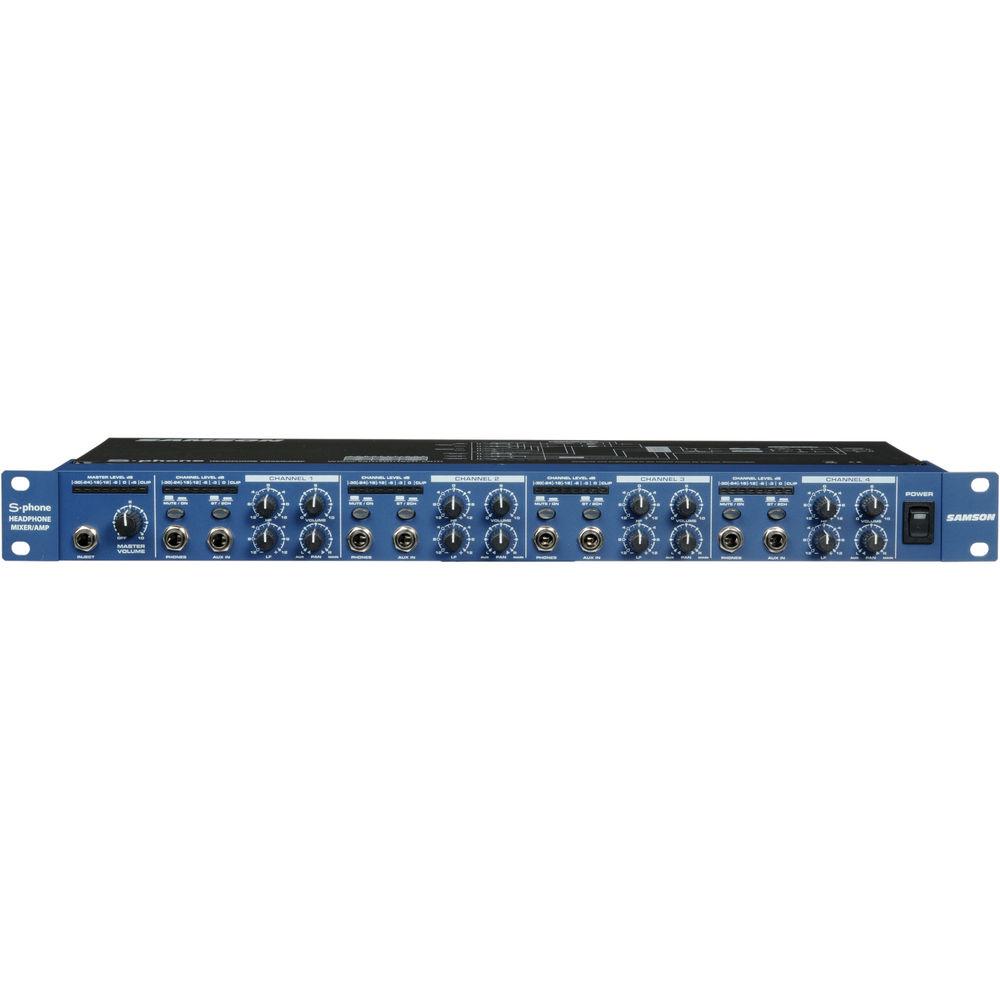

User Manual for Samson S-phone - 4 Channel Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Samson S-phone - 4 Channel Headphone
- Product category: Headphone Amplifiers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Headphone Amplifiers
 |
User manual for the Samson S-phone - 4 Channel Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

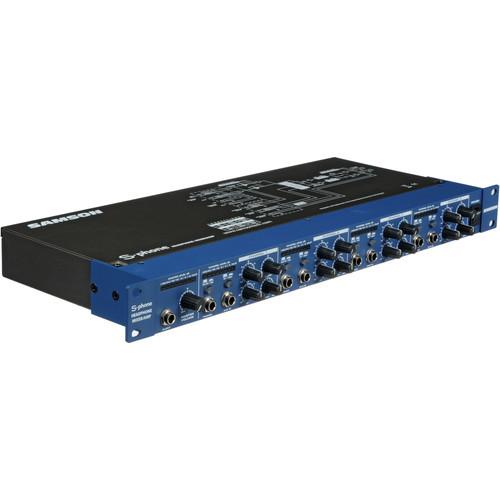

Product description The S phone is a single rack space four channel headphone amplifier that allows for monitoring any stereo or monophonic source signal (balanced or unbalanced) over as many as twelve separate headphones, and is loaded with features that provide tremendous flexibility for monitor and cue mixing. The master input features an input level and LED meter to control and display the overall stereo input. A master inject input allows for a secondary stereo source to be mixed in with the main input signal. Each of the S phone's four channels includes three headphone outputs (one on the front panel, two on the rear) with an overall volume control and individual level meters. A stereo auxiliary input is available on each channel so that individual line signals from direct or buss outputs can be mixed with the main stereo input on that channel. The balance control adjusts the ratio of the main and auxiliary signals or the left/right balance (based on the setting of the ST/2CH switch) so that each headphone mix can be further tailored for a particular listener's individual needs. The S phone also features a two band equalizer on each of the four channels. Providing unusually high power levels and high audio fidelity, the unit is compatible with virtually all popular headphone models and can be used in a wide variety of applications, including recording studios, teaching labs, broadcast environments, and for live performance. - Four totally independent high-power stereo amplifiers in one rack space

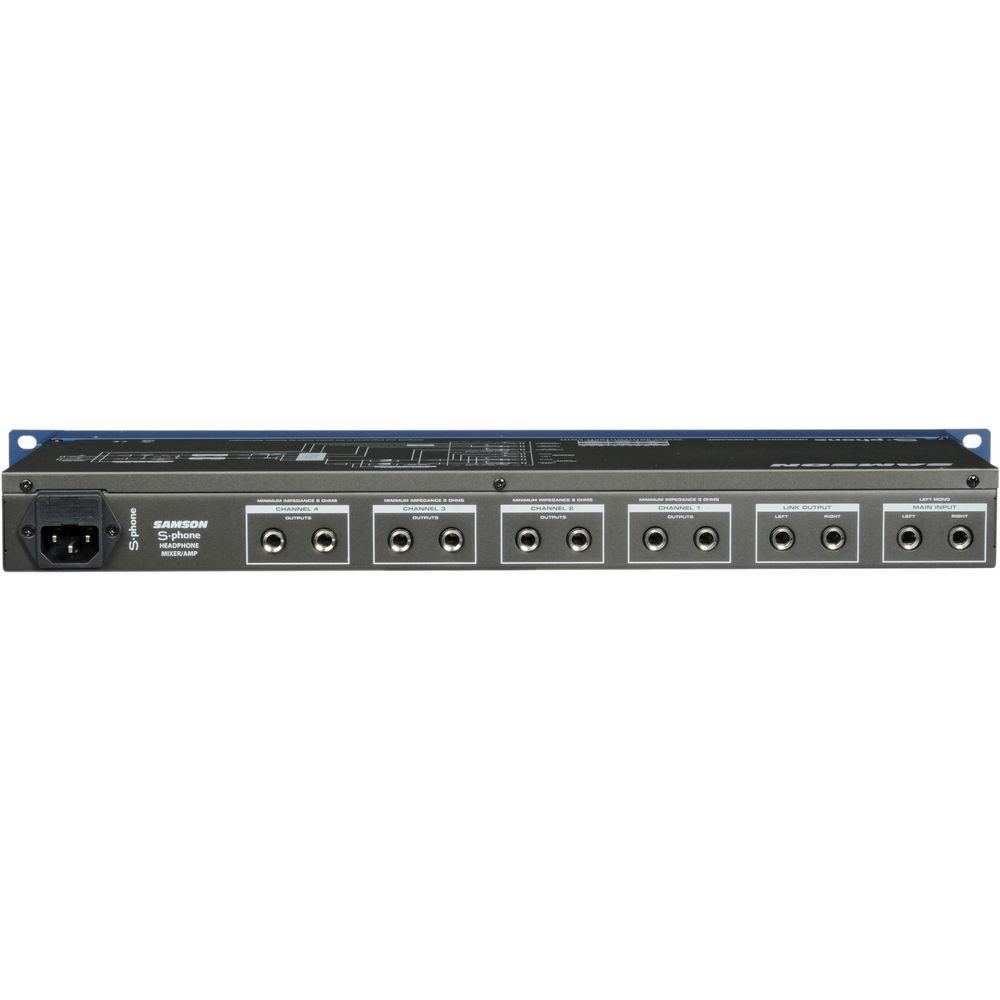

- Three headphone outputs - two rear, plus one front panel output per channel
- Two master stereo inputs with balance control
- Dual band equalizer on each channel
- 8 segment LED meter on each channel plus master
- Auxiliary input with level control on each channel
- Stereo or dual input mode and mute switches on each channel
- Maximum output power on each channel regardless of headphone impedance
UPC: 809164001294 In the Box Samson S-phone - 4 Channel Headphone Amplifier AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson S-phone - 4 Channel Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SA-SPHONE Specs | Number of Channels | 4 | | Input Connections | 2 x 1/4" TRS phono Main Input (rear panel)
1 x 1/4" TRS phono Master Inject (front panel)
4 x 1/4" TRS phono Auxiliary Input (per channel, front panel) | | Output Connectors | 4 x 1/4" TRS phono Headphone Outputs (front panel)
8 x 1/4" TRS phono Headphone Outputs (rear panel)
2 x 1/4" TRS phono Link Output (rear panel) | | Maximum Output Level | 140 mW at 32 ohms, 385 mW at 66 ohms | | Function Controls | 4 x Volume, balance, treble, bass rotary control
1 x Input rotary control
2 x Switches per channel (illuminated) | | Frequency Response | 10Hz to 32kHz, +0/-3dB | | Distortion (THD) | 0.008% typical @ +4dB, 1 kHz | | Noise | >90dB, unweighted 22Hz to 22kHz | | Display | 5 x 8 Segment LED (30 to Clip) | | Dimensions | 19" x 8 1/2" x 1 3/4" | | Weight | 5.5 lbs | | Specialties | Link output which mirror the main inputs allow for multiple S phones to be linked together | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 23.3 x 11.0 x 4.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
