User Manual for Samson SE60x Unidirectional Miniature Earset Microphone for Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the Samson SE60x Unidirectional Miniature Earset Microphone
- Product category: Microphones for Wireless Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Microphones for Wireless
 |
User manual for the Samson SE60x Unidirectional Miniature Earset Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

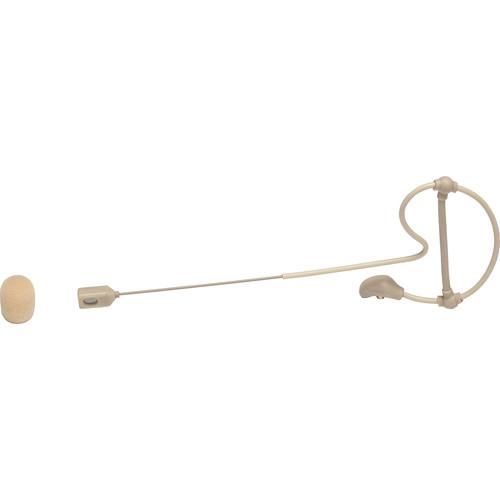

Product description Designed for a wide variety of speech and vocal applications including live and broadcast work, theater, presentations, and fitness training, the Samson SE60x Unidirectional Miniature Earset Microphone for Wireless Transmitters is a low-profile earset mic featuring a single-ear design with an adjustable mic boom. The 7.35mm condenser capsule handles sound pressure levels up to 135 dB and offers a 50 Hz to 18 kHz frequency response. Its cardioid pick-up pattern is ideal for capturing clear and consistent speech while rejecting off-axis sound and minimizing feedback.The SE60x sports an IP65 rating, meaning it's resistant to both dust and moisture, allowing it to stand up to sweat and still perform both in the gym and under the hot lights of stage and studio. Built to work with a wide variety of wireless systems, the microphone includes four detachable adapter cables with the following connectors: 3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F. Also included are four windscreens, a collar clip, and a carry case. -
- Earset microphone with 7.35mm miniature condenser capsule
- Low-profile, single-ear design with adjustable mic boom
- Ideal for live and broadcast vocal applications, presentations, houses of worship, theaters, fitness, and more
- Cardioid pickup pattern captures clear audio from the front of the mic while rejecting sound from the rear and minimizing feedback
- 50 Hz to 18 kHz frequency response
- 135 dB maximum SPL
- Gold-plated connector, moisture-resistant coating, and stainless steel mesh grille
- Rated at IP65 for dust and water/sweat resistance

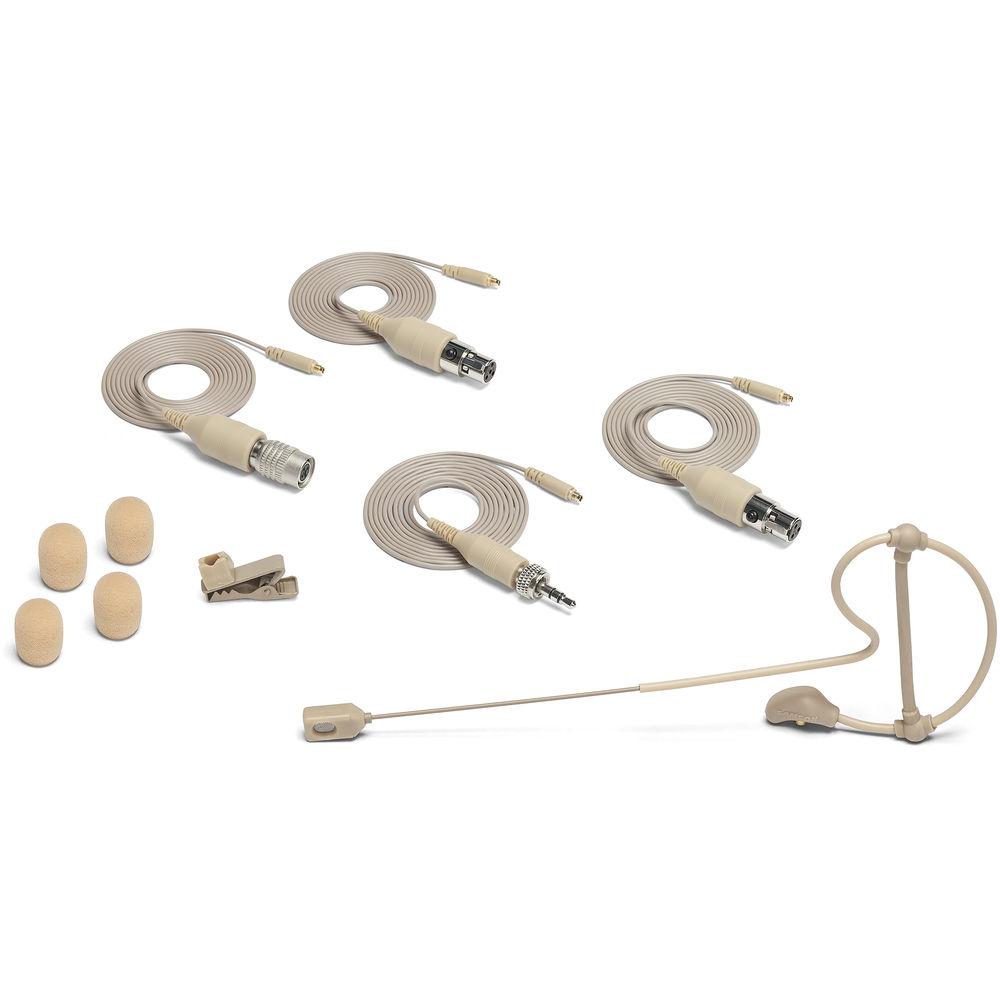

- Includes four detachable adapter cables—3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F—for compatibility with most popular wireless transmitters

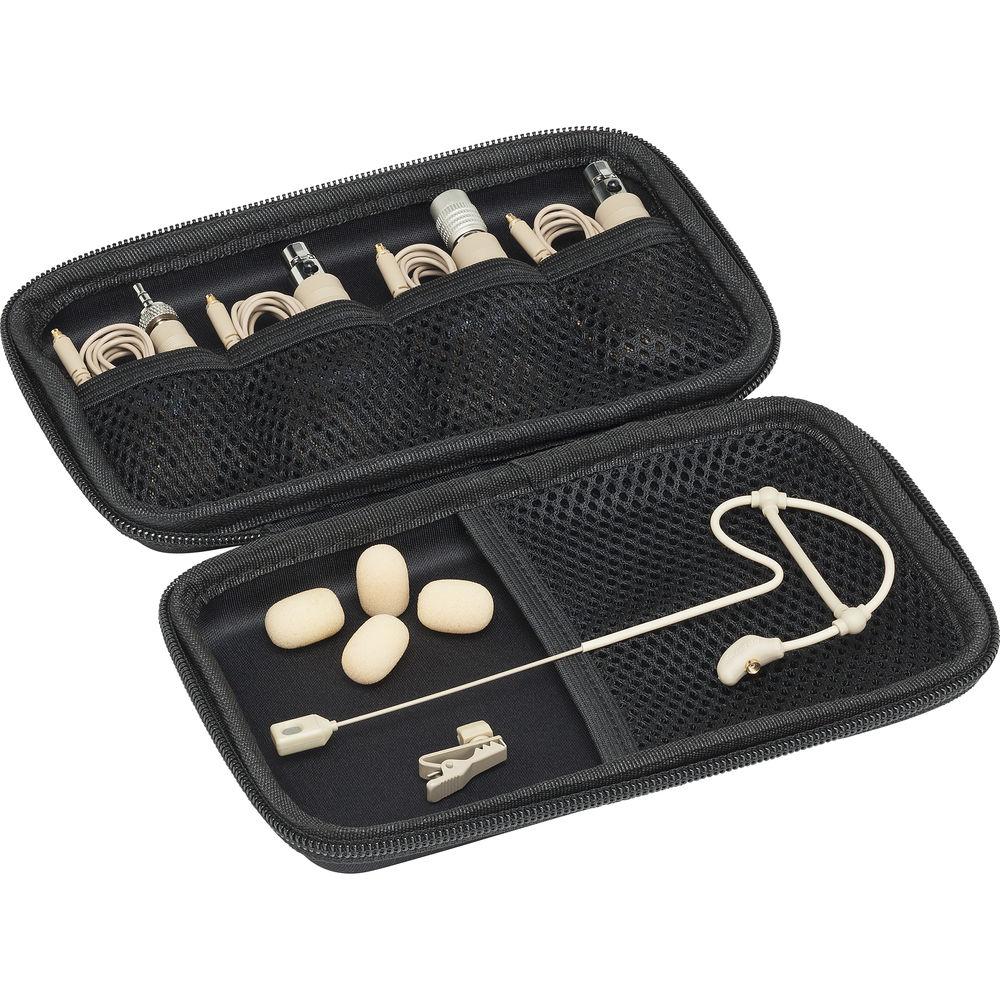

- Four windscreens, collar clip, and protective carry case also included
UPC: 809164023418 In the Box Samson SE60x Unidirectional Miniature Earset Microphone for Wireless Transmitters Microphone Cable with 3.5mm Jack Microphone Cable with 4-Pin Hirose Jack Microphone Cable with TA3F Jack Microphone Cable with TA4F Jack 4 x Windscreens Collar Clip Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson SE60x Unidirectional Miniature Earset Microphone for Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SASE60X Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Diaphragm | 0.29" / 7.35 mm | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 135 dB SPL | | Impedance | 2 kOhms ± 30% | | Sensitivity | -45 dBV/Pa at 1 kHz | | | | Output Connector | Proprietary | | Cable Length | 3.94' / 1.2 m | | Operating Voltage | 1.5 to 12 V | | Weight | 0.24 oz / 6.8 g |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 00 owners. Add your rating and experience with the product.
