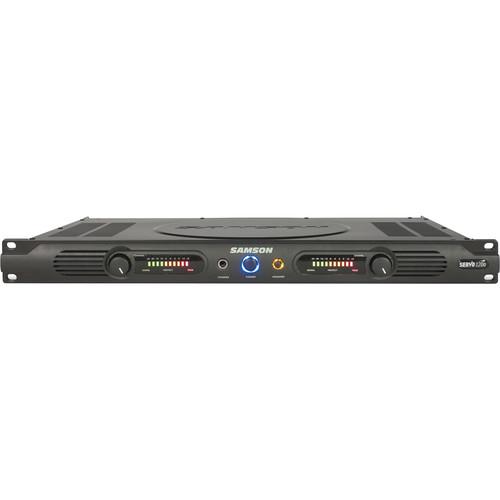

Product description The Samson Servo 120a Power Amplifier is a stereo power amplifier that can be used for all types of recording applications, live performances or permanent installs. The amplifier provides "reference-class" audio performance and reliability in a compact, single rack-space package. The Servo 120a utilizes high-current output power transistors and features an efficient bipolar circuit design that continuously keeps DC output during idling at or near 0 volts. This keeps idle speakers at their zero point. Thermal and overcurrent protection circuitry is provided, and the amplifier is convection cooled for silent operation, eliminating fan noise and the need for filter maintenance. The Servo 120a provides balanced 1/4" TRS and RCA coaxial inputs and push-spring terminal outputs. Also included is a front-panel protection light, a headphone output, a speaker on/off switch, and 3-color LED meters. - A stereo power amplifier for recording, live music, and installation applications
- Operates in both stereo or bridged mono
- 50 Watts per channel into 8 Ohms
- Stable bipolar circuit design continuously keeps DC output during idling at or near 0 volts, preventing unnecessary power applications to minimize heat overload
- Toroidal transformer power supply for high current and low profile
- High-current output power transistors
- Protection relay circuitry (linked to the DC offset circuitry) that prevents "thumps" when powering on or off
- Smart Servo circuitry protection against overheating and overcurrent
- Functions in stereo or bridged mono modes
- Front-panel headphone jack with speaker disable switch
- Five-segment LED meters for each channel continuously display power output levels and allow the user to correct for overloading (clipping) conditions
- Convection cooled (no fan)
UPC: 809164005131 In the Box Samson Servo 120a Power Amplifier AC Power Cord Limited 3-Year Warranty User Manual PDF 92.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Servo 120a Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson Servo 120 Specs | Power Rating | Stereo at 4 Ohms: 60 watts per channel
Stereo at 8 Ohms: 50 watts per channel
Bridged at 8 Ohms: 120 watts | | Damping Factor | > 150 | | Input Sensitivity | +4 dBu to achieve rated power (level control set to maximum) | | Input Impedance | > 10 kOhms balanced
> 10 kOhms unbalanced | | Gain | Not specified by manufacturer | | Frequency Response | 10 Hz to 20 kHz | | Signal-to-Noise Ratio | 105 dB (22 Hz to 22 kHz bandwidth at 1 dB below rated output power) | | Total Harmonic Distortion (THD) | < 0.01%, 80 kHz LPF at 1 kHz, rated output power | | Input Connections | 2 x 1/4" TRS phono, 2 x RCA coaxial | | Output Connectors | 4 x Push-spring terminal
1 x Headphone | | Controls Front Panel | 2 x Rotary input level control (41-position detented)
Speaker on/off switch
Power switch | | Controls (Rear) | 1 x Stereo/Mono Bridge switch | | Indicators | 1 x 5-LED level metering, 1 x Protect LED, 1 x Power LED | | Cooling | Convection | | Power Consumption | 240 W at 120 VAC / 60 Hz | | Dimensions | 19 x 11.5 x 1.75" / 483 x 292 x 44 mm | | Weight | 15.6 lb / 7.08 kg | | Specialties | Front-panel speaker on/off switch and dedicated headphone jack enables private cue monitoring of the input signal | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 21.5 x 14.0 x 4.0" |
