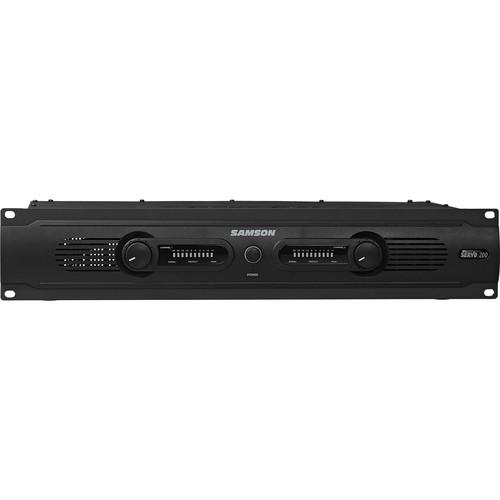

User Manual for Samson SERVO 200 - Power Amplifier Click to enlarge the picture
Contents of the user manual for the Samson SERVO 200 - Power Amplifier
- Product category: Power Amplifiers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Power Amplifiers
|
User manual for the Samson SERVO 200 - Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The Samson SERVO 200 is a 2-channel, 200-watt 2RU rackmount power amplifier, suitable for powering small to medium sized P.A. systems or integrated conference room audio systems. The SERVO 200 features large, 10-segment, 3-color level LED meters and independent channel volume controls. The rear panel includes 1/4-inch balanced and RCA input connectors, as well as 5-way binding post and 1/4-inch speaker outputs. The SERVO 200 also features 4-stage power protection circuitry that ensures optimal performance, overload protection of connected components, and cooler more efficient operation. This is a durable, versatile power amplifier that inexpensively serves the musical, corporate and educational communities. - 2-channel rackmount power amplifier with 100 Watts per channel at 4 Ohms, 200 Watts Bridged Mono at 8 Ohms
- 4-stage protection circuitry includes Short Circuit, Thermal, Current Limit, DC Offset, Current Inrush, RF Protection, Power On/Off Muting
- Accurate 10-segment, 3-color Level LED meters, Peak and Signal LED indicators for each channel
- 1/4" Phone balanced, RCA Phono unbalanced input connectors, 5-way binding post and 1/4" outputs
- Versatile and durable for smaller school or club P.A. systems and conference room installation audio applications
UPC: 809164005483 In the Box Samson SERVO 200 - Power Amplifier Power Cord Limited 3-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson SERVO 200 - Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson Servo 200 Specs | Power Rating | Stereo @ 8 Ohms: 66 Watts per Channel
Stereo @ 4 Ohms: 100 Watts per Channel
Bridged Mono @ 8 Ohms: 200 Watts | | Damping Factor | 280(400 Hz) | | Input Sensitivity | 1.24V(4dBu) | | Input Impedance | Unbalanced: 15kOhm
Balanced: 30kOhm | | Gain | 32dB | | Frequency Response | 20 Hz - 20 kHz, +0, -0.5 dB*
5 Hz - 60 kHz, +0, -3.0 dB* | | Signal-to-Noise Ratio | 102 dB(22 Hz - 20 kHz) | | Total Harmonic Distortion (THD) | 0.01% (20Hz - 20kHz, 10dB below rated output power)
0.1%, 1kHz, rated power output | | Input Connections | 2 x 1/4" TRS Phone, Balanced
2 x RCA Phono, Unbalanced | | Output Connectors | 2 x 5-way Binding Posts
2 x 1/4" TS Phone | | Controls Front Panel | 2 x Volume Control Knobs
1 x Power Button | | Controls (Rear) | 1 x Bridge/Stereo Mode Switch | | Indicators | 2 x 10-segment, 3-color Level LED meters
1 x Blue Power On LED
1 x Amber Protection Active LED
1 x Green Signal Present LED(per Ch.)
1 x Red Peak LED(per Ch.) | | Cooling | Continuously variable speed, fan-forced air | | Power Consumption | 1/8 Rated Power, 4 Ohms: 0.5A
1/3 Rated Power, 4 Ohms: 1.1A
Full Rated Power, 4 Ohms: 3.3A | | Dimensions | 19 x 3.5 x 11.7" (483 x 89 x 297mm) | | Weight | 15 lb (6.8 kg) | | Specialties | 4-Stage Protection Circuitry
On/Off Muting | | | | Package Weight | 21.7 lb | | Box Dimensions (LxWxH) | 22.0 x 15.5 x 7.0" |
