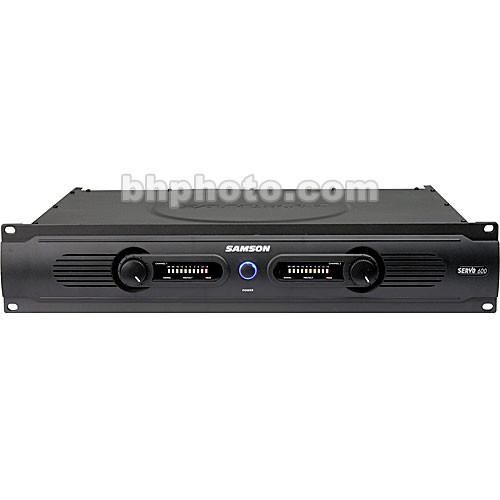

User Manual for Samson Servo 600 - Power Amplifier Click to enlarge the picture
Contents of the user manual for the Samson Servo 600 - Power Amplifier
- Product category: Power Amplifiers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Power Amplifiers
|
User manual for the Samson Servo 600 - Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The Servo 600 from Samson is a high-quality power amplifier designed to drive multiple speaker chains or large format speakers. The sleek 2U rack mountable unit can operate in stereo or bridged mode and offers exceptionally clean output with very low distortion. RCA and 1/4" connectors are provided for signal input. Signal output is via five-way binding posts and 1/4" connectors. Individual level controls are provided for each channel for precise adjustments.
The Servo 600 has a wealth of protection features running under the hood. Dual variable-speed cooling fans keep the system running smoothly, while protection circuitry minimizes potential damage from overloads, overheating, and faulty wiring conditions. The resettable circuit breaker allows quick and easy restarting after an overload. LED meters are also provided for output levels as well as protection status. - Clear audio with very low distortion and a wide frequency range
- Stereo and bridged operating modes
- Individual level controls for each channel
- RCA and 1/4" inputs, five-way binding post and 1/4" outputs
- Dual variable speed cooling fans
- Protection circuitry for overheating, overloads, and more
- LED meters for output levels and protection status
UPC: 809164005490 In the Box Samson Servo 600 - Power Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Servo 600 - Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson Servo 600 Specs | Output Power | 8 Ohm Stereo: 225W (Per Channel)
4 Ohm Stereo: 300W (Per Channel)
8 Ohm Bridged: 600W | | Damping Factor | 350 | | Input Sensitivity | 1.24V (4 dBu) @ 8 Ohms | | Input Impedance | 15 kOhm, Unbalanced
30 kOhm, Balanced | | Gain | 34dB | | Frequency Response | 20Hz - 20kHz (0/-0.5dB, 8 Ohms, 1W)
5Hz - 60kHz (0/-3dB, 8 Ohms, 1W) | | Signal-to-Noise Ratio | 104dB (20Hz - 20kHz) | | Total Harmonic Distortion (THD) | 0.04% | | Input Connections | 2 x RCA, Unbalanced
2 x 1/4" (6.3mm) TRS, Balanced
1 x AC Power In | | Output Connectors | 2 x Pairs of 5-Way Binding Posts
2 x 1/4" (6.3mm) TRS Jacks | | Controls Front Panel | 1 x Power Switch
2 x Input Level Control Knobs | | Controls (Rear) | 1 x Bridge/Stereo Selector Switch | | Indicators | 2 x 10-Segment Output Level LED Meters
LEDs for Peak, Protect, and Signal | | Cooling | 2 x Variable Speed Cooling Fans | | Power | 115/230/240VAC, 50/60Hz | | Dimensions (WxHxD) | 19 x 3.5 x 11.7" (483 x 89 x 297mm) | | Weight | 24 lbs (10.9 kg) | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 21.5 x 14.6 x 6.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
