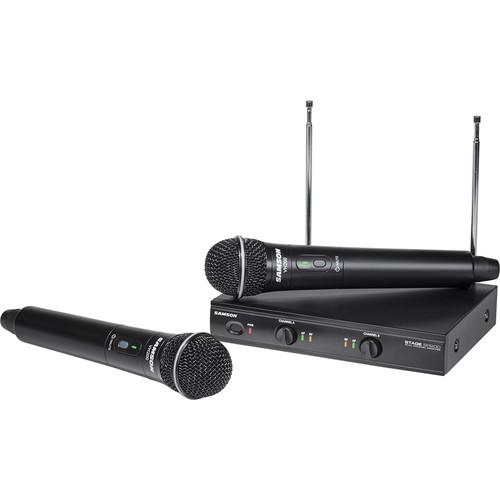

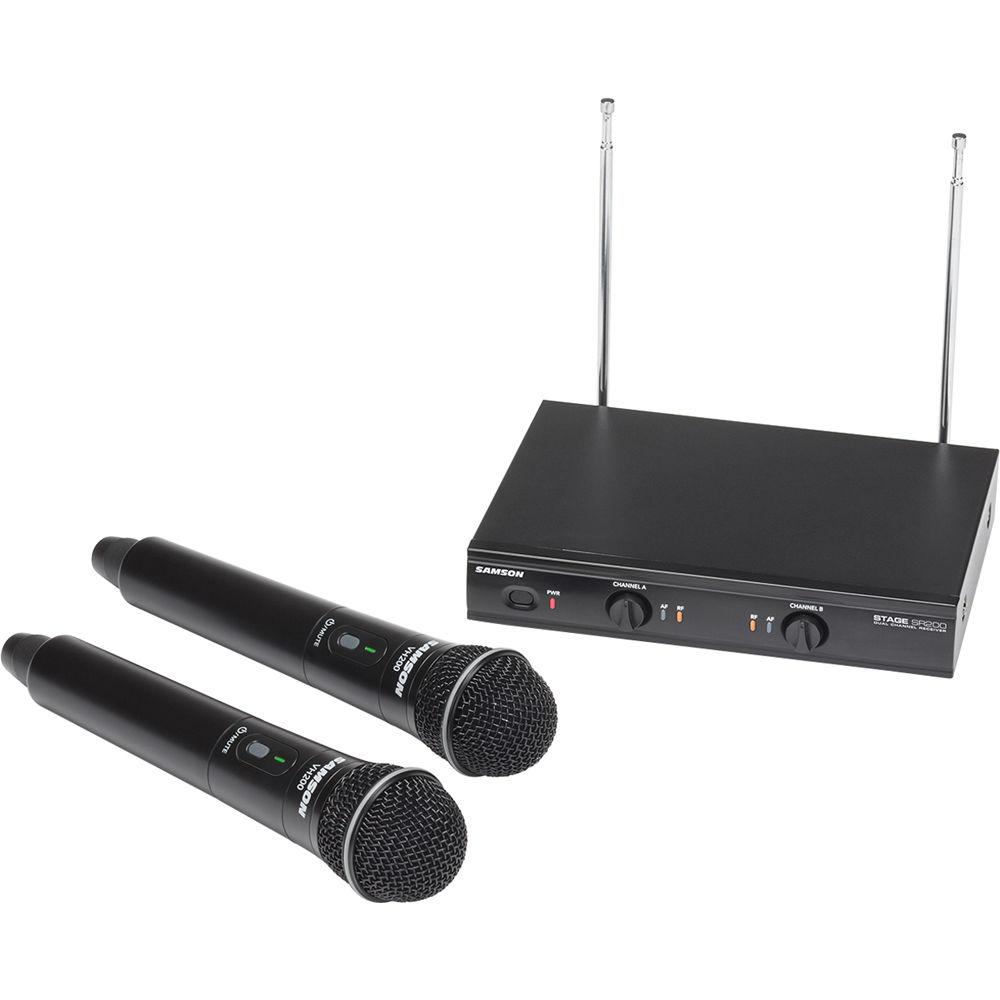

User Manual for Samson Stage 200 Dual-Channel Handheld VHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Stage 200 Dual-Channel Handheld VHF
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Stage 200 Dual-Channel Handheld VHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

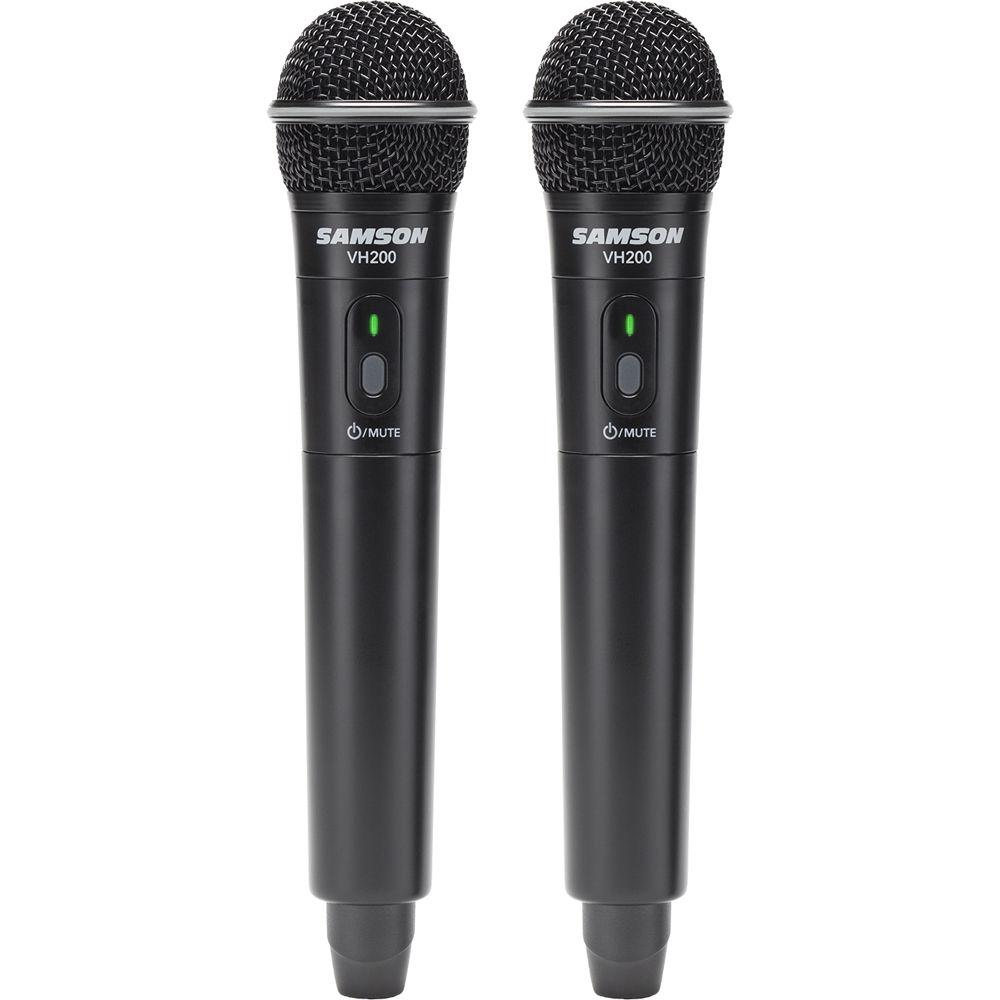

Product description The channel D Stage 200 from Samson is a dual-channel VHF wireless microphone system that provides two handheld dynamic microphones, which transmit to a single rugged metal receiver. The two handheld transmitters feature a Samson Q6 cardioid mic element that provide crisp, clear sound and reliable VHF wireless performance for live presentations, education, karaoke, houses of worship, and other dual-performer applications. The receiver features two 1/4" outputs on the back panel as well as a balanced XLR mix output. A front-panel volume control for each channel allows you to find the right blend for each performer. The VHF fixed frequency operation provides instant setup. Simply plug in the receiver and turn on the transmitters. In addition, the VHF operation provides both transmitters with a long battery life of up to 12 hours via two AA batteries (not included), and there is a 200' operating range (line-of-sight) that provides ample freedom for any presenter or performer duo. - VHF Operation
- The Stage 200 operates in the reliable VHF frequency spectrum, which has become significantly less crowded with the advancement of digital TV. VHF operation also provides both mic transmitters with an exceptional battery life of up to 12 hours via two AA batteries (not included)
- Versatile Performance

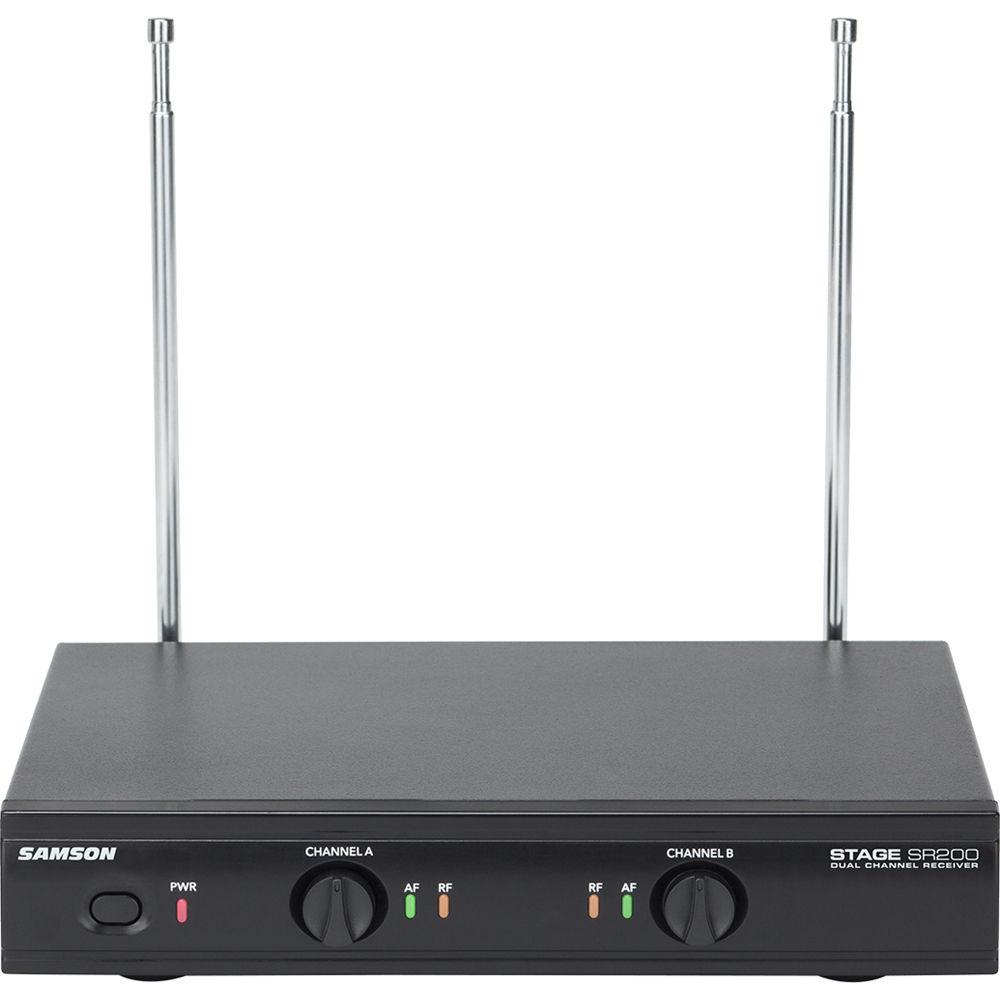

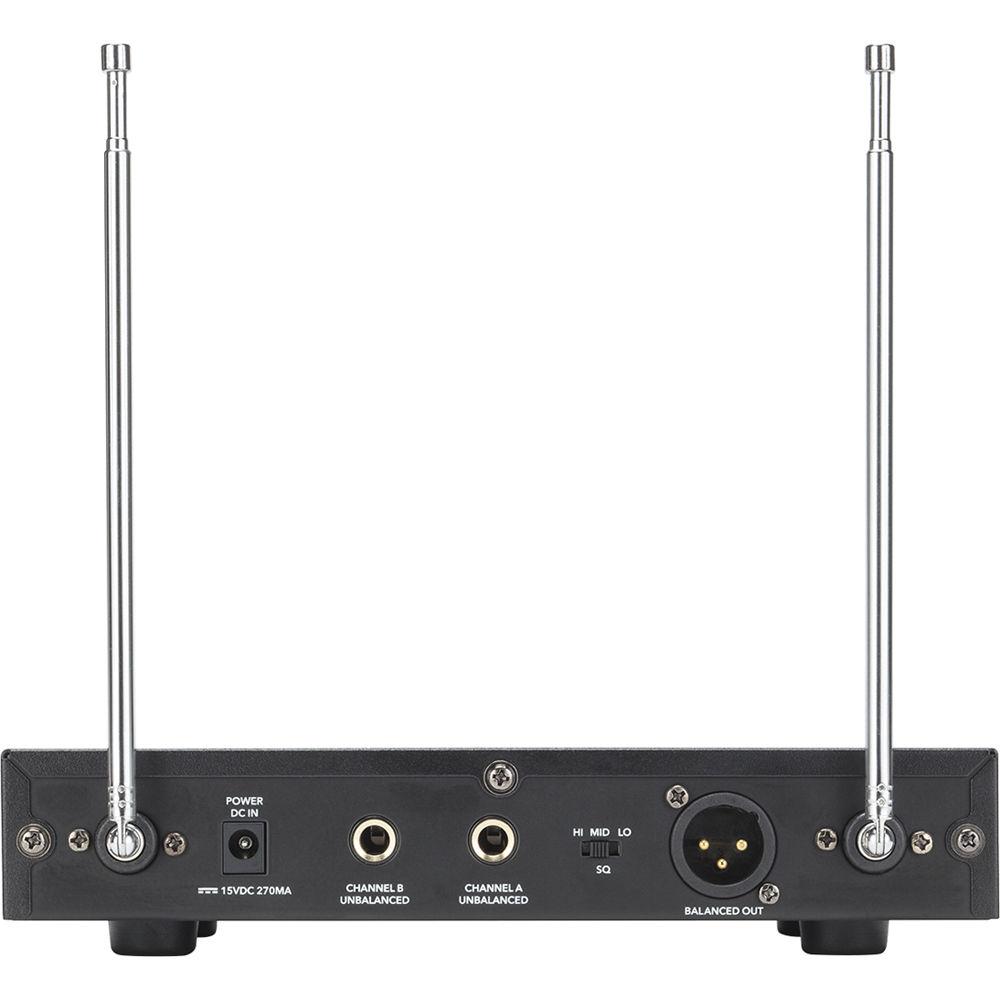

- Featuring a rugged metal SR200 receiver, the Stage 200 is designed for maximum durability and versatility. Its back panel provides two 1/4" outputs, as well as a balanced XLR out, to connect to a dedicated mixer or powered PA speaker. The 1/4" outputs send each channel separately, while the XLR sends a mix of both. Front panel volume controls on each channel let you find the perfect blend between two performers
- Simple Setup
- The Stage 200's fixed frequency operation provides instant setup. Simply plug in the receiver and turn on your transmitters to experience quality wireless performance. A 200' operating range provides ample freedom for any presenter or performer duo
UPC: 809164217404 In the Box Samson Stage 200 Dual-Channel Handheld VHF Wireless System (Channel D) 2 x VH200 Handheld Transmitters SR200 Wireless Receiver AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Stage 200 Dual-Channel Handheld VHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWS200HH-D Specs | | | Channel Assignment | D | | Working Range | 200' / 100 m line of sight | | Dynamic Range | >103 dB A-weighted | | Signal to Noise | >90 dB | | | | Output Level | Balanced +9 dBu, unbalanced +14 dBu | | Audio Output Impedance | Balanced 240 Ohms, unbalanced 810 Ohms | | Output Connectors | 2 x 1/4" / 6.35 mm TS mono phone jack
1 x XLR mix output | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Microphone Element | Samson Q6 dynamic | | Pickup Pattern | Cardioid | | RF Power | 10 mW EIRP | | Battery Life | 12 hours from 2 x AA batteries | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 16.0 x 11.2 x 2.7" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
