User Manual for Samson Stage 212 Frequency-Agile Dual-Channel Handheld VHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Stage 212 Frequency-Agile Dual-Channel Handheld
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Stage 212 Frequency-Agile Dual-Channel Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

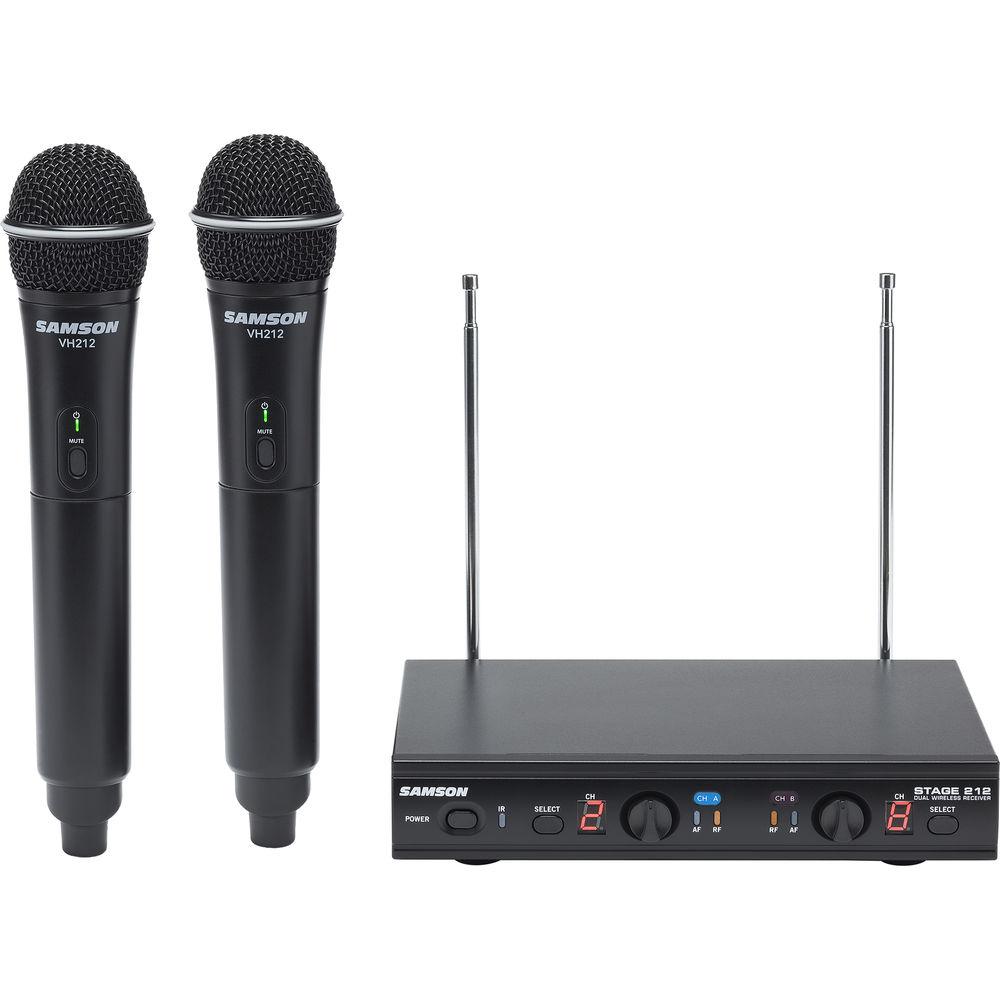

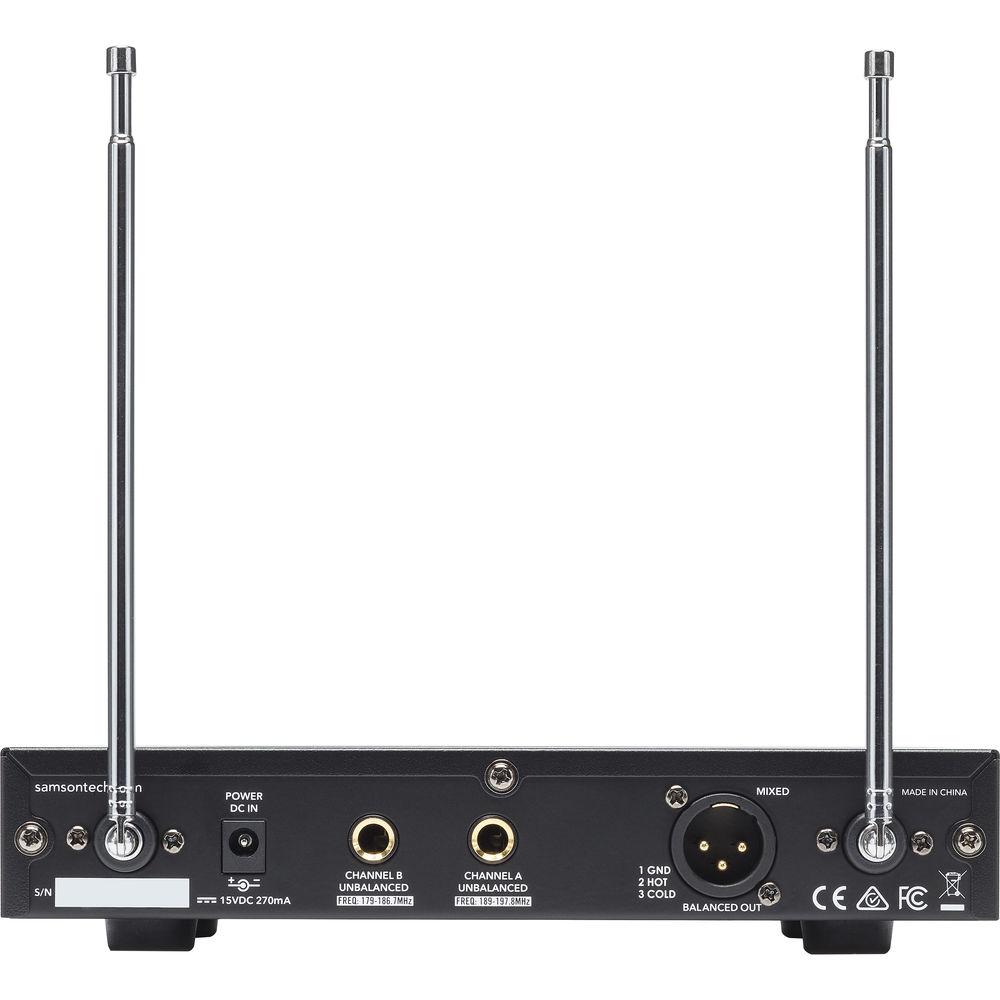

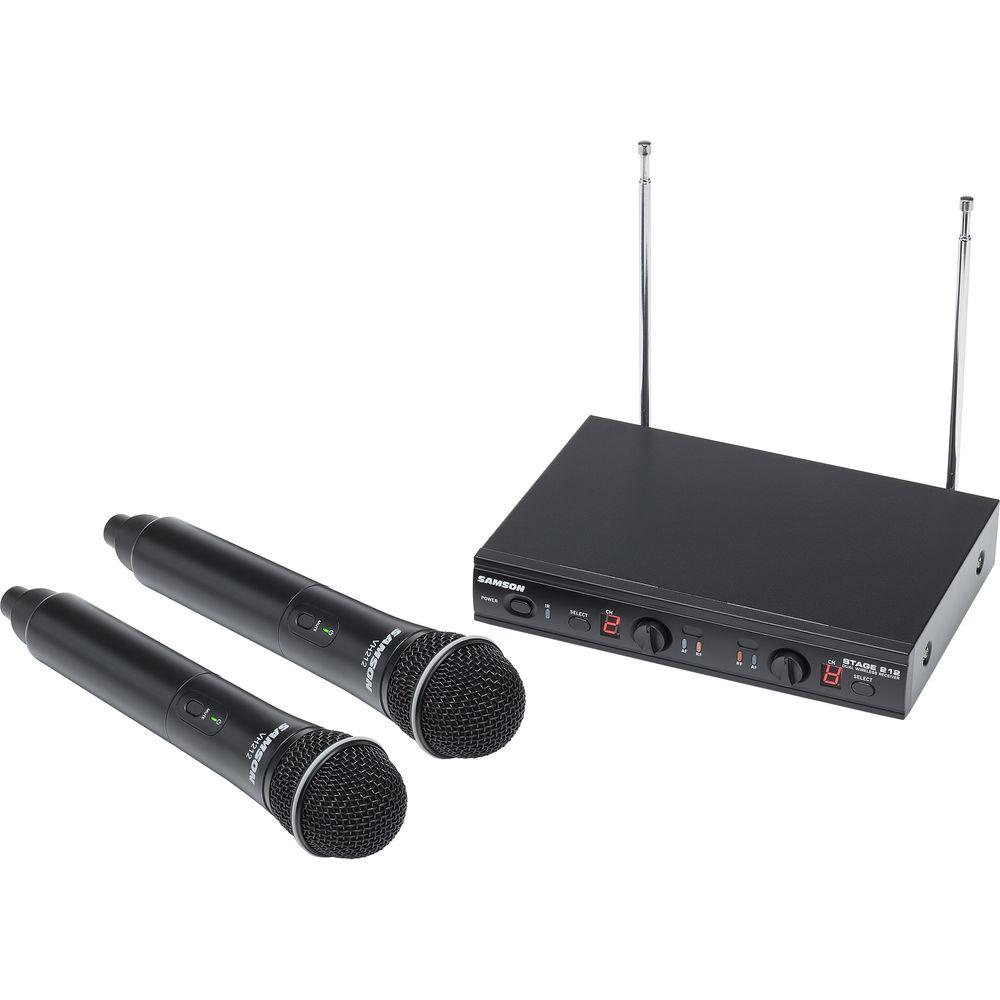

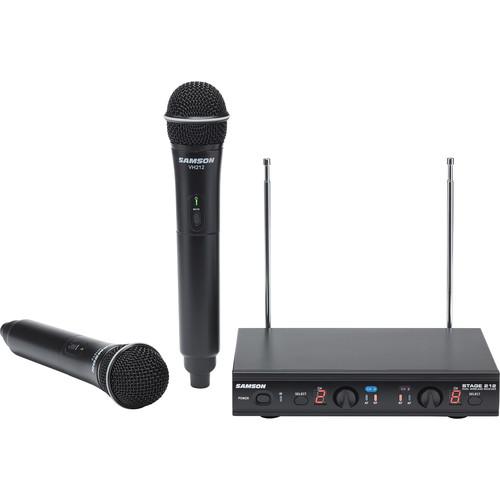

Product description The Stage 212 VHF Wireless System from Samson is a frequency-agile, dual-channel wireless microphone system that provides two handheld dynamic microphones, that transmit to a single rugged metal receiver. It can be used to capture audio in a variety of environments such as home karaoke, live presentation, education, houses of worship, and other dual-performer applications. The Stage 212 design offers 12 operating channels across a 173 to 198 MHz frequency range. The system's IR sync function allows users to wirelessly match each transmitter to a receiver's operating frequency—and do so quickly. A 200' operating range provides freedom for any presenter or performing duo. In addition, the VH212 transmitters each offer up to 12 hours of battery life using two AA batteries (sold separately). Furthermore, the rugged metal SR212 receiver is designed for durability and versatility. Its back panel provides two 1/4" outputs, as well as a single balanced XLR out that combines the two channels, allowing connection to a mixer or powered PA speaker. The 1/4" outputs send each channel separately. Front panel volume controls on each channel let you find the right blend between each performer. Finally, The Stage 212 operates in the VHF frequency spectrum, which is less crowded with the advancement of digital TV. - System 212 Wireless System
-
- Dual-channel VHF wireless system
- 12 operating channels across 173 to 198 MHz frequency range
- Up to three simultaneous systems per frequency band (region dependent)
- AC adapter included

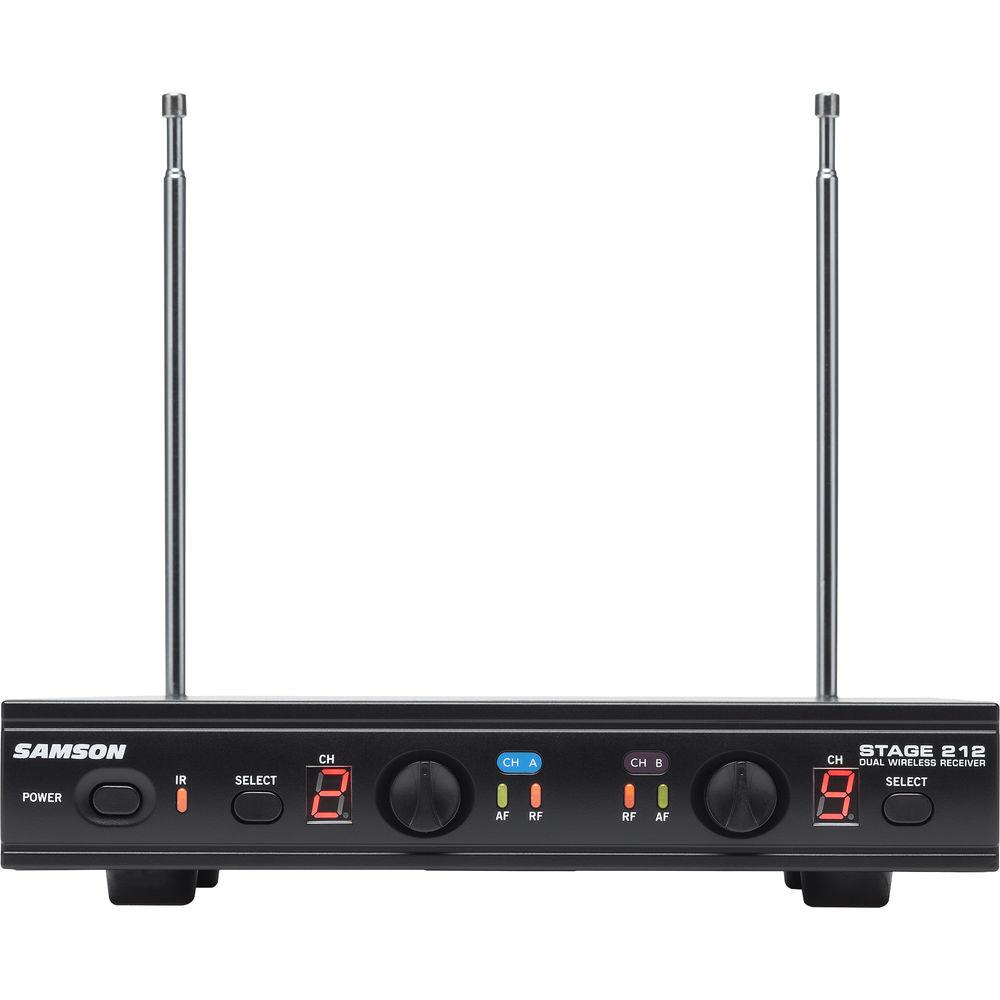

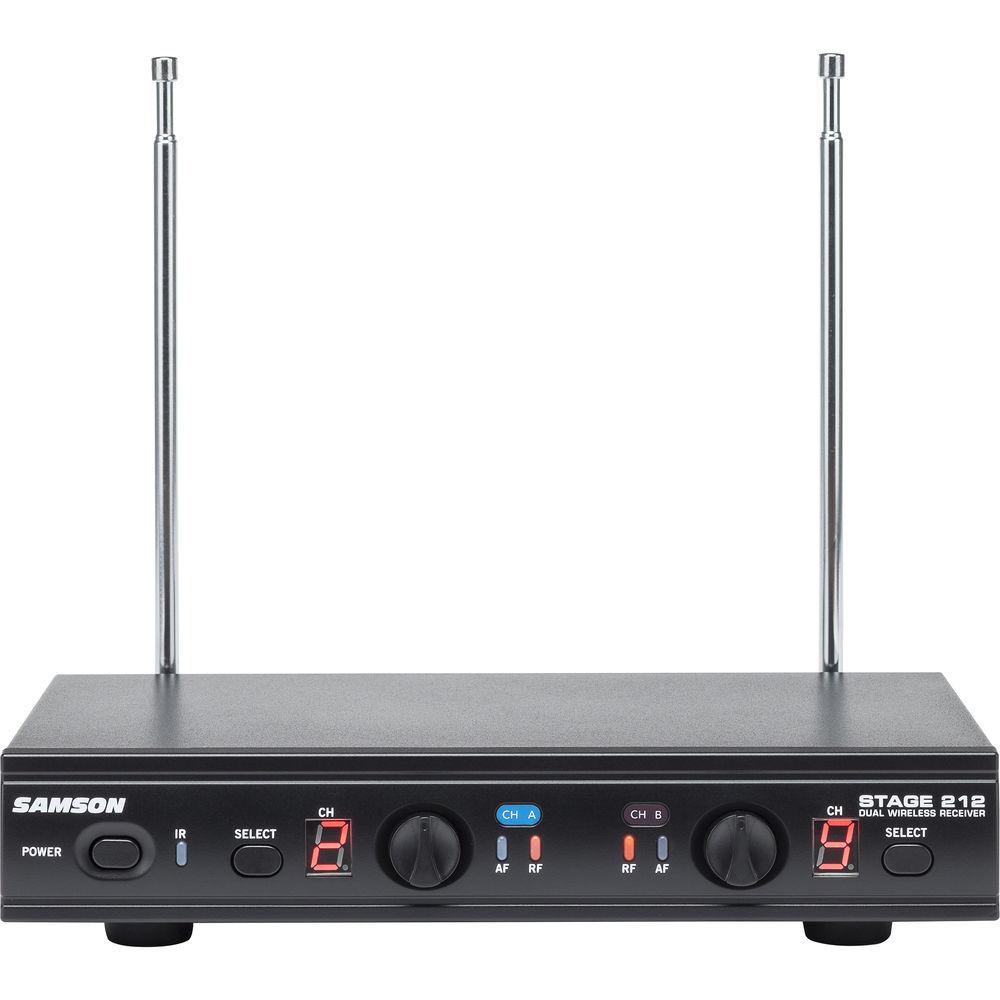

- SR212 Wireless Receiver
-
- Rugged metal chassis
- IR sync wirelessly matches receiver and transmitter frequency
- Dedicated volume controls for each channel
- 1/4" outputs for sending each channel to mixer
- Balanced XLR mix output combines both receiver signals to a single output channel

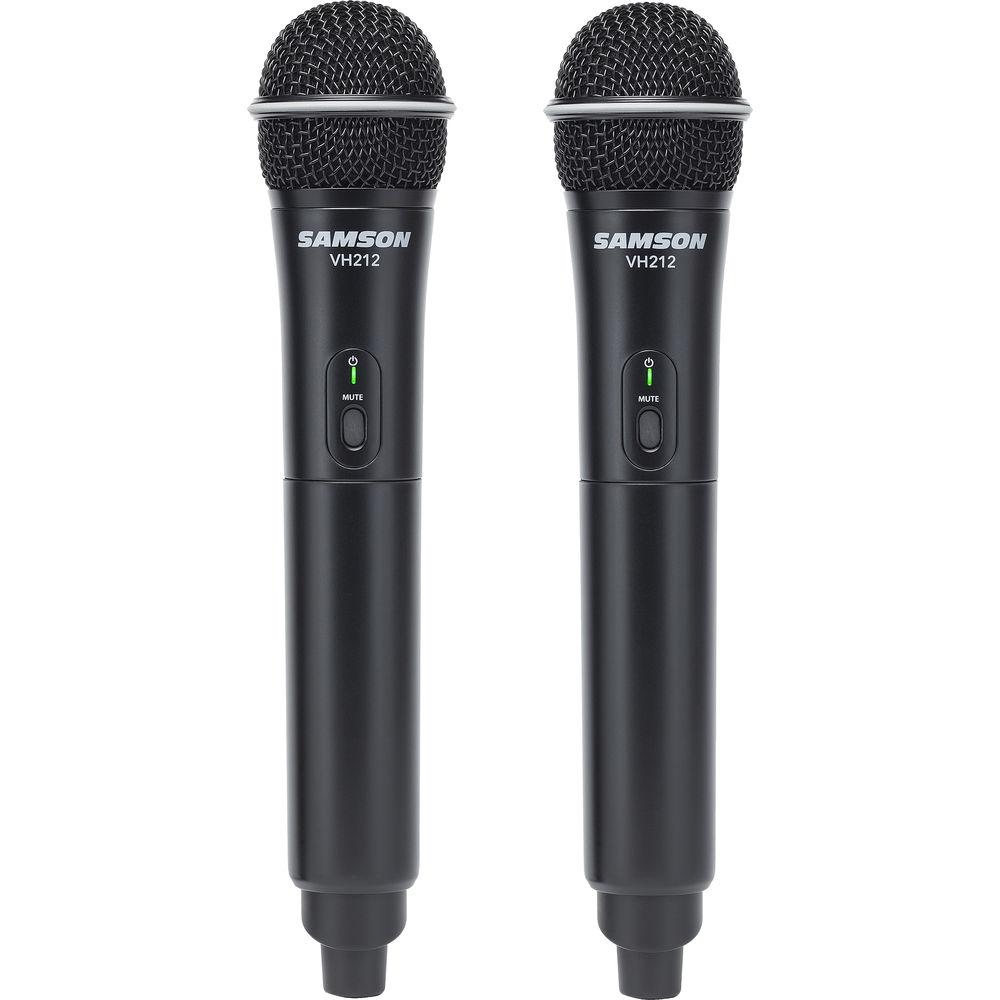

- VH212 Handheld Transmitters
-
- Two Q6 dynamic microphone capsules
- Each offers up to 12 hours of battery life using two AA batteries (not included)
- 200' operating range (line of sight)
UPC: 809164219378 In the Box Samson Stage 212 Frequency-Agile Dual-Channel Handheld VHF Wireless System (173 to 198 MHz) AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Stage 212 Frequency-Agile Dual-Channel Handheld VHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWS212HH-E Specs | | | Type | Dual-channel VHF wireless system | | Number of Channels | 12 Operating Channels | | Frequency Range | 173 to 198 MHz | | # Of Simultaneous Systems | Up to three per frequency band | | | | Material of Construction | Rugged metal chassis | | IR Sync | Wirelessly matches receiver and transmitter frequency | | Volume Control | Controls for each channel | | Outputs | 2 x 1/4" (6.3 mm) connectors (one for each channel)
1 x XLR outputs balanced mix output (combines both receiver signals to a single output channel) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Capsule | 2 x Q6 dynamic capsules | | Batteries & Power | 2 x AA batteries (not included) | | Battery Life | Up to 12 hours of battery life | | Operating Range | 200' operating range (line of sight) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 16.0 x 11.2 x 2.6" |
