User Manual for Samson Stage 412 Frequency-Agile Quad-Channel Handheld VHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson Stage 412 Frequency-Agile Quad-Channel Handheld
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Stage 412 Frequency-Agile Quad-Channel Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

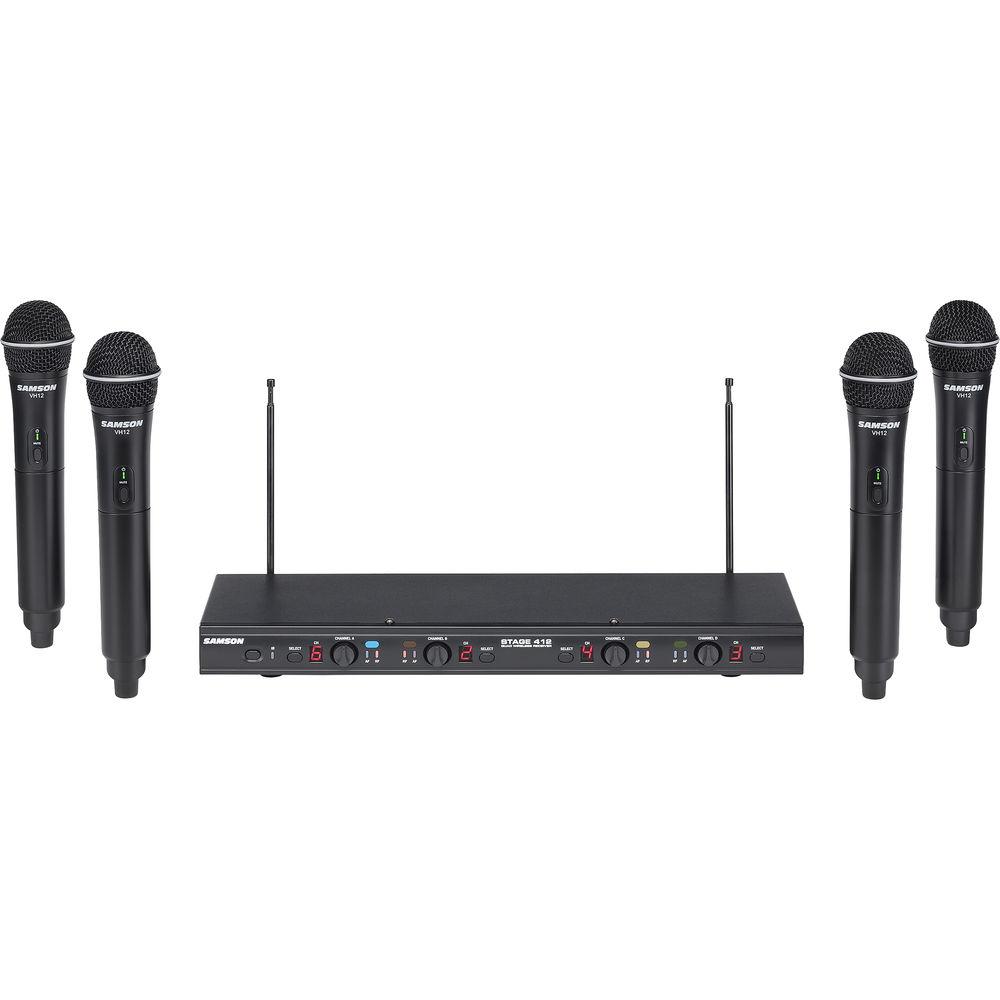

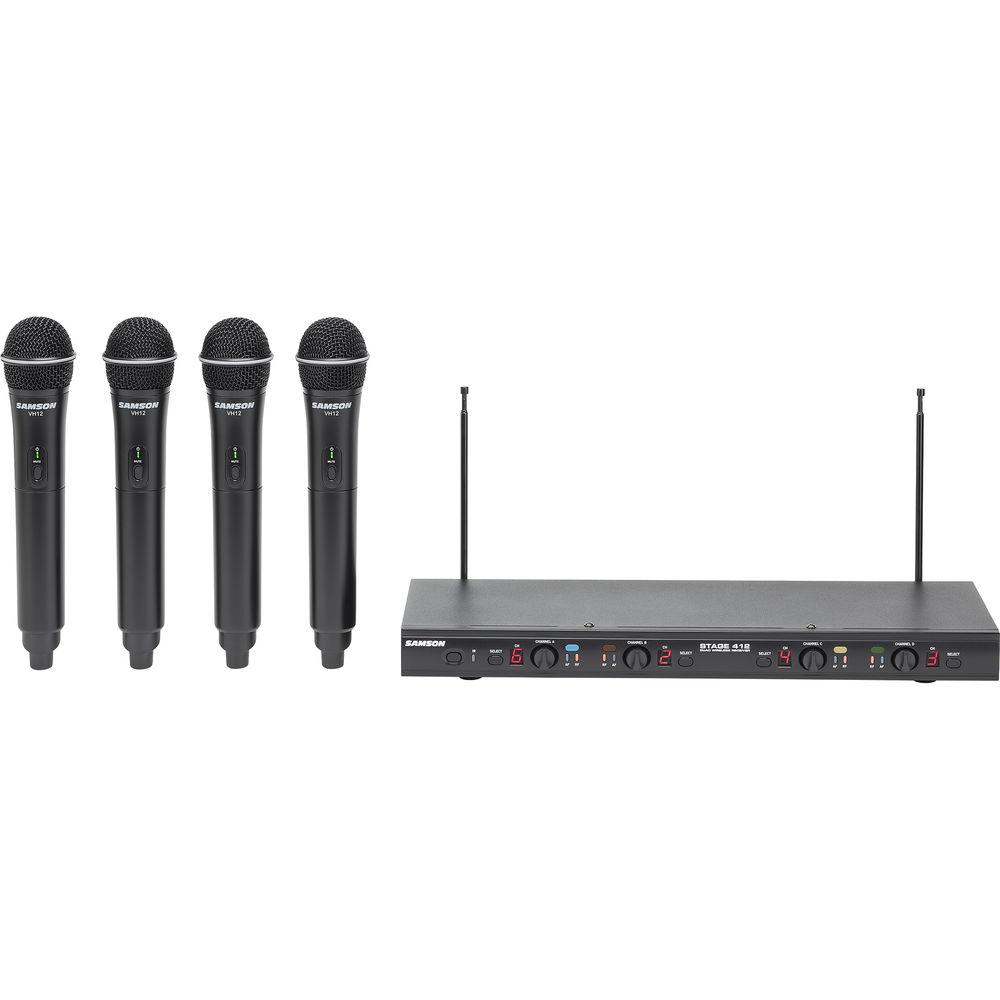

Product description The Stage 412 Frequency-Agile Quad-Channel Handheld VHF Wireless System from Samson is a wireless microphone system with four cardioid handheld dynamic Samson Q6 microphones that transmit to a single rugged metal receiver. This wireless system can be used to provide crisp, clear sound and reliable VHF wireless performance in presentations, houses of worship, education, karaoke, and other applications for up to four performers.The Stage 412's frequency-agile design offers four channels with six operating frequencies per channel. In addition, the systems IR sync function allows users to wirelessly match each transmitter to a receiver's operating frequency. Each transmitter offers a 200' operating range for up to 10 hours via two AA batteries (not included). An AC adapter is included. - Rugged metal receiver chassis

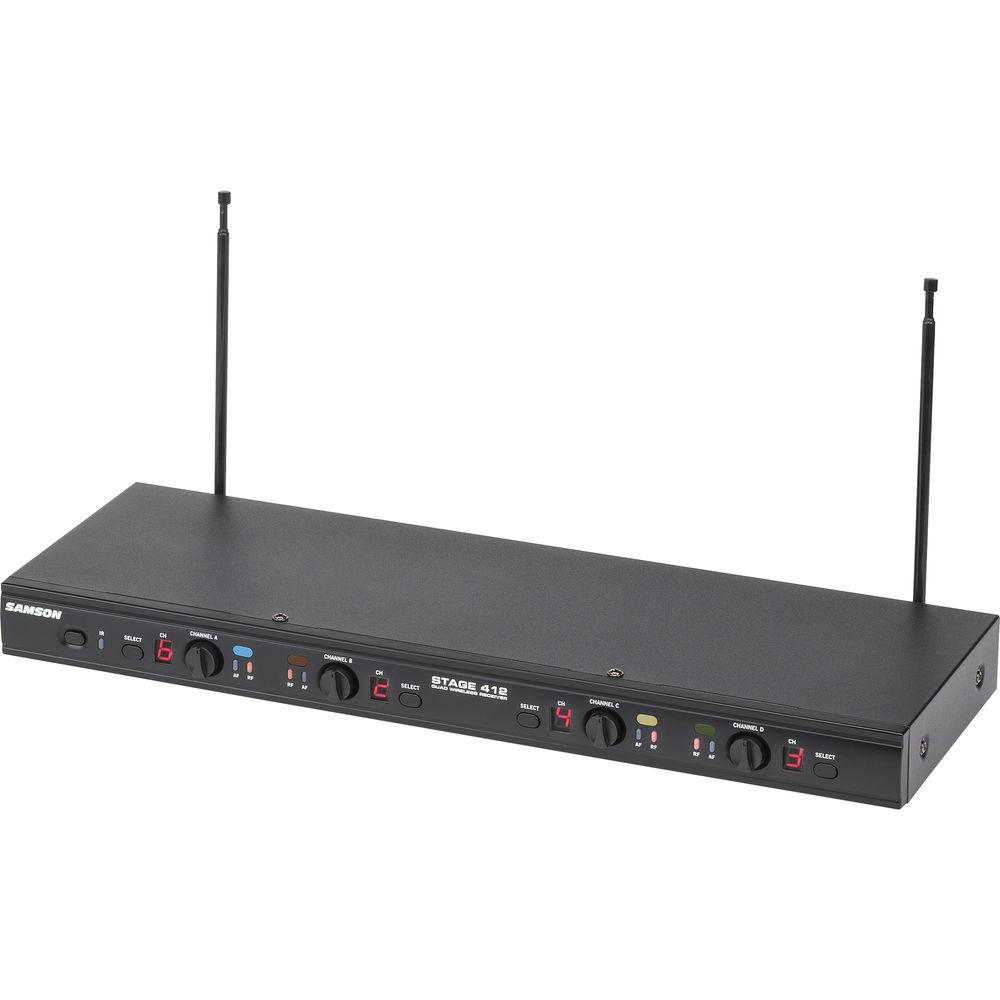

- Six operating frequencies per channel
- IR sync wirelessly matches receiver and transmitter frequency

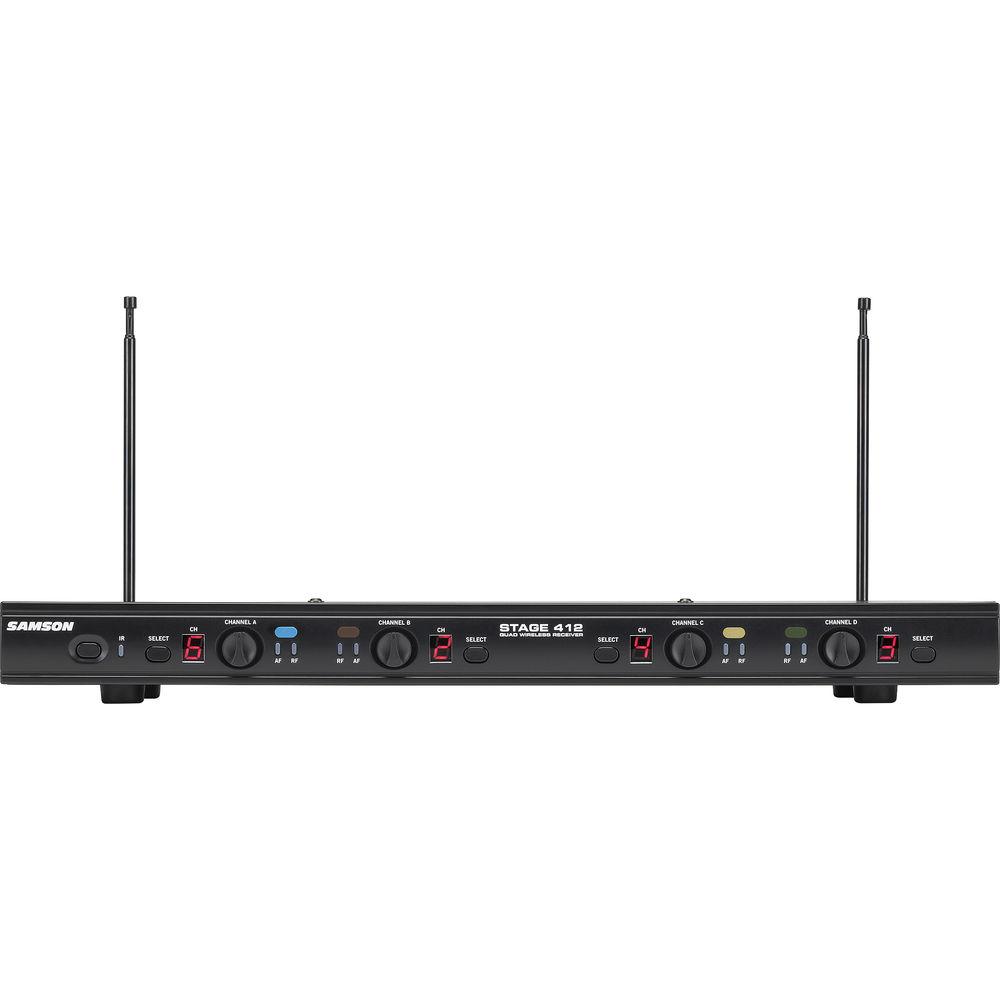

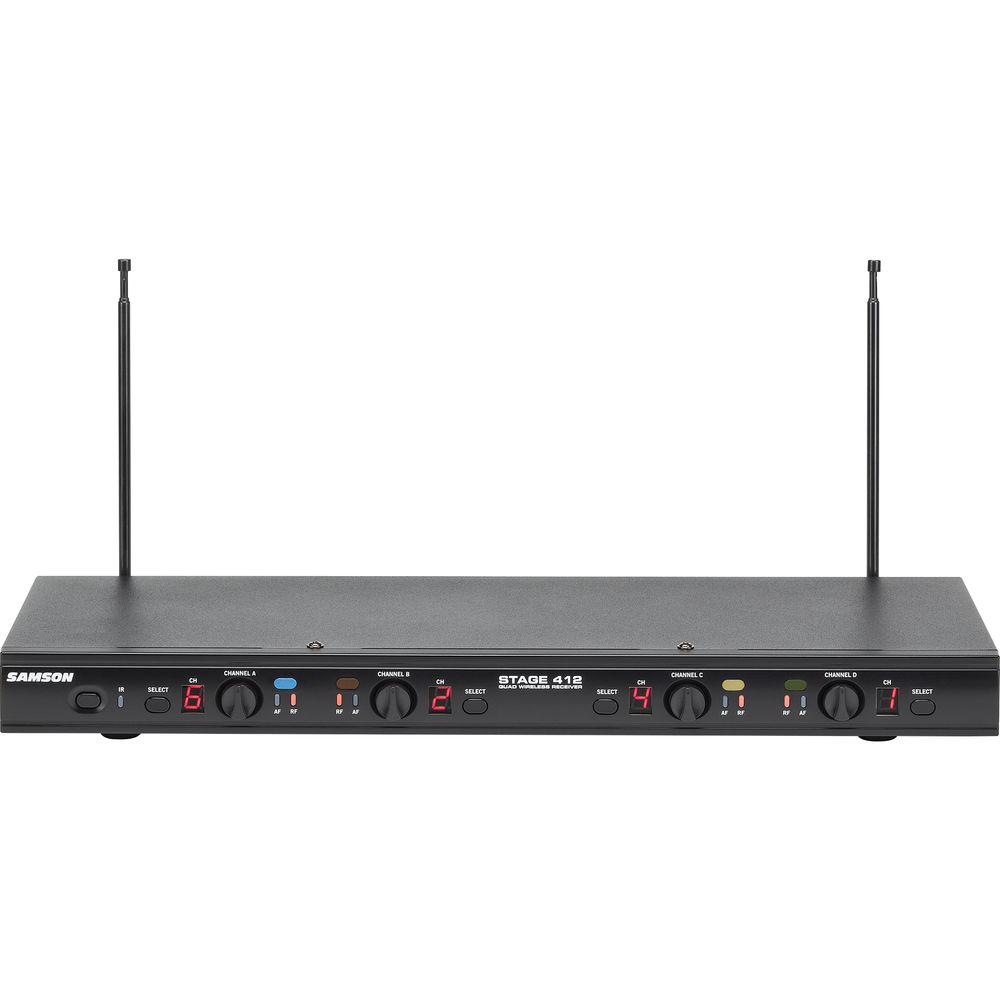

- Dedicated volume controls for each channel

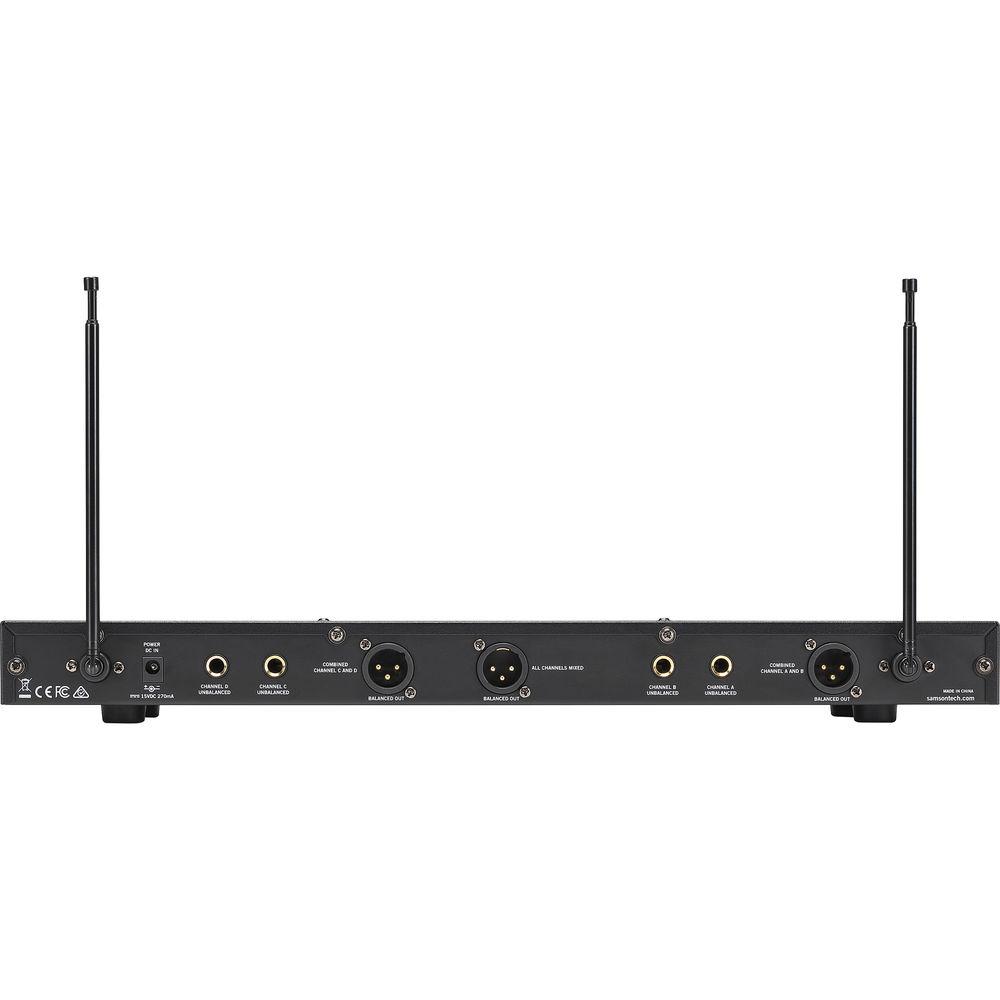

- Four 1/4" independent channel outputs
- Three balanced XLR mixed outputs
- 200' operating range (line-of-sight)

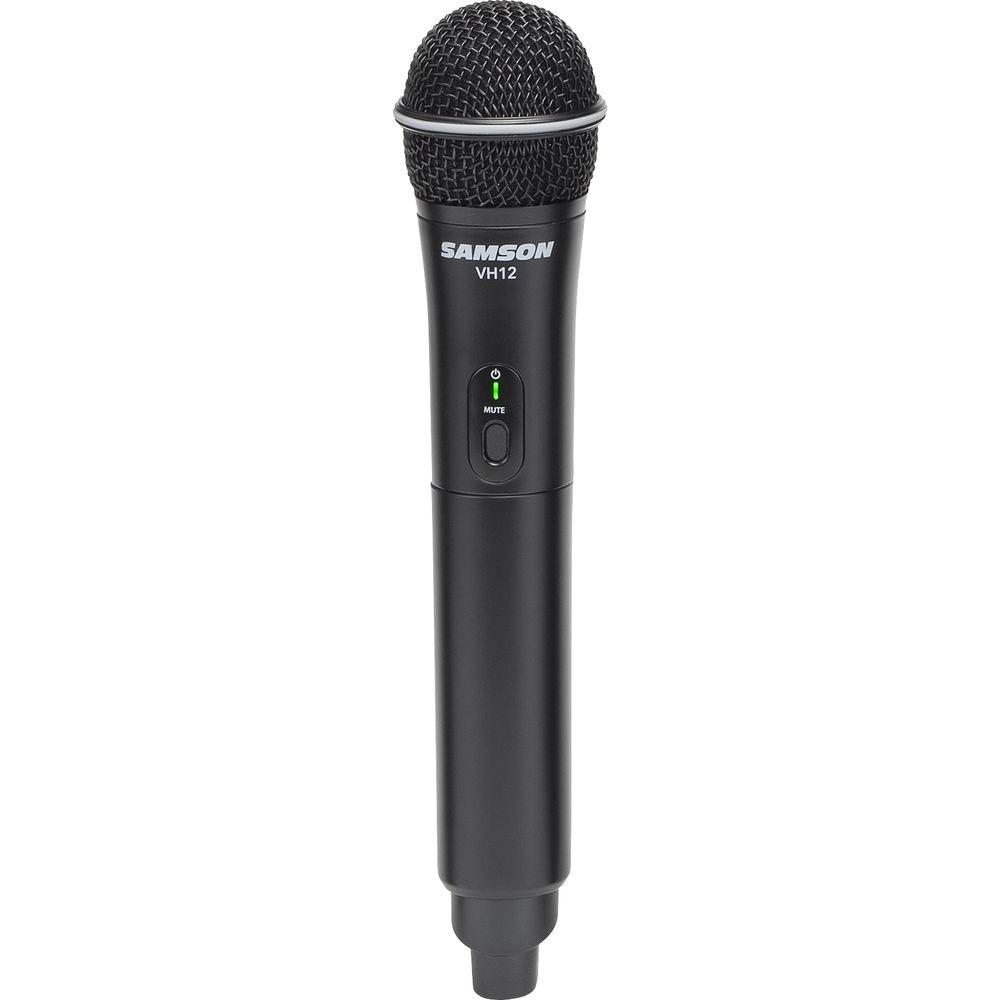

- Four handheld transmitters with Samson Q6 Dynamic microphone capsules
- Each transmitter offers up to 10 hours of operation via two AA batteries (not included)
UPC: 809164221739 In the Box Samson Stage 412 Frequency-Agile Quad-Channel Handheld VHF Wireless System (173 to 198 MHz) AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Stage 412 Frequency-Agile Quad-Channel Handheld VHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWS412HH-E Specs | | | Frequency Range | VHF 173 to 198 MHz | | # Of Channels | 4 x microphone | | Frequencies Supported | 6 per channel | | Working Range | 200' / 60 m (line of sight) | | Frequency Response | 80 Hz to 15 kHz | | Tone Key | Frequency: 30 kHz | | | | Dynamic Range | > 100 dB | | Maximum Output | 1.37 V | | Output Connectors | 4 x 1/4" / 6.3 mm unbalanced
3 x XLR balanced | | Audio Output Level | -12 dB | | Power Supply | 100 to 240 VAC, 50/60 Hz, 0.4 A | | Output | 15 VDC, 800 mA | | Dimensions (L x W x D) | 17.00 x 6.75 x 1.50" / 43.18 x 17.15 x 3.81 cm | | Weight | 3.1 lb / 1.4 kg | | | | Microphone Element | Samson Q6 dynamic | | Pickup Pattern | Cardioid | | RF Power | 10 mW | | Battery Life | 10 hour from 2 x AA batteries | | Dimensions (Ø x L) | 2.16 x 10.00" / 5.49 x 25.40 cm | | Weight | 0.48 lb / 0.22 kg | | | | Package Weight | 6.93 lb | | Box Dimensions (LxWxH) | 19.2 x 16.0 x 10.4" |
