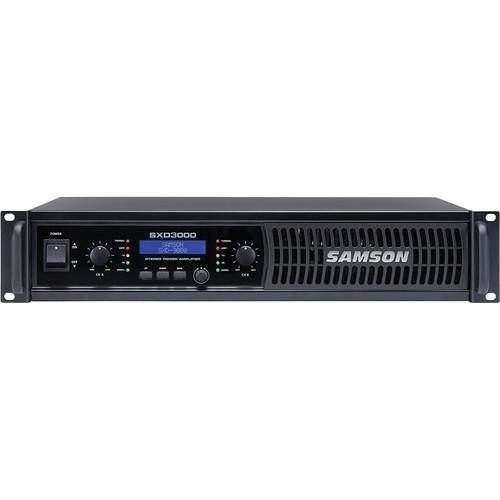

User Manual for Samson SXD3000 Power Amplifier with DSP Click to enlarge the picture
Contents of the user manual for the Samson SXD3000 Power Amplifier with DSP
- Product category: Power Amplifiers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Power Amplifiers
|
User manual for the Samson SXD3000 Power Amplifier with DSP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The SXD3000 Power Amplifier with DSP by Samson is for live sound reinforcement. It is used in various environments in audio applications to provide clean power for speakers such as in DJ setups, houses of worship, front of house, live stage performance and more. It features 450W power per side at 4 Ω. This amp is designed to provide clean output with low distortion and a wide dynamic range over a frequency spectrum of 20 Hz to 20 kHz. The SXD3000 is built with advanced DSP and is controlled via a backlit LCD for use in low-lit environments. The power amp provides extensive control over high and low pass filters, a 3-band EQ, output limiter and delay time for speaker alignment. It also features four presets to provide optimal settings for various standard speaker configurations. A digital pass code security lock is also provided. All of the SXD3000's amp channels offer multi-segment LED metering and level controls with detents. Settings of gain and sensitivity can be monitored on the front panel LCD. Input connections for the power amp are made via balanced combination XLR and 1/4" connectors. The amp provides both Binding Post and Speakon connectors for speakers. It is built with an all-steel chassis in a 19" rack mount design and has convenient carry handles making it ready for the rigors of the road. A power cord in included. - Features LEDs for optimal use on dark stages and indicates your current operating mode and filter settings
- Editable presets for DJ, live sound and commercial installations
- Multi-segment LED metering on each channel
- Individual channel level controls with detents for accurate setting of gain and sensitivity
- All steel chassis design and convenient carry handles make it ready for the road
UPC: 809164014355 In the Box Samson SXD3000 Power Amplifier with DSP IEC 3 pin Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson SXD3000 Power Amplifier with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SXD3000 Specs | Rated Power Output | Stereo Both Channels Driven:
8 Ω 300 W
4 Ω 450 W | | Signal to Noise Ratio | 20 Hz to 20 kHz: >100 dB | | Distortion | SMPTE-IM: 0.02% | | Input Sensitivity | At 8 Ω Voltage Gain: 5 dBu | | Voltage Gain | 30 dB | | Output Circuit | Class AB | | Current Consumption | 115 VAC:
At 1/8 Rated Power 4 Ω: 4.5 A
At 1/3 Rated Power 4 Ω: 7.2 A
At Rated Power 4 Ω, Max: 10 A | | Distortion | Typical @ 4 Ω:
20 Hz to 20 kHz, 10 dB Below Rated Power: 0.002 %
1 kHz, Rated Power: 1 % | | Frequency Response | At 8 Ω 1 W, 0/-1 dB: 20 Hz to 20 kHz | | Damping Factor | 400 Hz: 120 | | Input Impedance | 20 kΩ balanced | | Input Clipping Level | 10 Vrms (22 dBu) | | Cooling | Continuously variable speed fan cooling | | Connector | Inputs: 2 x 3-pin XLR
2 x 1/4" (0.63 mm)TRS, balanced
Outputs: 4 x Binding post
2 x Speakon | | Indicators | Signal, -20 dB, 10 dB, limit, thermal | | Protection | Short circuit, open circuit, thermal, RF protection
Load protected against DC faults | | | | Display | 2 x 16 character LCD | | Modes | Manual mode, 2 full range, mono 2-way, sub/sat, 2 subs | | I/O | Stereo, mono A+B dual, mono A+B link, parallel A dual, parallel A link | | Digital | Dynamics Function: Filter, crossover, gain offset, EQ, limiter
Digital Delay Function: Max 20 ms per channel | | Digital Equalizer | Function Per Channel
fO: 1/12 octave at 20 to 20 kHz
Gain: ± 12 dB
Q: 0.5 to 5.0
Presets: DJ, vocal, live sound, install, rock, dance and jazz | | Setup | Lock controls with code, factory reset | | Dimensions (L x W x H) | 19 x 13 x 3.5" (482 x 330 x 88 mm) | | Weight | 26.4 lb (12 kg) | | | | Box Dimensions (LxWxH) | 22.13 x 16.54 x 7.28" |
