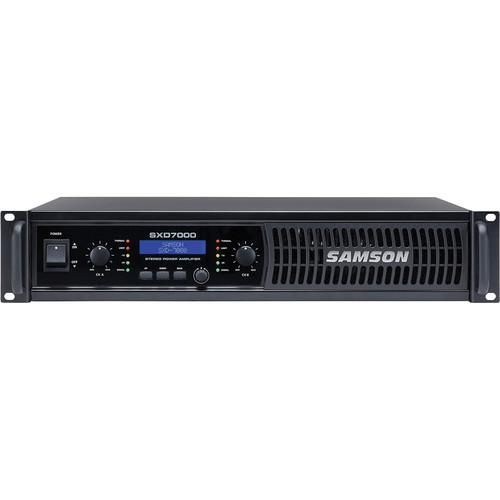

Product description The SXD7000 Power Amplifier with DSP by Samson is for live sound reinforcement. It is used in various environments in audio applications to provide clean power for speakers such as in DJ setups, houses of worship, front of house, live stage performance and more. It features 1000W power per side at 4 Ω. This amp is designed to provide clean output with low distortion and a wide dynamic range over a frequency spectrum of 20 Hz to 20 kHz. The SXD7000 is built with advanced DSP and is controlled via a backlit LCD for use in low-lit environments. The power amp provides extensive control over high and low pass filters, a 3-band EQ, output limiter and delay time for speaker alignment. It also features four presets to provide optimal settings for various standard speaker configurations. A digital pass code security lock is also provided. All of the SXD7000's amp channels offer multi-segment LED metering and level controls with detents. Settings of gain and sensitivity can be monitored on the front panel LCD. Input connections for the power amp are made via balanced combination XLR and 1/4" connectors. The amp provides both Binding Post and Speakon connectors for speakers. It is built with an all-steel chassis in a 19" rack mount design and has convenient carry handles making it ready for the rigors of the road. A power cord in included. - Features LEDs for optimal use on dark stages and indicates your current operating mode and filter settings
- Editable presets for DJ, live sound and commercial installations
- Multi-segment LED metering on each channel
- Individual channel level controls with detents for accurate setting of gain and sensitivity
- All steel chassis design and convenient carry handles make it ready for the road
UPC: 809164014379 In the Box Samson SXD7000 Power Amplifier with DSP IEC 3-Pin Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson SXD7000 Power Amplifier with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SXD7000 Specs | Rated Output Power | Stereo Both Channels Driven:
8 Ω 700 W
4 Ω 1000 W | | Signal to Noise Ratio | 20 Hz to 20 kHz: >100 dB | | Distortion | SMPTE-IM: 0.02% | | Input Sensitivity | At 8 Ω Voltage Gain: 5 dBu | | Voltage Gain | 34 dB | | Output Circuit | 2-Tier Class H | | Current Consumption | 115 VAC:
At 1/8 Rated Power 4 Ω: 5.5 A
At 1/3 Rated Power 4 Ω: 9.2 A
At Rated Power 4 Ω, Max: 16 A | | Distortion | Typical @ 4 Ω:
20 Hz to 20 kHz, 10 dB Below Rated Power: 0.02 %
1 kHz, Rated Power: 1 % | | Frequency Response | At 8 Ω 1 W, 0/-1 dB: 20 Hz to 20 kHz | | Damping Factor | 400 Hz: 120 | | Input Impedance | 20 kΩ balanced | | Input Clipping Level | 10 Vrms (22 dBu) | | Cooling | Continuously variable speed fan cooling | | Connector | Inputs: 2 x 3-pin XLR
2 x 1/4" (0.63 mm) TRS, balanced
Outputs: 4 x Binding post
2 x Speakon | | Indicators | Signal, -20 dB, 10 dB, limit, thermal | | Protection | Short circuit, open circuit, thermal, RF protection
Load protected against DC faults | | | | Display | 2 x 16 character LCD | | Modes | Manual mode, 2 full range, mono 2-way, sub/sat, 2 subs | | I/O | Stereo, mono A+B dual, mono A+B link, parallel A dual, parallel A link | | Digital | Dynamics Function: Filter, crossover, gain offset, EQ, limiter
Digital Delay Function: Max 20 ms per channel | | Digital Equalizer | Function Per Channel
fO: 1/12 octave at 20 to 20 kHz
Gain: ± 12 dB
Q: 0.5 to 5.0
Presets: DJ, vocal, live sound, install, rock, dance and jazz | | Setup | Lock controls with code, factory reset | | Dimensions (L x W x H) | 19.0 x 13.0 x 3.5" (482 x 330 x 88 mm) | | Weight | 33 lb (15 kg) | | | | Package Weight | 35.55 lb | | Box Dimensions (LxWxH) | 22.25 x 17.0 x 8.0" |
