User Manual for Samson SZONE 4 Channel 4 Zone Stereo Mixer Click to enlarge the picture
Contents of the user manual for the Samson SZONE 4 Channel 4 Zone
- Product category: Install Sound Mixers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Install Sound Mixers
|
User manual for the Samson SZONE 4 Channel 4 Zone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

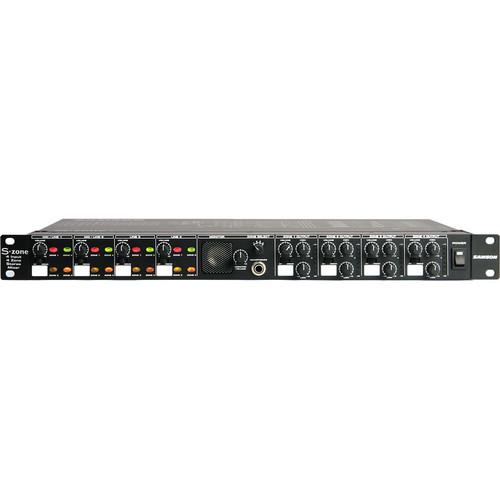

Product description The Samson S-Zone is a 4 zone stereo mixer designed for fixed installation in bars, restaurants, clubs, offices, schools and more. The mixer is designed with 4 inputs that are completely assignable to any of the 4 output zones. The result is an audio matrix, routing system that can isolate audio in specific areas within a venue. 2 balanced microphone and 4 balanced aux/line inputs are featured.A ducking feature provides a "talk over" effect while paging or announcing over music. The front panel features a volume control for each input and output zone, high and low tone controls are provided for each output zone. A built-in monitor speaker and headphone output are featured for monitoring any of the output zones. A convenient single rack-space enclosure make the S-Zone an ideal solution for fitness clubs, houses of worship, retail stores, lounges, etc. - Multi Zone Isolation
- The Samson S-Zone features 4 inputs and 4 output zones. Input channels 1 through 4 are assignable to any of the output zones, isolating audio in separate areas.
- Built In Speaker Monitor
- A built in speaker and headphone monitor output can be assigned to monitor any of the output zones.
- Ducker Feature
- A ducker is assigned to the microphone inputs and provides a "talk over" effect when paging or making announcements over music or program material.
- Euroblock Connections
- The rear panel connectors are Euroblock style for a trust worthy, solid connection to and from signal sources.
UPC: 809164003731 In the Box Samson SZONE 4 Channel/4 Zone Stereo Mixer with 2 Mic/Line Inputs with Ducking and 2 Stereo Line Inputs via Euroblock Output Connectors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson SZONE 4 Channel 4 Zone Stereo Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SZONE Specs | Total # Of Inputs | 4 - Balanced via Euroblock connector, see manual for wiring configuration | | Mic/Line Inputs | 2 - Mic / Stereo Inputs via Euroblock connector, see manual for wiring configuration | | Stereo Line Inputs | 2 - Stereo Inputs RCA Type via Euroblock connector, see manual for wiring configuration | | In-Line Inputs/Returns | No | | AUX Sends | No | | AUX Returns | No | | Inserts | No | | BUS (Group) Outputs | 4 - Balanced | | 2 Trk Master I/O | No | | ALT I/O | No | | Monitor Outputs | 1/4" Phone - Headphone Output
Internal Speaker | | EQ Section | Tone Controls:
Low: +/- 15dB @ 100Hz High: +/- 15dB @ 10kHz | | Solo/Mute | Zone 1 - 4 assignment controls | | Channel Level Control | Rotary POTS
Zone Input and Output Controls | | Trim/Gain Control | No | | Phantom Power | +12 VDC | | Metering | 7 Segment Peak LEDs (Zone Outputs 1 through 4) | | Frequency Response | not specified by manufacturer | | Dynamic Range | not specified by manufacturer | | Signal-to-Noise Ratio | 96 dB | | Total Harmonic Distortion (THD) | <. 02% CMRR: >52 dB (Mic) | | Power Supply | USA/Canada ~ 120V AC, 60Hz
Fuse: 100-120V AC; 250 mA (slow-blow) Power Consumption: 5 Watts
Power Inlet: Standard IEC Receptacle with Fuse | | Dimensions | 19 x 7.5 x 1.75" (482 x 190 x 44mm) (WxDxH) | | Weight | 5.1 lb. (2.31 kg) | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 21.0 x 13.8 x 3.65" |
