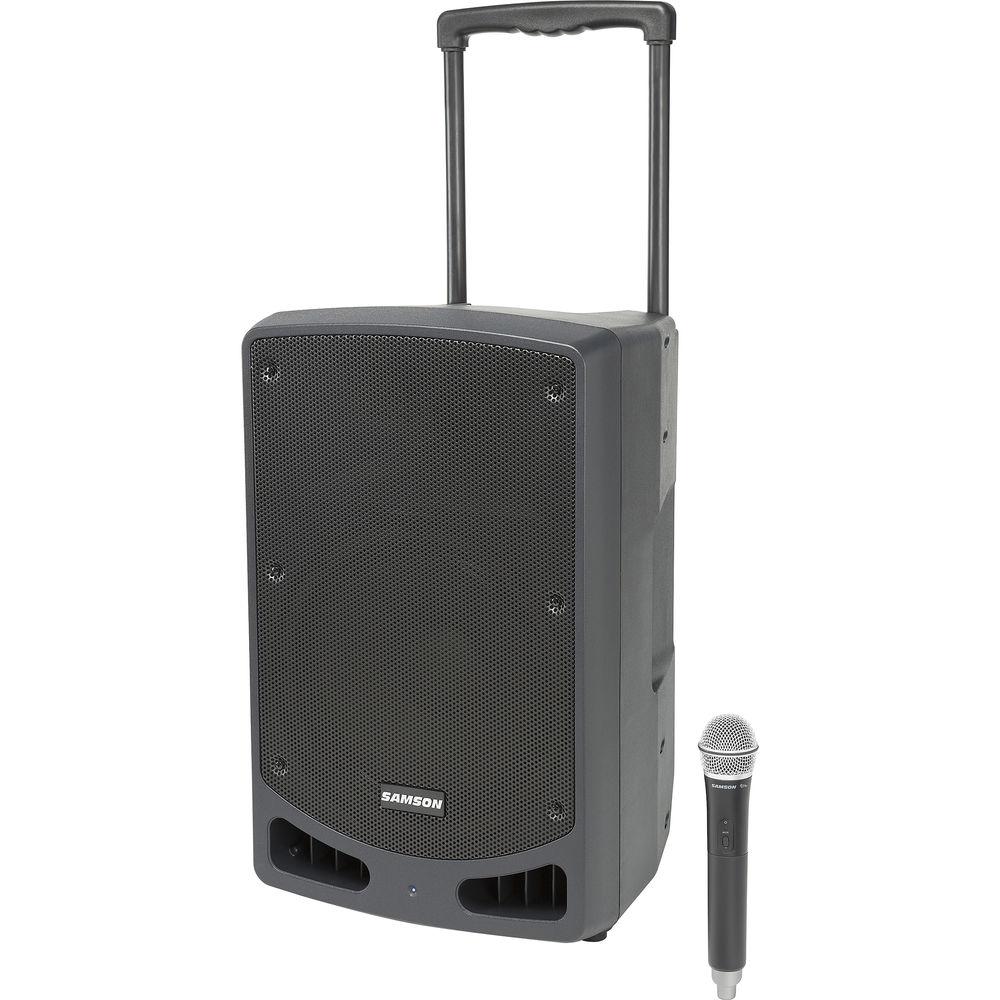

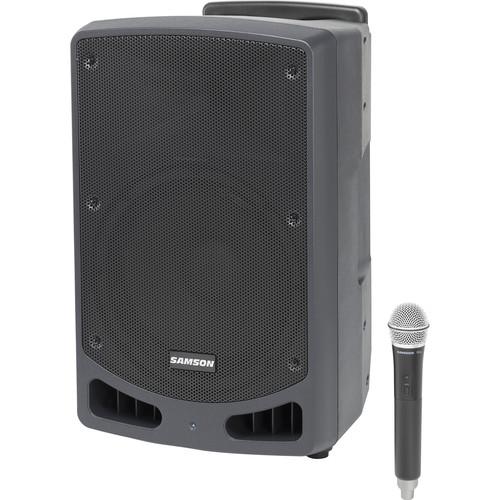

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The XP312w-D Expedition Rechargeable Portable PA from Samson features a 12" Woofer and 1" tweeter with 300W of peak power, a rechargeable lithium-ion battery with 12 hours of battery life, a top-mounted 4-channel mixer with Bluetooth, and a frequency-agile wireless handheld microphone transmitter for cord-free performances. It can be used by musicians, DJs, singers, and presenters as an all-in-one solution for sound reinforcement applications, which offers quick and easy set up.The XP312w is housed in a rugged polypropylene enclosure with a steel grille and is equipped with an XLR-1/4" combo input and a 3.5mm auxiliary input jack. The built-in locking telescoping handle and smooth rolling wheels make transport easy. Plus, a 1-3/8" speaker stand receptacle allows the XP312w to be mounted on any standard speaker stand. Also, a master 2-band EQ allows you to adjust the tonal characteristics of the PA and a line output jack is available to daisy-chain additional speakers.In addition, the XP312w is capable of handling up to three wireless systems simultaneously. It comes with a single Concert 88a handheld frequency-agile UHF wireless system; an extra wireless receiver slot is included for adding a second Concert 88a series wireless system (sold separately), while a USB wireless port allows you to integrate an XPD series USB digital wireless system too (sold separately). - All-in-one portable PA system that weighs 38 lb
- Internal rechargeable lithium-ion battery for up to 12 hours of continuous use
- Bluetooth connectivity to connect wireless music sources

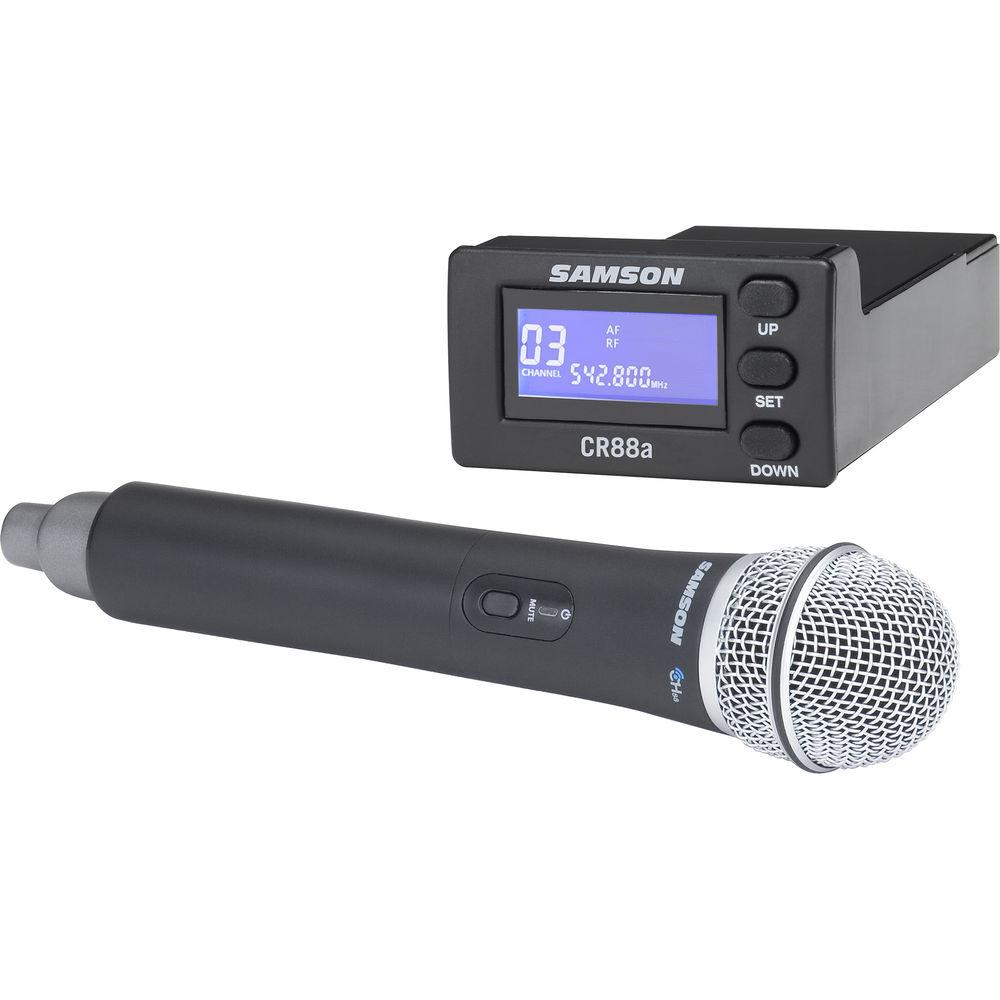

- Includes a Concert 88a handheld frequency-agile UHF wireless system (300' operating range)
- Extra wireless receiver slot for adding an additional Concert 88a series wireless system (sold separately)
- 2-way speaker enclosure with 12" woofer and 1" tweeter
- Class-D amplifier produces 300W of peak power

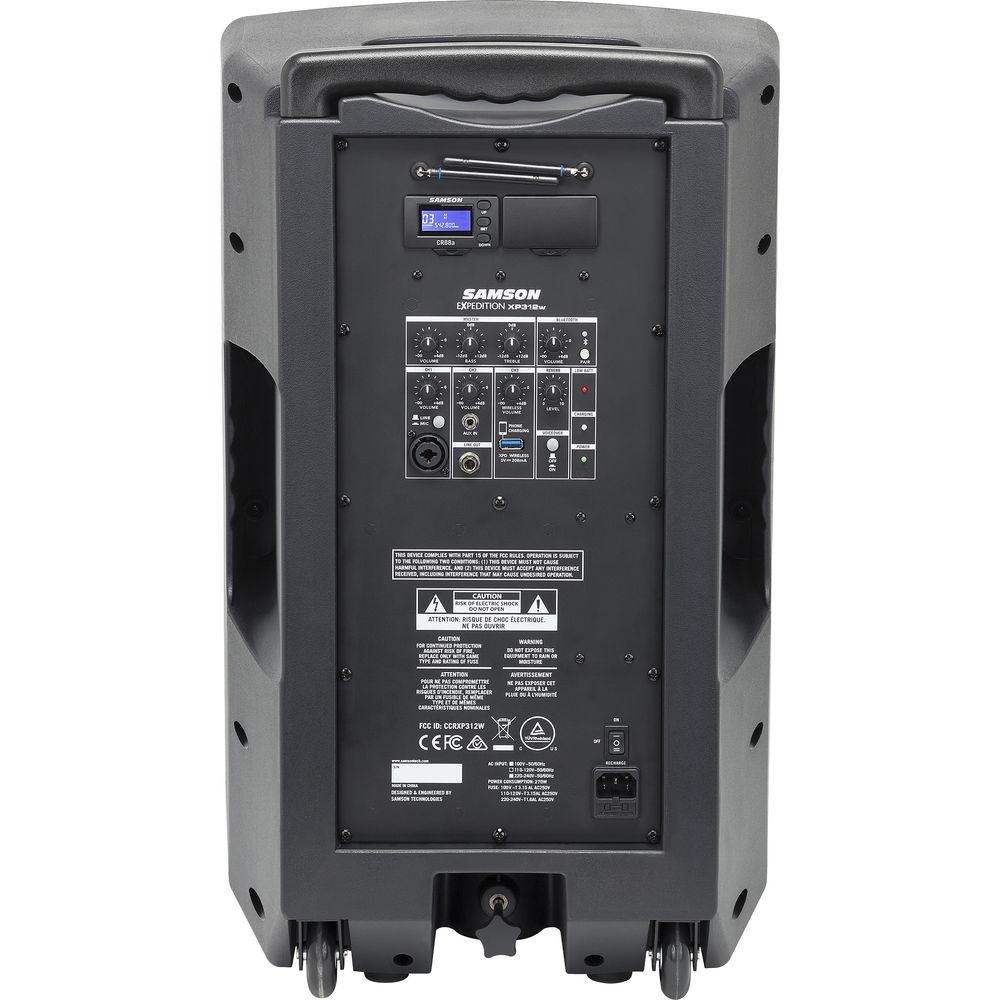

- Top-mounted 4-channel mixer with 2-band (bass and treble) EQ
- Independent volume controls on each channel
- XLR-1/4" combo selectable mic/line input for microphones and line-level devices
- 3.5mm input for stereo line-level devices (MP3 players, keyboards, etc.)
- Variable reverb control for mic/wireless inputs
- Voiceover control with priority ducking
- Line output to daisy-chain multiple systems together
- USB wireless port for use with Samson XPD series USB digital wireless systems (sold separately) and phone charging
- Battery level, charging, and power LED indicators

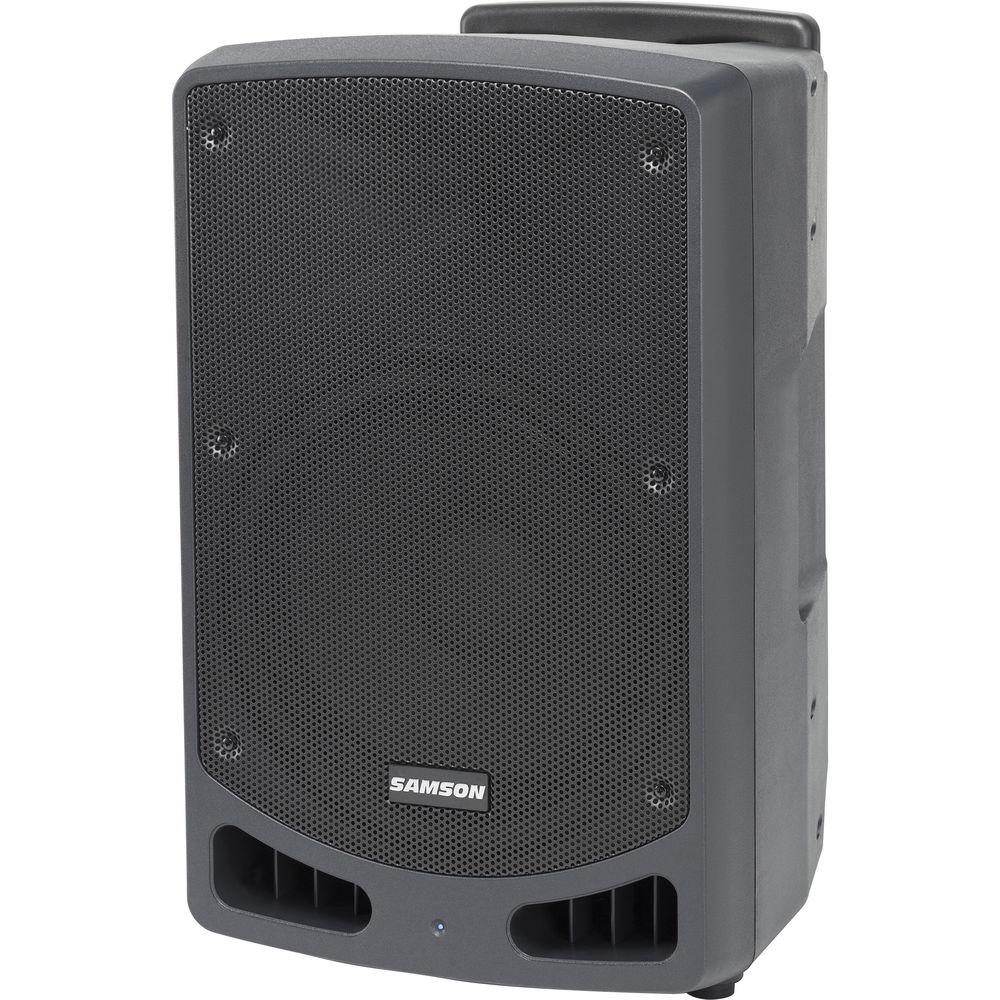

- Rugged polypropylene enclosure with steel grille

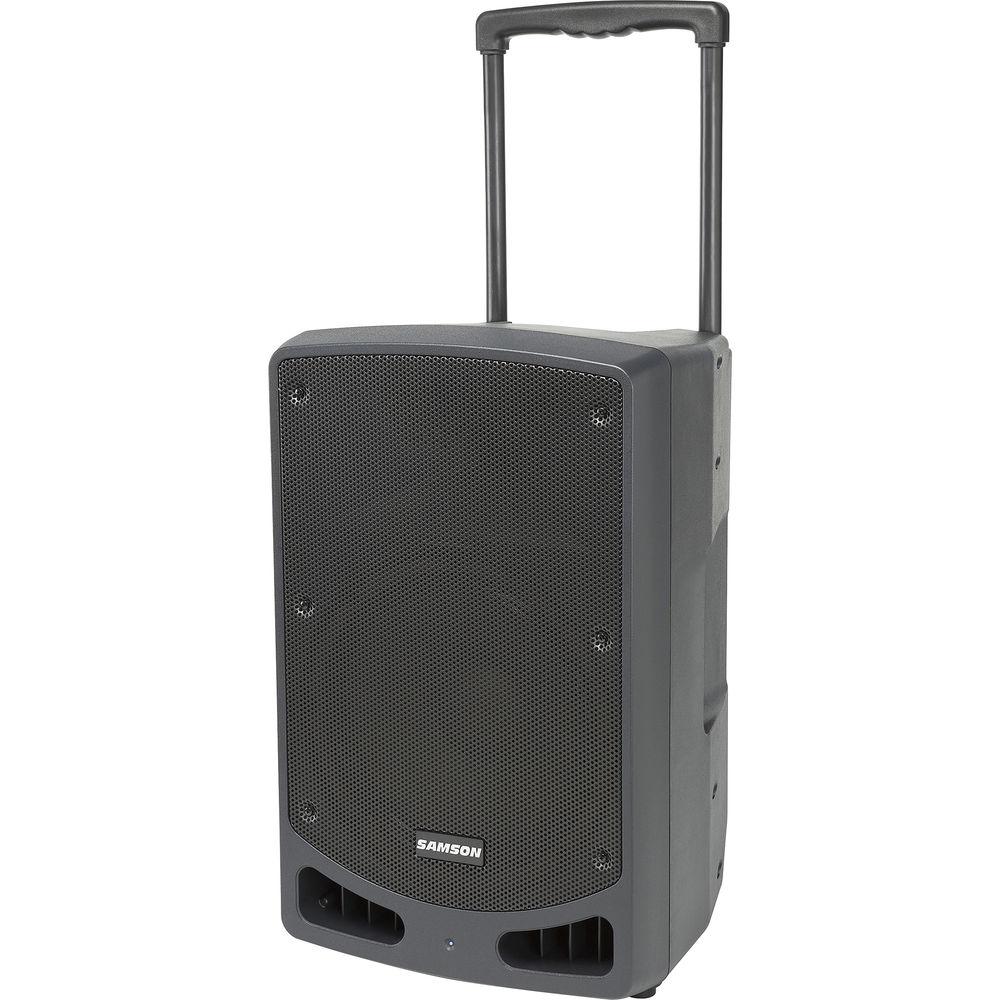

- Retractable telescopic handle and smooth rolling wheels for easy transport
- 1-3/8" speaker stand mount
- Side microphone mounting clips for wireless mic storage
UPC: 809164023180 In the Box Samson XP312w-D Expedition Rechargeable Portable PA (Band D: 542 to 566 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson XP312w-D Expedition Rechargeable Portable PA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson XP312 Specs | Frequency Band | D: 542 to 566 MHz | | Output Power | 300 W Peak | | Frequency Response | 50 Hz to 18 kHz (-3 dB) | | Speakers | Woofer: 12.0" / 30.5 cm
Tweeter: 1.0" / 2.5 cm | | Inputs | 1 x XLR-1/4" Combo Mic/Line
1/8" / 3.5 mm Auxiliary
USB Wireless | | Outputs | 1/4" / 6.3 mm | | Line Level | Controls: Master, Channels 1 to 3, Bluetooth | | Tone Control | Master Bass and Treble EQ | | Dynamics | Control: Reverb, Voiceover (Switch) | | Bluetooth | 4.0, A2DP | | Battery Life | Up to 12 Hours by Built-In Li-Ion | | Battery Charge Time | 4 to 6 Hours | | Material of Construction | Polypropylene, Steel Grille, Telescopic Handle, Smooth Rolling Wheels | | Other Accessories | Extra UHF Slot Cover | | Wireless Microphone Type | 1 x Samson Concert 88a Handheld UHF | | Wireless Range | 100' / 30 m (Line-of-Sight) | | Wireless Frequency Band | D | | Dimensions (H x W x D) | 23.50 x 15.25 x 14.25" / 59.69 x 38.74 x 36.20 cm | | Weight | 38.0 lb / 17.2 kg |
