User Manual for Samson XPD2 Handheld USB Digital Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Samson XPD2 Handheld USB Digital Wireless
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson XPD2 Handheld USB Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

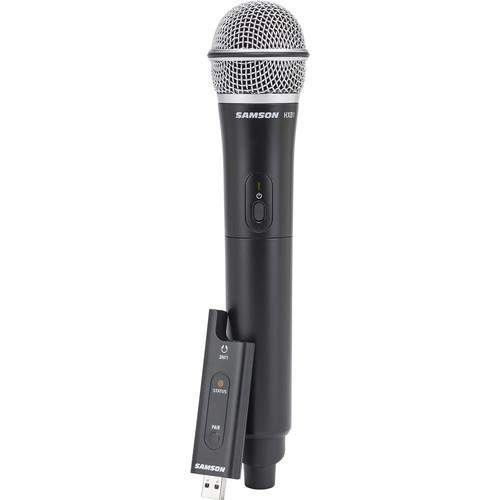

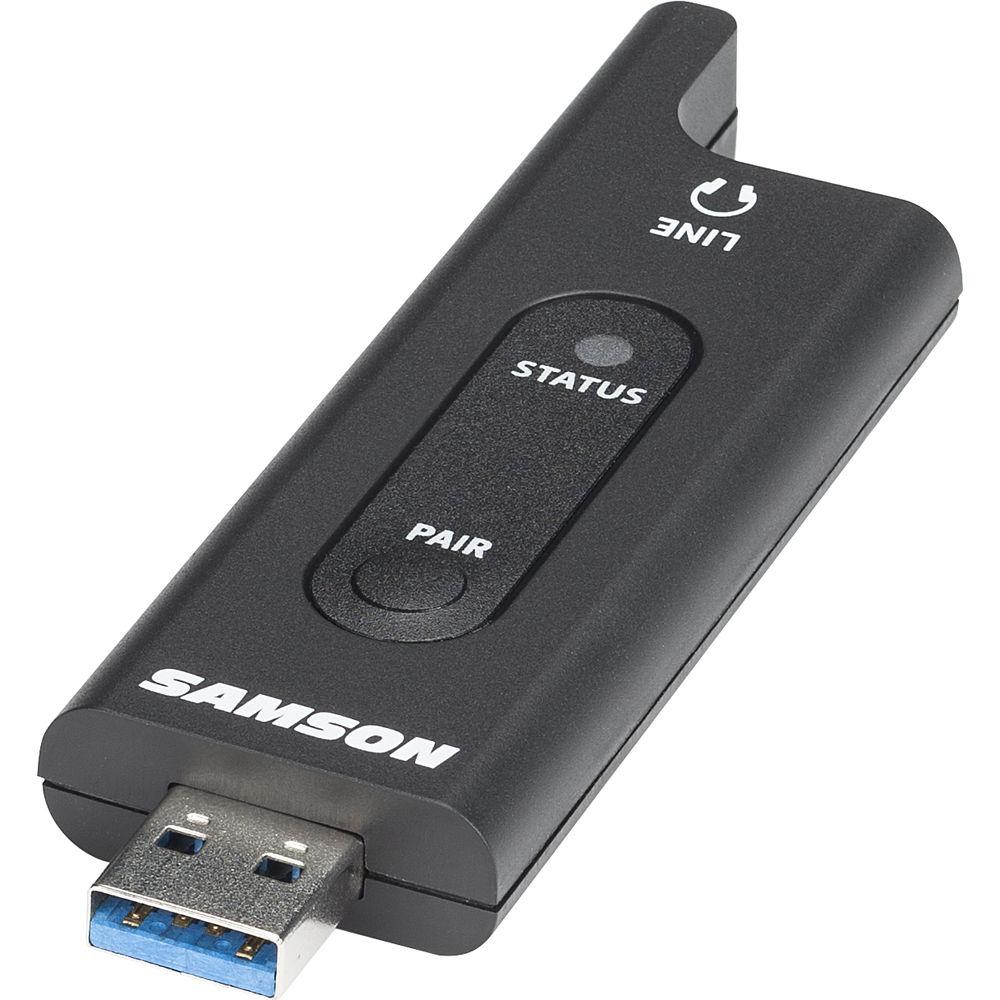

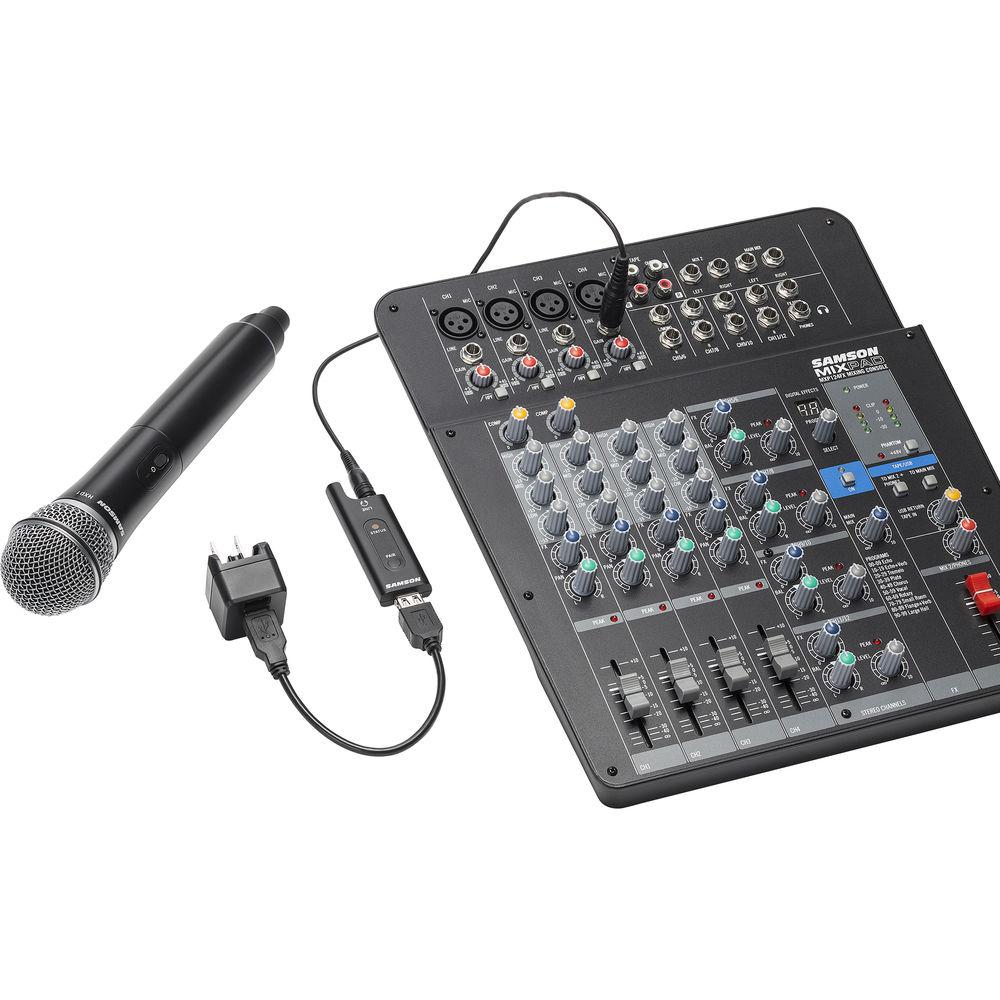

Product description The XPD2 Handheld USB Digital Wireless Microphone System from Samson is a 2.4 GHz, portable dynamic Q6 handheld wireless microphone with a USB stick receiver. It can be used to capture audio for broadcast, presentation, and live sound applications and more. The XPD2 offers simple setup, professional full-range audio, and 100' of wireless operation. The RXD2 USB stick receiver connects directly to Windows or Mac computers, or with any Samson Expedition Series portable PA system (sold separately) that features a USB wireless port. A 1/8" output allows for headphone monitoring or connection to any device with an analog line input, including smartphones and other mobile devices. Furthermore, the XPD2 wireless delivers audio via digital transmission, which enables the HXD2 handheld microphone transmitter to send uncompressed signal to the receiver. The result is greater signal-to-noise when compared to a traditional wireless system, and a performance that sounds as good as using a wired microphone. - 2.4 GHz USB digital wireless system
- Ideal for broadcasting, live streaming, presentations, and more

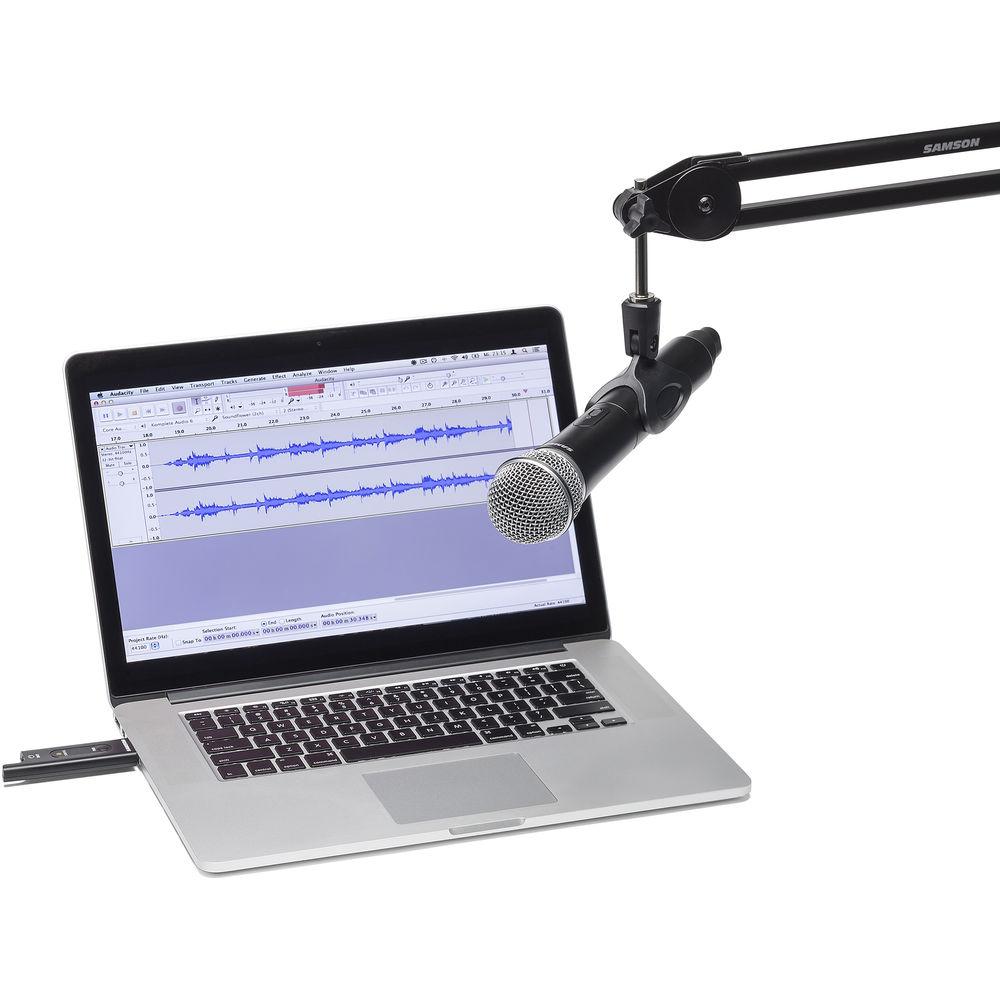

- Plug-and-play operation with Mac and Windows
- Works with iPad via Apple's Lightning to USB Camera Adapter
- Works with Android devices via a host OTG adapter

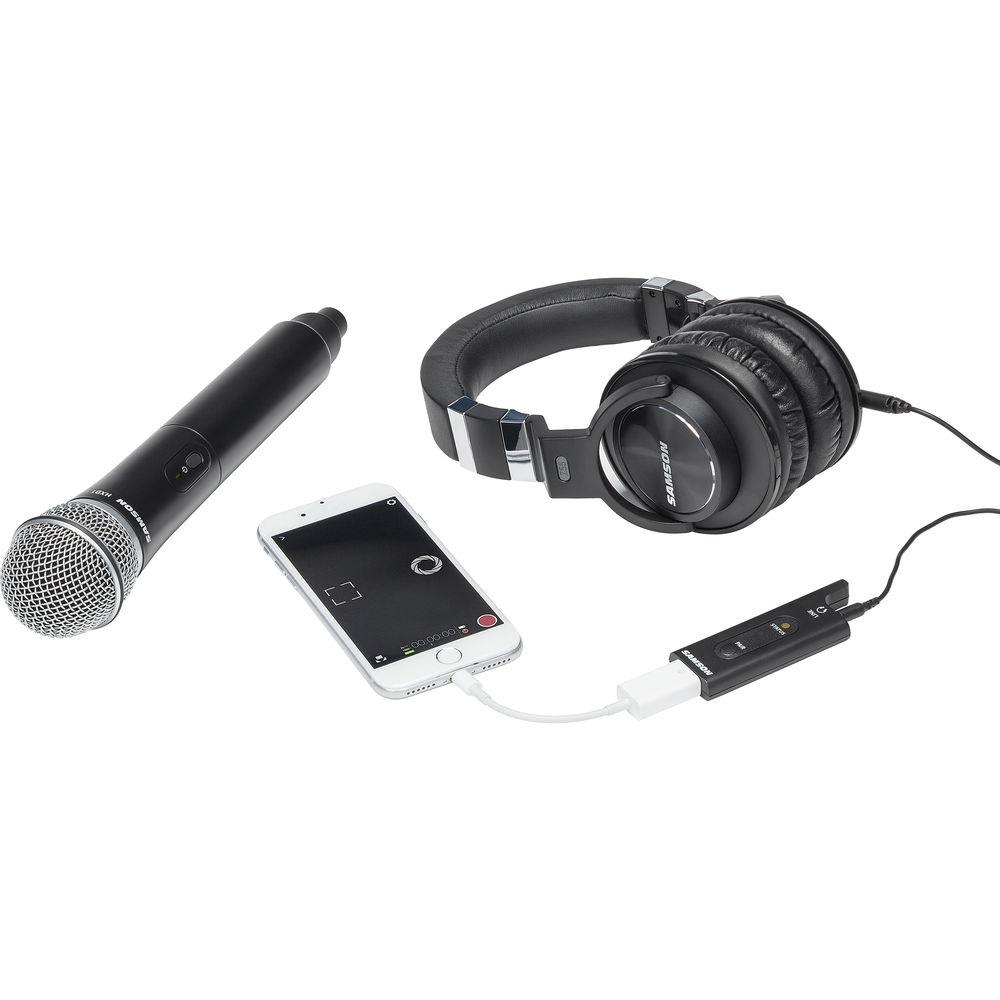

- Receiver features a 3.5mm headphone/monitor output

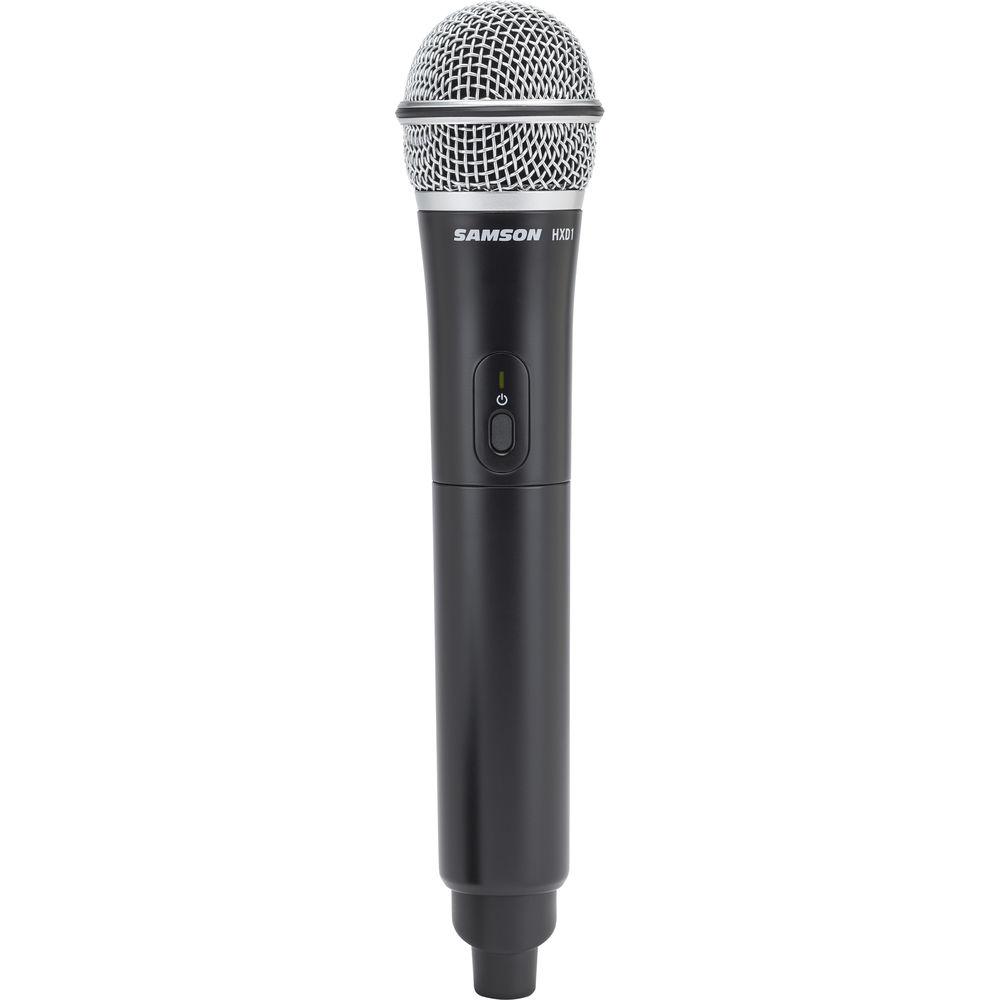

- HXD1 handheld microphone transmitter with Samson Q6 dynamic microphone element
- Transmitter offers 20 hours of battery life using two AA batteries (not included)
- 100' operating range (line of sight, environment dependent)
- 1-touch pairing, adjustable volume controls on transmitter

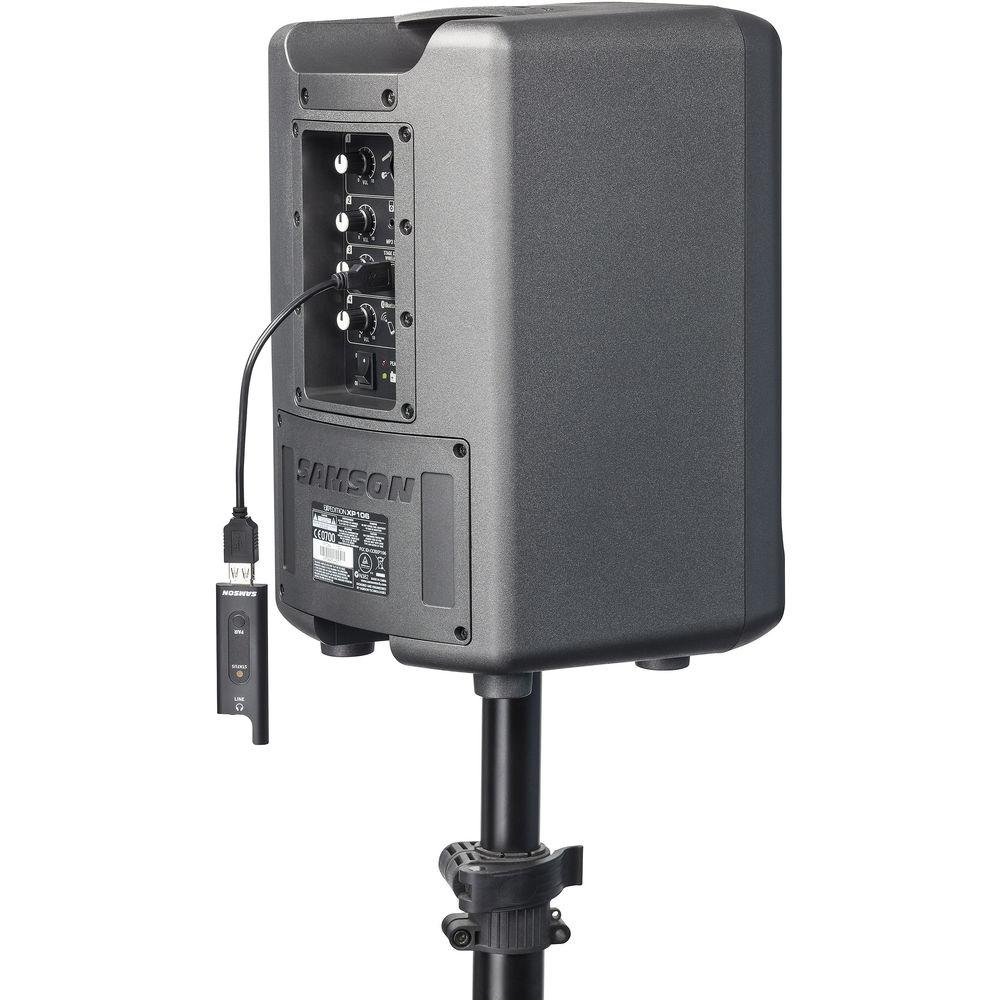

- Compatible with Samson Expedition Series Portable PAs that feature USB wireless ports
- Includes mic clip and USB extension cable
UPC: 809164220398 In the Box Samson XPD2 Handheld USB Digital Wireless Microphone System Microphone Clip USB Extension Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson XPD2 Handheld USB Digital Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWXPD2HQ6 Specs | | | # Of Simultaneous Systems | 2 | | Working Range | 100' line of sight | | Working Frequency | 2.404~2.476 GHz | | Modulation Type | GFSK | | Audio Frequency Response | 20 Hz to 17 kHz (-1 dB) | | Total Harmonic Distortion (THD) | <0.1% (at 1 kHz, -10 dBu) | | Signal to Noise | >85 dB | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Microphone Element | Q6 dynamic | | RF Power | <10 mW EIRP | | Power Requirements | 2 x AA (LR6) alkaline batteries | | Battery Life | 20 hours | | Audio Sample Rate | 32 kHz | | Dimensions (L x Diam) | 10.2 x 2.1" / 25.9 x 5.3 cm | | Weight | 0.5 lb / 218 g | | | | Maximum Audio Output Level Analog | 9 dBu | | Headphone Output | 22 mW into 16 or 32 Ohms | | Operating Voltage | 5 VDC | | Dimensions (L x D x H) | 3.5 x 0.9 x 0.3" / 8.9 x 2.3 x 0.8 cm | | Weight | 0.35 oz / 10 g | | | | Package Weight | 1.04 lb | | Box Dimensions (LxWxH) | 11.9 x 4.8 x 2.55" |
