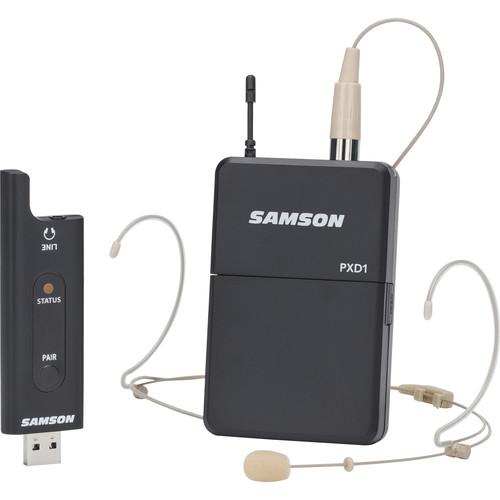

Product description The XPD2 Headset USB Digital Wireless System from Samson is a 2.4 GHz, portable wireless bodypack transmitter and headset microphone with a USB stick receiver. It can be used to capture audio for broadcast, presentation, and live sound applications and more. The XPD2 offers simple setup, professional full-range audio, and 100' of wireless operation. The RXD2 USB stick receiver connects directly to Windows or Mac computers, or with any Samson Expedition Series portable PA system (sold separately) that features a USB wireless port. A 1/8" output allows for headphone monitoring or connection to any device with an analog line input, including smartphones and other mobile devices. Furthermore, the XPD2 wireless system delivers audio via digital transmission, which enables the DE5 micro headset microphone and PXD1 bodypack transmitter to send an uncompressed signal to the receiver. The result is greater signal-to-noise when compared to a traditional wireless system, and a performance that sounds as good as using a wired microphone. - 2.4 GHz USB digital wireless system
- Ideal for broadcasting, live streaming, presentations, and more

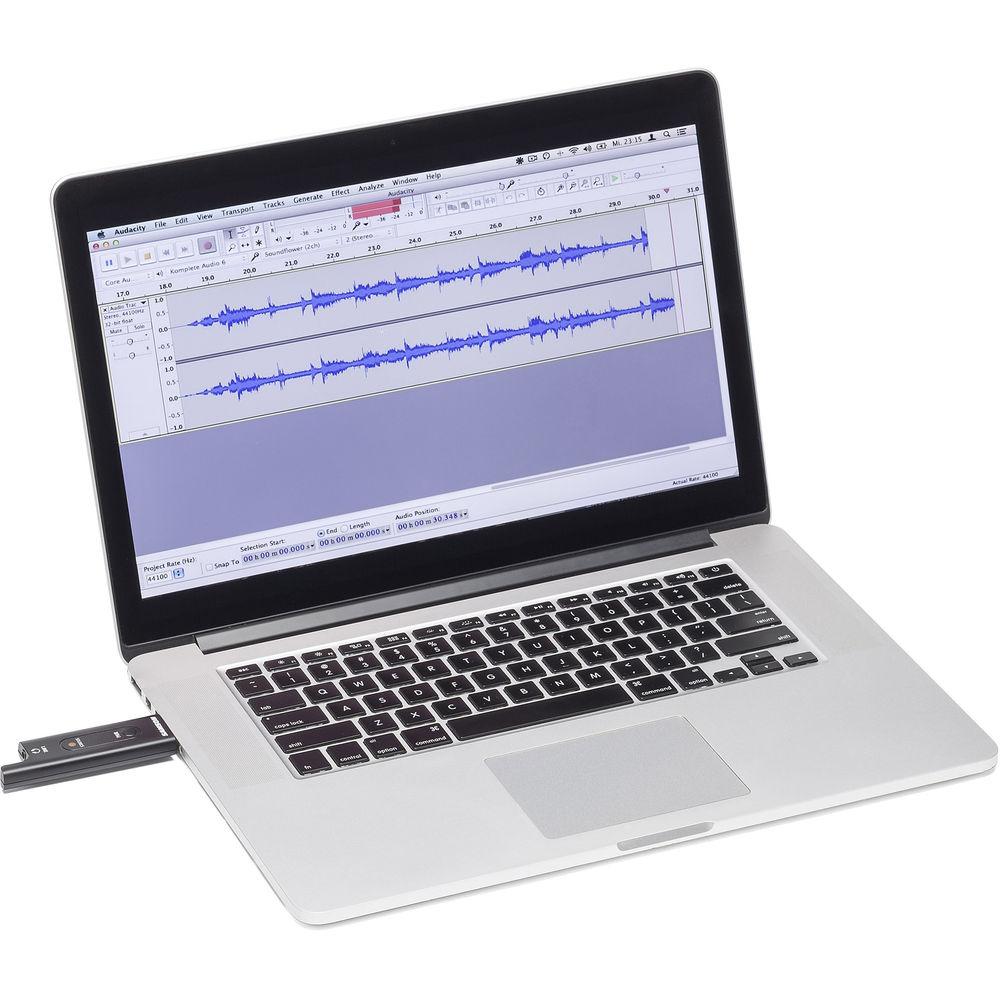

- Plug-and-play operation with Mac and Windows

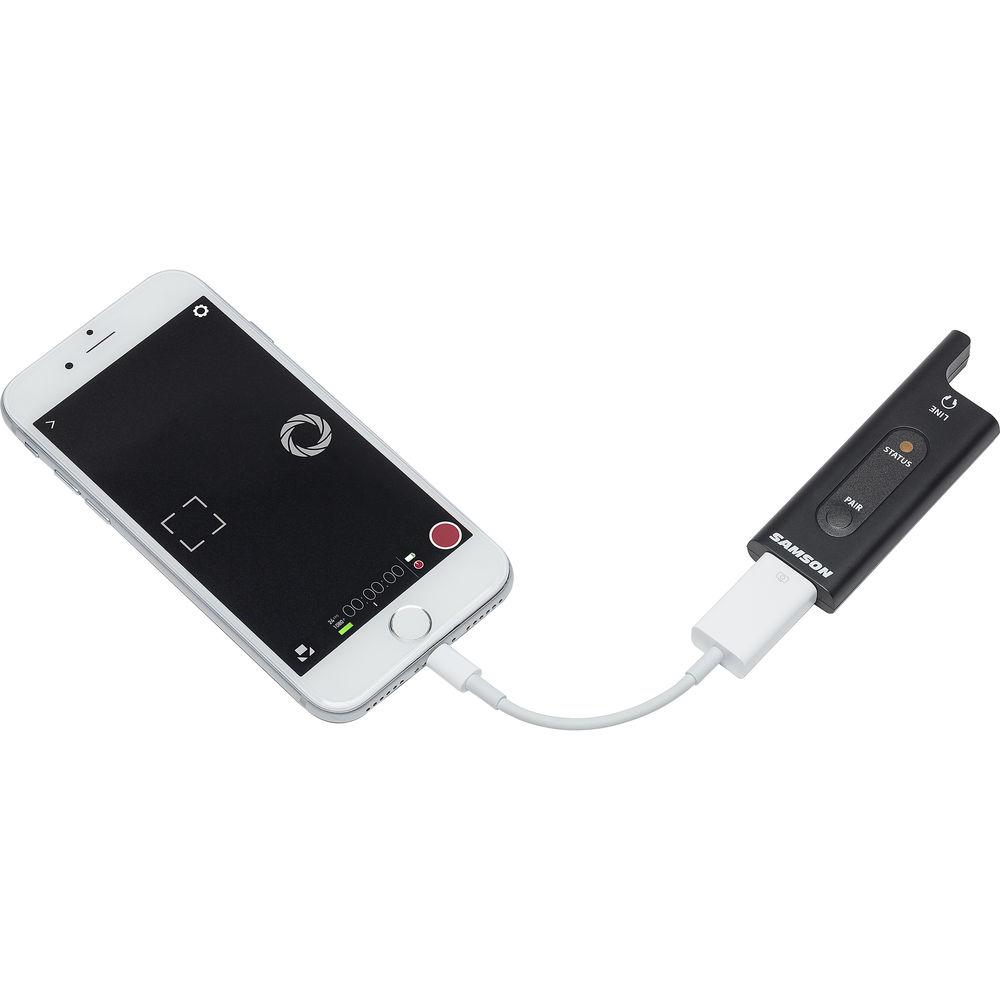

- Works with iPhone/iPad via Apple's Lightning to USB Camera Adapter
- Works with Android devices via a host OTG adapter

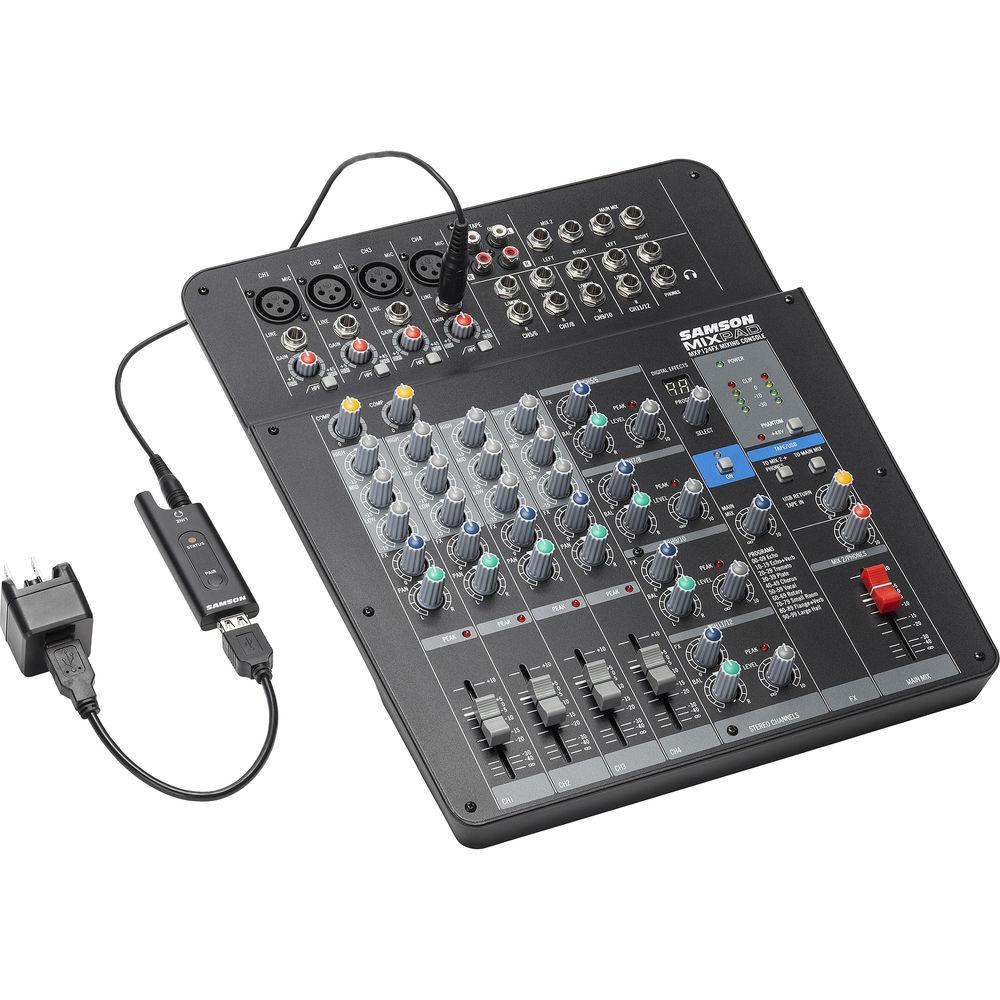

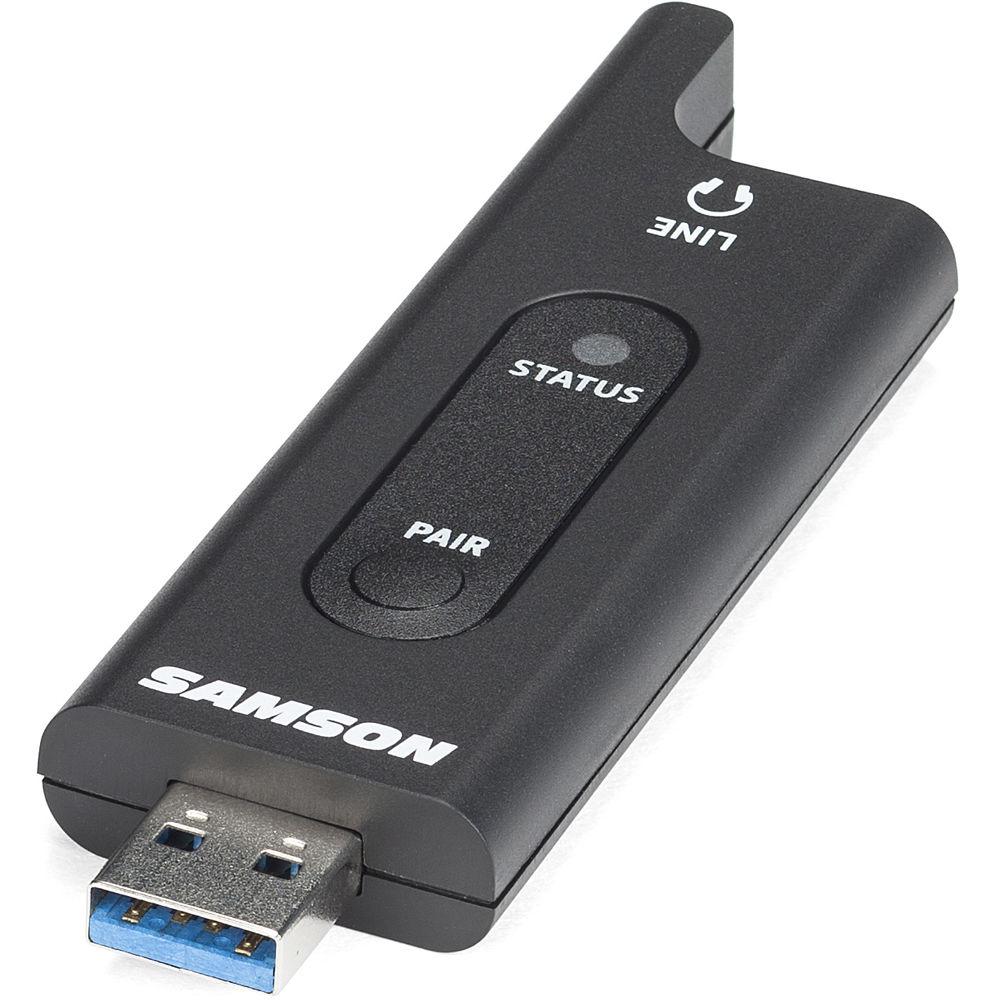

- Receiver features a 3.5mm headphone/monitor output

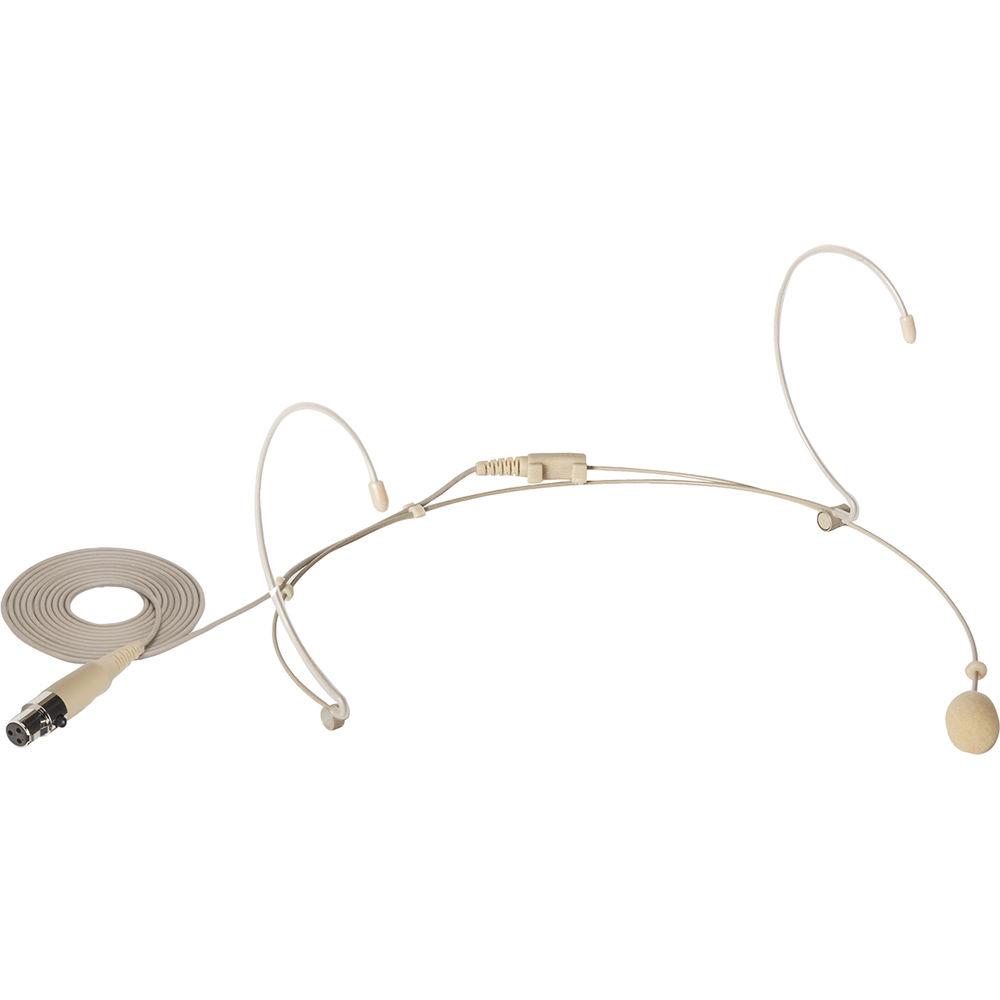

- PXD1 beltpack transmitter with Samson DE5 Micro Headset microphone
- Transmitter offers 20 hours of battery life using two AA batteries (not included)
- 100' operating range (line of sight, environment dependent)
- 1-touch pairing, adjustable volume controls on transmitter

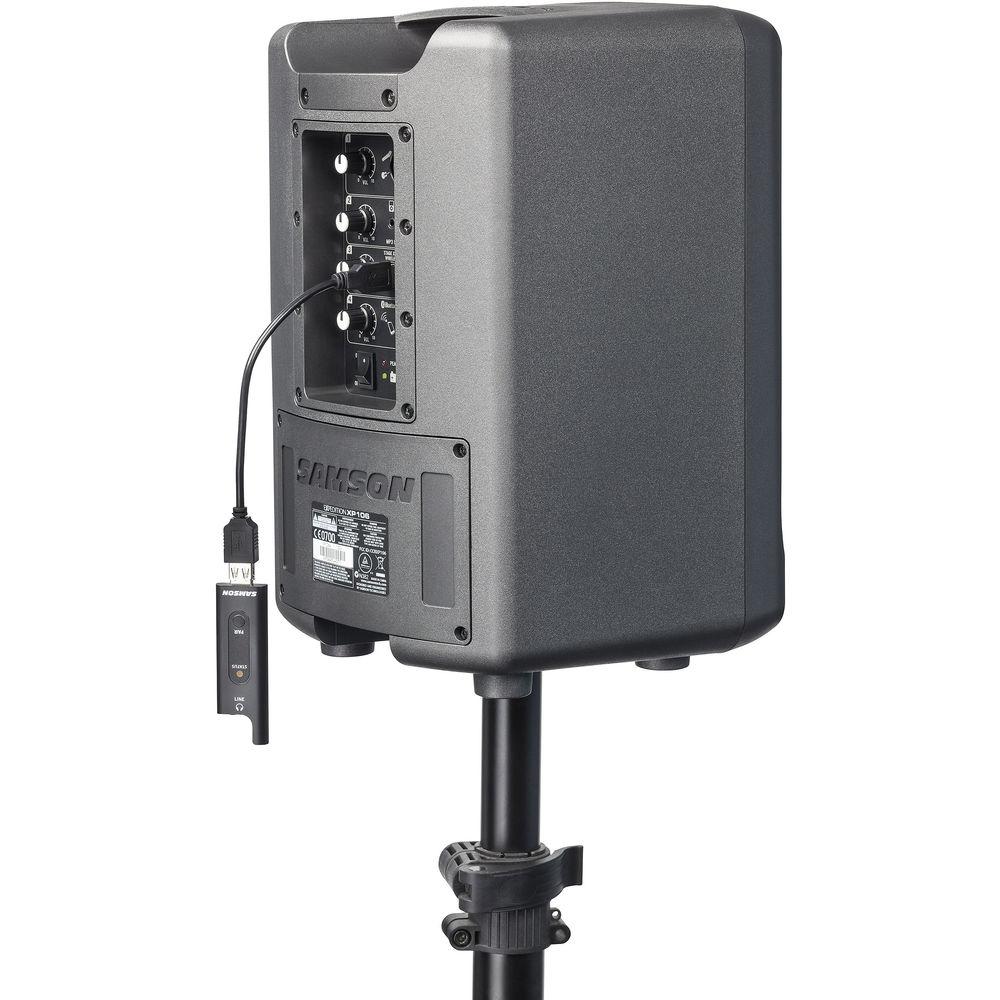

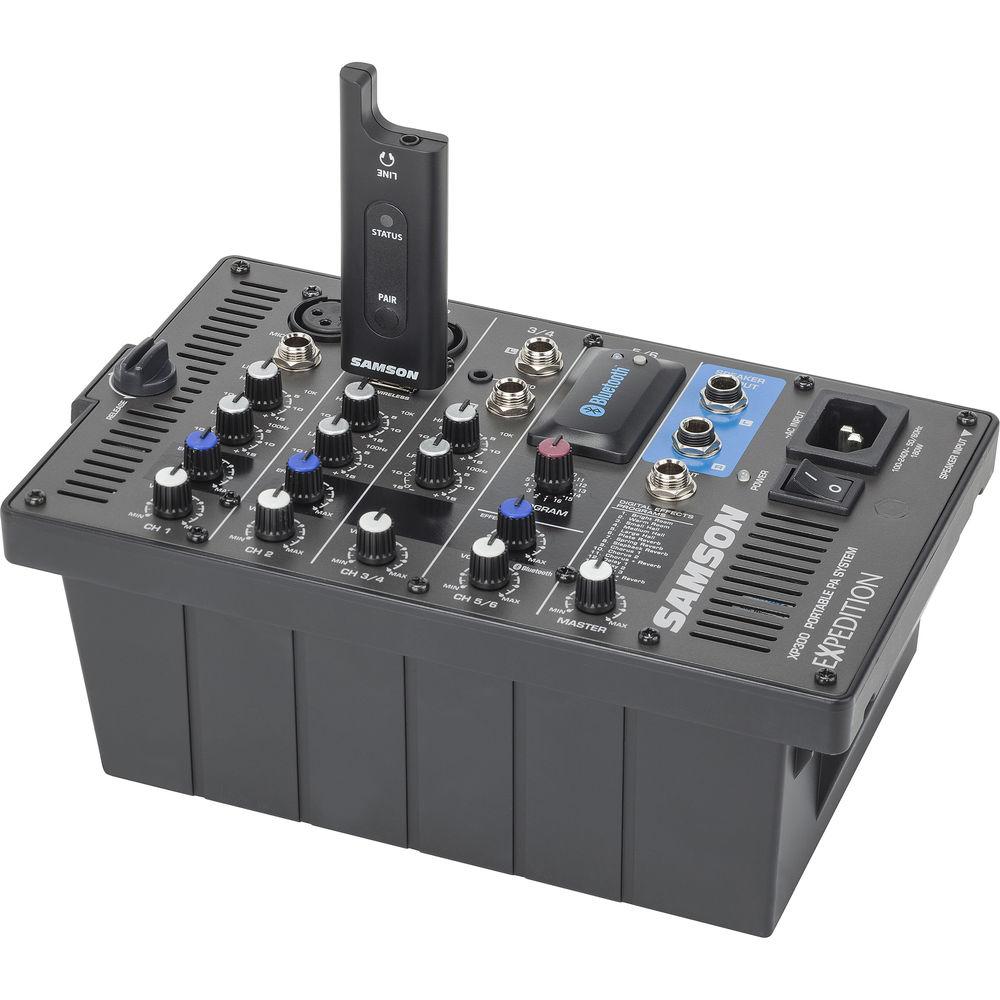

- Compatible with Samson Expedition Series Portable PAs that feature USB wireless ports
- Includes a USB extension cable
UPC: 809164220374 In the Box Samson XPD2 Headset USB Digital Wireless System USB Extension Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson XPD2 Headset USB Digital Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWXPD2BDE5 Specs | | | # Of Simultaneous Systems | 2 | | Working Range | 100' line of sight | | Working Frequency | 2.404~2.476 GHz | | Modulation Type | GFSK | | Audio Frequency Response | 20 Hz to 17 kHz (-1 dB) | | Total Harmonic Distortion (THD) | <0.1% (at 1 kHz, -10 dBu) | | Signal to Noise | >85 dB | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Input Connector | Mini-XLR (P3) | | RF Power | <10 mW EIRP | | Power Requirements | 2 x AA (LR6) alkaline batteries | | Battery Life | 20 hours | | Audio Sample Rate | 32 kHz | | Dimensions (L x Diam) | 3.75 x 2.44 x 0.75" / 9.53 x 6.2 x 1.91 cm | | Weight | 0.2 lb / 0.1 kg | | | | Maximum Audio Output Level Analog | 9 dBu | | Headphone Output | 22 mW into 16 or 32 Ohms | | Operating Voltage | 5 VDC | | Dimensions (L x D x H) | 3.5 x 0.9 x 0.3" / 8.9 x 2.3 x 0.8 cm | | Weight | 0.35 oz / 10 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.4 x 6.0 x 2.7" |
