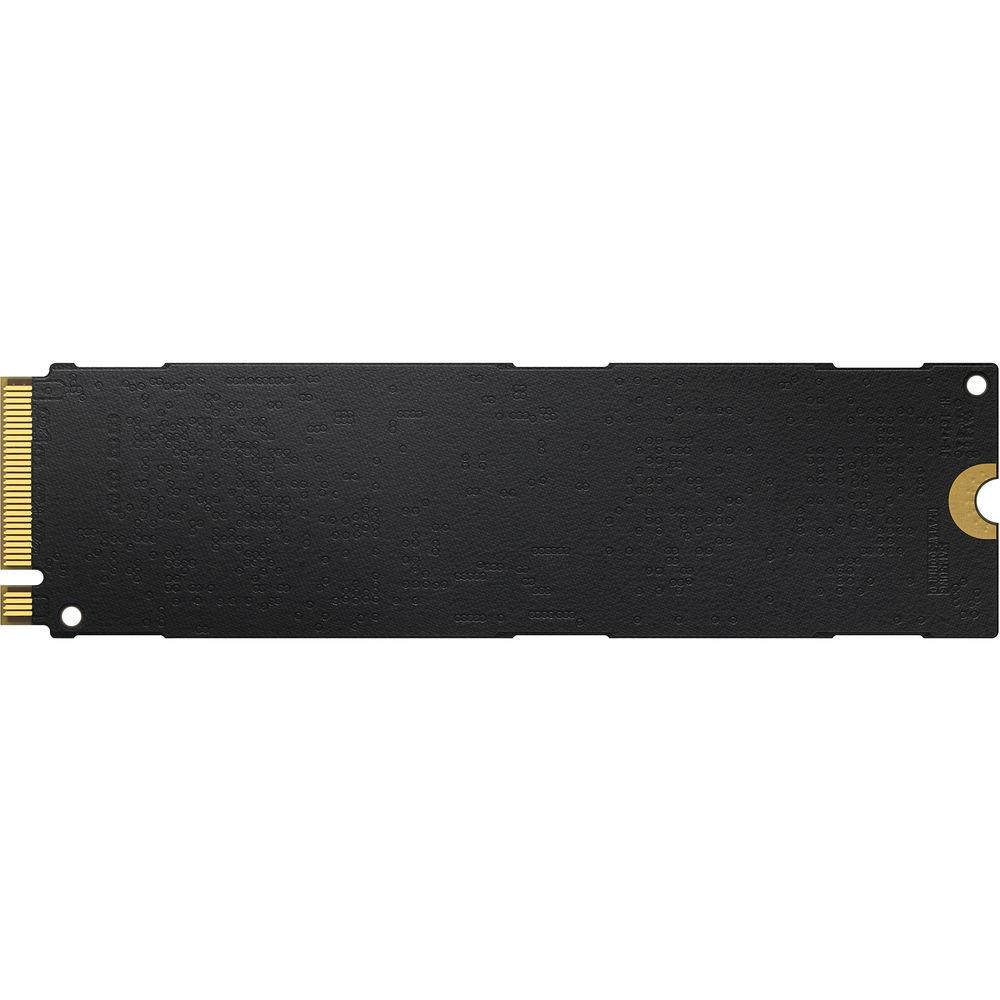

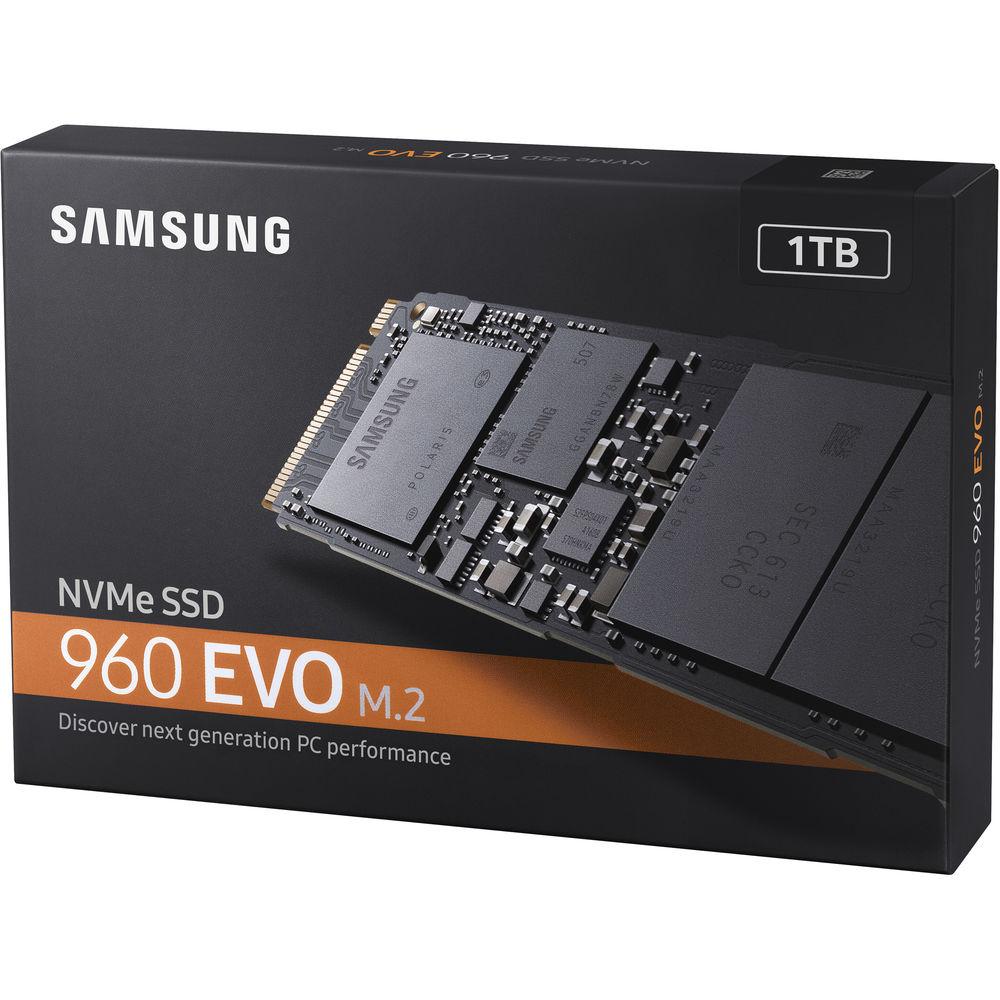

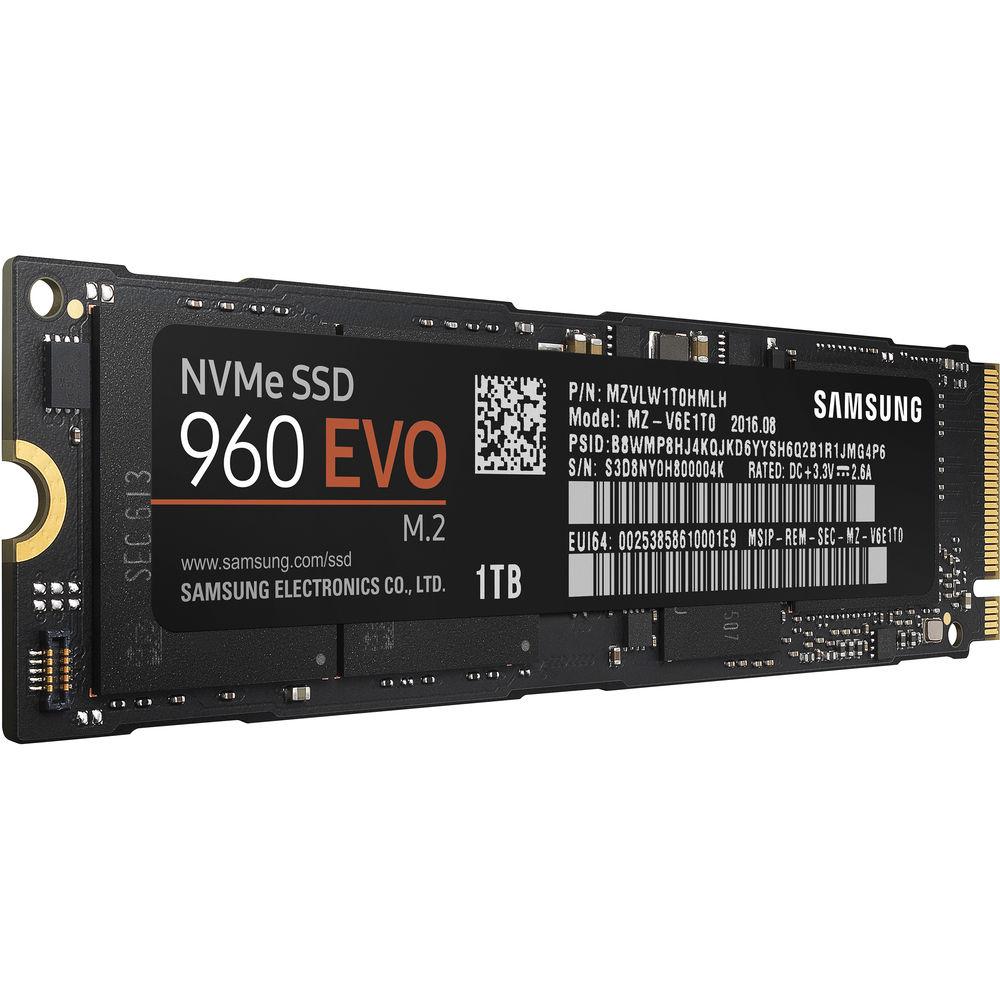

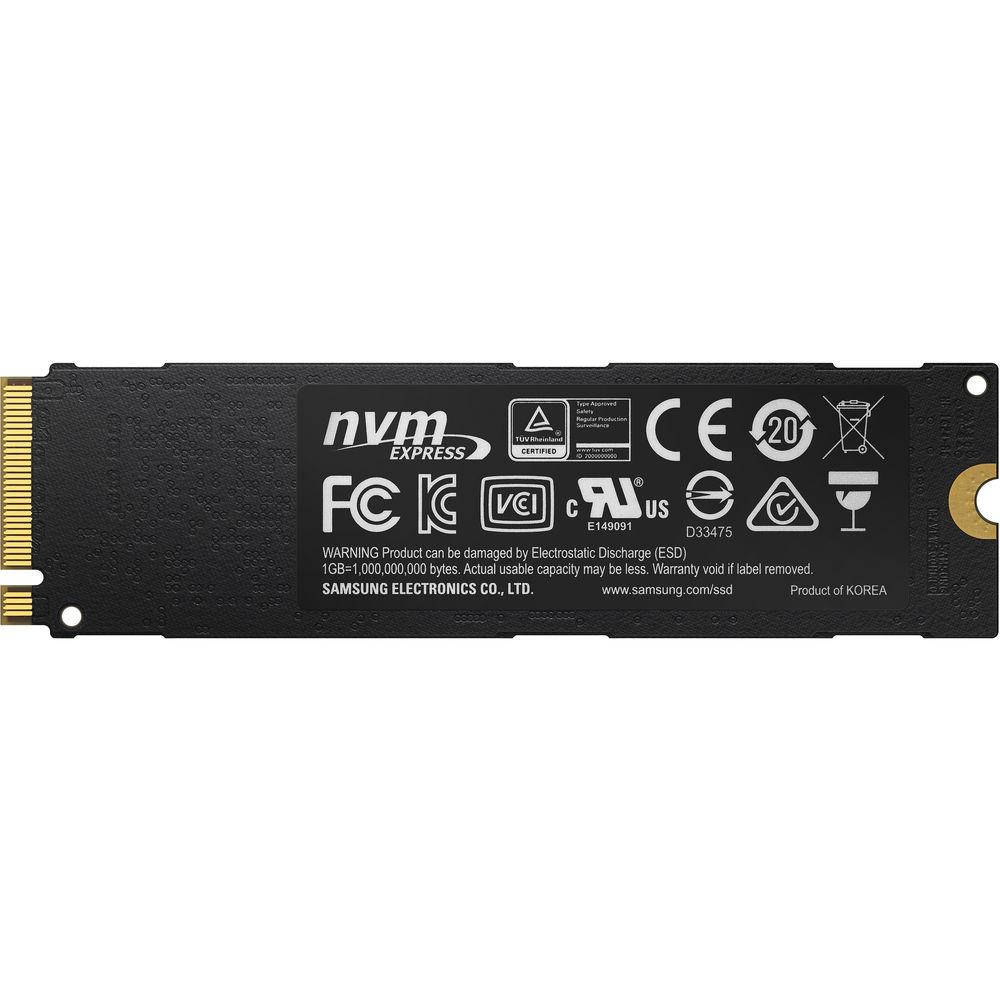

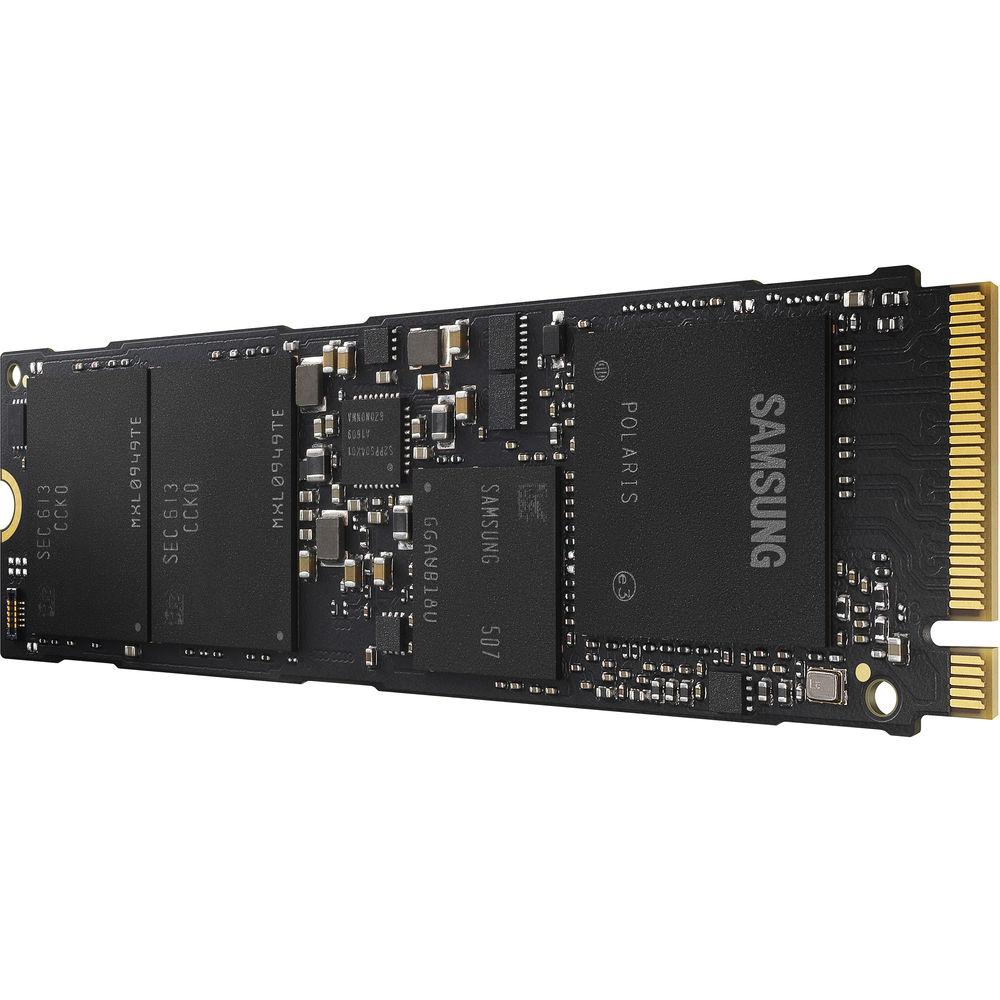

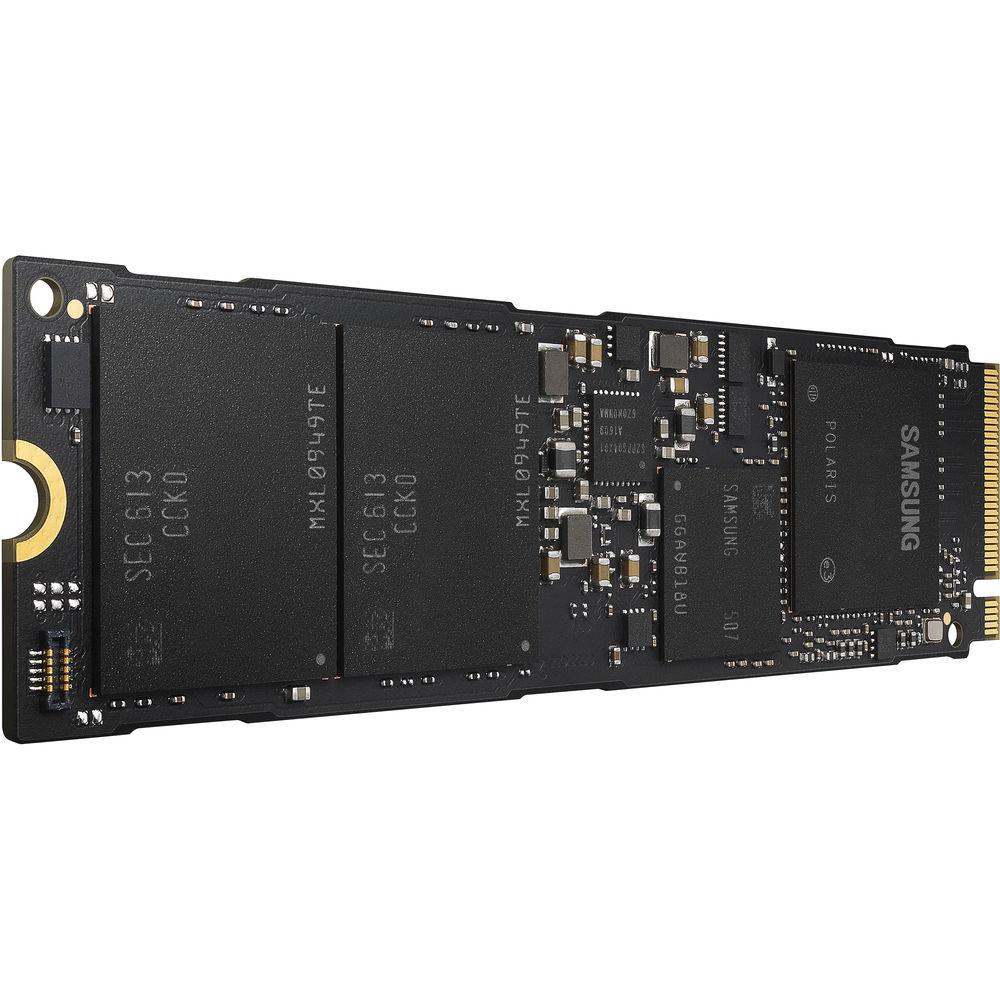

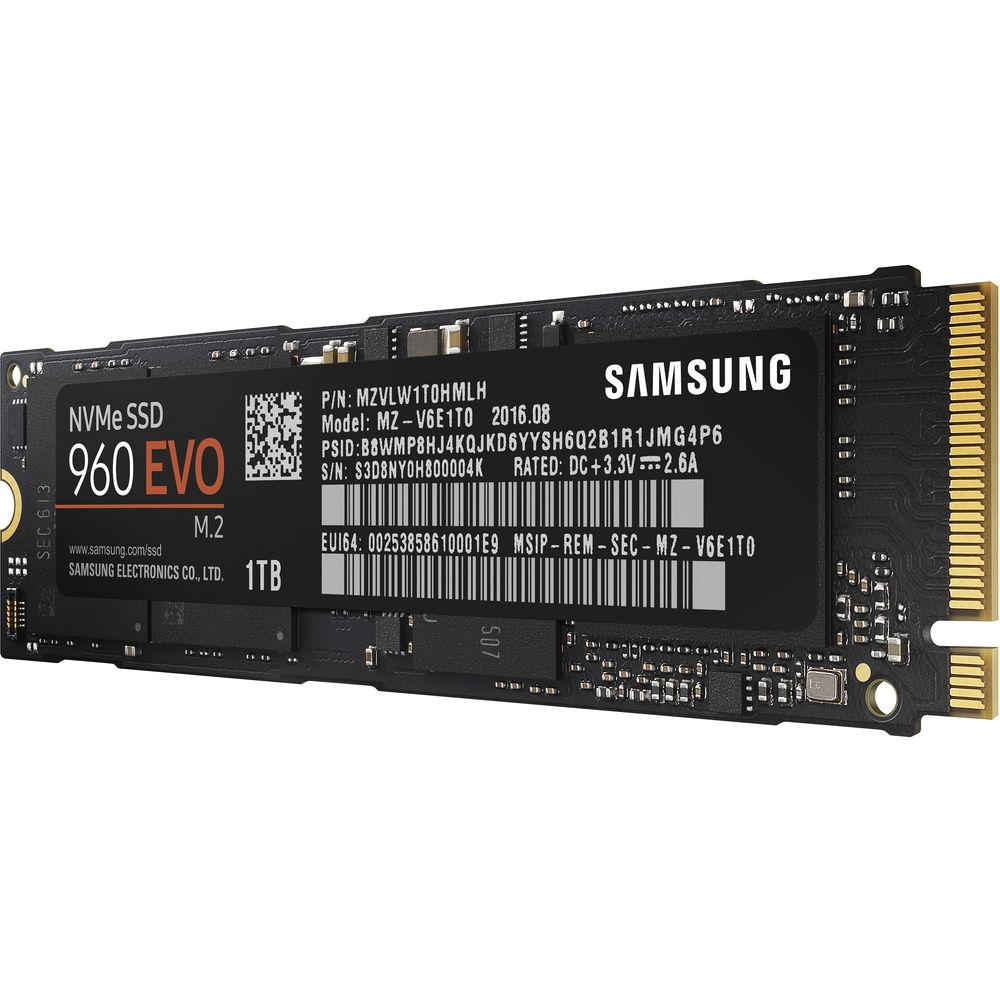

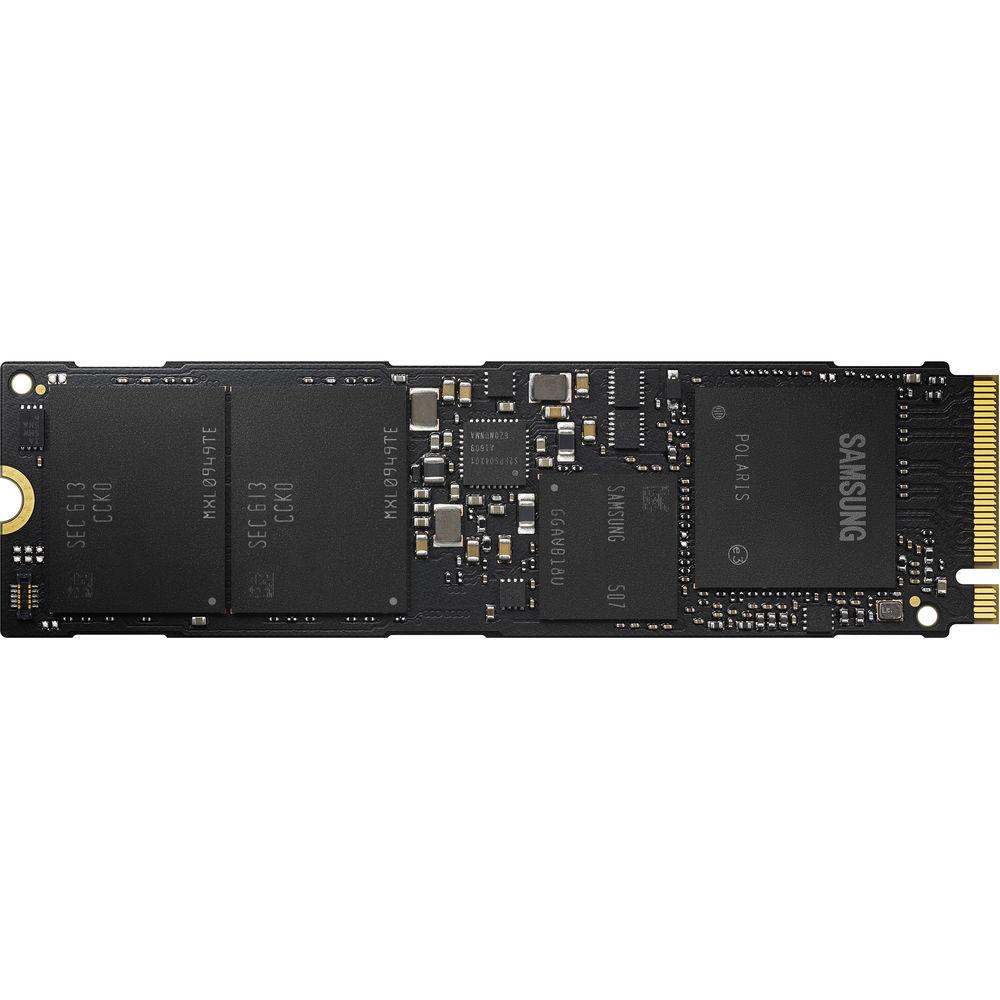

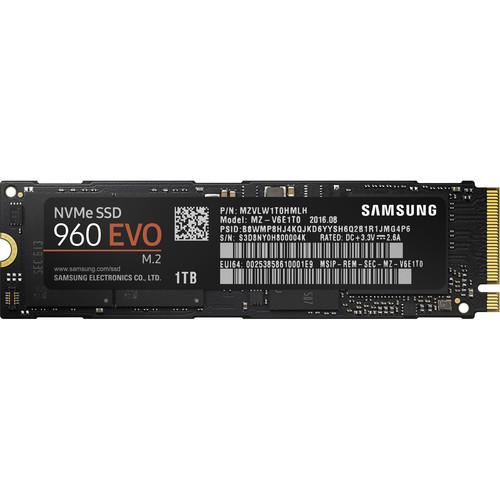

User Manual for Samsung 1TB 960 EVO NVMe M.2 Internal SSD Click to enlarge the picture
Contents of the user manual for the Samsung 1TB 960 EVO NVMe M.2
- Product category: Internal Drives Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Internal Drives
 |
User manual for the Samsung 1TB 960 EVO NVMe M.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More - 960 EVO NVMe M.2 Internal SSD
With data transfer rates of up to 3,200 MB/s, the 1TB 960 EVO NVMe M.2 Internal SSD from Samsung lets you boot directly from the drive for faster system startups, file transfers, content streaming, and much more. Accompanying the enhanced data transfer rates is Samsung's own TurboWrite technology designed to accelerate drive performance even further. This Samsung drive is also constructed to be reliable as it supports up to 400 TBW and a 3-year limited warranty. Once installed, this M.2 shock resistant SSD can be managed using the included Magician software. - Enhanced Bandwidth
- Enhanced bandwidth beyond the SATA interface provided by the NVMe interface, combined with the new Polaris controller facilitates enhanced sequential Read/Write speeds. Plus, the new Intelligent TurboWrite technology accelerates write speeds even further.
- Solid Reliability
- The 960 EVO holds its own by boasting up to 400 TBW for the 1TB capacity model and is backed by a 3-year limited warranty. Dynamic Thermal Guard prevents overheating, protecting your data and ensuring optimal performance.
- Manage Your Drive
- The 960 EVO comes with the newly upgraded Magician software that lets users monitor, manage and maintain the drive. Magician provides personalized firmware checking and additional functions tailored for individual user's drives. It even updates the firmware automatically to make sure that the drive's performance stays up to date.
UPC: 887276185286 In the Box Samsung 1TB 960 EVO NVMe M.2 Internal SSD 3-Year Limited Warranty or 400 TBW More info from Samsung effyueawrsdzyesfaufwvv Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung 1TB 960 EVO NVMe M.2 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung 960 Evo Specs | | | Drive Capacity | 1.0 TB | | Cache Memory | None | | | | Interface | PCIe 3.0 x4 | | Random Read Speed | 380,000 IOPS (4 KB Files) | | Random Write Speed | 360,000 IOPS (4 KB Files) | | Sequential Read Speed | 3200 MB/s | | Sequential Write Speed | 1900 MB/s | | | | Drive Type | SSD | | Form Factor | M.2 2280 | | | | Flash Controller | Samsung Polaris | | TRIM Support | Yes | | | | Encryption | 256-Bit AES Hardware Encryption | | Mean Time Between Failures (MTBF) | 1.5 Million Hours | | | | Power Draw | 5.0 mW (Standby)
5.7 W (Active)
1.2 W (Idle) | | | | Operating Shock | 1500 G / 0.5 ms | | Operating Temperature | 32 to 158°F / 0 to 70°C | | | | Dimensions (W x H x D) | 3.1 x 0.9 x 0.1" / 8.0 x 2.2 x 0.2 cm | | Weight | 0 lb / 9.1 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.6 x 3.9 x 1.0" |
